2018 Kaishan Hot Sale Kg920b Crawler Portable Rotary Bored Pile mine Drill Rig
- Category: >>>
- Supplier: Chengdu Shidashi Mechanical Equipment Co. Ltd.
Share on (1600396773535):
Product Overview
Description
Product Description

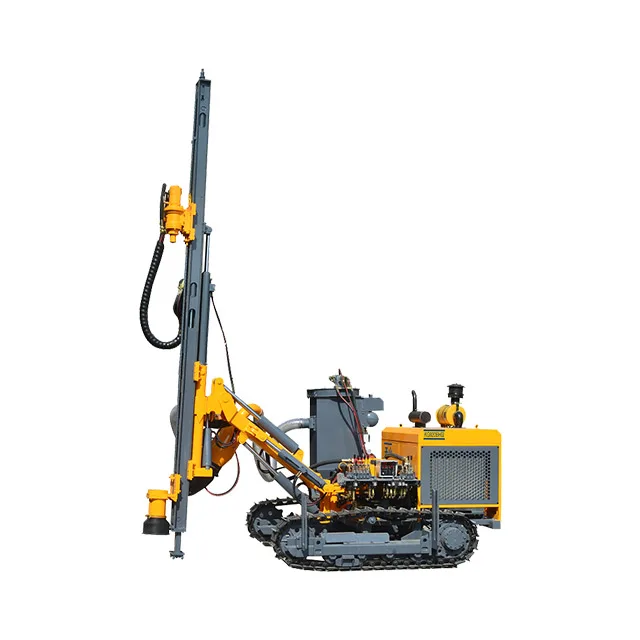

KG920BH Surface DTH Mining Drill Rig For Quarry With Dust Collection
The KG920B/KG920BH down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China lll), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

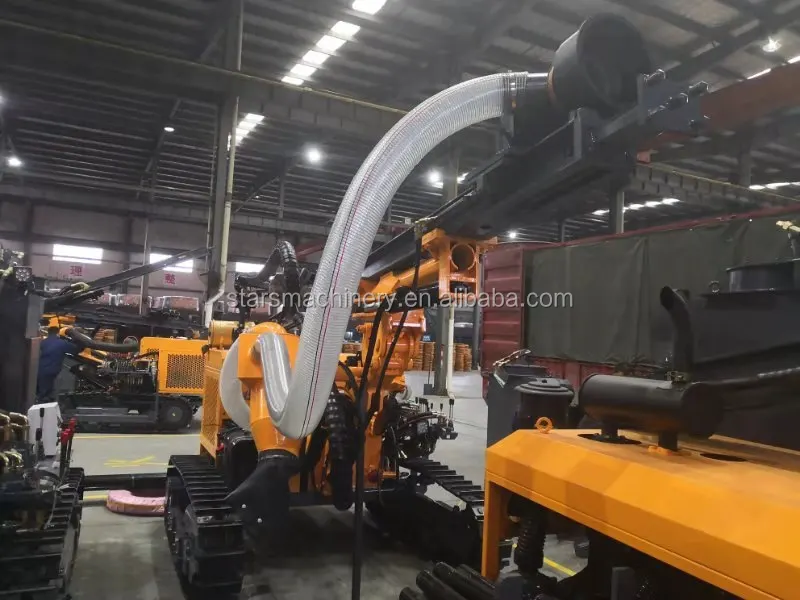

The KG920BH down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly
and reliable.
The KG920BH down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly
and reliable.
Model | KG726III | KG726HIII | |
Weight | 4200kg | 4400kg | |
Dimension | 5600*2400*2300mm | 5600*2600*2300mm | |
Drilling hardness | f=8-20 | ||
Drilling diameter | Φ80-115mm | ||
Economic drilling depth | 25m | ||
Rotation speed | 120r/min | ||
Rotary torque | 2000N·m | ||
Lifting force | 18KN | ||
Propulsion mode | Cylinders - Chain | ||
Feed length | 3780mm | ||
Travel speed | 0-2.5Km/h | ||
Climbing capacity | 30° | ||
Ground clearance | 350mm | ||
Feed pitch angle | down 135° up50° | ||
Feed swing angle | left 100° right45° | ||
boom pitch angle | down 50° up25° | ||
boom swing angle | left 44° right45° | ||
Feed extension | 900mm | ||
Diesel engine | Yuchai YCD4R23T8-80(59KW/2400r/min) | ||
Drill rod | 64*2m | ||
Toe-hole drilling | Min.350mm,Max.2750mm | ||
Product Paramenters

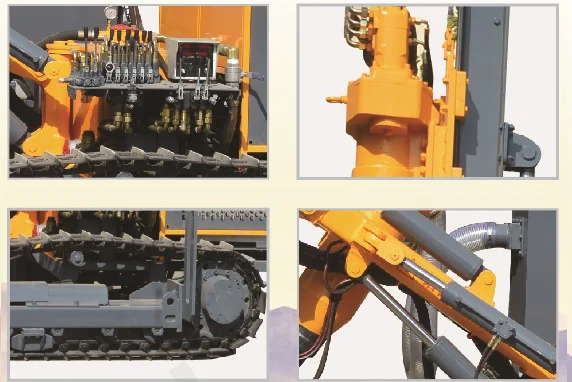

Details Images

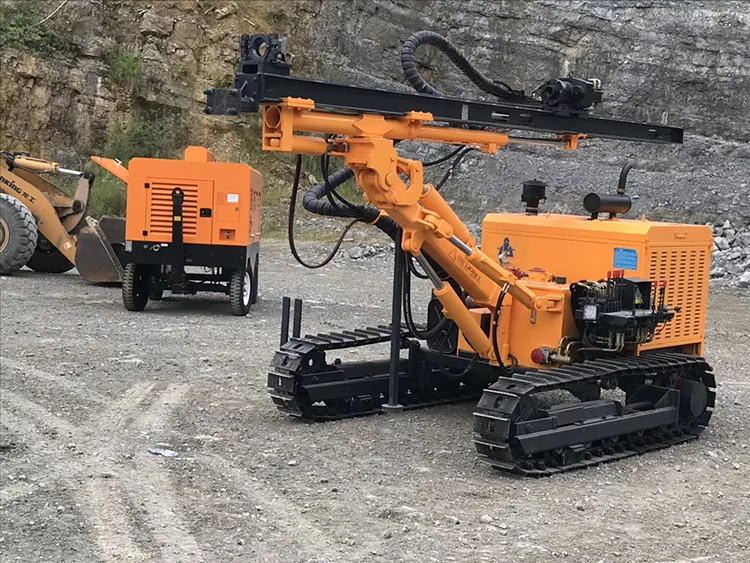

Application

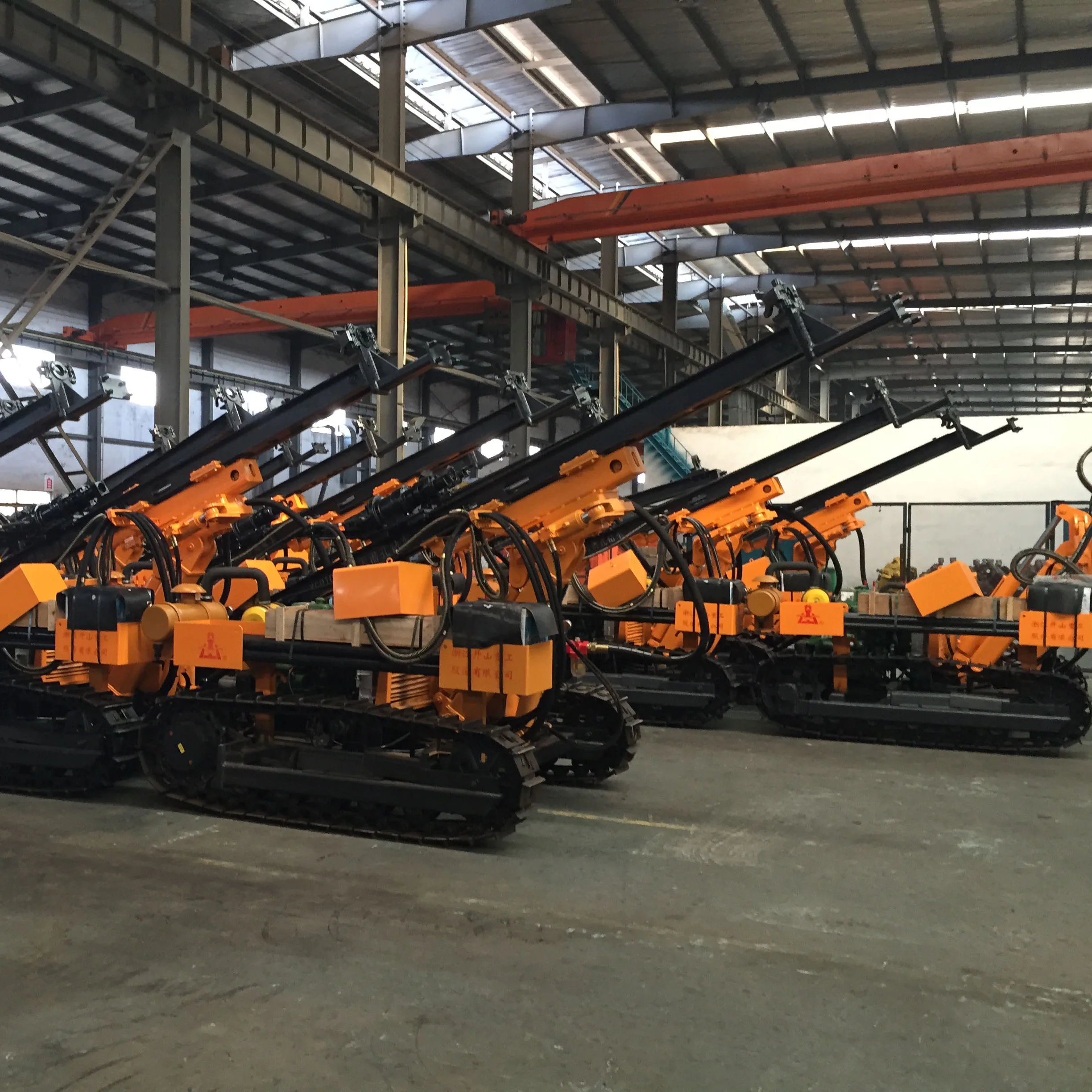

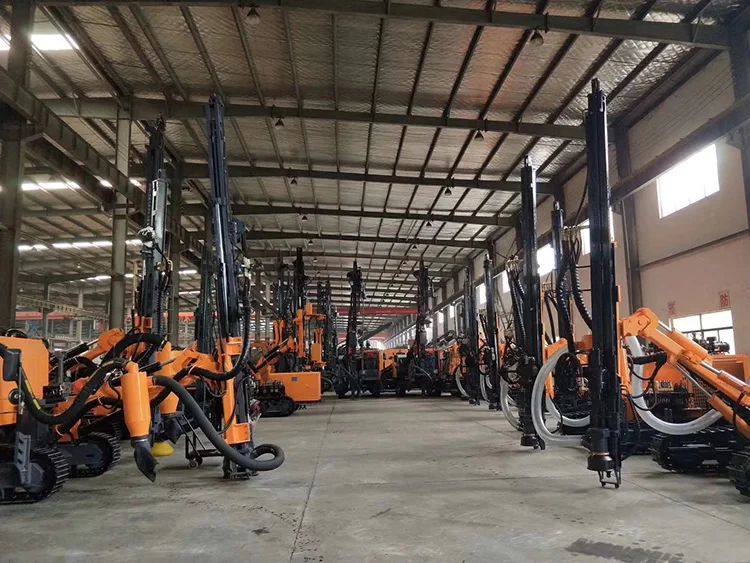

Our Company
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our Company is located in JNo.9 Kaixuan Ave West, Economic Zone Quzhou, Zhejiang, China
Q3: How long is your air compressor machine warranty?
A3: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your requirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery, the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8.What about the maintenance?
A8: First maintenance need to be done after 500 Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.
Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.

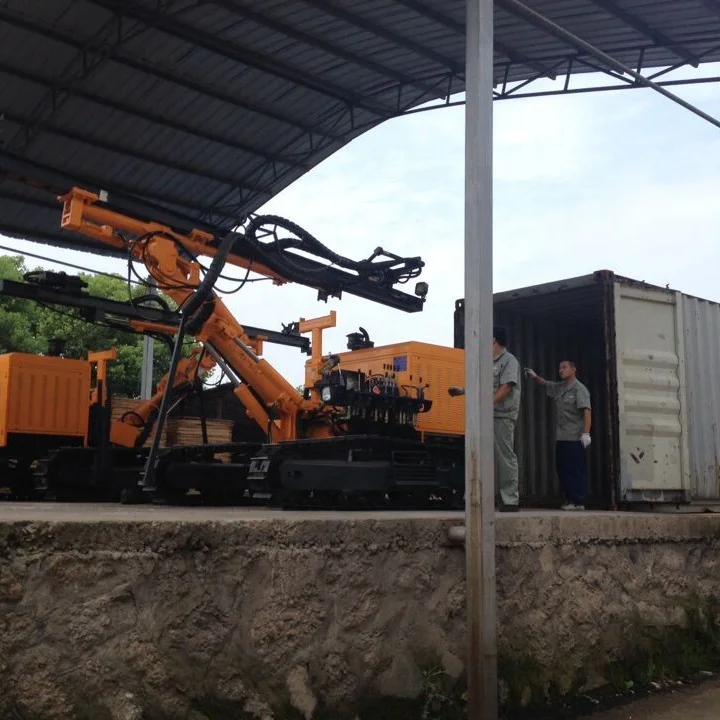

Packaging & Shipping
