Подземный 5 тонный карьерный Электрический свинцово кислотная батарея локомотив масок diamond gold угольной шахты горно шахтного оборудования
- Category: Locomotive >>>
- Supplier: Xiangtan Electric Locomotive Factory Co. Ltd.
Share on (1600396774076):
Product Overview
Description
Why choose us?
1. The thickness of our steel plate is 30-50mm, which guarantees the explosion-proof performance, safety performance and service life of the electric locomotive, and also ensures that the actual towing weight can be achieved.
2. Our batteries are fully produced by our own. There are only three companies in China that produce batteries independently, and we are one of them.
3. Our motors are self-produced and are well-known in China. Our frequency converters, chargers, and driver control rooms are completely self-produced, saving costs to the greatest extent.
4. Our armature is made of all copper, not the copper clad aluminum material of small factories, which greatly increases the life of the locomotive.
5. We guarantee free on-site installation and training after-sales service, 1-2 months.
Product Description

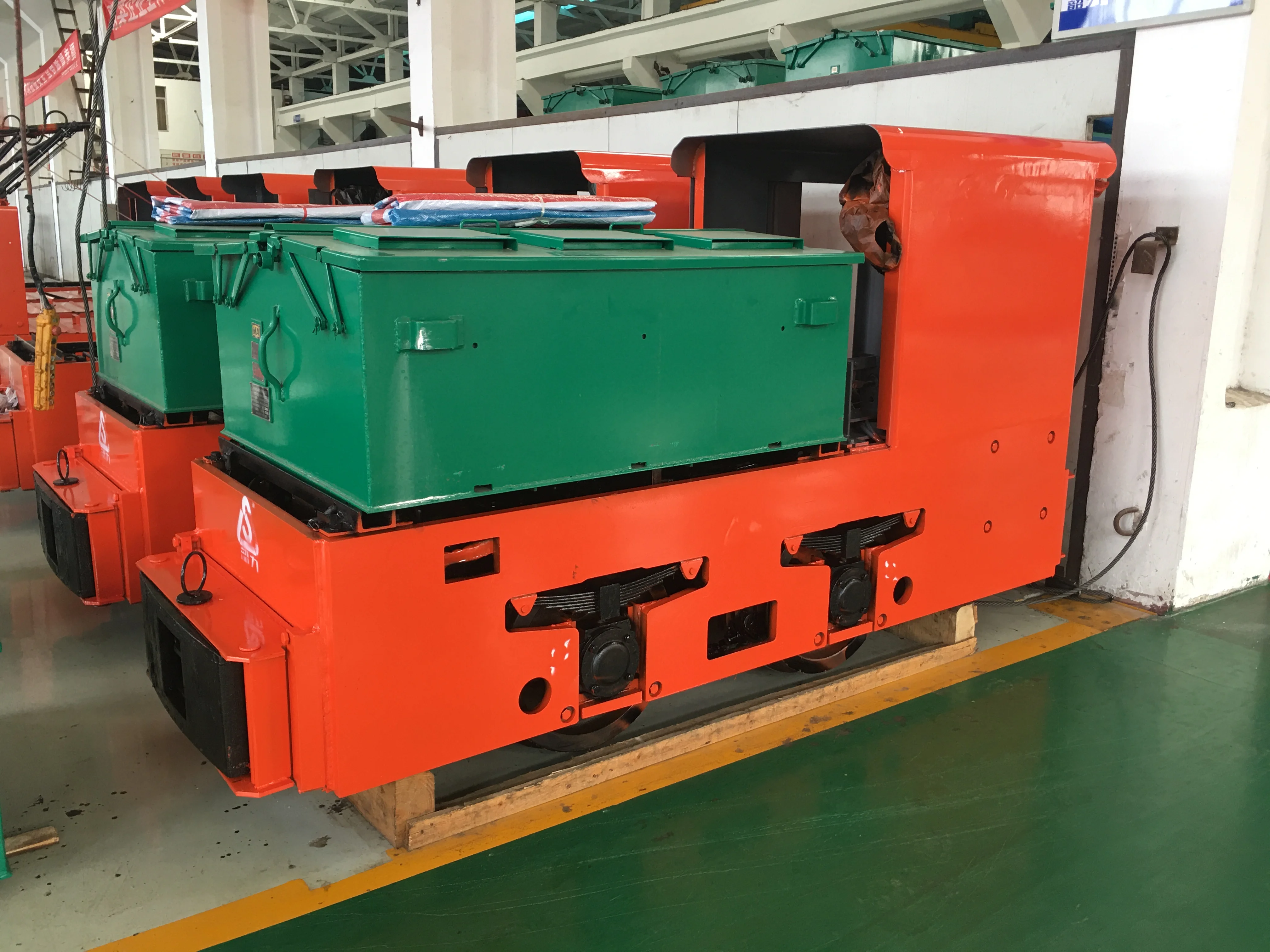

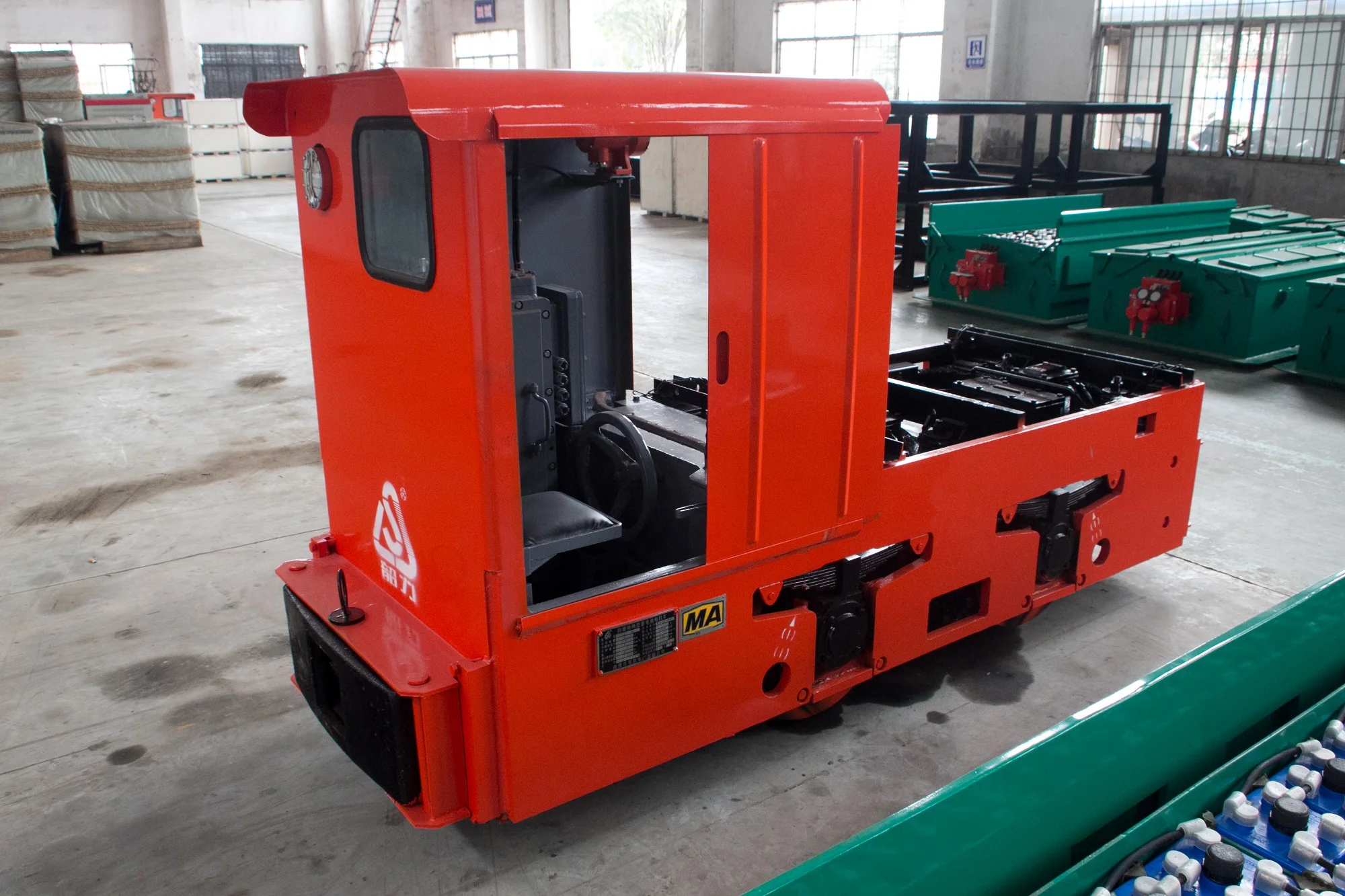

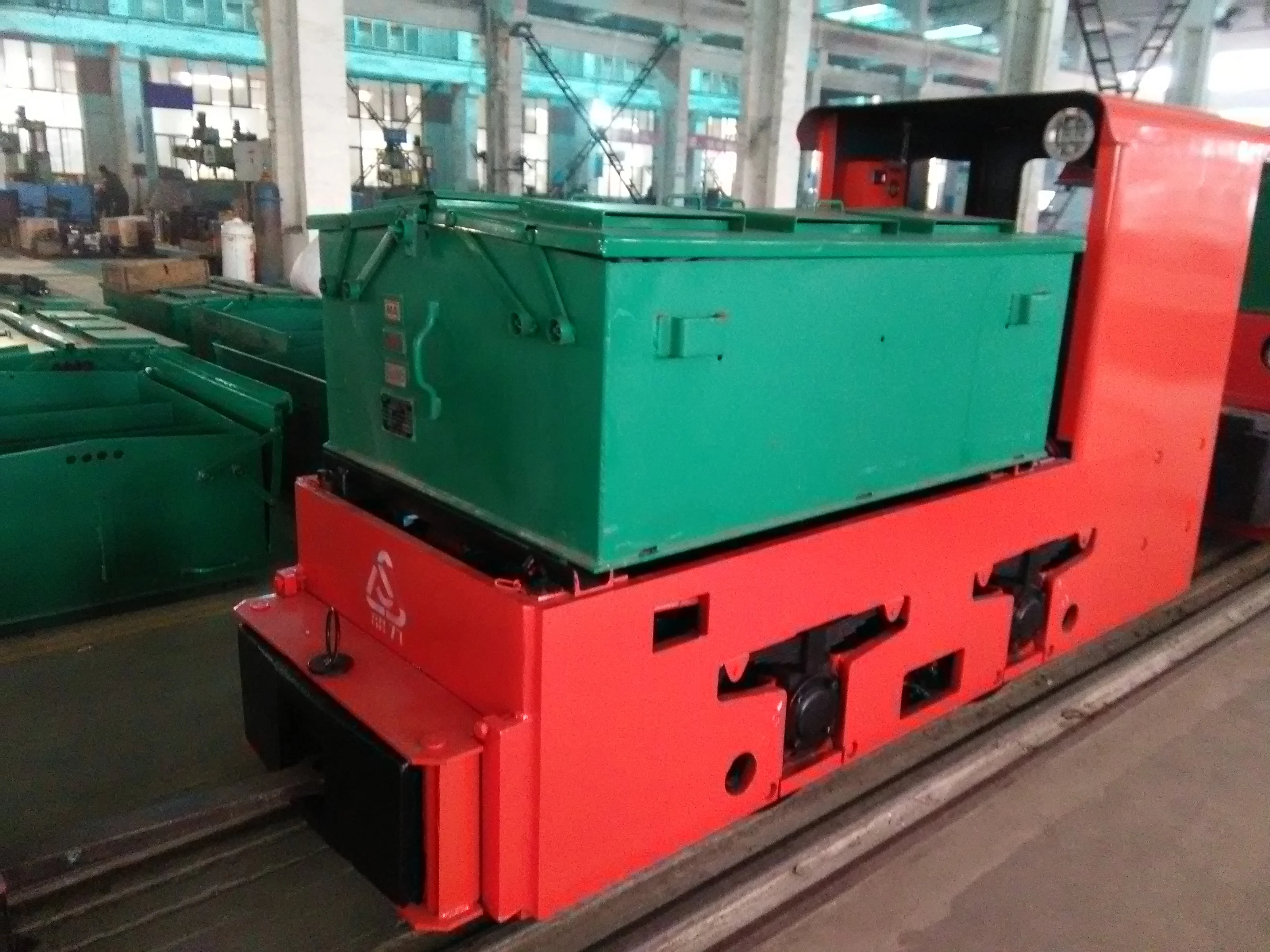

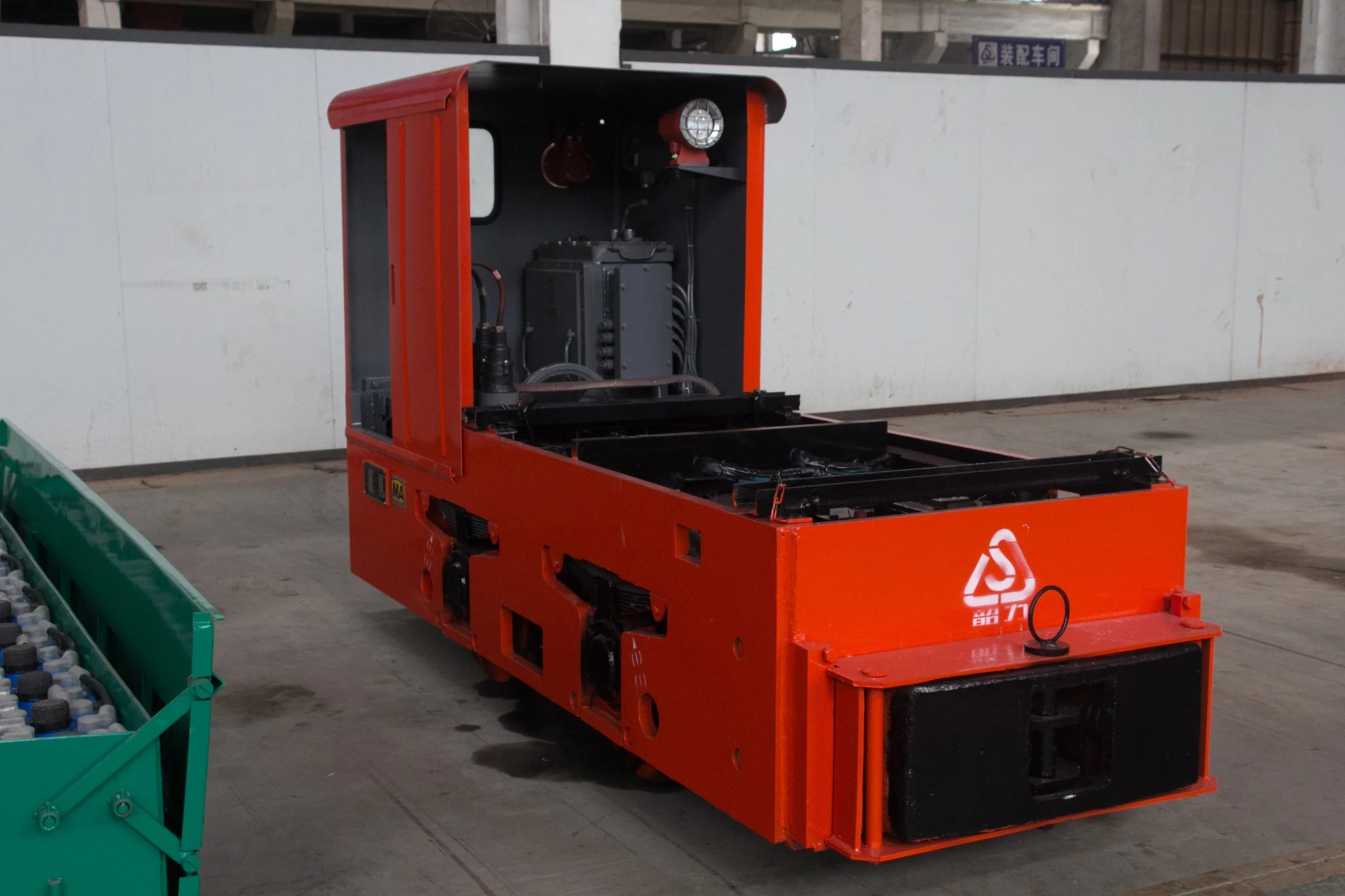

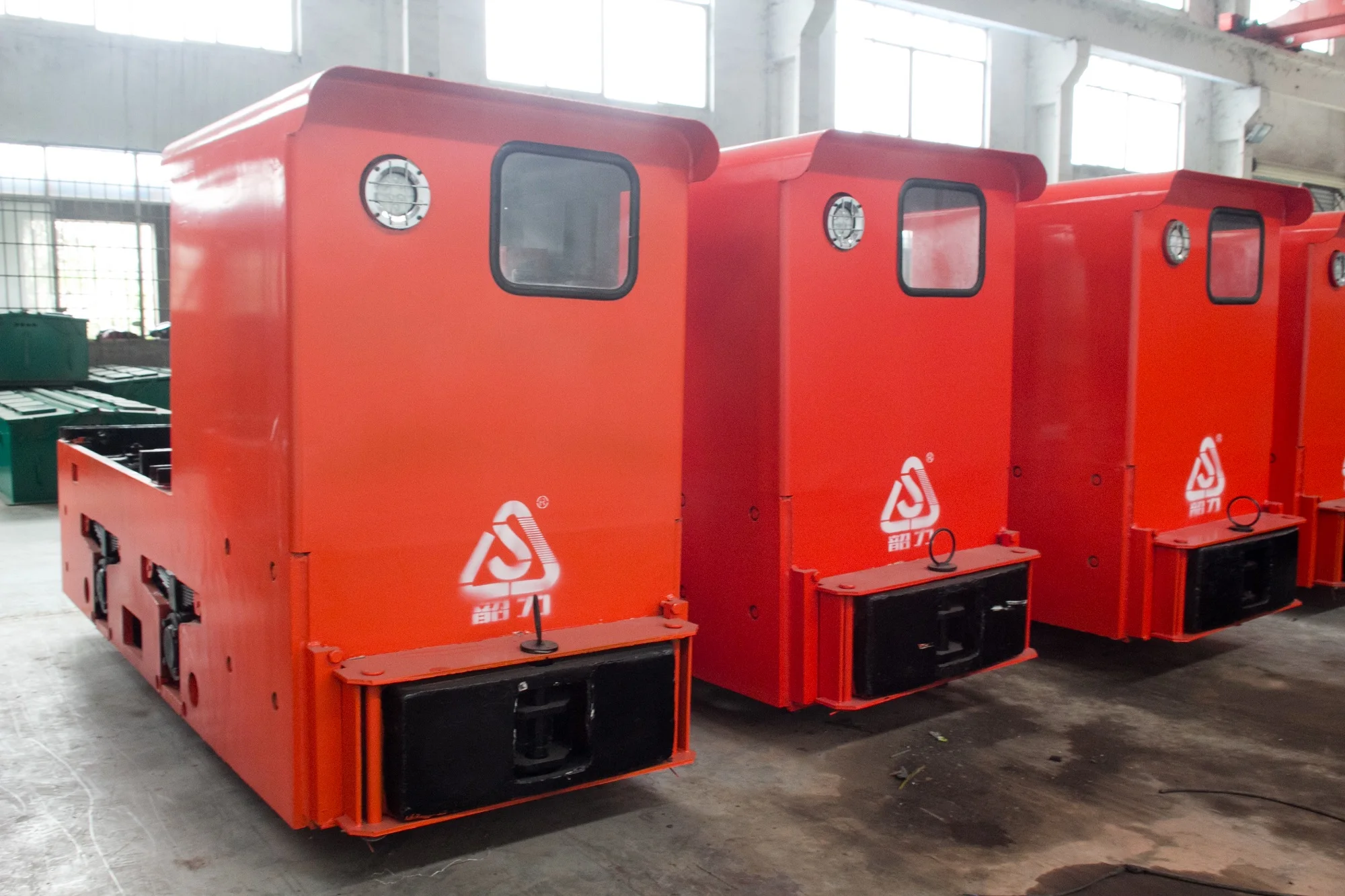

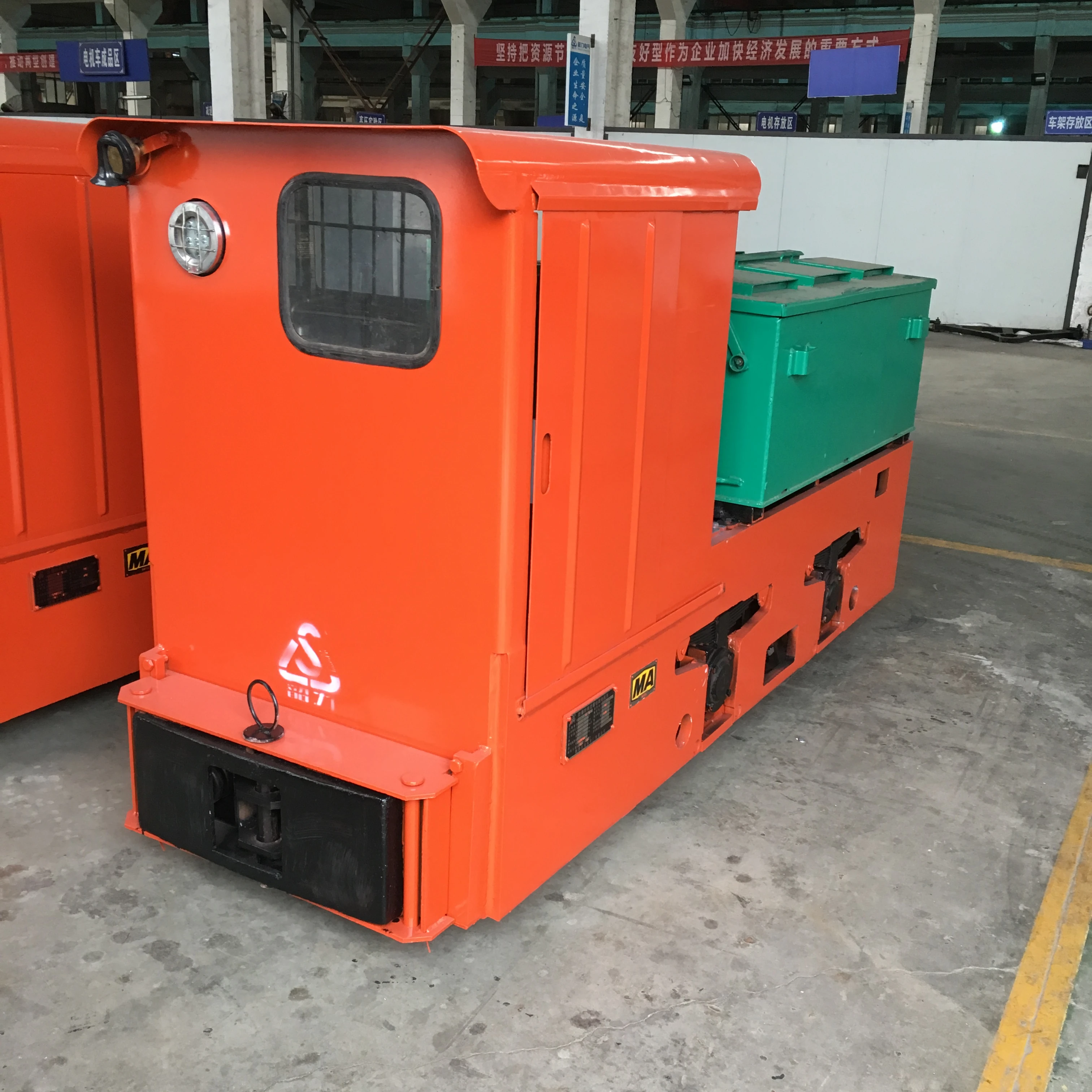

Underground 5 Ton Mining Electric Lead-acid battery locomotive diamond gold coal mine mining equipment
Product details
Model Name | CTY5/6,7,9G(B) |
Adhesive Weight | 5 tons |
Track Gauge | 600, 762 or 900mm(according to requirements) |
Hourly System Traction | 7.06kN |
Max. Traction | 12.26kN |
Hourly System Speed | 7km/h |
Supply Voltage | 90V |
Capacity of Traction Battery | 330Ah or 385Ah ( 5 hours capacity) |
Power of Electric Motor | 7.5 kW*2 |
Length | 2960mm or 2860mm |
Width | 920, 1082 or 1220mm |
Height | 1550mm |
Wheelbase | 850mm |
Wheel Diameter | Φ520mm |
Height of Traction | 210 or 320mm |
Min. Turning Radius | 6m |
Speed Regulating Mode | Resistance or IGBT |
Braking Mode | Mechanical Brake |
Frame
Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings.
Speed control
In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
Brakes
Mechanical brake to the four wheels by brake shoes.
Sanders
Pneumatic sanding system to the rails.
Battery
The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 45 pcs series storage lead acid batteries.
Buffers and motor suspension
The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a springs brace.
Product Category
Related Products
Company Information
Company profile >>
Xiangtan Electric Locomotive Factory Cor., Ltd. was established in 2000,covering the area of 66,000 square metres, with capacities of 1.5 tonne to 65 tonne locomotive, rail haulage equipment, mining, tunneling and construction sectors. Always being leading manufacturer of mining electric locomotive industry, we owned own famous trademark "SHAOLI' and was issued by ISO 9001,ISO14001,ISO45001,CE certification,National High -Tech Enterprise, China Famous Brand, and etc.
Company Panorama
Honor
Buildings
Office
Workship
Certifications
Packaging & Shipping
PACKAGE:
Standard export wooden packing.
DELIVERY TIME:
15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
