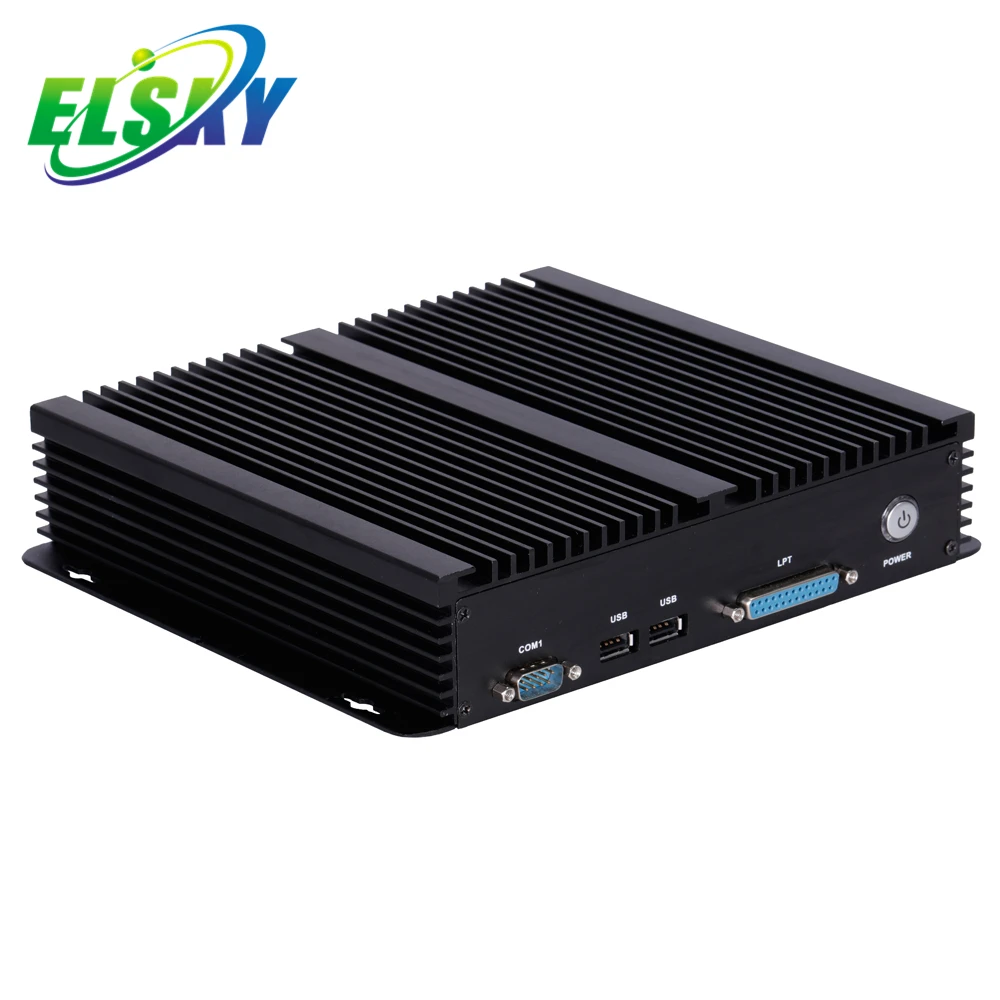

ELSKY industry PC fanless i3 6100U/i5 6200U/i7 6500U 6*USB 6COM Max.16GB RAM 2*SATA3.0/1*MSATA3.0/Realtek 8111F 2*1000M LAN

Share on:

Price:$142.00 - $144.00
Price in USD:Details


Product Overview


Product Description

ELSKY industry PC fanless  i3 -6100U/i5-6200U/i7-6500U  6*USB 6COM Max.16GB RAM  2*SATA3.0/1*MSATA3.0/Realtek 8111F  2*1000M LAN


Main Features:

1. Supporting 6th Gen.processors,Intel Skylake platform,Celeron 3855U,3955U,Core i3/i5/i7;

2. Supporting 7th Gen.processors,Intel Kaby lake platform, Celeron 3865U,3965U,Core i3/i5/i7;

3. HD-MI 1.4 output support 4K display;

4. High speed,supports 2*DDR3 1600/1866 low voltage(1.35V) dual memories;

5. Supporting HD-MI+VGA (or DVI)+LVDS three screens display,

also supports synchronous,asynchronous display;

6. On-board 6*COM interfaces,support to take the electric 5V,12V from COM interface,

also supports 1*RS485;

7. On-board 1*Mini-PCIE,supports Wifi/3G/4G,1*MSATA,supports MSATA hard disk;

8. 1*1000M LAN(RJ45),or choosing 2*1000M LAN;

9. Supporting dual 8,24 bit LVDS.


QM9600,QM9700 industry PC.

Intel Processors

QM9600 motherboard supports 3855U,3955U,I3-6100U,I5-6200U,I7-6500U,etc.

QM9700 motherboard supports 3865U,3965U,I3-7100U,I5-7200U,I7-7500U,etc.

Form Factor(Size)


Chip set

Integrating Intel Soc chip set in CPU.


2*SO-DDR3L 1600/1866 low voltage(1.35V) dual memories,supports Max.16GB RAM.

Display Interfaces

Integrating HD510/HD610 GPU;

Supporting Dynamic Memory Allocation(DVMT);

Supporting HD-MI,VGA,LVDS display interfaces;

Supporting three screens to display;

HD-MI display interfaces support 4K resolution display;

Supporting dual 8,24 bit LVDS.

Hard Disk interfaces

2*SATA3.0 , 1*MSATA3.0

Network Interface

1*Realtek8111F 1000M RJ45 LAN;

Supporting Wake On LAN(WOL);

Having 2*1000M LAN to choose.

Audio Interface

Integrating Realtek ALC662 HD digital audio decoder;

Supporting Line-Out,Mic-In interfaces,and have front pin on board;

Supporting 3W/5W power amplifier speaker.

I/O Expansion

4*USB3.0 , 6*USB2.0 , 6*RS232 COM , 1*RS485;

Supporting to take the electric 5V/12V from COM interface.

Expansion Bus

2*Mini PCI-Express slots,supports optional WIFI/3G/GPS/MSATA.

System Monitor

/ Watch dog

Supporting CPU temperature monitor, fan speed,system temperature.

Operating Environment

Working temperature :-10~60℃

Relative humidity:5%~95%,non-condensation.

Power Supply

DC 12V or 19V power adapter.


AMI BIOS,support read only;Power switch,timer switch,remote switch equipment Intelligent identification.

Operating System

Win 7(64bit,32bit),Win 8,Win 10,Linux.

Fitted Mini PC Chassis



Related Products


Packaging & Shipping

 Every item will be tested and packed carefully with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.





3 working days after received full payment(In stock).
