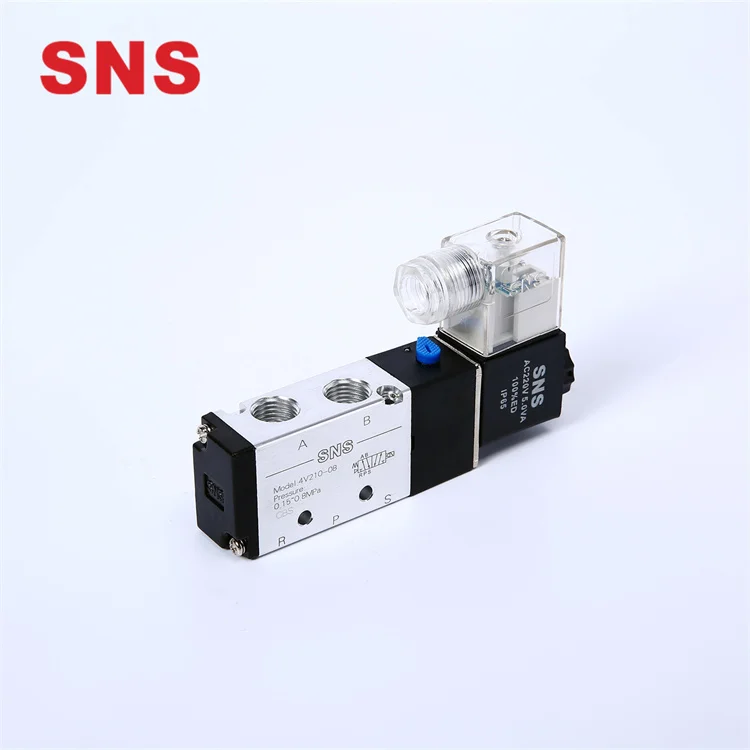

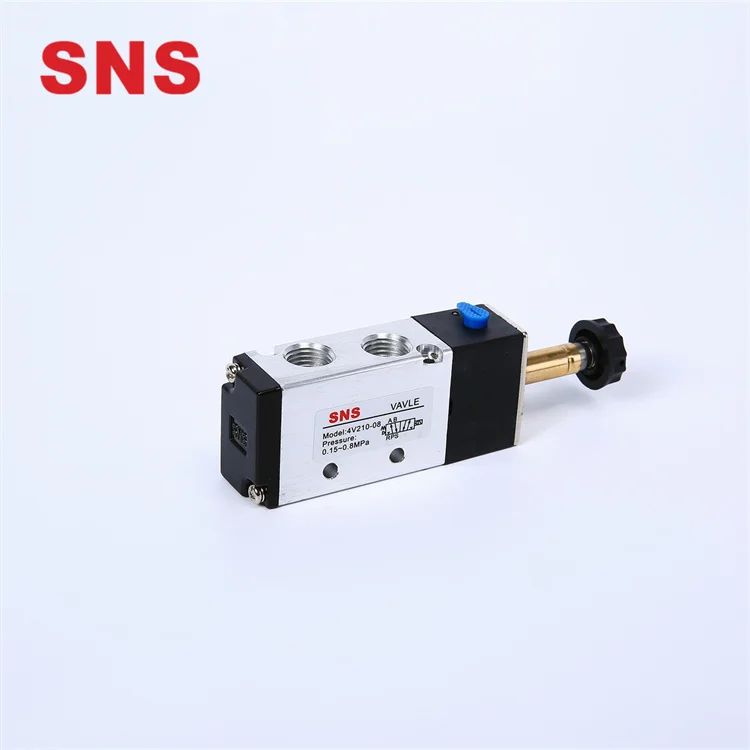

Manufacture Low Price Pneumatic Control Element 4v110 4v210 4v410 4v310 4v Series Solenoid Valve
- Category: >>>
- Supplier: Dongguan Shan Naisi Pneumatic Hydraulic Components Co. Ltd.
Share on (1600397229129):
Product Overview
Description
Products Description
Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | |||||||||
Working Media | Air | ||||||||||||||||
Action Mode | Internal Pilot Type | ||||||||||||||||
Position | 5/2Post | 5/3Port | 5/2Port | 5/3Port | |||||||||||||
Effective Sectional Area | 5.5mm^2(Cv=0.31) | 5mm^2(Cv=0.28) | 12.0mm^2(Cv=0.67) | 9.0mm^2(Cv=0.50) | |||||||||||||
Port Size | Input=Output=Exhaust Port=M5*0.8 | Input=Output=Exhaust Port=G1/8 | |||||||||||||||
Lubrication | No Need | ||||||||||||||||
Working Pressire | 0.15~0.8Mpa | ||||||||||||||||
Proof Pressure | 1.0Mpa | ||||||||||||||||
Working Temperature | 0~60℃ | ||||||||||||||||
Voltage Range | ±10% | ||||||||||||||||
Power Consumption | AC:2.8VA DC:2.8W | ||||||||||||||||
Insulation Grade | F Level | ||||||||||||||||
Protection Class | IP65(DIN40050) | ||||||||||||||||

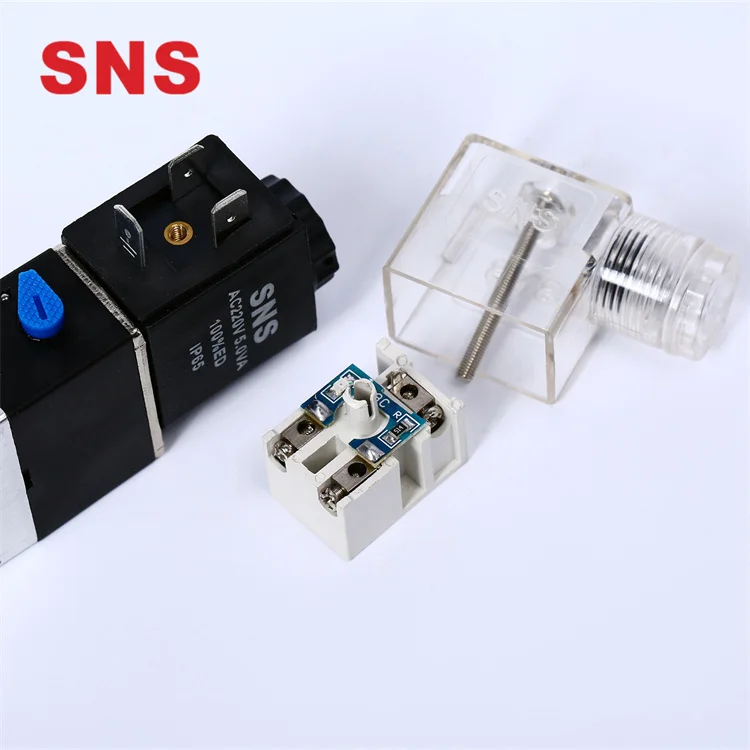

Connecting Type | Wiring Type/Plug Type | ||||||||||||||||
Max.Operating Frequency | 5Cycle/Sec | 3Cycle/Sec | 5Cycle/Sec | 3Cycle/Sec | |||||||||||||
Min.Excitation Time | 0.05Sec | ||||||||||||||||
Material | Body | Aluminum Alloy | |||||||||||||||
Seal | NBR | ||||||||||||||||
Model | A | B | C | D | E | F |
4V110-M5 | M5 | 0 | 27 | 14.7 | 13.6 | 0 |
4V110-06 | G1/8 | 2 | 28 | 14.2 | 16 | 3 |
4V120-M5 | M5 | 0 | 27 | 57 | 13.6 | 0 |
4V120-06 | G1/8 | 2 | 28 | 56.5 | 16 | 3 |
4V130-M5 | M5 | 0 | 27 | 57 | 13.6 | 0 |
4V130-06 | G1/8 | 2 | 28 | 56.5 | 16 | 3 |
