Product Overview

Description

High efficiency carbon steel Round / Square Shaped pipe making machine

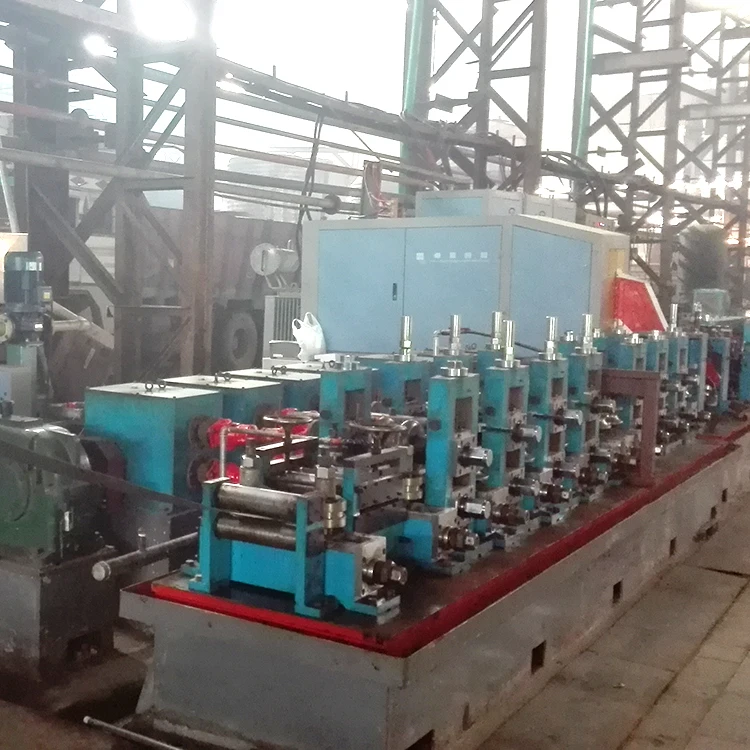

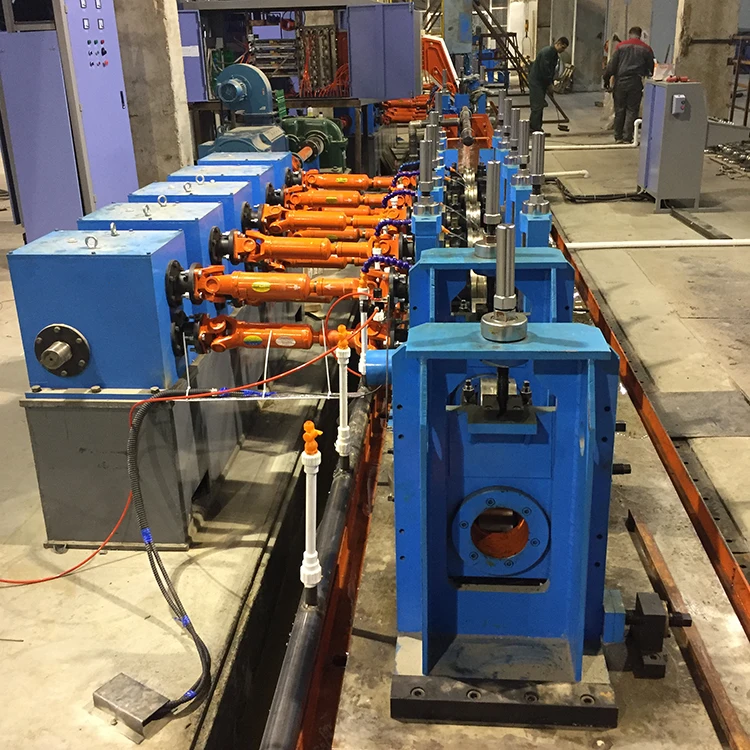

The mill is intended for manufacturing of round pipe of Φ25mm-Φ76mm with thickness of 1.2mm–4.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

Finished product will be of round pipe, square and rectangle pipe.



The technical flow of the production line:

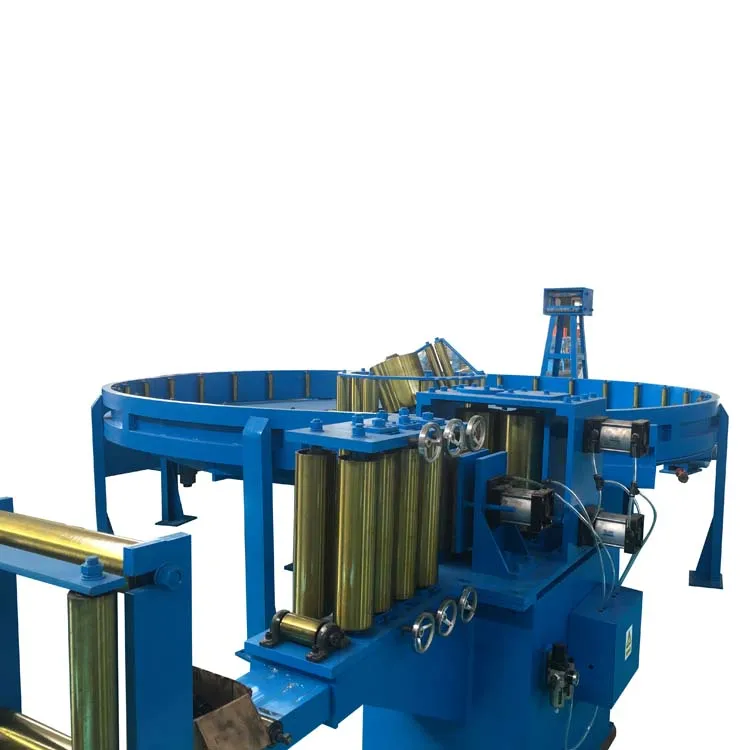

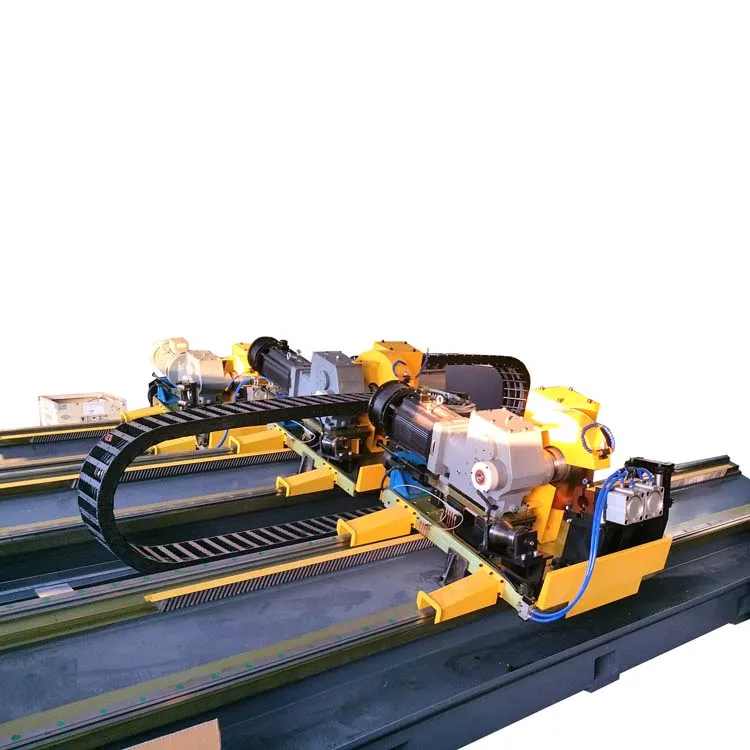

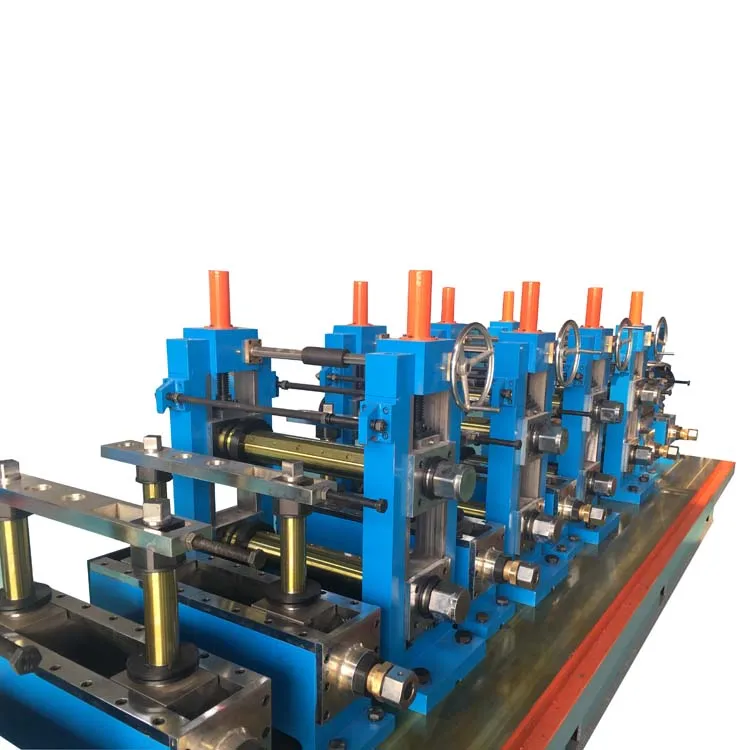

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine



Steel Pipe Specification
Round Pipe diameter	Ø25–Ø76mm
Pipe Thickness	1.2– 4.0mm
Square and rectangle pipe	20X20mm –60X60mm
Pipe Thickness	1.2 – 3.0mm
Pipe Length	6-9m
Length Tolerance	0-6mm



Steel Tape Specification
Material	Carbon steel (δb≤500Mpa, δs≤235Mpa)
Inner diameter	Φ470-Φ510mm
Outer diameter	Φmax=1900mm
Strip steel width	80mm-240mm
Strip steel thickness	1.2mm-4.0mm
The maximum weight	3.0 tons
Electric installed capacity	appro.450KW
Line Speed	1.5m3/h
