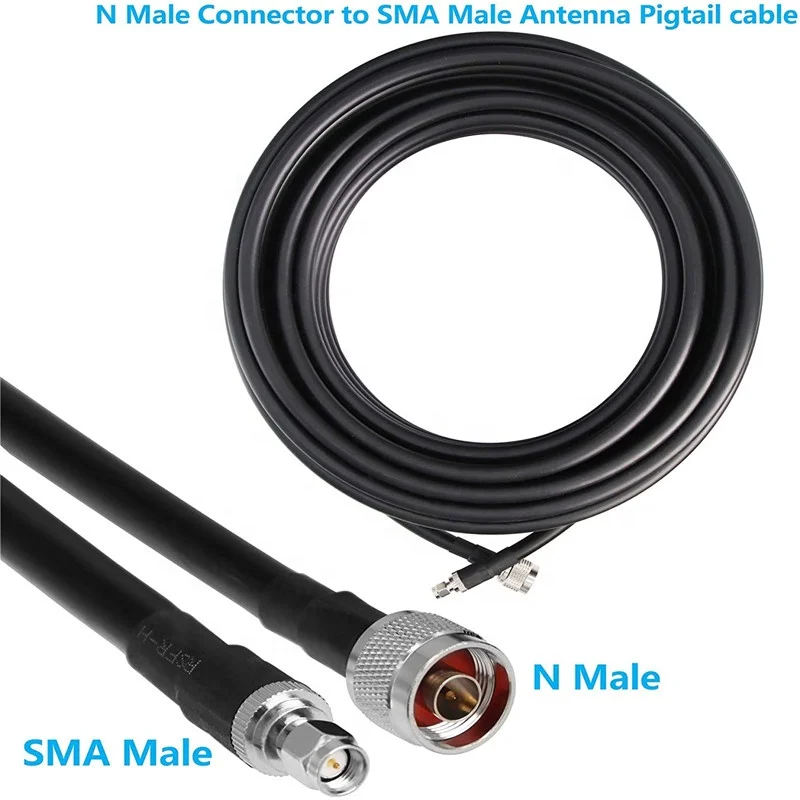

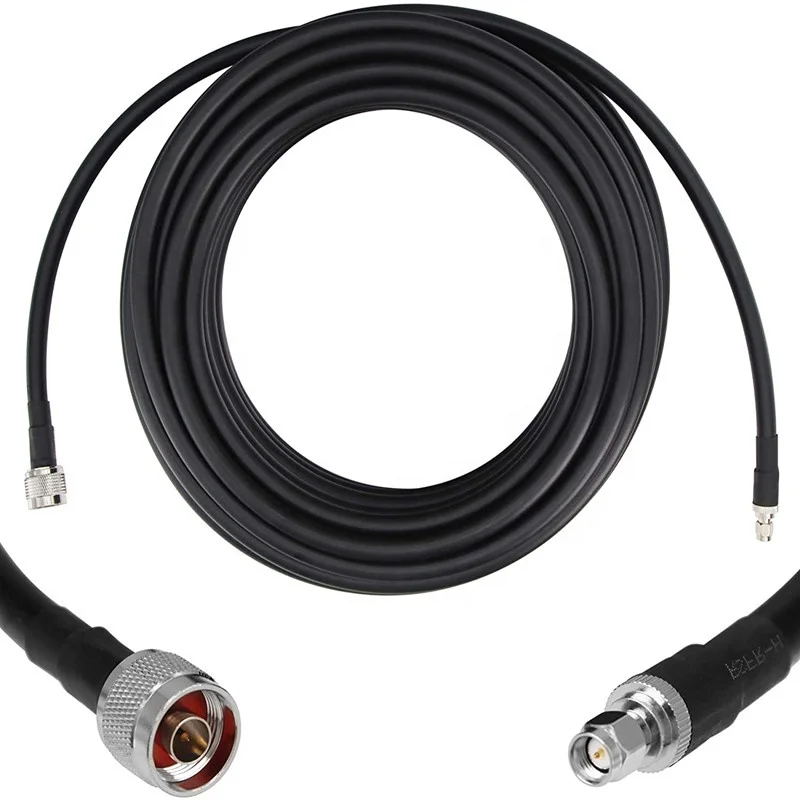

rf coaxial cable N male RP sma male lower loss LMR400 LMR200 LMR195 LMR300 LMR600 LMR400 Ham Radio jumper cable

Product Description

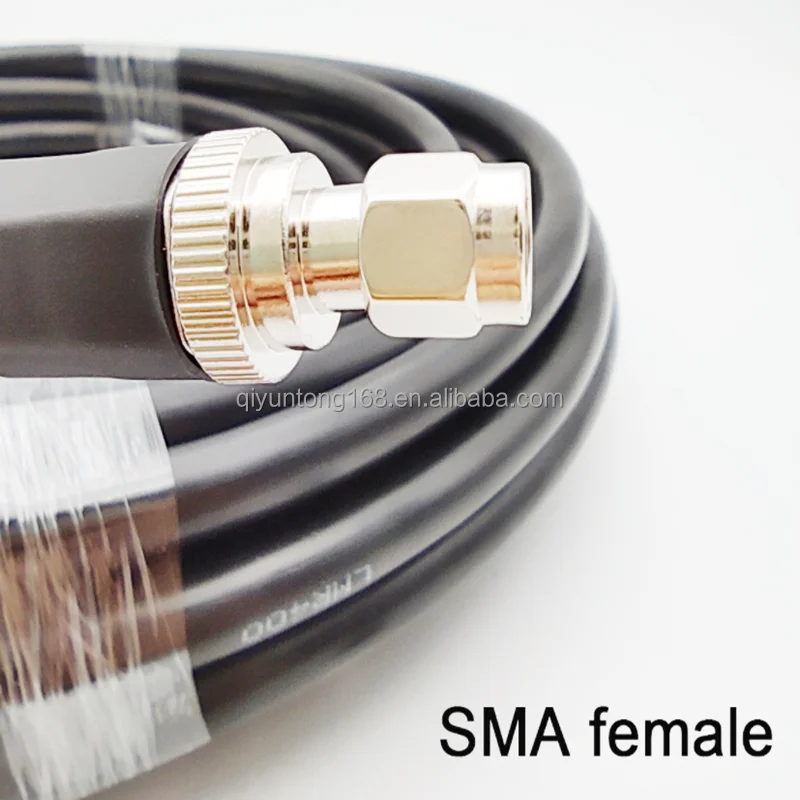

- Connector 1: 50 ohm male SMA plug

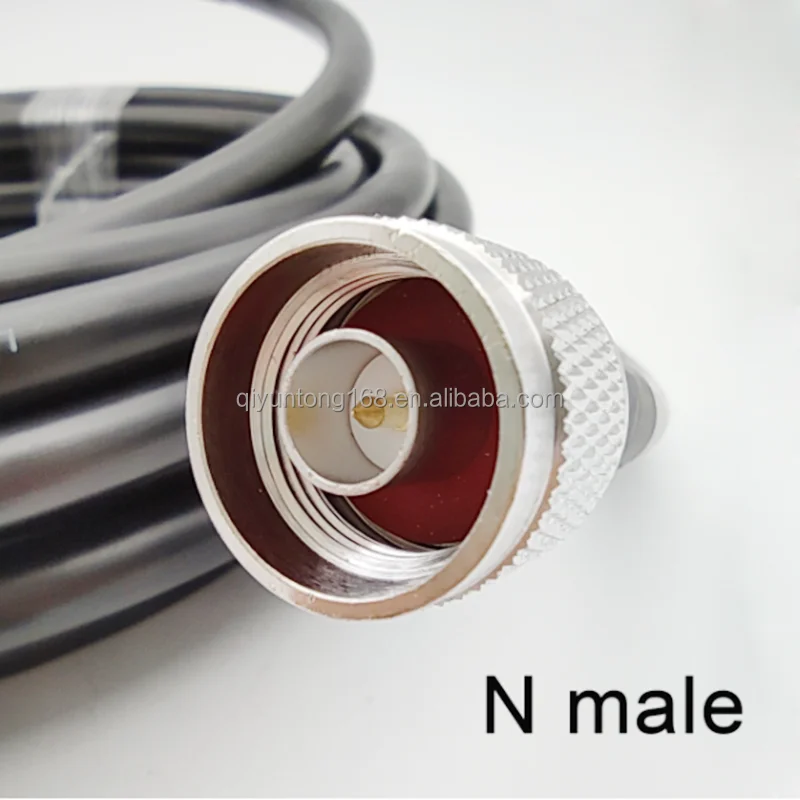

- Connector 2: 50 ohm male N plug
- Length:  (1 meters)Length or customized
- Impedance: 50 Ohm

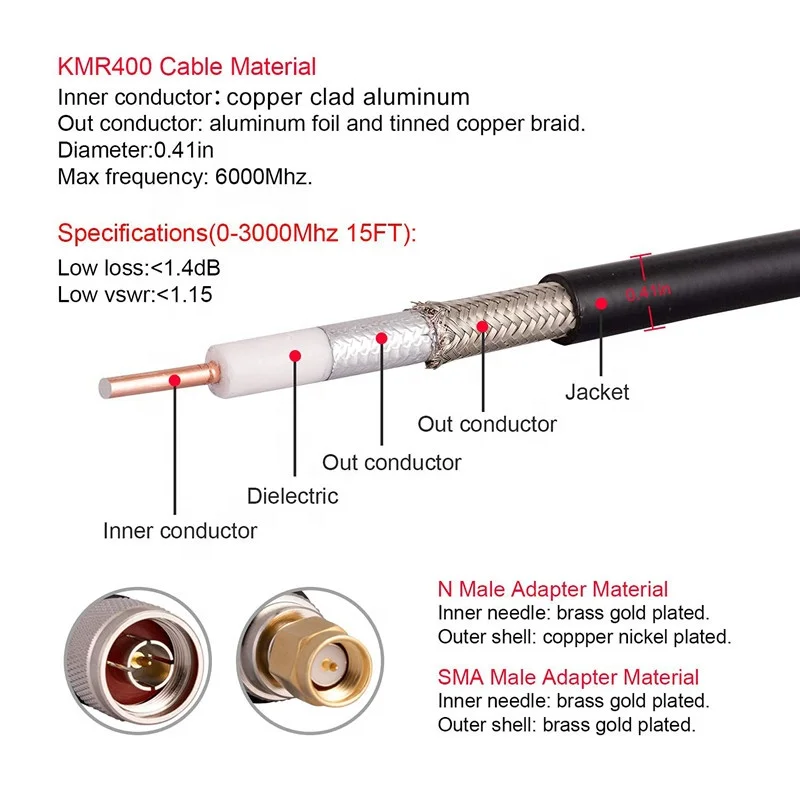

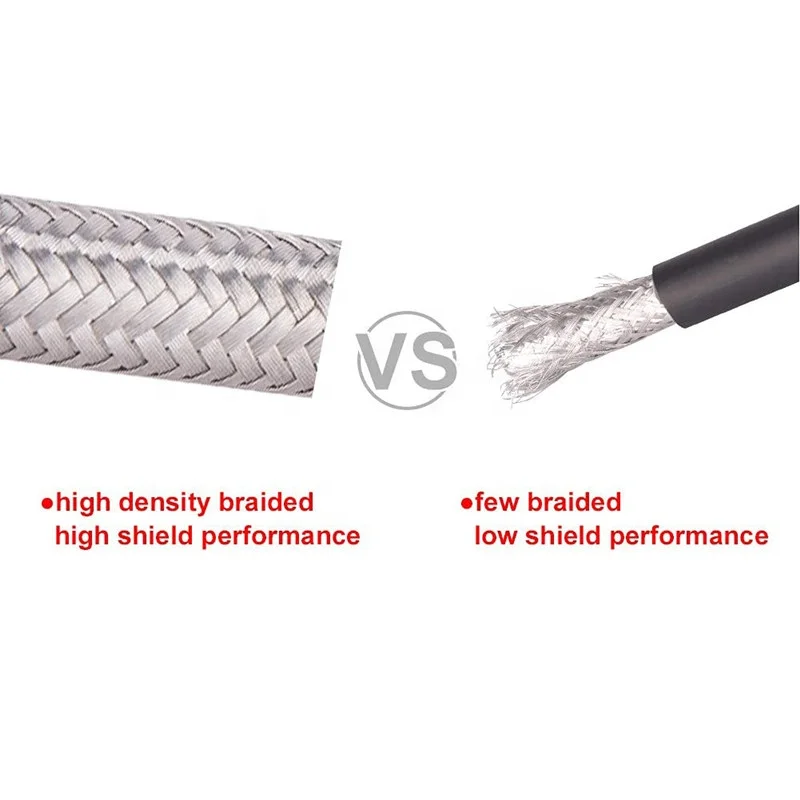

- Coaxial: Double Shielded Low Loss S-LMR400 Size (10.3mm / 0.4in diameter)
- Operating temperature: -20 ° C ~ + 70 ° C.
- The minimum bend radius is only 2.44 inches.
- Folds 90 degrees in an inch or less without leaking.

S-LMR-400 :
S-LMR400 is an excellent cable for routes up to 50-70 feet in WiFi and cellular use,
and provides superior performance for HF / VHF / UHF installations up to 250 feet.
S-LMR400 Coax is the same size as RG-8U or RG-213 cable, 0.405 inches in diameter.
A larger cable means a much larger center conductor and supports better signal retention for use at higher frequencies.
S-LMR400 assemblies are an immediate replacement for RG-8/9913 air-dielectric type cable and are ideal for jumper assemblies in wireless communication systems,
short antenna power supplies and any application that requires an easily routable, low-loss RF cable.

Application:

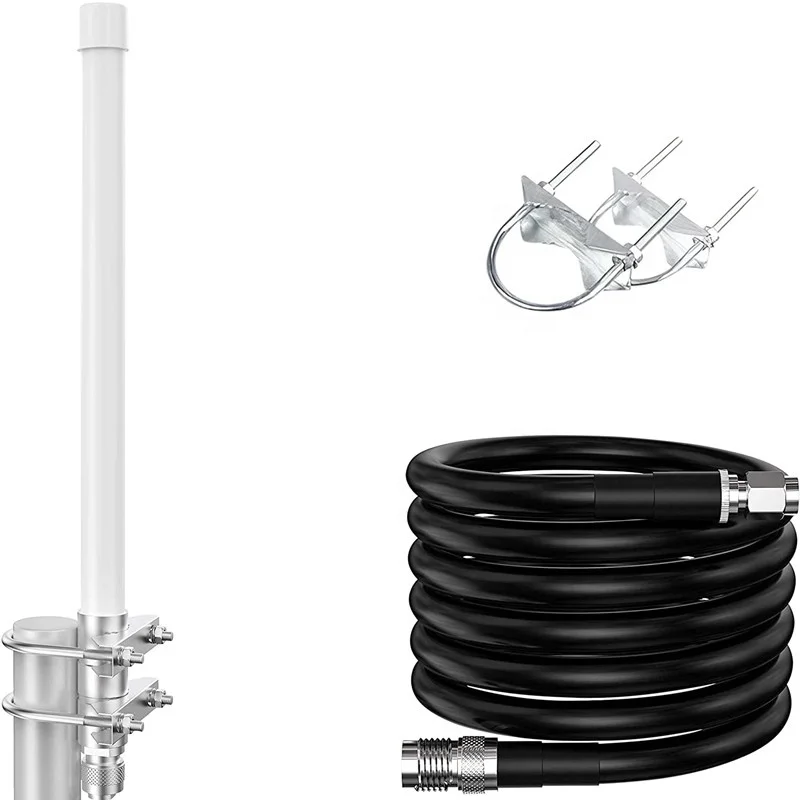

use to connect SMA radio sources such as modem, router, WiFi signal repeater, etc. to the female N connector found on many external fixed mount antennas (eg fiberglass omnidirectional, directional panel, sector), receivers, meters and radio transmitters.
