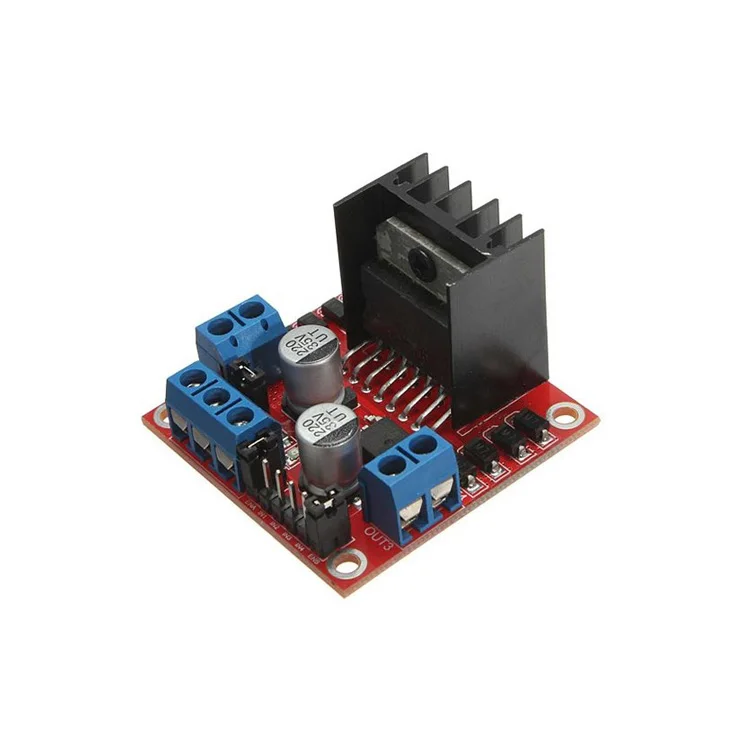

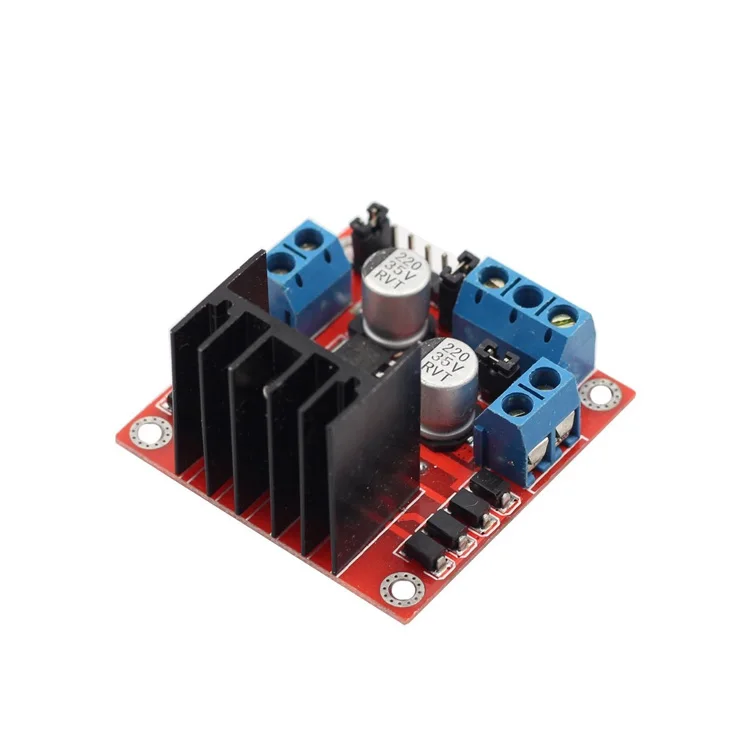

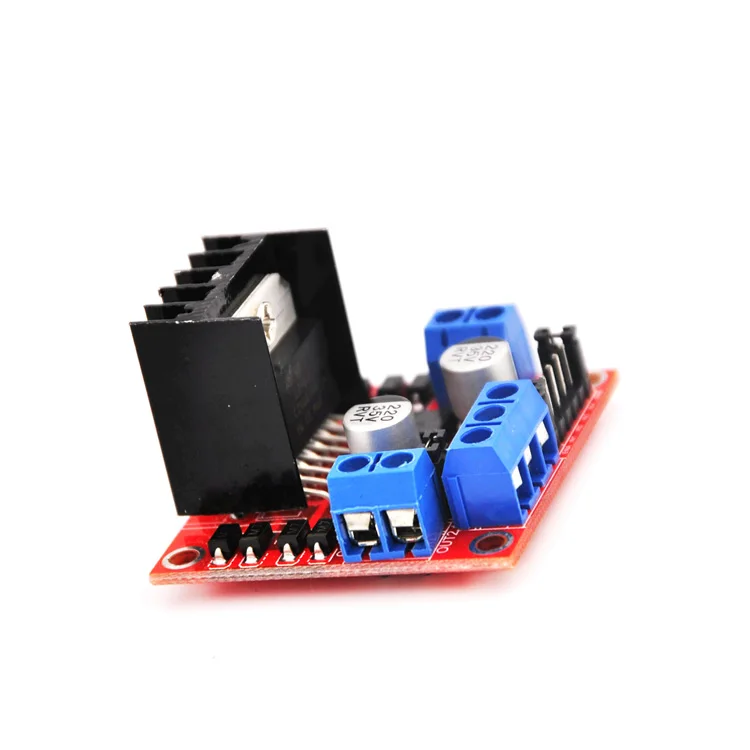

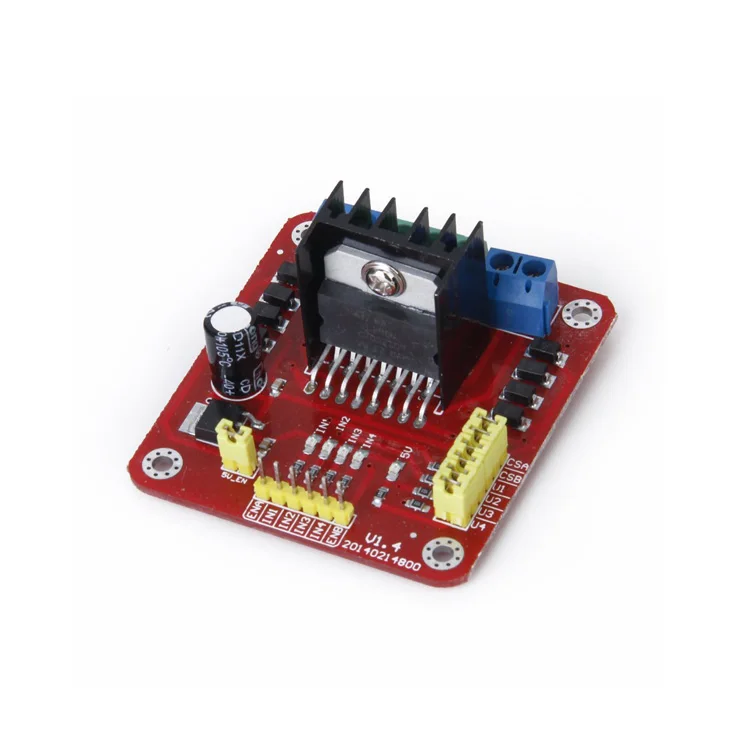

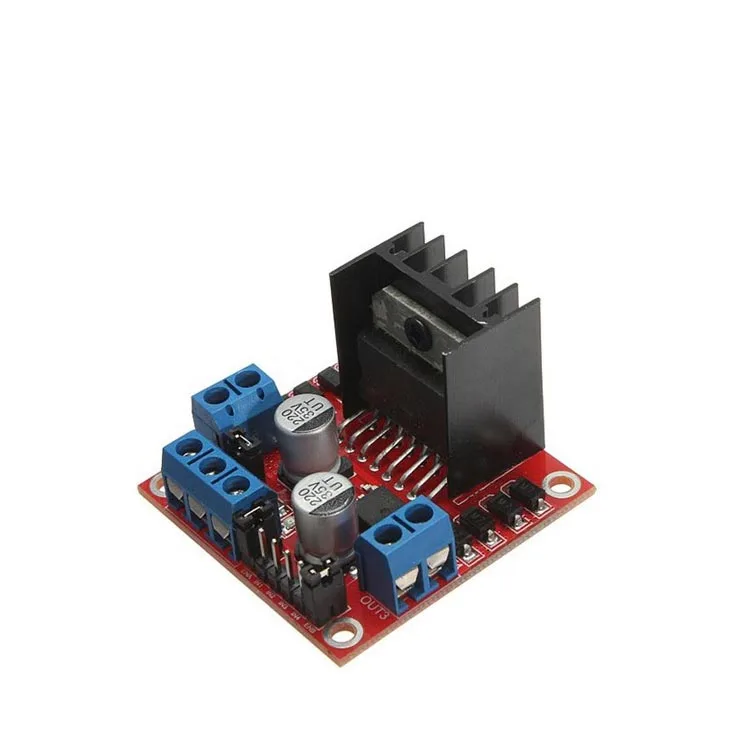

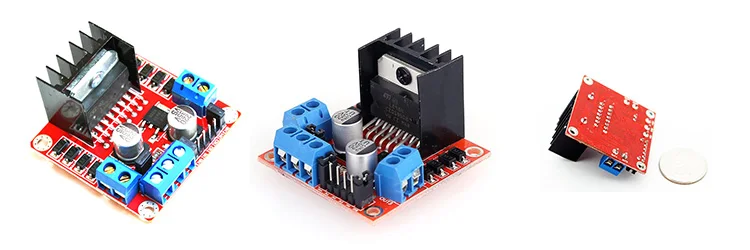

Dual H Bridge DC Stepper Motor Drive Controller Board Module L298N for arduin0 smart car robot

Specs:

Operating mode: Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA

Storage Temperature: -20 ℃ to ℃ to +135
Drive current: 2A(MAX single bridge)
Max power: 25W
Dimensions:43 x 43 x 27mm
Net weight:30g

Package weight:40g

The L298N H-bridge module can be used with motors that have a voltage of between 5 and 35V DC. With the module used in this tutorial, there is also an onboard 5V regulator, so if your supply voltage is up to 12V you can also source 5V from the board.

1.DC motor 1 “+” or stepper motor A+

2.DC motor 1 “-” or stepper motor A-

3.12V jumper – remove this if using a supply voltage greater than 12V DC. This enables power to the onboard 5V regulator

4.Connect your motor supply voltage here, maximum of 35V DC. Remove 12V jumper if >12V DC

5.GND

6.5V output if 12V jumper in place

7.DC motor 1 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.

8.IN1

9.IN2

10.IN3

11.IN4

12.DC motor 2 enable jumper. Leave this in place when using a stepper motor. Connect to PWM output for DC motor speed control.

13.DC motor 2 “+” or stepper motor B+

14.DC motor 2 “-” or stepper motor B-
