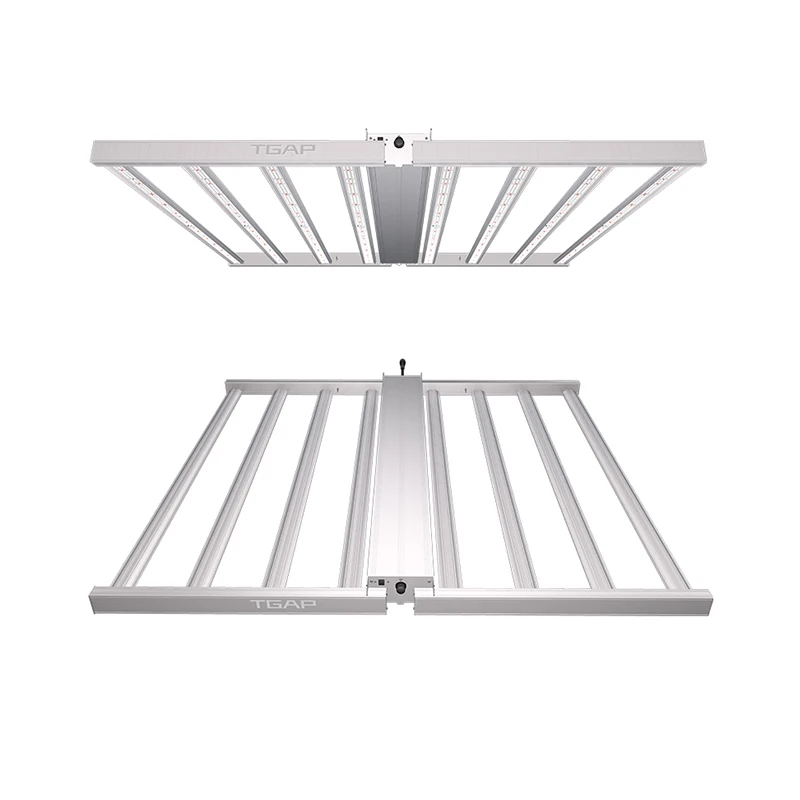

Top selling TGAP 850W 660w 1000w Led Grow light Bar Plant Lighting For Medical Farm, Greenhouse and indoor uv ir
- Category: >>>
- Supplier: Shenzhen TGAP Optoelectronic Technology Co. LTD.
Share on (1600397449559):
Product Overview
Description
Products Description

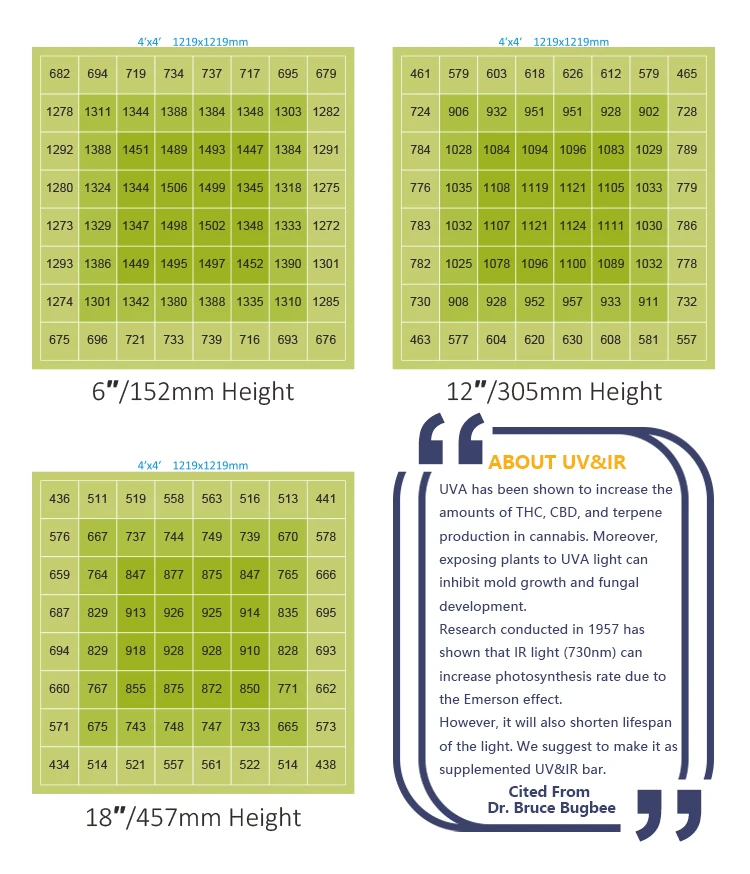

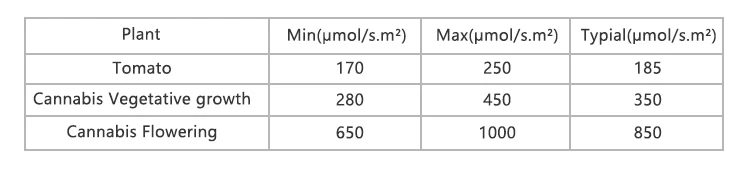

TYPICAL LIGHT LEVEL FOR YOUR CANNABIS
More than adequate PPFD with OSRAM top bin LEDs, 100% authentic tested data.

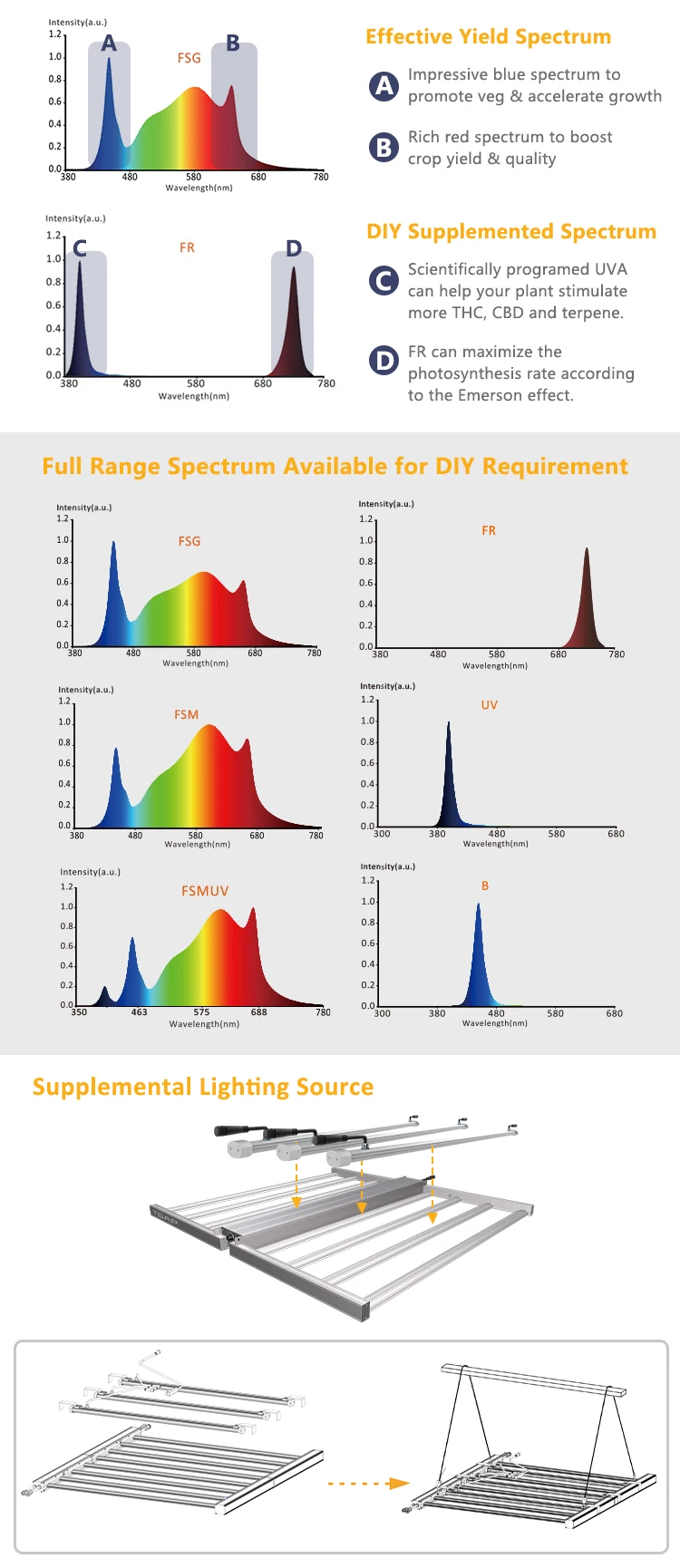

WIDELY PROVED MOST EFFECTIVE SPECTRUM
PRODUCT FEATURES
Specification
Model | S-Type660 | ||||||||||
Power Consumption (incl.driver) | 660W | ||||||||||
Input Voltage | AC100-277V / AC277-480V | ||||||||||
Input Current | Max 7.4 A@100VAC / Max 3.2A@230VAC / Max 2.7A@277VAC / Max 2.2A@347VAC / Max 1.6A@480VAC | ||||||||||
Input Frequency | 50/60Hz | ||||||||||
Power Factor | ＞0.9 | ||||||||||
Spectrum | FSG | FSM | FSMUV | ||||||||
PPF (μmol/s) | 1716 | 1848 | 1650 | 1782 | 1584 | 1716 | |||||
Effiacy (μmol/J) | 2.6 | 2.8 | 2.5 | 2.7 | 2.4 | 2.6 | |||||
Heat Output | 2244 BTU/h | ||||||||||
Dimming | 0-10V | ||||||||||
Operating Temperature | -4-113℉ (-20-45℃) | ||||||||||
Storage Temperature | -40-176℉ (-40-80℃) | ||||||||||
Dimensions (L*W*H) | 43*42.7*2.8inch (1093*1085*72mm) | ||||||||||
Weight | 24.3lbs(11kg) | ||||||||||
L70 Rating | ＞78000 hrs | ||||||||||
L90 Rating | ＞54000 hrs | ||||||||||
Certification | DLC / ETL / UL8800 / CE | ||||||||||
Location Rating | Wet | ||||||||||
LVD Certification | IEC/EN 60598-2-1, IEC/EN 60598-1 | ||||||||||
AC Voltage | 120V | 208V | 230V | 277V | 347V | 480V | |||||
AC Current | 5.61A | 3.18A | 2.89A | 2.41A | 1.92A | 1.40A | |||||
AC Power | 670W | 655W | 655W | 653W | 657W | 654W | |||||
Power Factor | 0.998 | 0.990 | 0.987 | 0.980 | 0.988 | 0.972 | |||||

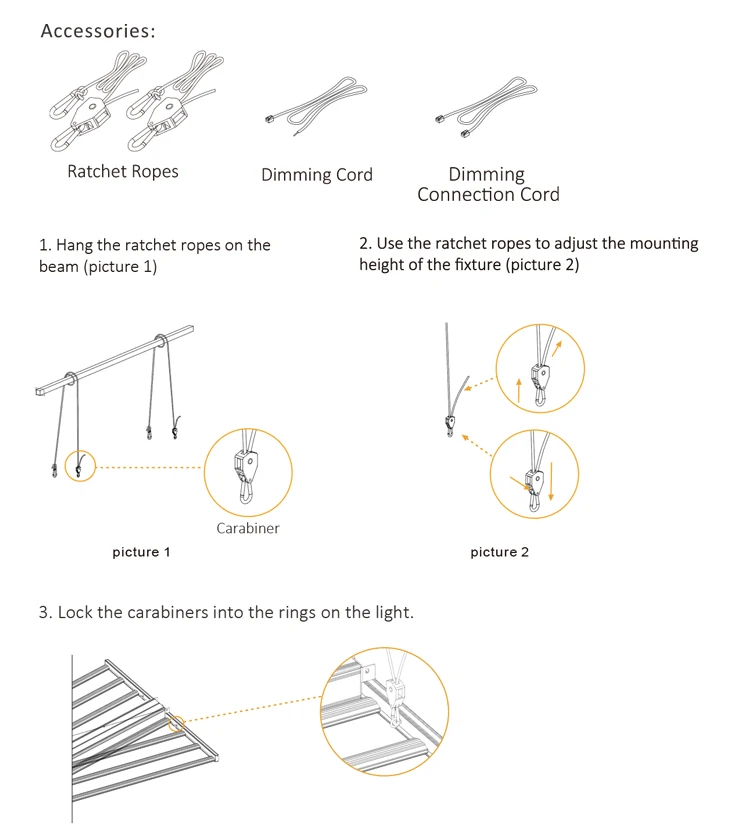

Installation Instructions

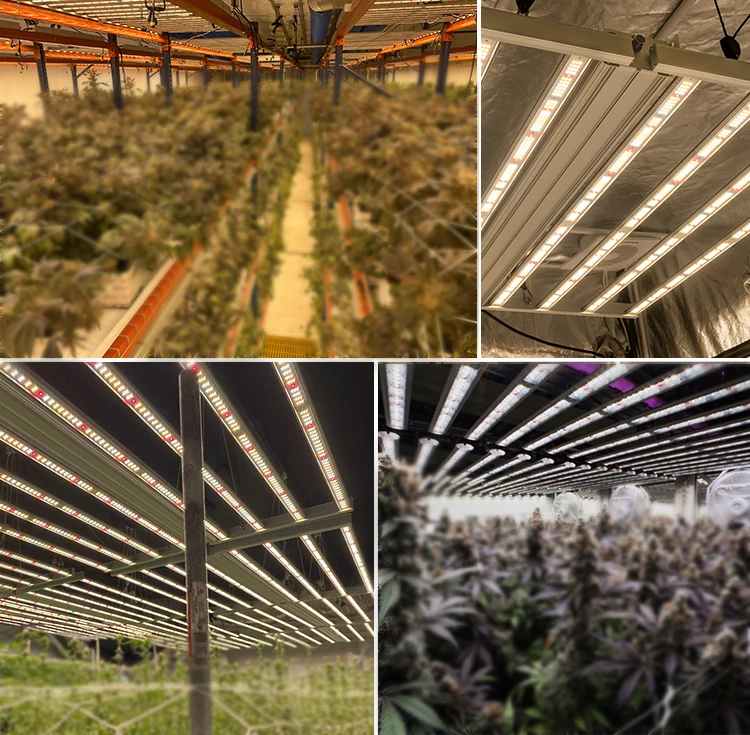

Customer Case
* YIELDS UP TO 4 LBS
* For low rooms, vertical racks, over benches warehouse farming, indoor and greenhouse.
Product Packaging
Type | Carton Size | G.W per Carton | Quantity per Carton |
S-Type660 | L45.7*W7.5*H24.3inch (L1160*W190*H615mm) | 29.1lbs (13.2kg) | 1 PCS |
S-Type720 | L49.6*W7.5*H26.4inch (L1260*W190*H670mm) | 32.0lbs (14.5kg) | 1 PCS |
S-Type850 | L49.6*W7.5*H26.4inch (L1260*W190*H670mm) | 32.0lbs (14.5kg) | 1 PCS |

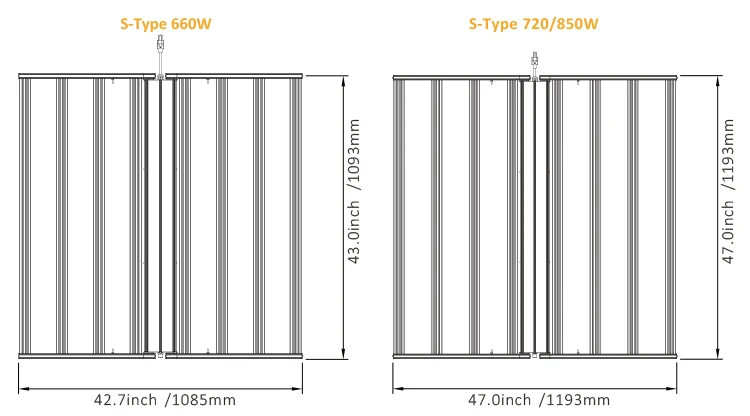

FIXTURE DIMENSION

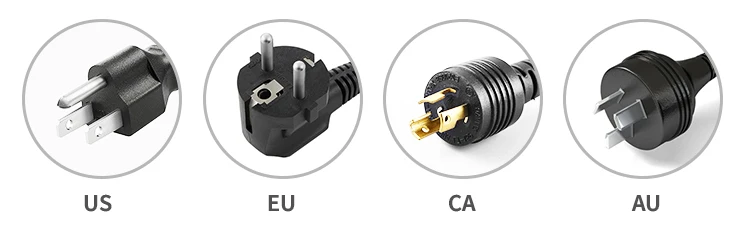

PLUG SPECIFICATION OPTIONS
Logistics & Payment
Company Profile
As a group of well-experienced growmies, our company is promising to lead the world step ahead to accomplish vertical farming and to grow as a pro. We thrived to improve the quality of agricultural and hydroponic solutions, while continuously optimizing our product line and supply chain to offer the better cost-effective product without sacrificing the quality and efficiency. Feel free to let us know your demands, and we are more than happy to provide the best suggestion for your growth with our expertise!
FAQ
Q: Do you support a sample order?
A: Yes, we highly suggest customers get a sample test before high-volume order.
Q: Do you have a warehouse in America?
A: Yes, our current warehouse is located in California. We Will set up more warehouses in North America and Europe.
Q: How long is the transit time?
A: Sample order takes 5-10 days, free delivery in most areas of America. For bulk orders, 30-45days.
Q: Can I customize the light, package, or label?
A: Yes, we offer OEM & ODM service for the quality client.
Q: How can you guarantee the quality?
A: Professional product quality inspection team will test the product before every single delivery to minimize the defective rate. Also, our product is made up of leading brands components.
Q: How about After-sales service?
A: We provide a 5-year warranty for most of our products. Let us know your problem and our technical support team will get to you ASAP.
Q: What are your terms of payment?
A: Payment terms vary among different countries. Generally, 30% T/T in advance, 70% balance before shipment.
A: Yes, we highly suggest customers get a sample test before high-volume order.
Q: Can you provide some local growmies’ feedback?
A: Sure, we are closely connected with our customers to follow up their experience with our products, and we have cooperated with lots of professional local growmies. So, you can either have some feedback pics from them or even take a field trip with their permission.
A: Sure, we are closely connected with our customers to follow up their experience with our products, and we have cooperated with lots of professional local growmies. So, you can either have some feedback pics from them or even take a field trip with their permission.
Q: Do you have a warehouse in America?
A: Yes, our current warehouse is located in California. We Will set up more warehouses in North America and Europe.
Q: How long is the transit time?
A: Sample order takes 5-10 days, free delivery in most areas of America. For bulk orders, 30-45days.
Q: Can I customize the light, package, or label?
A: Yes, we offer OEM & ODM service for the quality client.
Q: How can you guarantee the quality?
A: Professional product quality inspection team will test the product before every single delivery to minimize the defective rate. Also, our product is made up of leading brands components.
Q: How about After-sales service?
A: We provide a 5-year warranty for most of our products. Let us know your problem and our technical support team will get to you ASAP.
Q: What are your terms of payment?
A: Payment terms vary among different countries. Generally, 30% T/T in advance, 70% balance before shipment.
