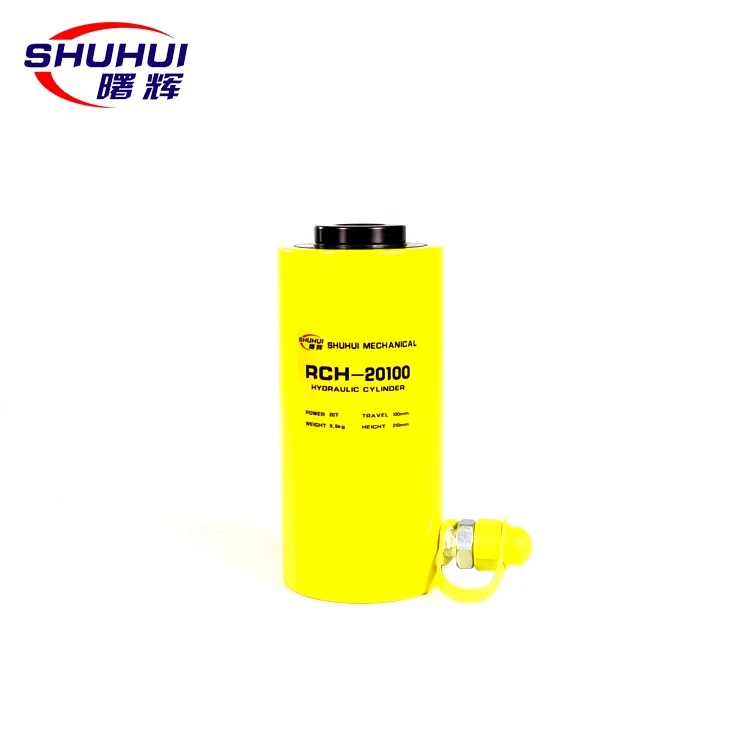

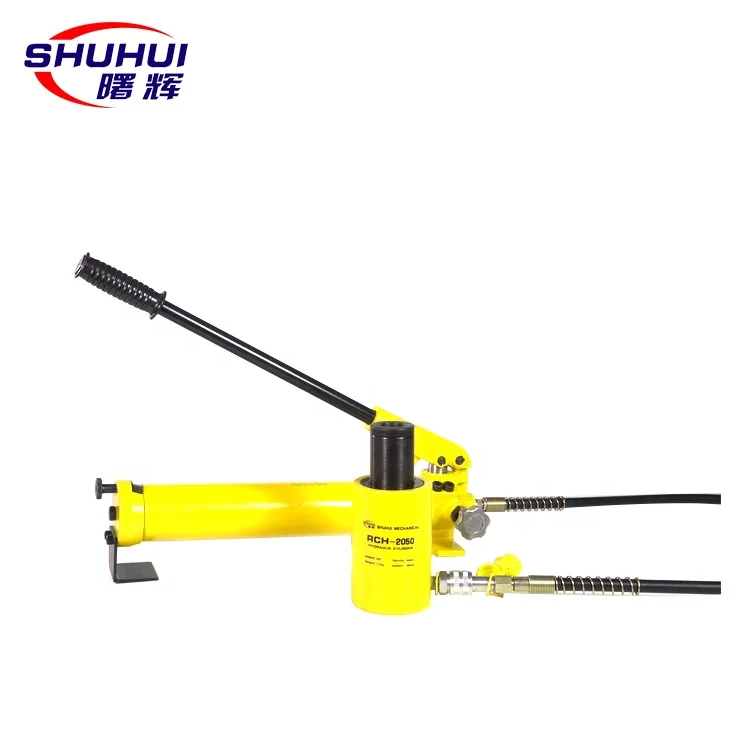

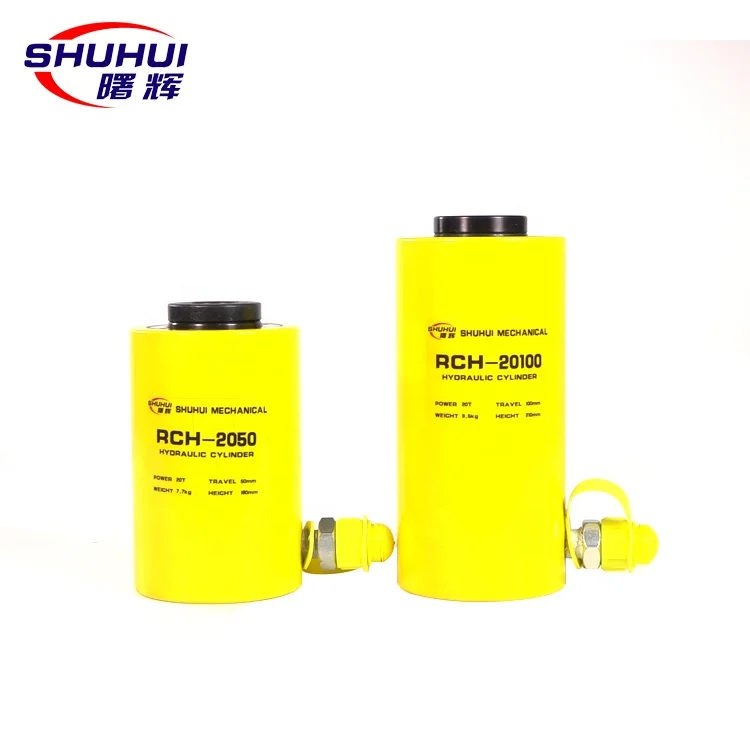

RCH-2050 RCH Series Hollow Plunger Hydraulic Cylinder
Function Description:
Lightweight and easy to carry, there are two holes on the cylinder plane for fixed use. The surface is baked, bright and shiny, not easy to rust. The piston is made of high carbon steel and treated with hard chrome plating to protect the oil ring and prolong its life. The connector is equipped with a dust cover to protect the thread from impact. Lathes, CNC large-scale processing machine tools for ground correction and leveling. The hydraulic jack tonnage, body height and stroke can be customized according to customer requirements.
Parameter:
| Model | Tonnage(ton) | centre bore(mm) | Weight(kg) | Travels(mm) | volume(mm) | Collapsed Height(mm) |
| RCH-2050 | 20T | 28 | 7.7 | 50 | 180x120x200 | 160 |
| RCH-20100 | 20T | 28 | 9.5 | 100 | 150x110x220 | 210 |
| RCH-3050 | 30T | 35 | 10.3 | 50 | 165x120x195 | 180 |
| RCH-30100 | 30T | 35 | 13 | 100 | 170x120x245 | 230 |
| RCH-6050 | 60T | 49 | 28.1 | 50 | 250x250x280 | 245 |
| RCH-60100 | 60T | 49 | 38 | 100 | 250x250x330 | 295 |
| RCH-10075 | 100T | 80 | 48 | 75 | 310x310x280 | 255 |
Features:
- Hollow plunger design allows for both pull and push forces.
- Single-acting spring return.
- Baked enamel finish for increased corrosion resistance.
- Collar threads for easy fixturing.
