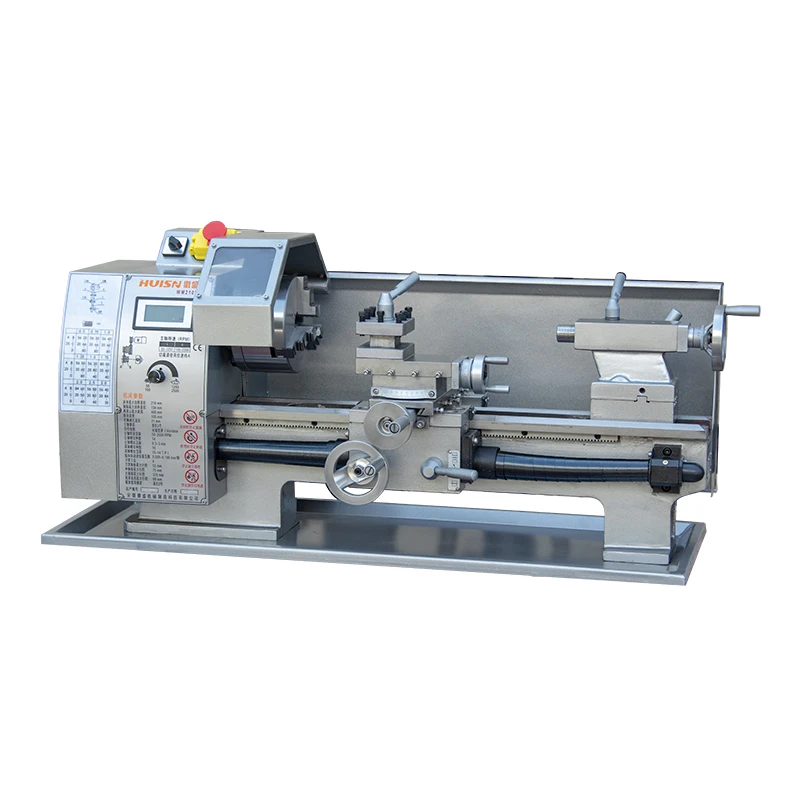

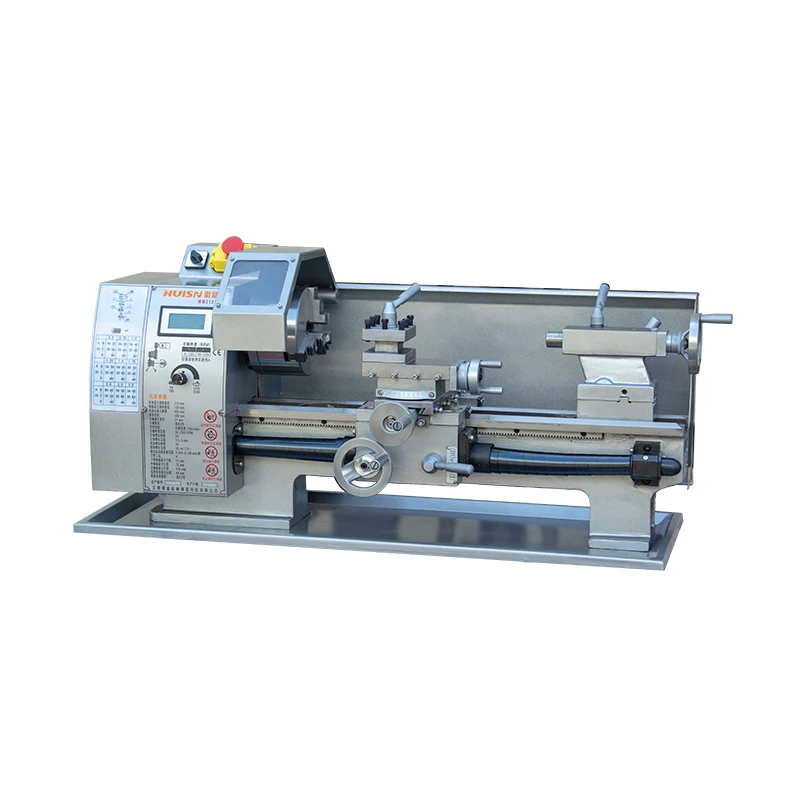

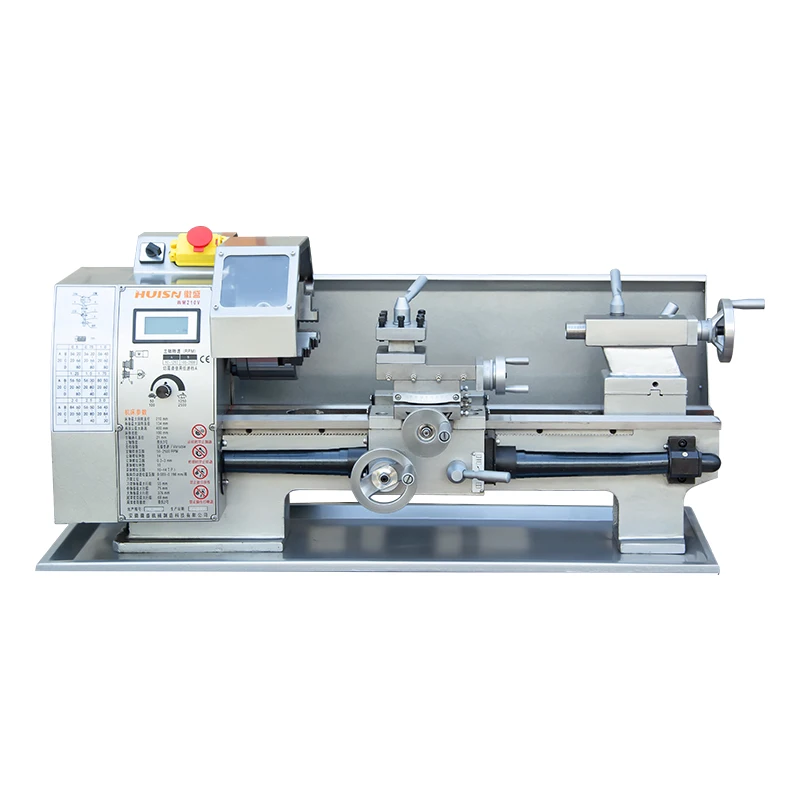

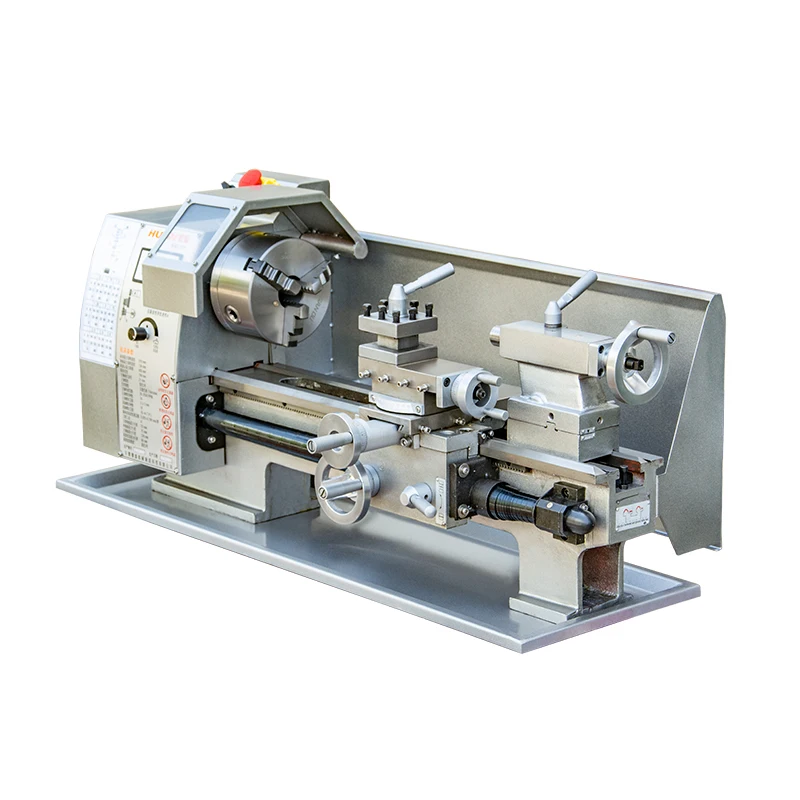

Metalworking wm210v s miniature lathe teaching material precision woodworking lathe mini lathe machine sale to dubai
- Category: >>>
- Supplier: Huisn Co. Ltd.
Share on (1600397686883):
Product Overview
Description
| Model | Specifications | Parameters |
| WM180V (Brush motor) (Brushless motor) | Swing Over Bed | 180 mm |
| Swing Over Cross Slide | 110 mm | |
| Distance Between Centers | 300 mm | |
| Width of Bed | 100 mm | |
| Spindle Bore | 21 mm | |
| Spindle Taper | MT3 | |
| Number of Spindle Speeds | Variable | |
| Range of Spindle Speeds | 50-2500 rpm | |
| Number of Metric Threads | 10 | |
| Range of Metric Threads | 0.5-3 mm | |
| Number of Imperial Threads | 8 | |
| Range of Imperial Threads | 8-44 T.P.I | |
| Range of Longitudinal Feed | 0.1-0.2mm/R | |
| Tool Post Type | 4 | |
| Tailstock Taper | MT2 | |
| Max Cross Slide Travel | 276mm | |
| Max Compoud Slide Travel | 75mm | |
| Max Carriage Travel | 55mm | |
| Motor | 220V 550W | |
| N/W G/W | 70kg/105kg | |
| Packing Size | 800*450*450 mm | |
| Model | Specifications | Parameters |

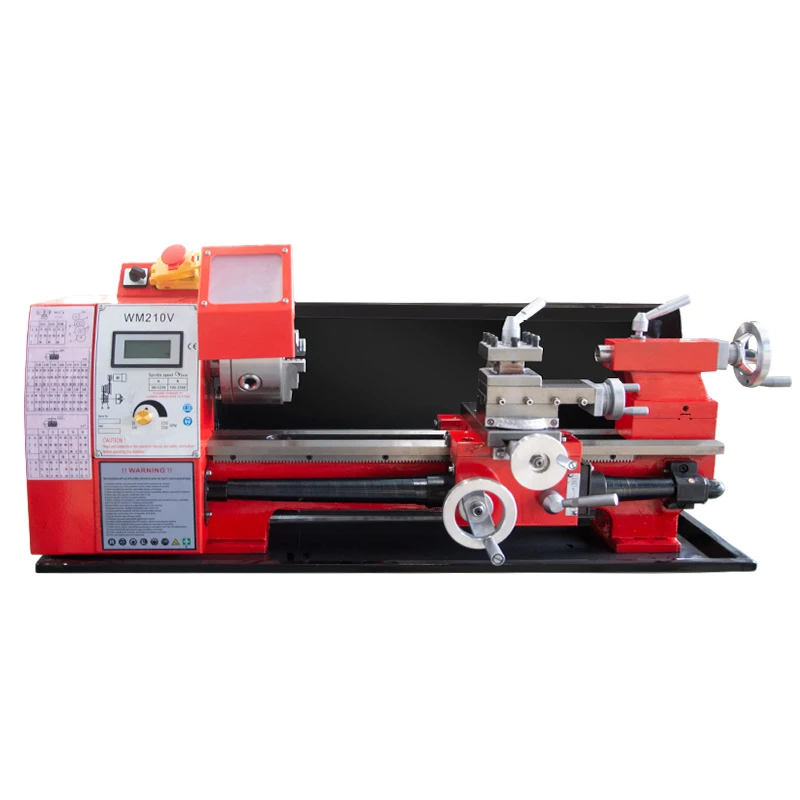

| WM210V (Brush motor) (Brushless motor) | Swing Over Bed | 210 mm |
| Swing Over Cross Slide | 140 mm | |
| Distance Between Centers | 400 mm | |
| Width of Bed | 100 mm | |
| Spindle Bore | 21 mm | |
| Spindle Taper | MT3 | |
| Number of Spindle Speeds | Variable | |
| Range of Spindle Speeds | 50-2500 rpm | |
| Number of Metric Threads | 10 | |
| Range of Metric Threads | 0.5-3 mm | |
| Number of Imperial Threads | 8 | |
| Range of Imperial Threads | 8-44 T.P.I | |
| Range of Longitudinal Feed | 0.1-0.2mm/R | |
| Tool Post Type | 4 | |
| Tailstock Taper | MT2 | |
| Max Cross Slide Travel | 55mm | |
| Max Compoud Slide Travel | 75mm | |
| Max Carriage Travel | 376mm | |
| DC Motor | 220V 550W | |
| N/W G/W | 75kg/110kg | |
| Packing Size | 900*450*450 mm | |
| Model | Specifications | Parameters |
| WM210V-S (Brush motor) (Brushless motor) | Swing Over Bed | 210 mm |
| Swing Over Cross Slide | 140 mm | |
| Distance Between Centers | 400 mm | |
| Width of Bed | 100 mm | |
| Spindle Bore | 38 mm | |
| Spindle Taper | MT5 | |
| Number of Spindle Speeds | Variable | |
| Range of Spindle Speeds | 50-2500 rpm | |
| Number of Metric Threads | 14 | |
| Range of Metric Threads | 0.3-3 mm | |
| Number of Imperial Threads | 10 | |
| Range of Imperial Threads | 10-44 T.P.I | |
| Range of Longitudinal Feed | 0.08-0.19mm/R | |
| Tool Post Type | 4 | |
| Tailstock Taper | MT2 | |
| Max Cross Slide Travel | 55mm | |
| Max Compoud Slide Travel | 75mm | |
| Max Carriage Travel | 376mm | |
| DC Motor | 220V 750W | |
| N/W G/W | 80kg/115kg | |
| Packing Size | 900*450*450 mm | |
| Model | Specifications | Parameters |
| WM210V-L (Brush motor) (Brushless motor) | Swing Over Bed | 210 mm |
| Swing Over Cross Slide | 140 mm | |
| Distance Between Centers | 800 mm | |
| Width of Bed | 100 mm | |
| Spindle Bore | 38 mm | |
| Spindle Taper | MT5 | |
| Number of Spindle Speeds | Variable | |
| Range of Spindle Speeds | 50-2500 rpm | |
| Number of Metric Threads | 14 | |
| Range of Metric Threads | 0.3-3 mm | |
| Number of Imperial Threads | 10 | |
| Range of Imperial Threads | 10-44 T.P.I | |
| Range of Longitudinal Feed | 0.08-0.19mm/R | |
| Tool Post Type | 4 | |
| Tailstock Taper | MT2 | |
| Max Cross Slide Travel | 55mm | |
| Max Compoud Slide Travel | 75mm | |
| Max Carriage Travel | 776mm | |
| DC Motor | 220V 750W | |
| N/W G/W | 94kg/130kg | |
| Packing Size | 1300*450*450 mm | |
| Model | Specifications | Parameters |
| WM210V-G (Brush motor) (Brushless motor) | Swing Over Bed | 210 mm |
| Swing Over Cross Slide | 140 mm | |
| Distance Between Centers | 400 mm | |
| Width of Bed | 100 mm | |
| Spindle Bore | 21 mm | |
| Spindle Taper | MT3 | |
| Number of Spindle Speeds | Variable | |
| Range of Spindle Speeds | 50-2500 rpm | |
| Number of Metric Threads | 10 | |
| Range of Metric Threads | 0.5-3 mm | |
| Number of Imperial Threads | 8 | |
| Range of Imperial Threads | 8-44 T.P.I | |
| Range of Longitudinal Feed | 0.09-0.19mm/R | |
| Tool Post Type | 4 | |
| Tailstock Taper | MT2 | |
| Max Cross Slide Travel | 55mm | |
| Max Compoud Slide Travel | 75mm | |
| Max Carriage Travel | 366mm | |
| DC Motor | 220V 550W | |
| N/W G/W | 80kg/115kg | |
| Packing Size | 900*450*450 mm |
If need further information, pls feel free to contact us.
Q1:What is your MOQ?
MOQ is 1 pcs enough.
Q2: How long can I get the machines?
If we have stock, we will send you that day after you payed.
Q3: What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q4: Payment term?
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q5: .How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 48 hrs upon registering your need.
sent to you by international courier within 48 hrs upon registering your need.
Q6: If i can't know how to operate,can your engineer help me programme well on machine ?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into
U-disc of operation video to help you.
U-disc of operation video to help you.
