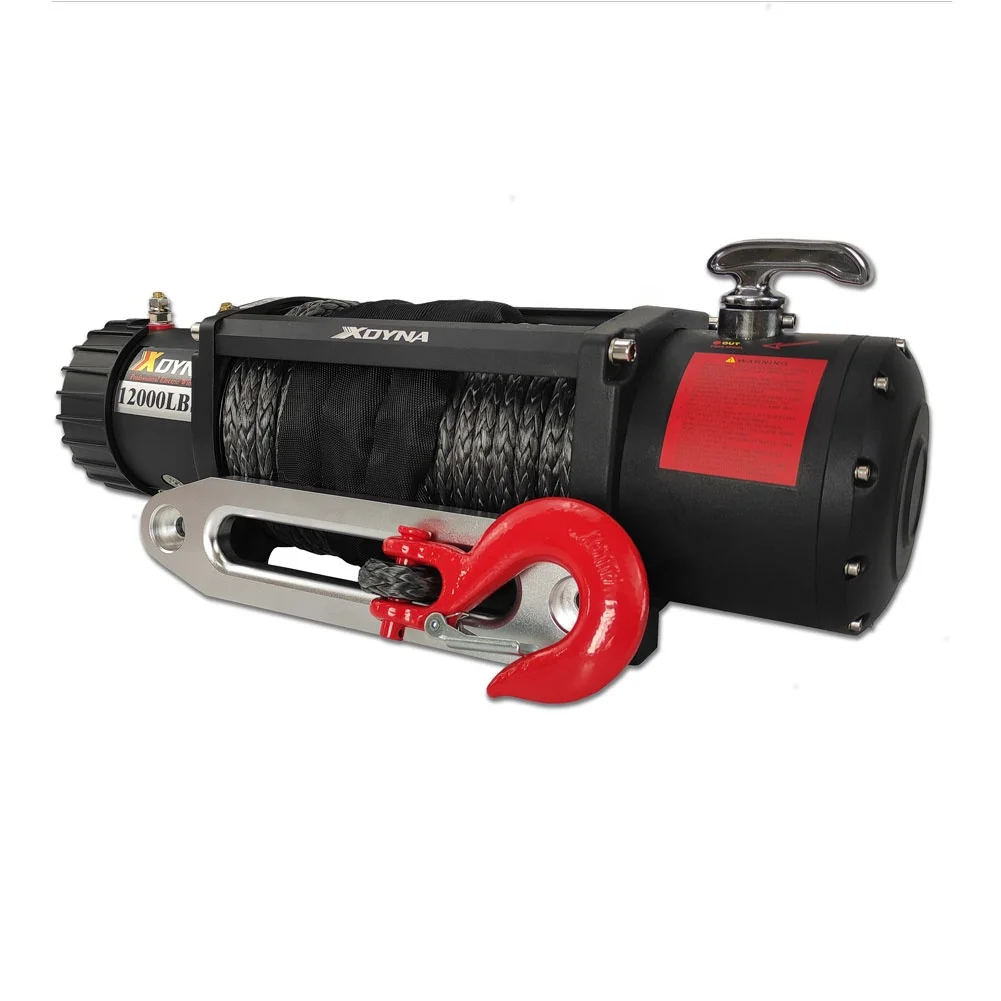

12000 lbs electric winch with synthetic rope for Recovery
- Category: >>>
- Supplier: Changzhou Hando Technology Co. Ltd.
Share on (1600397689417):
Product Overview
Description
Company Introduction
We are a professional factory of Winches and offroad accessories. Located in auto parts industry base of Changzhou,Jiangsu, and has a perfect supply chain system.We can provide you with personalized customization of offroad accessories,with rich OEM and ODM services experience.We currently export to many countries and regions in the world,such as the United States, Europe, Australia, Turkey and so on. We also provides high-quality products for third-party e-commerce platforms such as Amazon and eBay.Our main products include Winch, Recovery tracks,Bumper,Roof luggage rack and tent,Snatch block, Shackles, Folding shovel,Tow strap,Farm jack and so on.We look forward to cooperating with you with high-quality products and dedicated services.
Our Services
OEM/ODM Services | Customized Logo & Packaging&New design |
OEM service | ≥ 1 pcs |
Warranty service | 3 year mechanical and 1 year electrical/wear parts |
Faster Delivery | Shipping mass production within 20 days after payment |
Sample charge per unit | Refunding custcomers samples cost after order |
Technical service | Provide professional technical service forever |
Photography service | Provide product photographing and photo-making services |
After-Sale Service | Quick response from after-sales team |
Product Description
Rated Line Pull | 12000 lbs (5443kgs) Single-line |
Motor | 12V /24 V 6.2hp, Series-Wound IP67 |
Control | Remote switch,3.5 metres lead * Optional built-in or external wireless remote control(IP67) |
Battery Leads | Diameterφ22mm2/ 12V Length 72”(1.83m) |

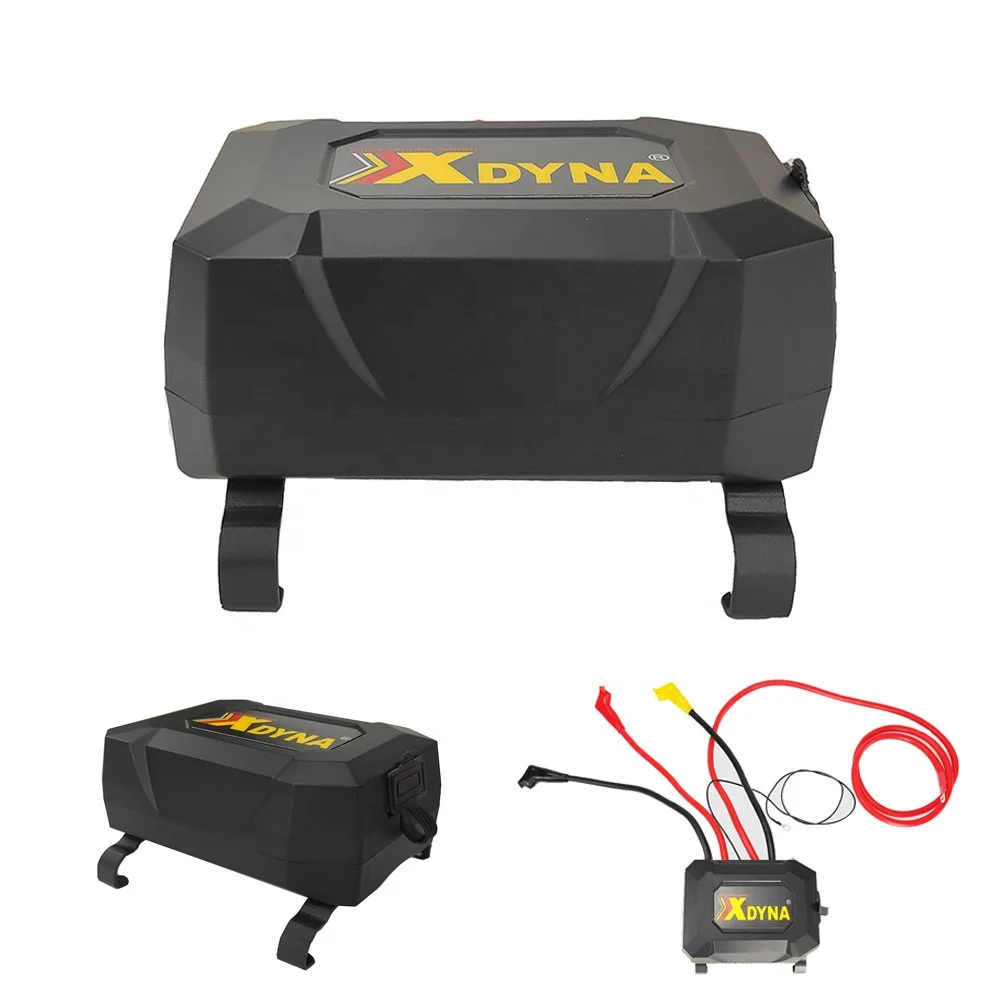

Control Box | Mini box with waterproof solenoid and glands |
Solenoid | IP67 500A solenoid contains the asilver contat |
Braking | never hot drum |
Drum Size | Diameterφ2.5”(φ63.5mm) Length 8.82”(224mm) |
Gear Reduction Ratio | 3 stage gears 265:1 |
Synthetic Rope | Diameterφ3/8”(φ9.5mm) Length 85’(26m) |
Weight | 63lbs(29kgs-) |
Packing size | 63cm*23cm*36cm |
Color | matte black or customized |
Package | honeycomb carton |
POWERFUL MOTOR
Multi-directional waterproof treatment, IP67 waterproof capability, high motor efficiency, large torque, small current and less heating.
Incredibly durable solenoid
The new IP67 500A solenoid contains the silver contacts, which are not easy to generate arc and are more durable.
High quality oxygen-free copper 22.26 square,1232 pcs 0.15mm copper wire stranded, cable skin diameter 10.5mm, PVC resistance
-35℃-105℃, flame retardant, antifreeze, waterproof, anti-ultraviolet, UV resistance good elasticity more durability and convenient installation
-35℃-105℃, flame retardant, antifreeze, waterproof, anti-ultraviolet, UV resistance good elasticity more durability and convenient installation
Good reliability wireless remote control
Wireless remote control IP67 waterproof, zero delay, strong anti-interference ability, remote control distance can reach 100 meters, sensitive, applicable voltage width and not easy to damage, equipped with double batteries
Reliable gear structure
Full set of steel gear, non-powder metallurgy, high precision, low noise and good reliability. The material is 45 steel plate and processed by heat treatment,
High strength, more durable.
High strength, more durable.
Integrated three-level toothed plate
Integrated three-level toothed plate, 40Cr material, thickness up to 6.5mm, good fastness and high strength.

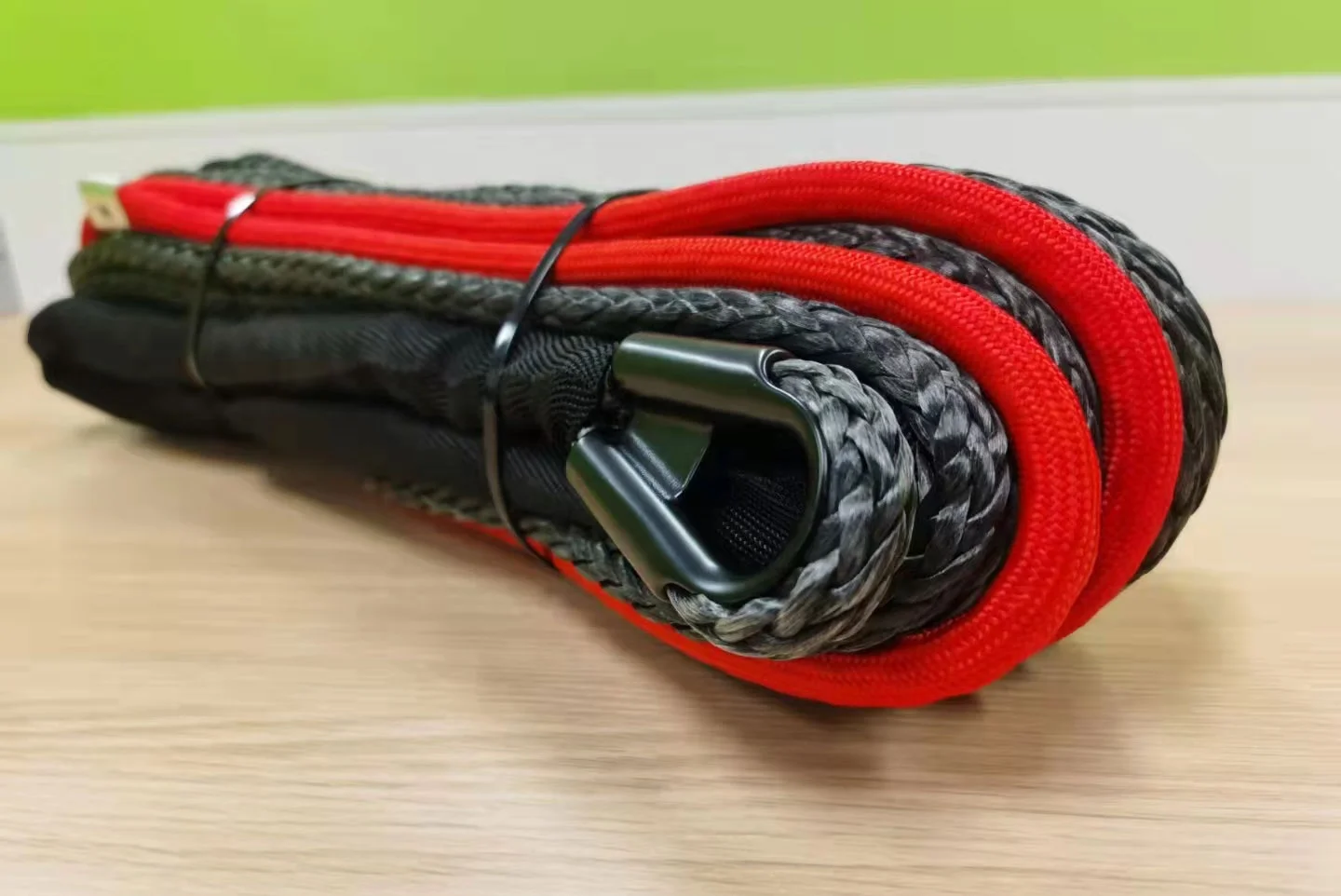

Synthetic rope
Equipped with synthetic rope 9.5mm*26M, the breaking force exceeds 20000lbs, far exceeding common products.
The appearance is anti-ultraviolet spray coating.
Dacro screws,grade 12.9
The fixed screws of the base are 12.9-grade dacromet screws, which are anticorrosive and not easy to rust, with high strength and better safety performance.
High Quality Honeycomb Carton box
High-strength honeycomb box, light material, small volume, good compressive and bending strength, good buffering and shock resistance, better protect the winch.
Packing&Shipping
Product Usage
Batch installation of pickup engine factory
Certifications
FAQ
Contact us：
Amy Li
Mob: +86 15961295261
Email:sales@hando4x4.com
Add：No 1. Chenfeng Road,Menghe,Changzhou China
Email:sales@hando4x4.com
Add：No 1. Chenfeng Road,Menghe,Changzhou China
