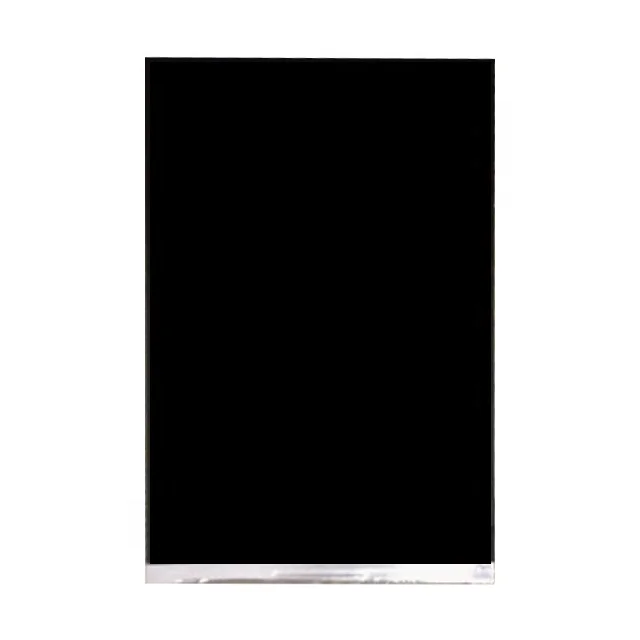

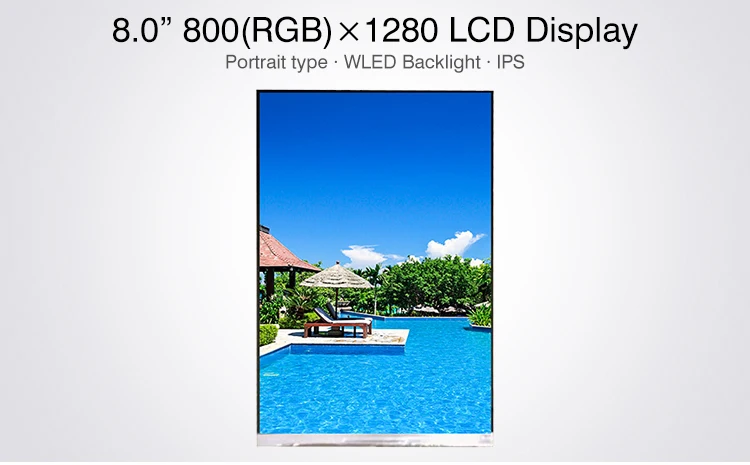

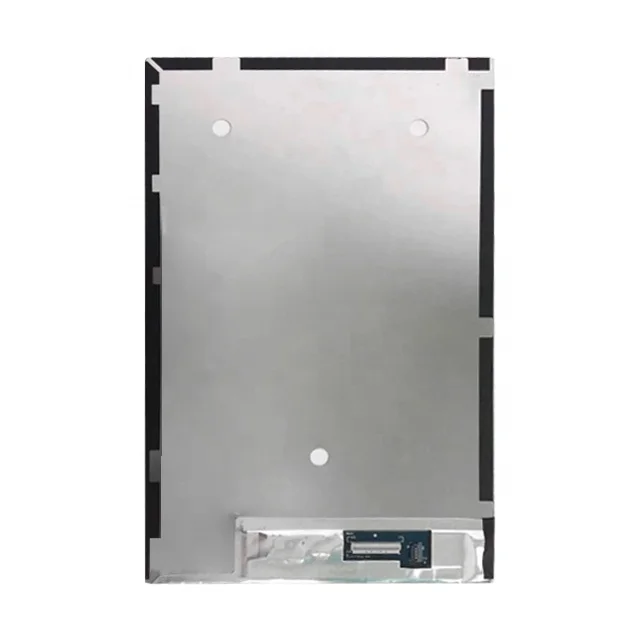

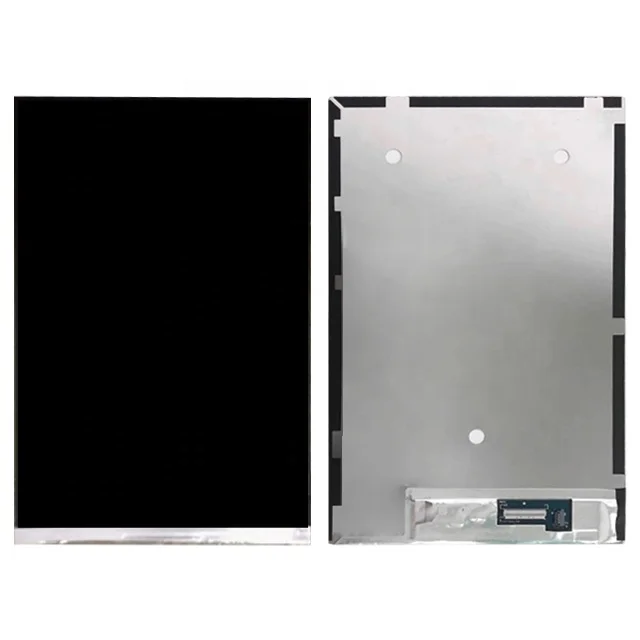

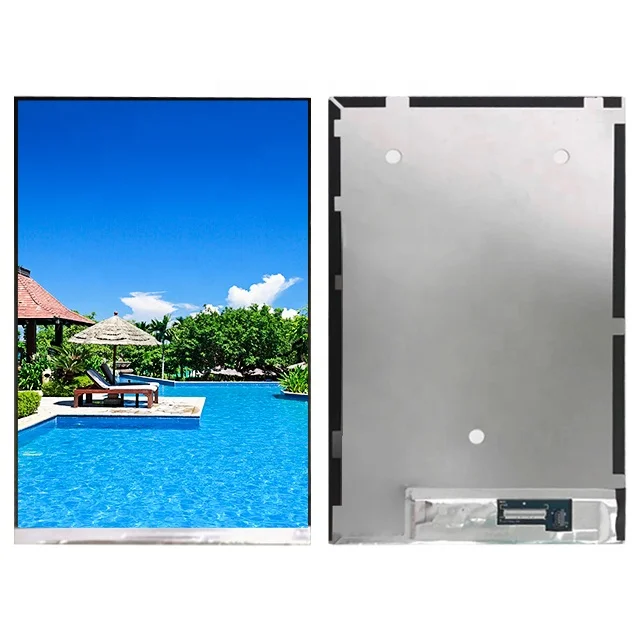

HIGH quality BOE lcd screen TV080WXM-NH2 lcd 8 inch 1280p lcd panel display with H-DMI to MIPI controller board




LCD SPECIFICATION
Diagonal Size
8.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
800(RGB)×1280 [WXGA]
Configuration
RGB Vertical Stripe
Display Area
107.64(H)×172.224(V) mm
Outline Dim.
114.04(H)×184.22(V) ×4.45(D) mm
Outline Size
-
Surface
Hard coating
Luminance
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
25 (Typ.)(Tr+Tf) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Support Color
16.7M 58% NTSC
Light Source
WLED [6S3P]
Weight
117g (Max.)
Designed For
Pad & Tablet
Frame Rate
60Hz
Touch Panel
Without
Interface Type
MIPI (4 data lanes)
Power Supply
1.8/3.3V (Typ.)(VDD/VCC)
Environment
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
