Aneasthesia Laryngoscopy Endoscope Handheld Conventional Video Laryngoscope
- Category: >>>
- Supplier: Jiangsu Yongle Medical Technology Co. Ltd.
Share on (1600397757367):
Product Overview
Description
Product Description
| Optical system | Field of View | 100° |
| Depth of field | 3-100mm | |
| Insertion section | Insertion tube outer diameter | 2.8mm 3.9mm 5.2mm 5.8mm |
| distal end out diameter | ||
| working length | 650mm | |
| Instrument Channel | Channel inner diameter | 1.2mm2.2mm 2.6mm |
| minmum visible length | 3mm form the dital to end | |
| Bending section | Angulation range | 160 up ,130 down |
| Display | Size | 3.5 inch LCD |
| Resolution ratio | 640*480 RGB | |
| Vedio refresh Rata | 30FPS | |
| Illumination | LED | |
| Data Output | Available | |
| Easy to establish and store files | Available | |
| Image Output | Available | |
| Storage humidity | AP 50hpa to 106hpa | |
| Battery | Type | Rechargeable Lithium battery |
| Voltage | 3.7V | |
| Capacity | 3200mAh | |
| Battery life Cycle | More than 300 times | |
| Charging time | less than 8 hours | |
| Transport/storage condition temperature | -5℃~+50℃ | |
| Humidity | 20~80% |

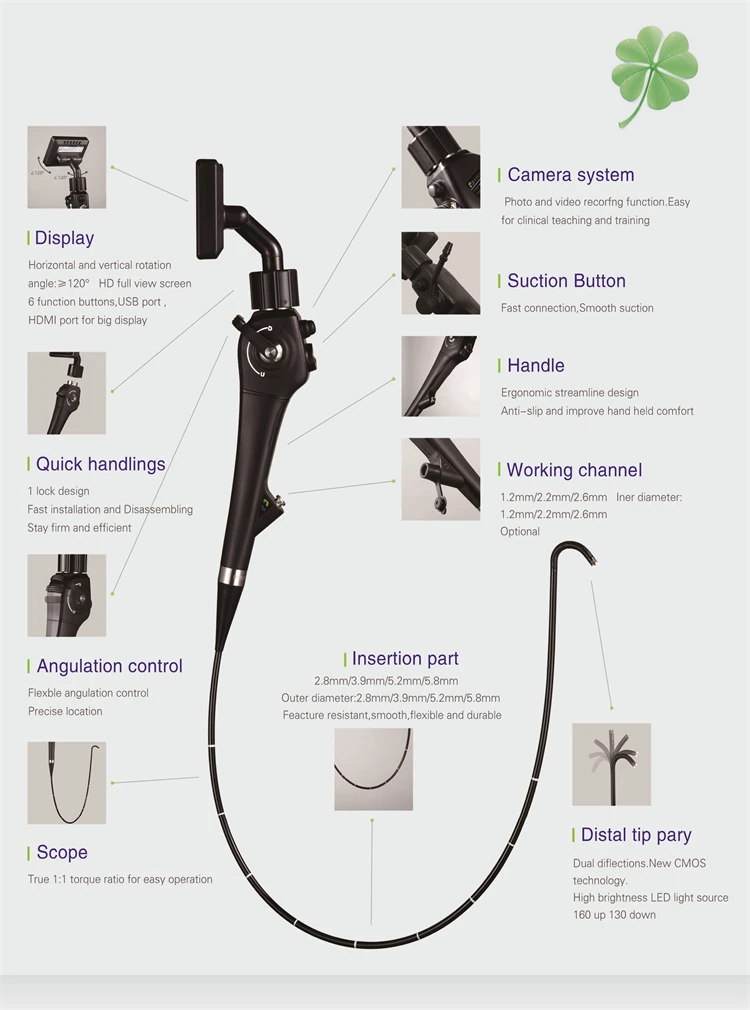

Four size diameter laryngoscope with 3 instrument channel size
The YL05 series features 4 size:2.8mm,3.9mm,5.2mm,5.8mm
Outer diameter while maintaining 1.2mm,2.2mm,2.6mm channel diameter for instruments
Optimal image quality
Laryngoscope with high resolution CMOS sensor delivers high-resolution image quality comparable to conventional hybrid
scopes
Wider angulation range
160up,130 down angulation range supports smoother insertion to lobe bronchi and allows more of a bend in the scope when
an endo therapy device is inserted in the endocope's workingchannel

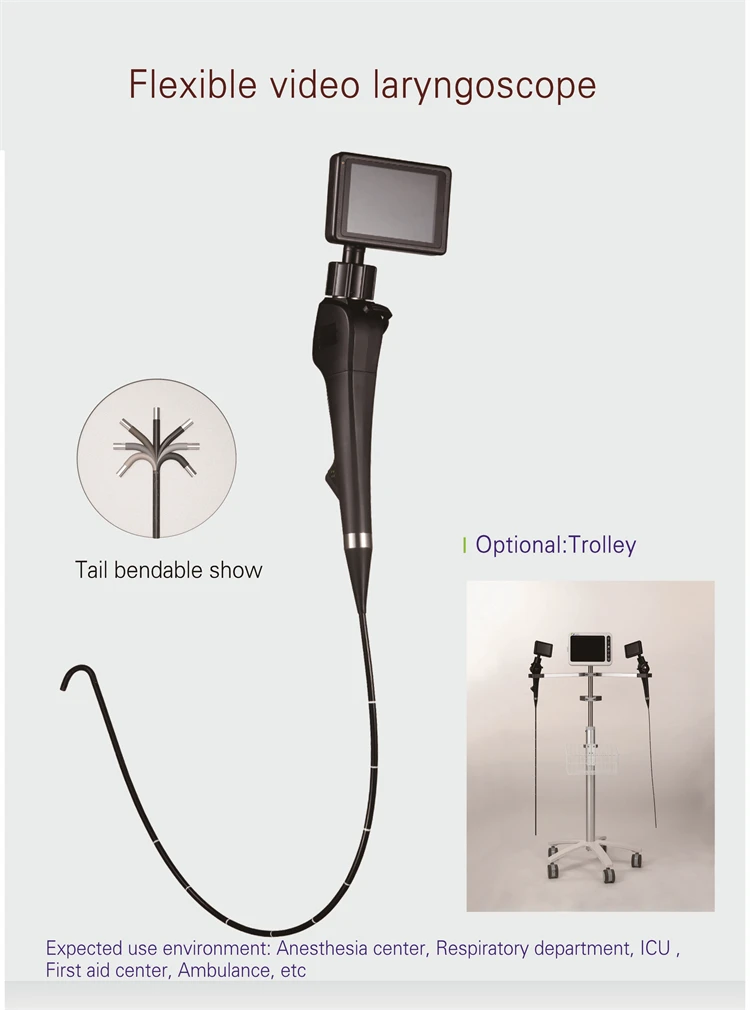

Portable monitoring system
Friendly HDMI port can connect with big monitor
Video,Camera function available
180 degree up and down make operation view comfortable
1:1 inserted rotation function
The inserted rotation can be 1:1 transfer from handle to distal tip.
This supports easier operation and smoother
Related Products
Company Profile
Jiangsu Yongle Medical Technology Co.,Ltd. (Yongle Medical) aims to become a provider of visual medical overall solutions and supporting equipment and services. It is a high-tech enterprise integrating R & D, manufacturing, sales and service. It is mainly committed to the research and development, production and sales of patented visual medical equipment and disposables.
.
\t\t\t\t
\t\t\t\t
Company Certificate
Our Advantages
Market
Packing & Shipping
FAQ
1. Are you trading company or manufacturer ?
A:We are manufacture, mainly deal with video laryngoscope,conventional laryngoscope for more than 20 years
2. How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. How do I pay?
A: You can pay us by wire transfer, WesternUnion, bank transfer, PayPal, secure payment, etc. T / T: 30% deposit, pay the balance
before shipping.
4. Can you design for us?
A:Of course, we accept various OEM and ODM orders.
5. What if we find a defective product?
A：In this case, please contact us as soon as possible and we will take quick measures to resolve it
6. How long is your delivery time?
A: In General, the delivery date will be 3-5 working days for normal buy quantity. But if bigger order, please check us further.
7. How about the Shipping Method?
A:DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
8.How to get in touch?
A:Jiangsu Yongle Medical Technology Co., Ltd.
ADD:No 1 Jiaodang Industrial Cluster, Zhangqiao Town, Taixing City, Jiangsu Province, China
MOB:18252661198 Wechat:18252661198
WhatsApp:15358545233
Email susan@jsylmed.com
www.jsylmed.com
