Single wall corrugated pipe making plastic extruder machine
- Category: >>>
- Supplier: Qingdao Hegu Wood-Plastic Machinery Co. Ltd.
Share on (1600397809738):
Product Overview
Description
Product Overview
Plastic Machine Professional Manufacturer
Single wall corrugated pipe making plastic extruder machine
SJDBGZ series plastic single wall corrugated pipe making machine can produce PP/PE/EVA/PVC/PA corrugated pipe.
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe
seam,andsmooth surface.

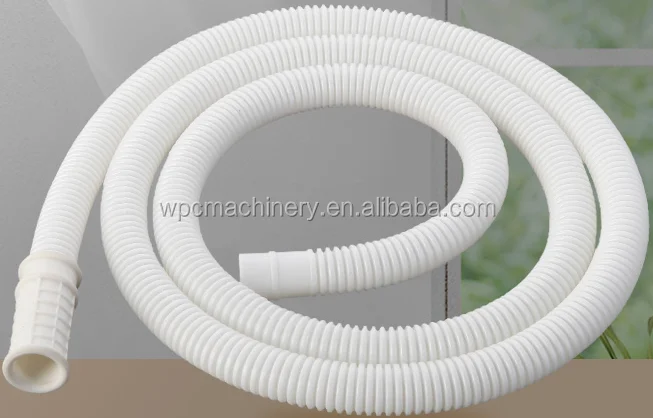

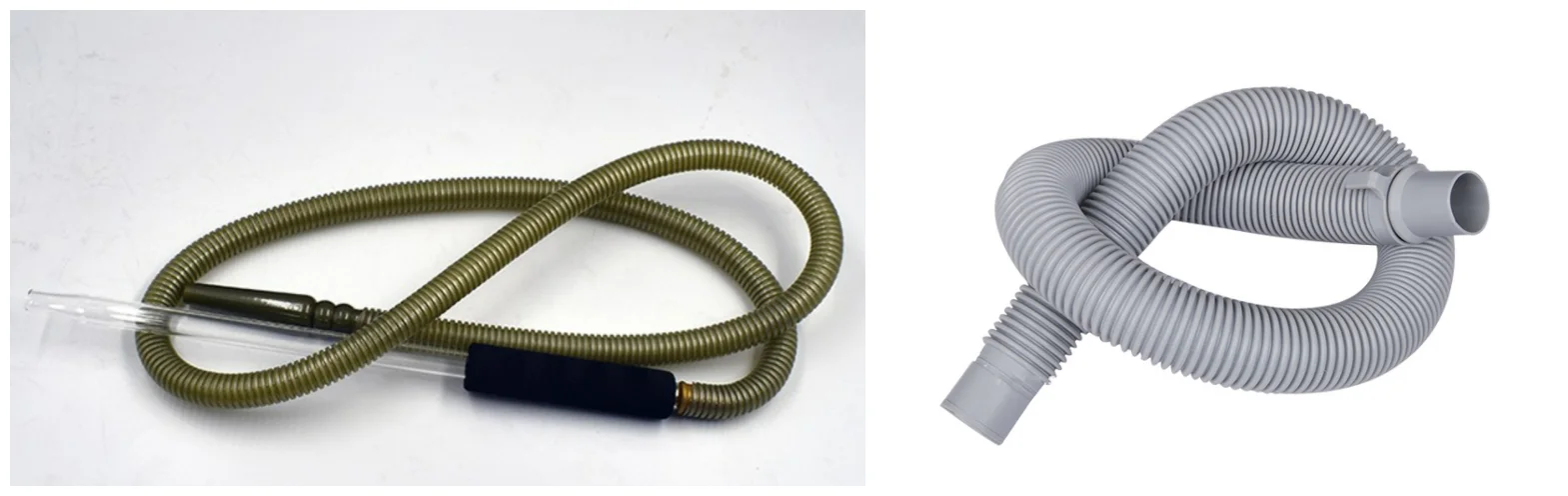

By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe
seam,andsmooth surface.
By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc

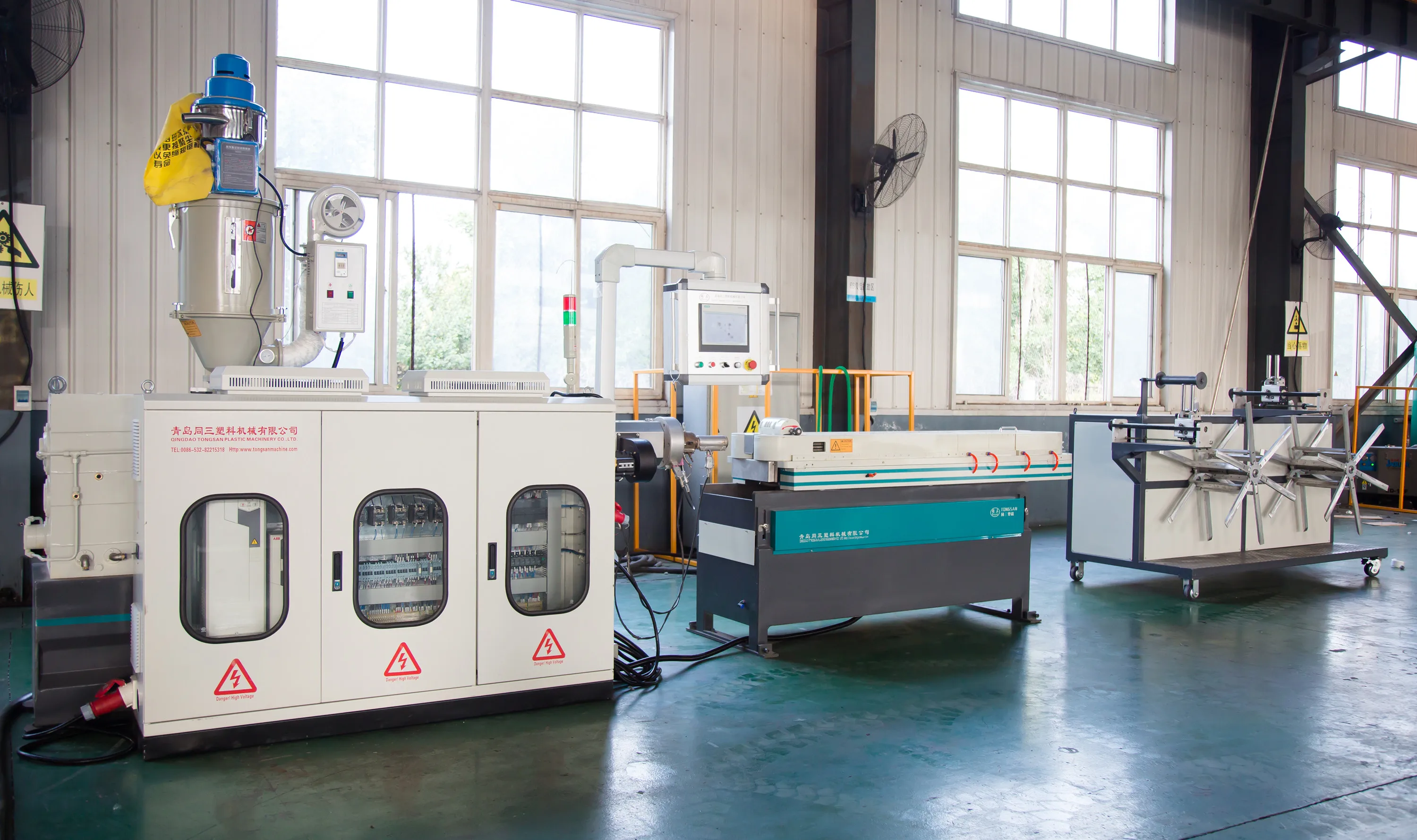

Normal Speed Corrugated pipe production machine
Production speed :8-12m/min
Plastic corrugated pipe making machine
Single screw extruder
Forming machine
Double position winder
Molds by customized
Model | Pipe Diameter | Production speed | Extruder model | Motor power |
SDBGZ-14 | 5-14mm | 6-8m/min | 45/28 | 7.5kw |
SDBGZ-32 | 10-32mm | 5-12m/min | 50/30 | 15kw |
SDBGZ-50 | 16-50mm | 4-10m/min | 65/30 | 30kw |
SDBGZ-63 | 16-63mm | 4-10m/min | 65/30 | 30kw |
SDBGZ-110 | 32-110mm | 2-8m/min | 65/33 | 37kw |
SDBGZ-160 | 50-160mm | 2-5m/min | 75/30 | 45kw |
High Speed Corrugated pipe making machine
Production speed:15-25m/min
Plastic corrugated pipe making machine
Single screw extruder
Forming machine

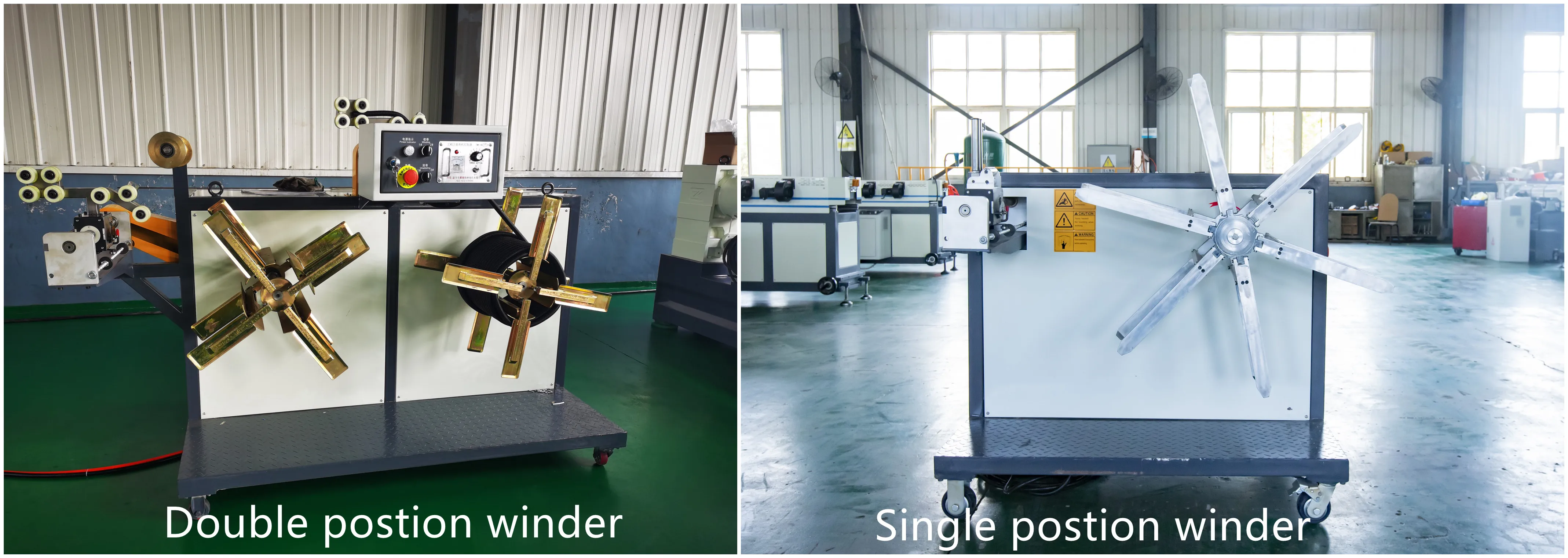

Double position winder
Molds by customized
Forming machine
Double position winder
Molds by customized
Model | Pipe diameter | Production speed | Extruder model | Motor power | Qty of molds |
GSDBGZ-50 | 10-50mm | 10-20mm/min | 65/30 | 30kw | 72 pairs |
GSDBGZ-12 | 4.5-12mm | 10-20m/min | 45/28 | 7.5kw | 63 pairs |
The EXTRUDER PART
The extruder consist of the screw pole, cylinder, reducer, extruder head's stand, the water and wind cooling system, thelubricating system, temperature-controlling system, speed-changing cabinet etc.All the parts be made by reputed manufacturer and the reputed supplier brand.
We adopt special screw for different raw material and different pipe diameter, so the raw material can be well plasticization and get goo quality pipes.The extruder will suit many standards and applications in the corrugated pipe manufacturing. A unique screw and barrel combination, perfected through theoretical studies.The screw pole will be made of alloy steel and processed nitrogenous. It will have excellent ability of hardness. At the same time, it will be wear-resisting and corrosion-resisting.
Proven design and reliability is the main features of the low noise gearbox. Splash lubrication will ensure minimum maintenance requirements.The gears in the reducer and the bearings will be lubricated by the standard way.At the same time, the lubricating system of the oil pump will be designed to circulate the machine oil compulsively.
Energy efficient generators come from the Siemens brand. Moreover, the motor and the reducer are directly connected through the coupling, which service life is longer.

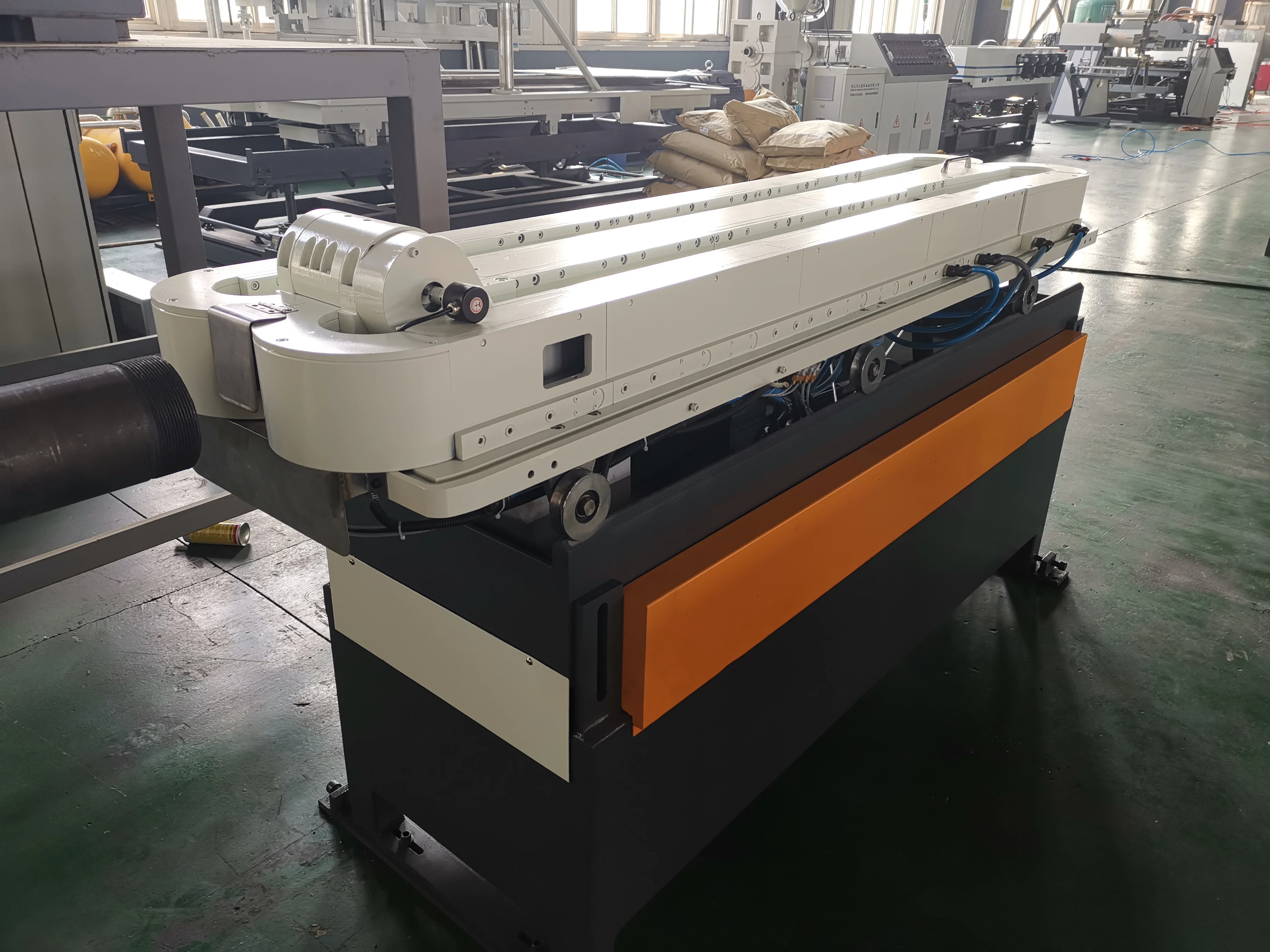

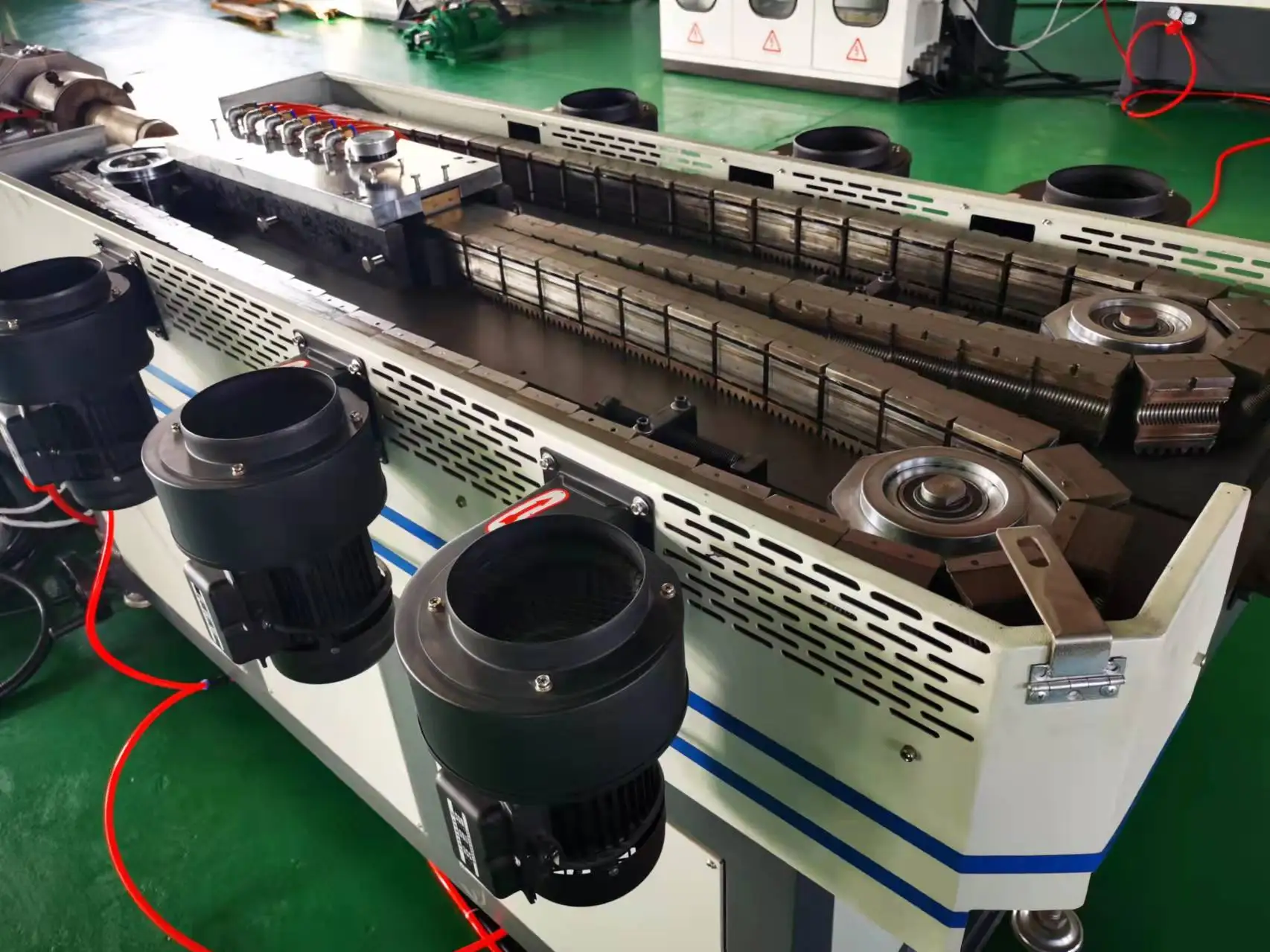

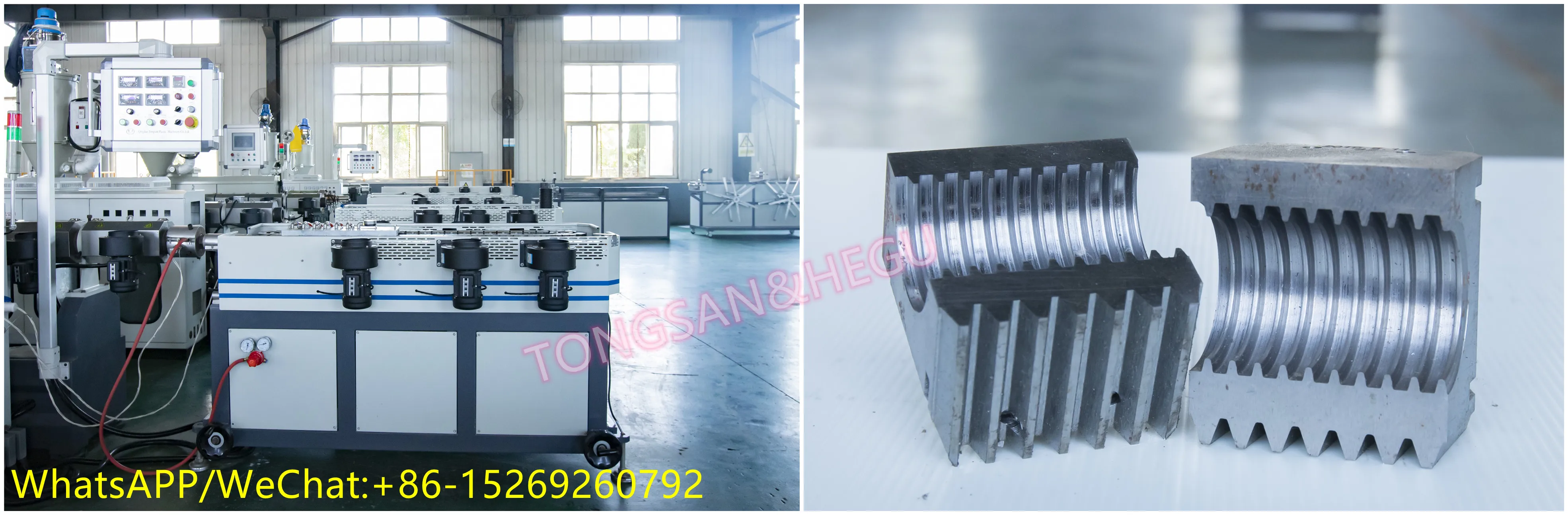

Forming Machine with the molds
We have two type of forming machine according the module connection method.One is the module block assembled through the chain shaft,and the chain pieces, then drive by the gears to move on the bottom plate.The bottom plate can be cooling by circled water and the mold block can be cooling by the fan air.
The other is the high speed type,all the module block been arranged on the track of the forming machine, there are driven by the up and down double gears to run in a high speed.The module can be cooling by both water and fan air.Efficient cooling ensures the module block cooling down quickly, so it is easy to get good quality of the single wall corrugated pipe in high speed production.
The other is the high speed type,all the module block been arranged on the track of the forming machine, there are driven by the up and down double gears to run in a high speed.The module can be cooling by both water and fan air.Efficient cooling ensures the module block cooling down quickly, so it is easy to get good quality of the single wall corrugated pipe in high speed production.

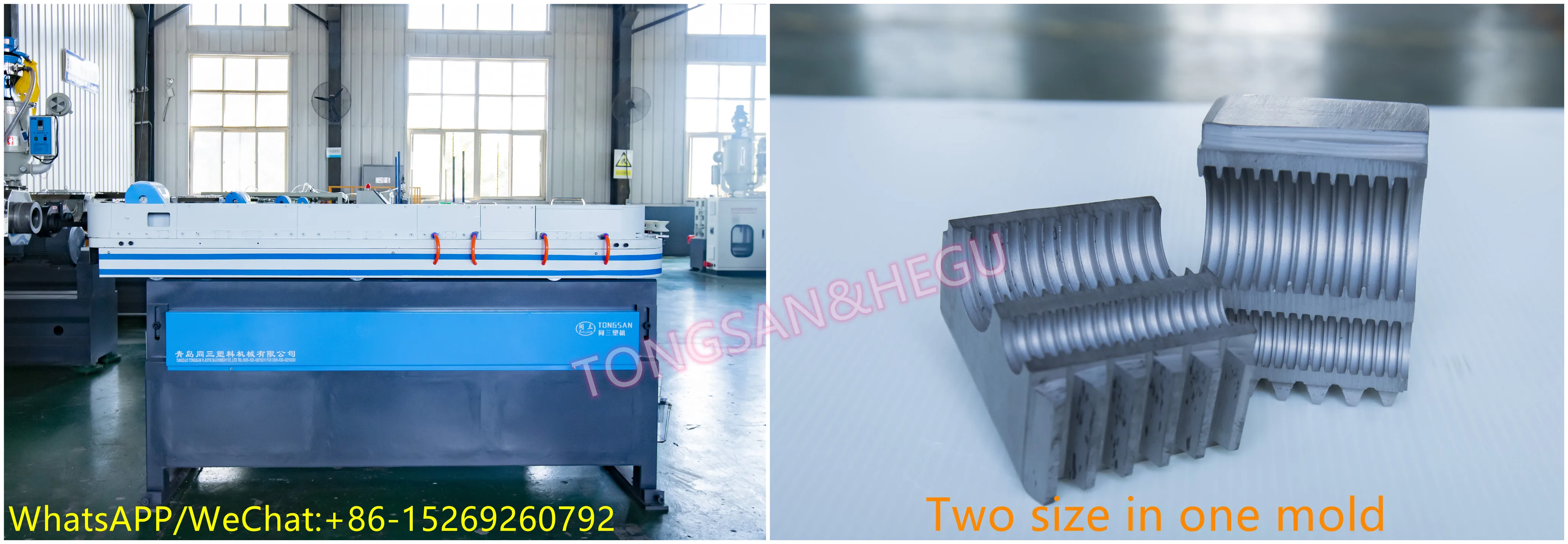

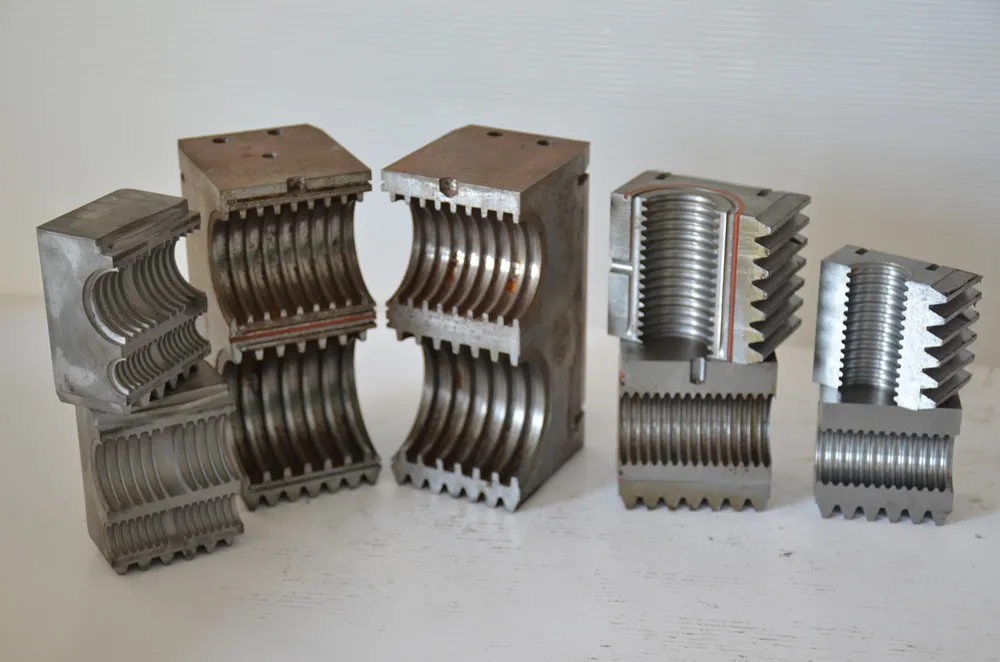

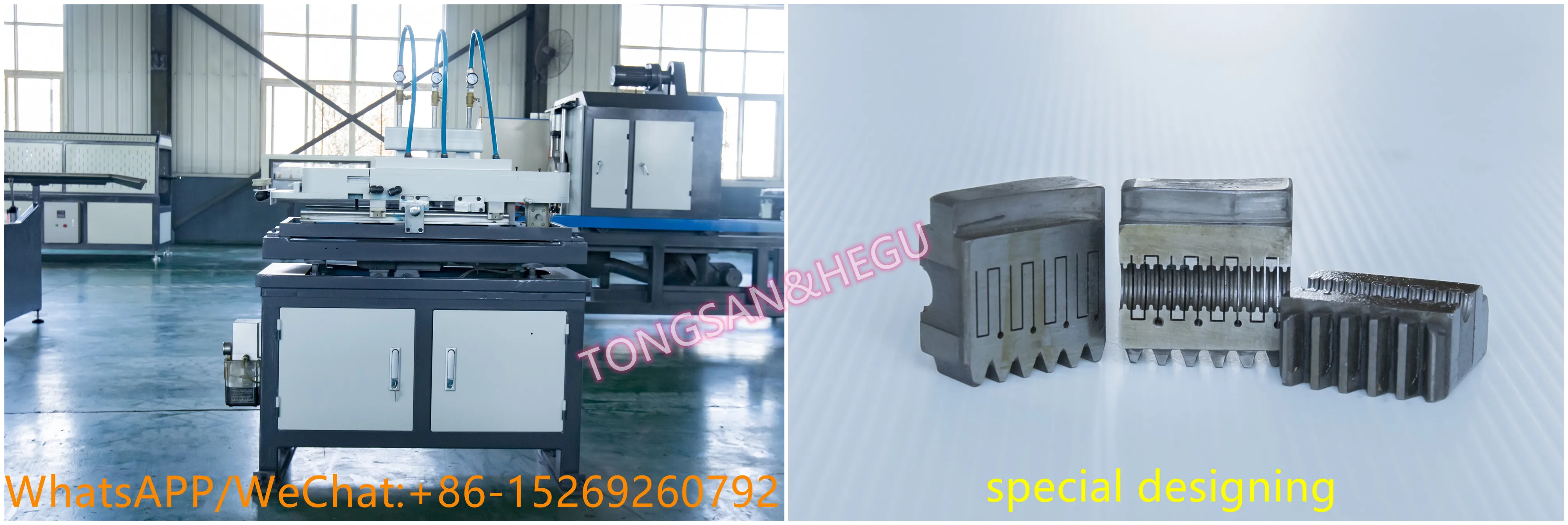

We have professional mold design technicians,mold processing machines,machining center machines.We can design and process kinds of corrugated pipe module block,corrugated pipe joint module blocks,letter engraving module blocks and other types corrugated pipe block for any kinds of corrugated pipe according customer's requirements.All the module blocks are specialized grinding apparatus steel,which is of high hardness and strong wear resistance.
Winder
We can provide the whole line for corrugated pipe making machine.Such as ,the automatic corrugated pipe winding machine which adopt polishing rod wire traverse for winding displacement.The automatic cutting machine is a special cuter for the car harness single wall corrugated pipes.The automatic tapping machine is special used for car harness and electrical wire protective conduit.The automatic shrinkable device for the single wall corrugated drain pipe.
Application of SINGLE WALL CORRUGATED PIPE
1. Plastic corrugated pipe has the characteristics of light weight, strong bearing pressure, excellent bending performance and easy construction. Compared with other drainage materials, plastic bellows have the advantages of strong corrosion
resistance,strong water permeability and high cost performance.
2. Plastic corrugated pipe is a kind of corrosion-resistant, water-permeable pipe. In recent years, plastic corrugated pipes have become more and more widely used. Compared with metal corrugated pipes, plastic corrugated pipes are not conductive and can prevent stray In addition, the plastic corrugated pipe has good bending performance and is convenient for construction.

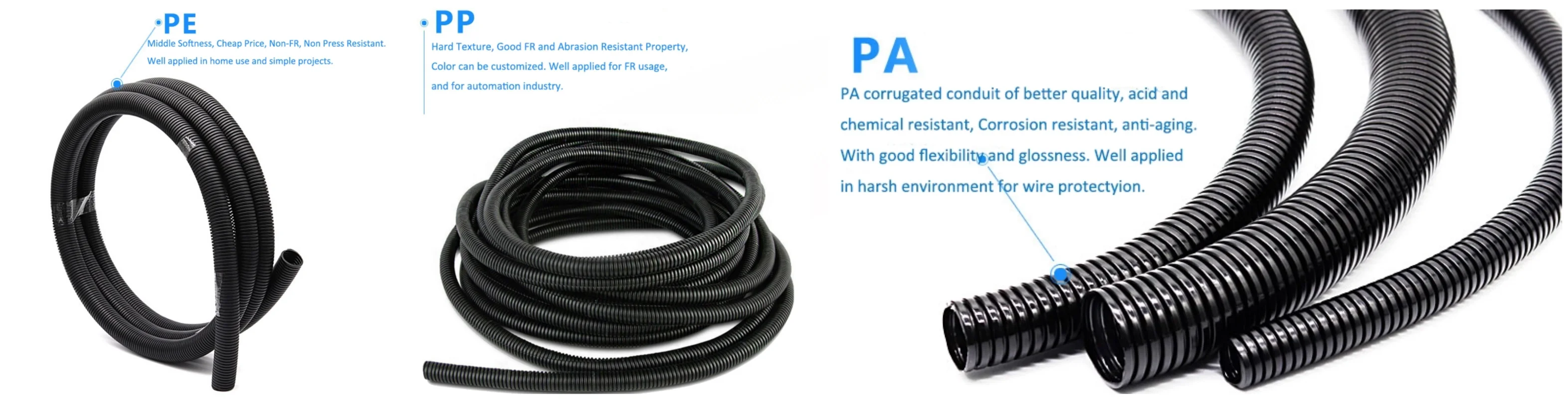

3. Plastic corrugated pipes (PA, PE, PP) are widely used in the wiring connection of machine tool machinery and electrical box control cabinets, and are equipped with plastic quick connectors. It is widely used in automotive wiring harness,
electronic,mechanical wiring harness and other fields, replacing the original PVC and metal sheath products, and becoming a widely used wiring harness sheath product on the market. In addition, plastic corrugated pipes are also used in municipal engineering,underground burying of rainwater in residential quarters, sewage discharge, irrigation of farmland, drainage of waterlogging, etc.
resistance,strong water permeability and high cost performance.
2. Plastic corrugated pipe is a kind of corrosion-resistant, water-permeable pipe. In recent years, plastic corrugated pipes have become more and more widely used. Compared with metal corrugated pipes, plastic corrugated pipes are not conductive and can prevent stray In addition, the plastic corrugated pipe has good bending performance and is convenient for construction.
3. Plastic corrugated pipes (PA, PE, PP) are widely used in the wiring connection of machine tool machinery and electrical box control cabinets, and are equipped with plastic quick connectors. It is widely used in automotive wiring harness,
electronic,mechanical wiring harness and other fields, replacing the original PVC and metal sheath products, and becoming a widely used wiring harness sheath product on the market. In addition, plastic corrugated pipes are also used in municipal engineering,underground burying of rainwater in residential quarters, sewage discharge, irrigation of farmland, drainage of waterlogging, etc.
