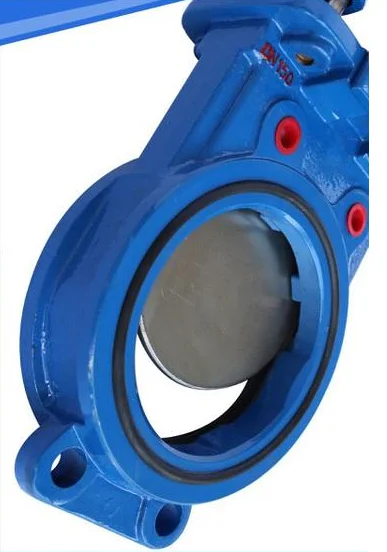

Ductile Iron Manual Slurry Knife Gate Valve with Rubber Sleeves
- Category: >>>
- Supplier: Laizhou Dongsheng Valve Co. Ltd.
Share on (1600397926324):
Product Overview
Description
Ductile Iron Manual Slurry Knife Gate Valve with Rubber Sleeves
Product Description
DESCRIPTION
1. Working pressure: 1.0Mpa/1.6Mpa
2. Working temperature: -20℃～+120℃
3. Face to face according to DIN3202-F4, EN558-14
4. Flange according to DIN2532, DIN2533, DIN2501, EN1092-2, ASME B16.5 etc.
5. Design standard: DIN3352, EN558
6. Testing: DIN3230, API598, API 6D.
7. Medium: Water, oil, gas, steam, etc.

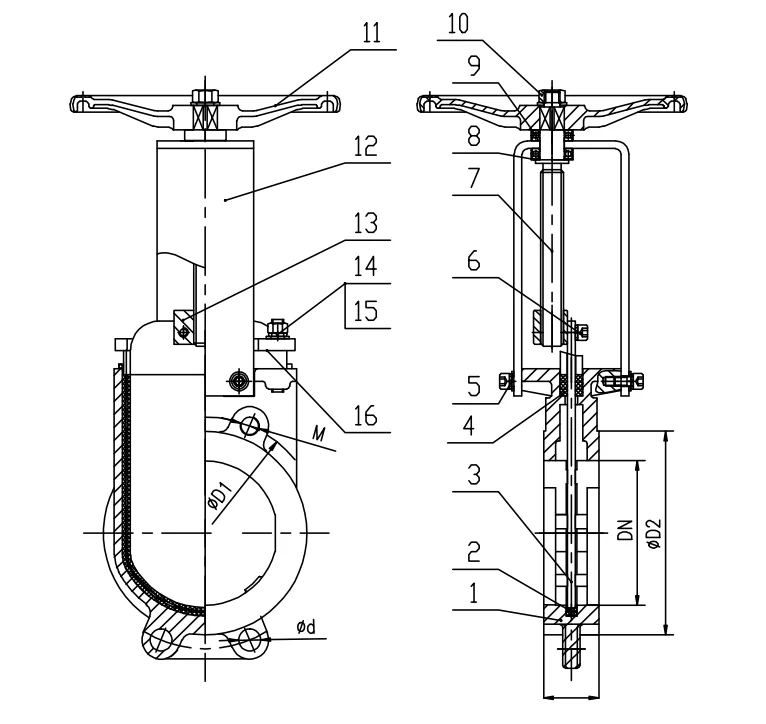

NO. | PART NAME | MATERIAL |
1 | Body | WCB/GGG40 |
2 | Seat | EPDM+wire |
3 | Gate | SS316 |
4 | Packing | NBR+F4 |
5 | Bolt | 201 |
6 | Bolt | 201 |
7 | Stem | 2Cr13 |
8 | Bearing sleeve | carbon steel |
9 | Bearing | Assembly |
10 | Nut | 201 |
11 | Handwheel | Malleable iron |
12 | Yoke | Q235 |
13 | Stem Nut | H59 |
14 | Bolt | 201 |
15 | Nut | 201 |
16 | Gland | WCB |
DN | NPS | L(mm) | D1 | D2 | M | Φd | Holes No. |
250 | 10" | 70 | 350 | 319 | M20 | 22 | 12 |
350 | 14" | 76 | 460 | 429 | M20 | 22 | 16 |
400 | 16" | 89 | 515 | 480 | M24 | 26 | 16 |

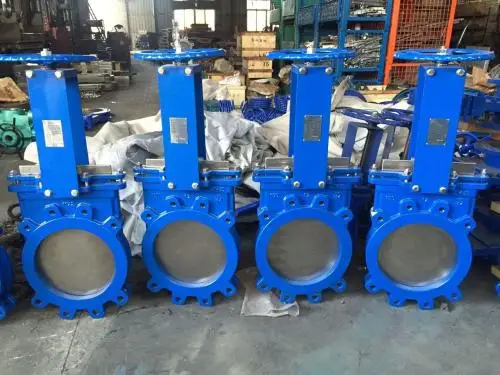

Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
