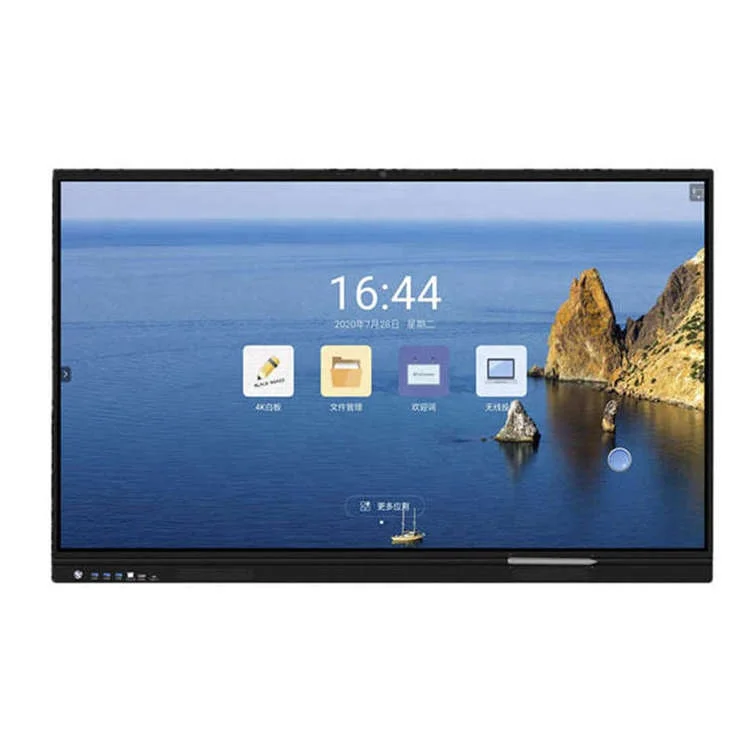

55 65 75 86 Inch LCD Touch Screen All in One PC Whiteboard Interactive Flat Panel for Education Meeting Conference
- Category: >>>
- Supplier: Shenzhen Hong Shuo Xun Technology Co. Ltd.
Share on (1600397964459):
Product Overview
Description
Company Profile
Shenzhen Hong Shuo Xun Technology Co., Limited is a professional manufacturer in Shenzhen China, providing LCD LED display related products for more than 10 years.
products: smart board, interactive whiteboard, advertising player, digital
photo frame, android tablets, information kiosk, lcd monitor, touch screen, interactive table, all in one, interactive TV, industrial tablets,OPS, mini pc, video wall, transparent led screen, led display, video wall, outdoor display...
We also provide OEM and ODM services, we are experienced in designing to add camera, fingerprint, printer, NFC, motion sensor on the lcd display according to your requirements.
photo frame, android tablets, information kiosk, lcd monitor, touch screen, interactive table, all in one, interactive TV, industrial tablets,OPS, mini pc, video wall, transparent led screen, led display, video wall, outdoor display...
We also provide OEM and ODM services, we are experienced in designing to add camera, fingerprint, printer, NFC, motion sensor on the lcd display according to your requirements.
Products Description
Android System
Android version: 8.0
RAM: 2GB standard (3GB optional)
Storage: 16GB sandard (32GB optional)
CPU: CA53*2+CA73*2C

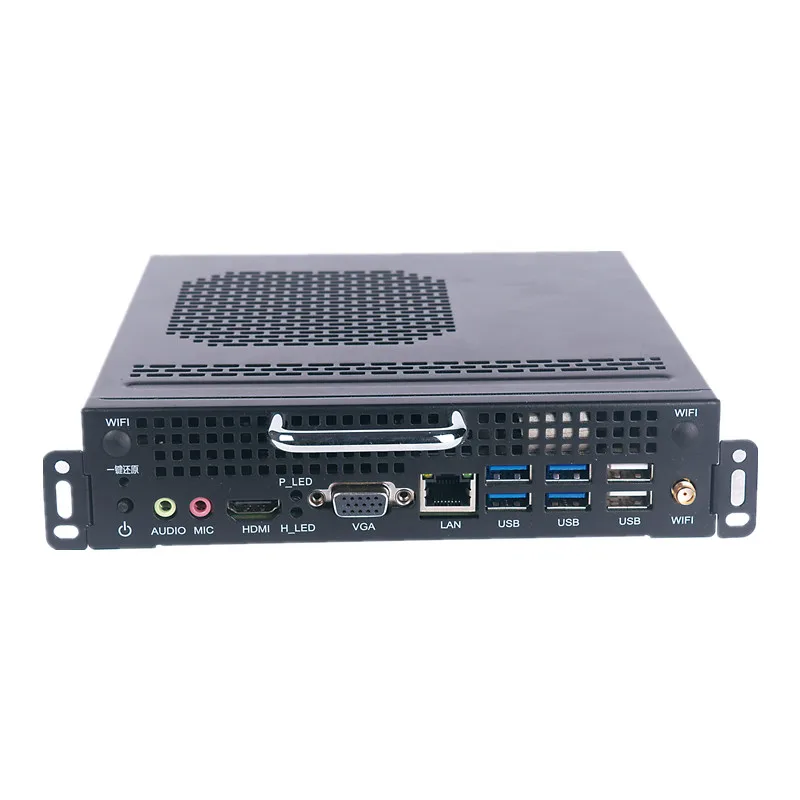

Open Pluggable Specification (OPS)
CPU: i3 i5 i7
RAM: 4GB/8GB/16GB
Hard disk: 128GB SSD/256GB/512GB/1TB HDD
System: windows 10, Linux, OS
LCD panel
LED backlight
4K resolution
3840*2160
60Hz

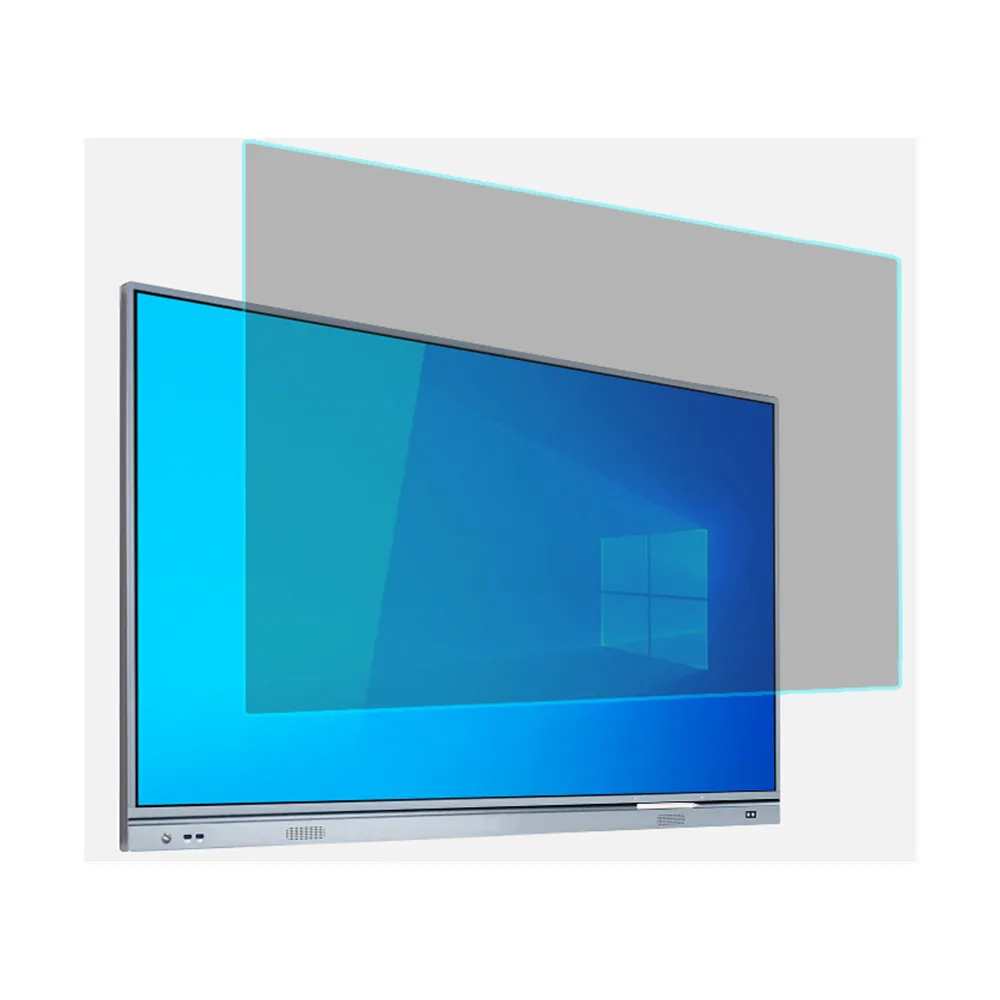

4mm Tempered glass
20 points multi-touch
Infrared touch 20 points multi-touch screen enables students write , draw on the screen at the same time, finger gestures, palm erase, simulations....

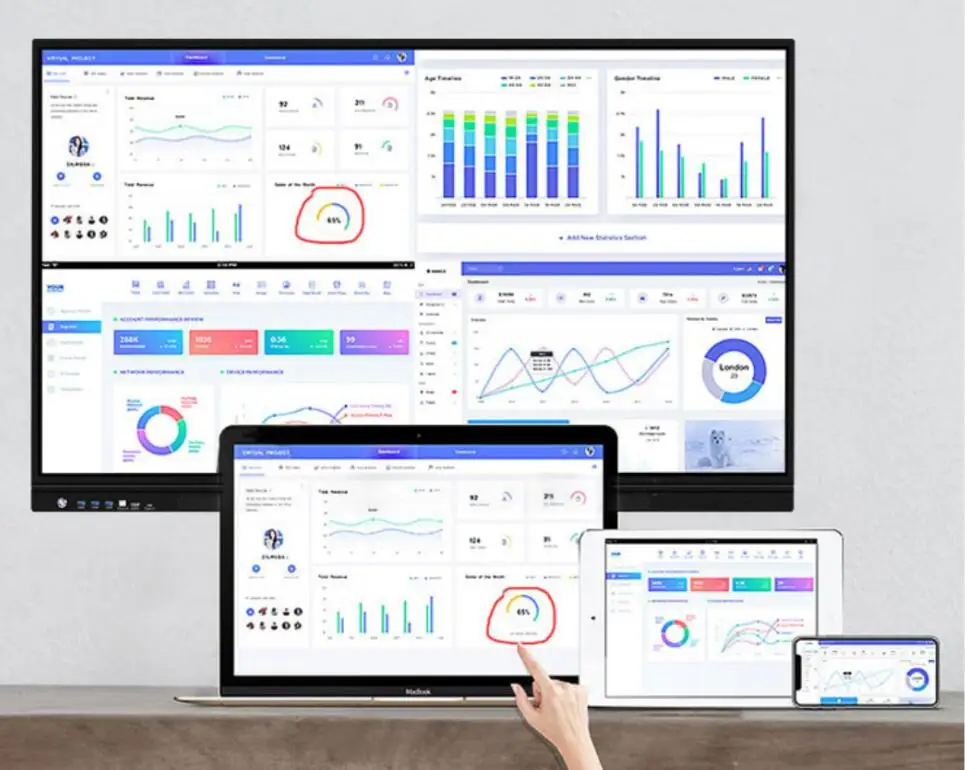

Share screen
Share software enables the laptop, tablets, mobile phone share screen with the interactive whiteboard freely.
QR scanner
The interactive whiteboard with QR scanner, people can use mobile phone scan the QR code to take away the contents showed on the interactive whiteboard.

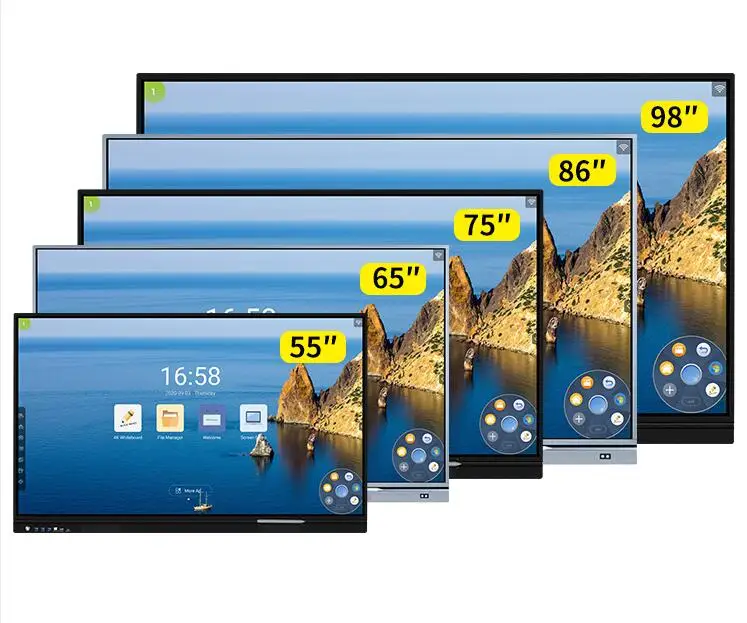

Sizes
Many sizes available: 55", 65", 75" 85" 98"
Wall mount

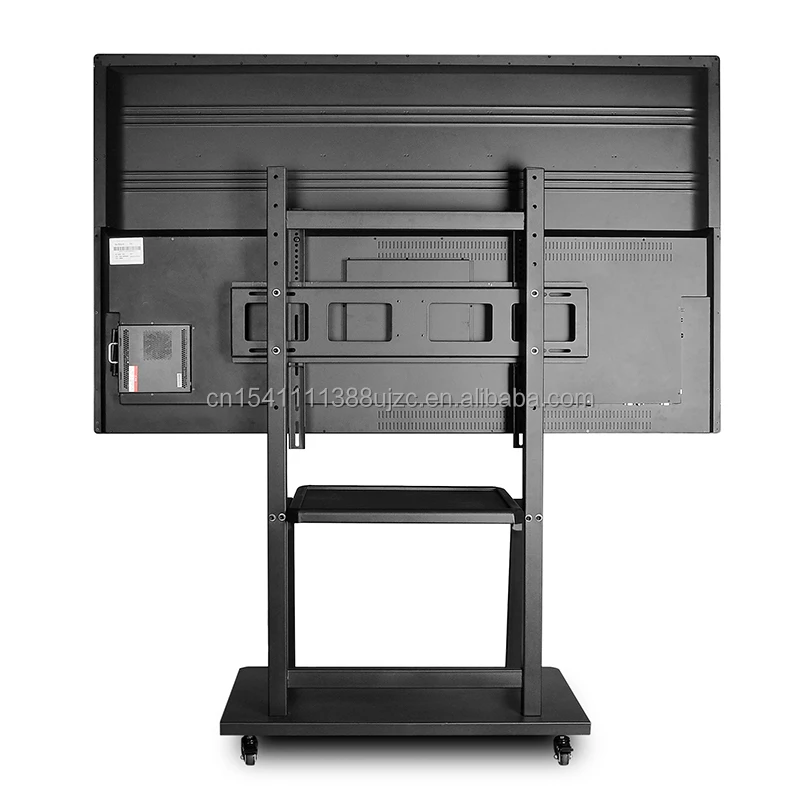

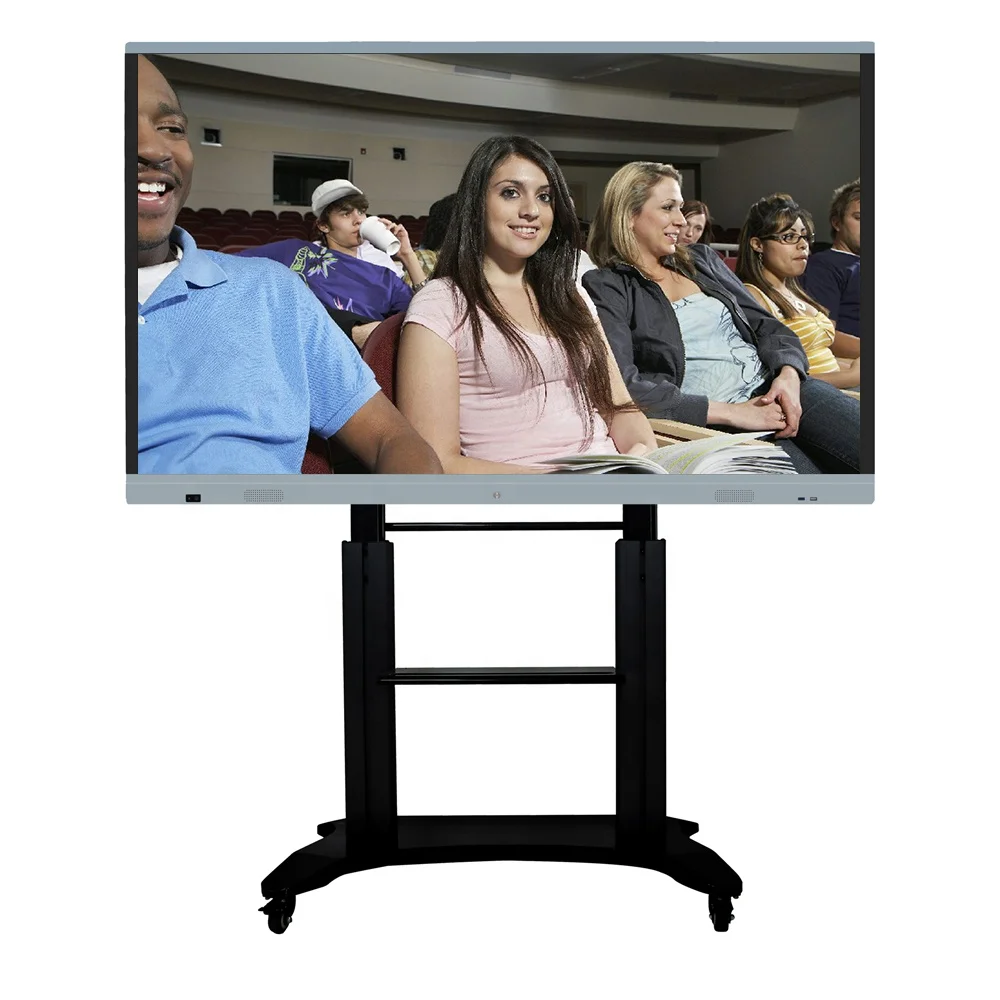

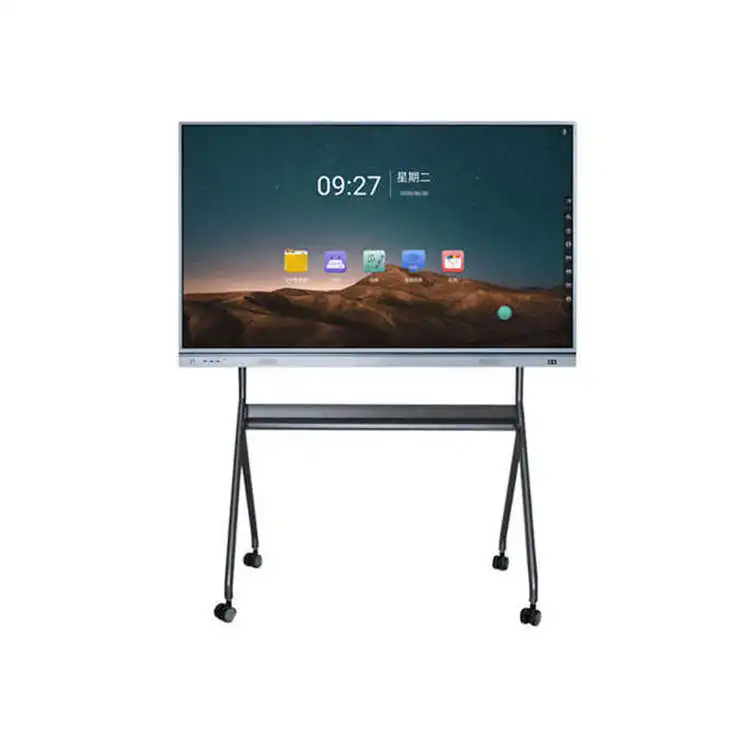

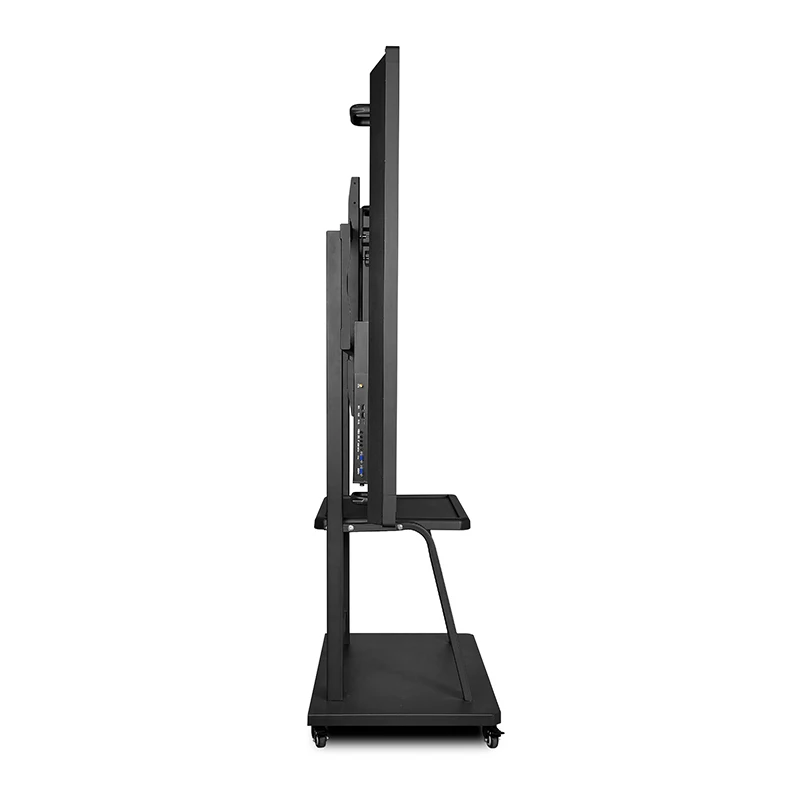

Mobile stand
Specification
Display size | 55 | 65 | 75 | 85 | 98 | ||||
Model No. | QD-IB-IR80-55 | QD-IB-IR80-65 | QD-IB-IR80-75 | QD-IB-IR80-85 | QD-IB-IR80-98 | ||||
Display panel brand | for AUO/CHIMEI/TCL CSOT LCD panel | AUO/CHIMEI/TCL CSOT LCD panel | |||||||
Backlight | D-LED | D-LED | D-LED | D-LED | D-LED | ||||
Resolution | 3840*2160 | 3840*2160 | 3840*2160 | 3840*2160 | 3840*2160 | ||||
Brightness | ≥300cd/㎡ | ≥350cd/㎡ | ≥350cd/㎡ | ≥350cd/㎡ | ≥350cd/㎡ | ||||
Contrast ratio | 6ms5000:1 | 4000:1 | 6000：1 | 4000:1 | 1200:1 | ||||
Response time | 5ms | 6ms | 6ms | 6ms | 6ms | ||||
Pixel pitch | 0.105(H)x 0.315(V) | 0.124×0.372 mm (H×V) | 0.4298 x 0.4298 mm | 0.4875 x 0.4875 mm | 0.5622 mm x 0.5622 mm | ||||
Refresh rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | ||||
Viewing angle | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | ||||
Color | 72% | 72% | 72% | 72% | 72% | ||||
Display area | 1209.6 (H)x680.4 (V) | 1428.48*803.52mm | 1650.24 (H)×928.26 (V)mm | 1872 (H)×1053 (V)mm | 2158.85（H）*1214.35(V)mm | ||||
Display color | 8 bit/1.07 Billion | 8 bit/1.07 Billion | 8 bit/1.07 Billion | 8 bit/1.07 Billion | 8 bit/1.07 Billion | ||||
Screen life | ≥30000h | ≥30000h | ≥30000h | ≥30000h | ≥30000h | ||||
Aspect ratio | 16:9 (H:V) | 16:9 (H:V) | 16:9 (H:V) | 16:9 (H:V) | 16:9 (H:V) | ||||
Touch technology | Infrared touch | Infrared touch | Infrared touch | Infrared touch | Infrared touch | ||||
Glass | 4mm tempered glass (anti-glare optional) | 4mm tempered glass (anti-glare optional) | 4mm tempered glass (anti-glare optional) | 4mm tempered glass (anti-glare optional) | 4mm tempered glass (anti-glare optional) | ||||
Glass hardness | 7Mohs | 7Mohs | 7Mohs | 7Mohs | 7Mohs | ||||
Multi touch point | 20 points multi-touch | 20 points multi-touch | 20 points multi-touch | 20 points multi-touch | 20 points multi-touch | ||||
Response time | 5ms | 5ms | 5ms | 5ms | 5ms | ||||
Touch accuracy | ±2mm | ±2mm | ±2mm | ±2mm | ±2mm | ||||
Touch diameter | ≥3mm | ≥3mm | ≥3mm | ≥3mm | ≥3mm | ||||
Input | Finger, pen or any opaque object | Finger, pen or any opaque object | Finger, pen or any opaque object | Finger, pen or any opaque object | Finger, pen or any opaque object | ||||
Interface type | USB 2.0 full speed | USB 2.0 full speed | USB 2.0 full speed | USB 2.0 full speed | USB 2.0 full speed | ||||
Operating voltage | DC+5V±6% | DC+5V±6% | DC+5V±6% | DC+5V±6% | DC+5V±6% | ||||
Power consumption | ≤2 W | ≤2 W | ≤2 W | ≤2 W | ≤2 W | ||||
Chip | HM87 | HM87 | HM87 | HM87 | HM87 | ||||
CPU | Intel core i3-4000M (optional i5, i7) | Intel core i3-4000M (optional i5, i7) | Intel core i3-4000M (optional i5, i7) | Intel core i3-4000M (optional i5, i7) | Intel core i3-4000M (optional i5, i7) | ||||
Core and main frequency | 2 cores 4 threads 2.40GHz | 2 cores 4 threads 2.40GHz | 2 cores 4 threads 2.40GHz | 2 cores 4 threads 2.40GHz | 2 cores 4 threads 2.40GHz | ||||
RAM | 4GB DDR3 (optional 8GB) | 4GB DDR3 (optional 8GB) | 4GB DDR3 (optional 8GB) | 4GB DDR3 (optional 8GB) | 4GB DDR3 (optional 8GB) | ||||
Harddisk | 128G SSD (optional 256GB) | 128G SSD (optional 256GB) | 128G SSD (optional 256GB) | 128G SSD (optional 256GB) | 128G SSD (optional 256GB) | ||||
I/o ports | JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1 | JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1 | JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1 | JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1 | JAE connector (80pin VGA*1 HDMI*1 Rj45 Gigabit *1 USB3.0*2 USB2.0*4 Auio out*1 MIC in *1 Rs232*1 DP*1 | ||||
System | Windows 7/8/10 Linux | Windows 7/8/10 Linux | Windows 7/8/10 Linux | Windows 7/8/10 Linux | Windows 7/8/10 Linux | ||||
Android version | Android 8.0 | Windows 7/8/10 Linux | Windows 7/8/10 Linux | Windows 7/8/10 Linux | Windows 7/8/10 Linux | ||||
CPU | CA53*2+CA73*2C | A53*2+CA73*2 | A53*2+CA73*2 | A53*2+CA73*2 | A53*2+CA73*2 | ||||
CPU working frequency | 1.5 GHz | 1.5 GHz | 1.5GHz | 1.5 GHz | 1.5 GHz | ||||
CPU cores | quad core | quad core | quad core | quad core | quad core | ||||
GPU | G51MP2 | G51MP2 | G51MP2 | G51MP2 | G51MP2 | ||||
RAM | 2 GB DDR4 (optional 3GB) | 2 GB DDR4 (optional 3GB) | 2 GB DDR4 (optional 3GB) | 2 GB DDR4 (optional 3GB) | 2 GB DDR4 (optional 3GB) | ||||
Storage | 16 GB Standard (optional 32GB) | 16 GB Standard (optional 32GB) | 16 GB Standard (optional 32GB) | 16 GB Standard (optional 32GB) | 16 GB Standard (optional 32GB) | ||||
Language | Chinese Simplified,traditional Chinese ,English,Japanese,Russian,German,French,Polish,Spanish,Portuguese,Arabic,Catalonia,Galician,Vietnamese,Ukrainian,Kazakh,Korean,Thai,Bulgarian | Chinese Simplified,traditional Chinese ,English,Japanese,Russian,German,French,Polish,Spanish,Portuguese,Arabic,Catalonia,Galician,Vietnamese,Ukrainian,Kazakh,Korean,Thai,Bulgarian | Chinese Simplified,traditional Chinese ,English,Japanese,Russian,German,French,Polish,Spanish,Portuguese,Arabic,Catalonia,Galician,Vietnamese,Ukrainian,Kazakh,Korean,Thai,Bulgarian | Chinese Simplified,traditional Chinese ,English,Japanese,Russian,German,French,Polish,Spanish,Portuguese,Arabic,Catalonia,Galician,Vietnamese,Ukrainian,Kazakh,Korean,Thai,Bulgarian | Chinese Simplified,traditional Chinese ,English,Japanese,Russian,German,French,Polish,Spanish,Portuguese,Arabic,Catalonia,Galician,Vietnamese,Ukrainian,Kazakh,Korean,Thai,Bulgarian | ||||
Voltage | 100 V ~ 240 V/AC, 50/60 Hz | 100 V ~ 240 V/AC, 50/60 Hz | 100 V ~ 240 V/AC, 50/60 Hz | 100 V ~ 240 V/AC, 50/60 Hz | 100 V ~ 240 V/AC, 50/60 Hz | ||||
Maximum power (without OPS) | ≦350W | ≦350W | ≦350W | ≦350W | ≦350W | ||||
OPS power supply | 19V(DC)/5A | 19V(DC)/5A | 19V(DC)/5A | 19V(DC)/5A | 19V(DC)/5A | ||||
Standby power consumption | 0.5W | 0.5W | 0.5W | 0.5W | 0.5W | ||||
Power (AC) input | *1 | *1 | *1 | *1 | *1 | ||||
Speaker | 10W * 2 | 10W * 2 | 10W * 2 | 10W * 2 | 10W * 2 | ||||
On Machine exclude OPS ports | Lan input*1 VAG input*1 PC-AUDIO input*1 YPBPR*1 AV in*1 AV out*1 Earphone out*1 RF-IN*1 SPDIF*1 HDMI input*2 Touch*1 RS-232*1 USB2.0*2 HDMI out*1 | Lan input*1VAG input*1 PC-AUDIO input*1 YPBPR*1 AV in*1 AV out*1 Earphone out*1 RF-IN*1 SPDIF*1 HDMI input*2 Touch*1 RS-232*1 USB2.0*2 HDMI out*1 | Lan input*1VAG input*1 PC-AUDIO input*1 YPBPR*1 AV in*1 AV out*1 Earphone out*1 RF-IN*1 SPDIF*1 HDMI input*2 Touch*1 RS-232*1 USB2.0*2 HDMI out*1 | Lan input*1VAG input*1 PC-AUDIO input*1 YPBPR*1 AV in*1 AV out*1 Earphone out*1 RF-IN*1 SPDIF*1 HDMI input*2 Touch*1 RS-232*1 USB2.0*2 HDMI out*1 | Lan input*1VAG input*1 PC-AUDIO input*1 YPBPR*1 AV in*1 AV out*1 Earphone out*1 RF-IN*1 SPDIF*1 HDMI input*2 Touch*1 RS-232*1 USB2.0*2 HDMI out*1 | ||||
Operating temperature | 0℃ ~ 40℃ | ||||||||
stored temperature | -10℃ ~ 60℃ | ||||||||
Working humidity | 20% ~ 80% | ||||||||
Storage humidity | 10% ~ 60% | ||||||||
Maximum use time (hours*days) | 18Hours*7days | ||||||||

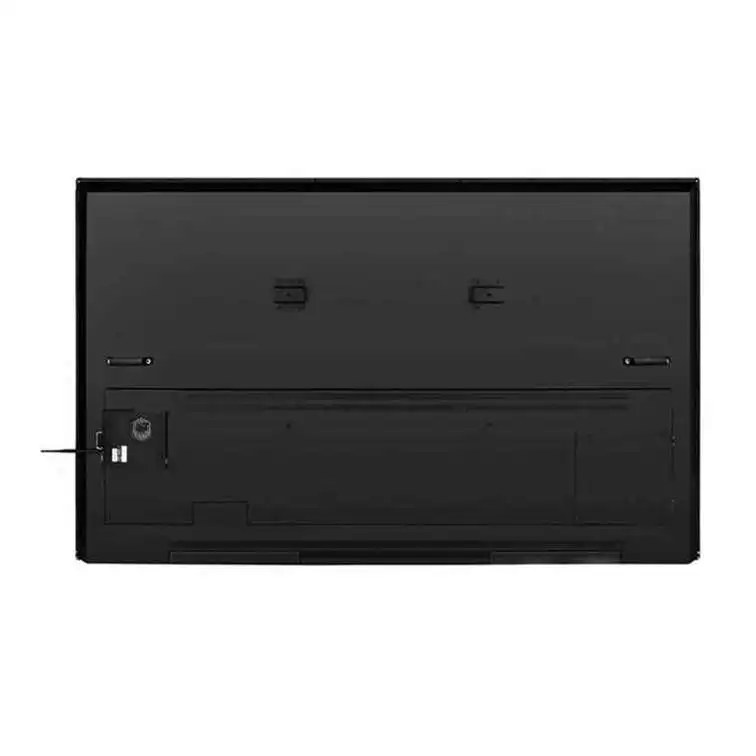

VESA | 600*400 (4-M8 screw hole) | ||||||||
Cabinet material | Aluminum frame, metal back | ||||||||
Cabinet color | Dark iron gray | ||||||||
Accessories | Wifi antenna*3 Adsorption pen*1 Remote control *1 Instructions *1 Warranty card*1 1.5m power cord*1 Wall mounts *1 Set | ||||||||
Application
School
Schools needs this interactive whiteboard for multi-media classroom.
Conferencing
Companies use the smart board for video conferencing
Packing & Delivery
The interactive whiteboard made of LCD display and tempered glass, it should be well packed for protection.
Carton
Interactive whiteboard shipping by containers use carton box is ok.
Plywood box
Interactive whiteboard samples or small quantity shipping by air or see need to be packed by plywood box for protection, cheap and save.
Flight case
Interactive whiteboard samples or small quantity shipping by air or see need to be packed by flight case for protection, easy to move, but more expensive.
