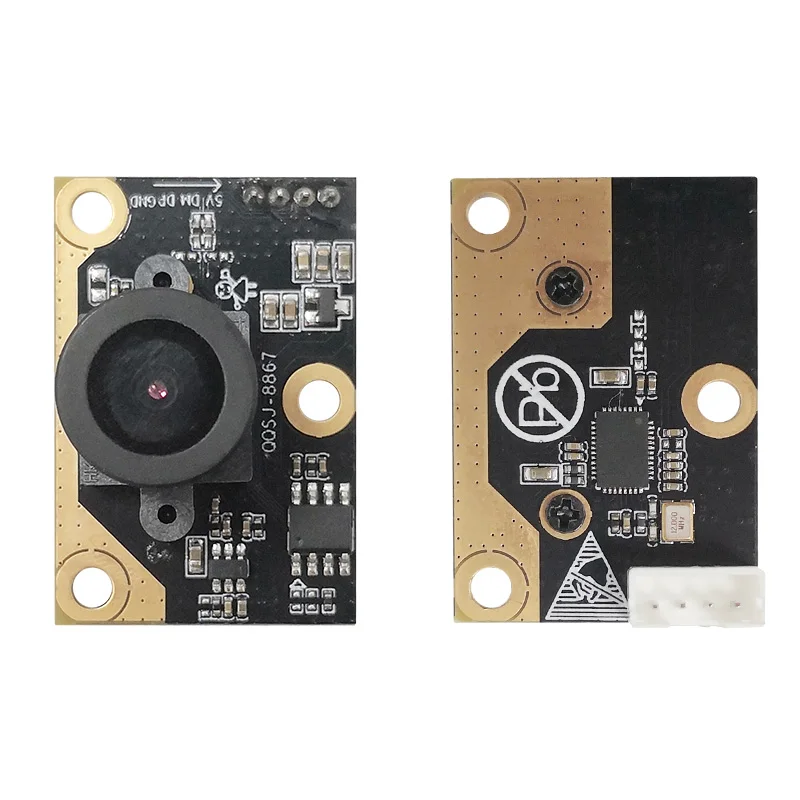

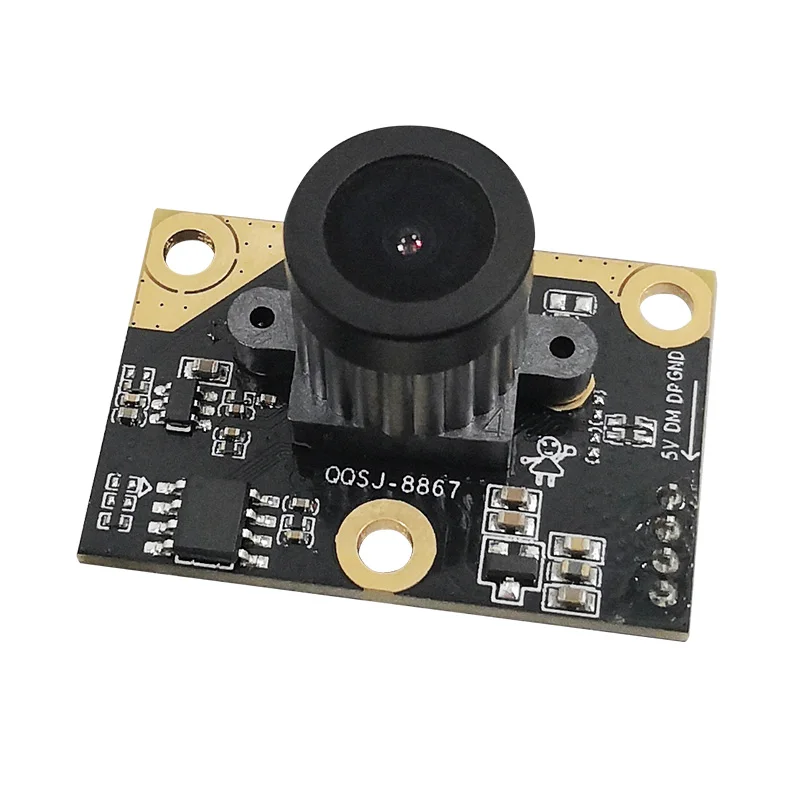

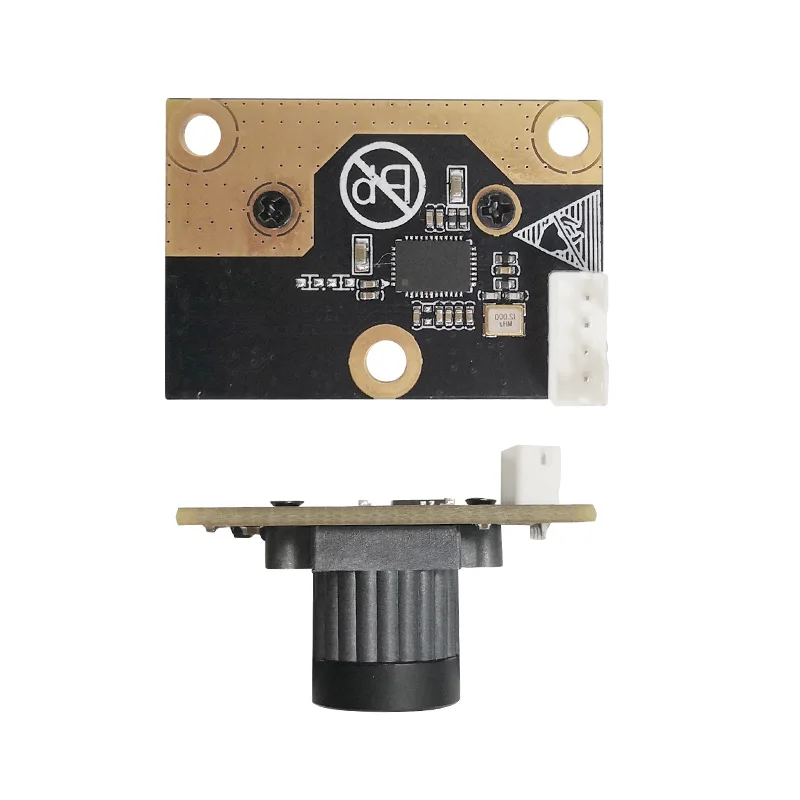

OV9732 sensor Motion camera network camera USB camera module
- Category: >>>
- Supplier: Shenzhen Hongjia Precision Image Co. Ltd.
Share on (1600397996903):
Product Overview
Description

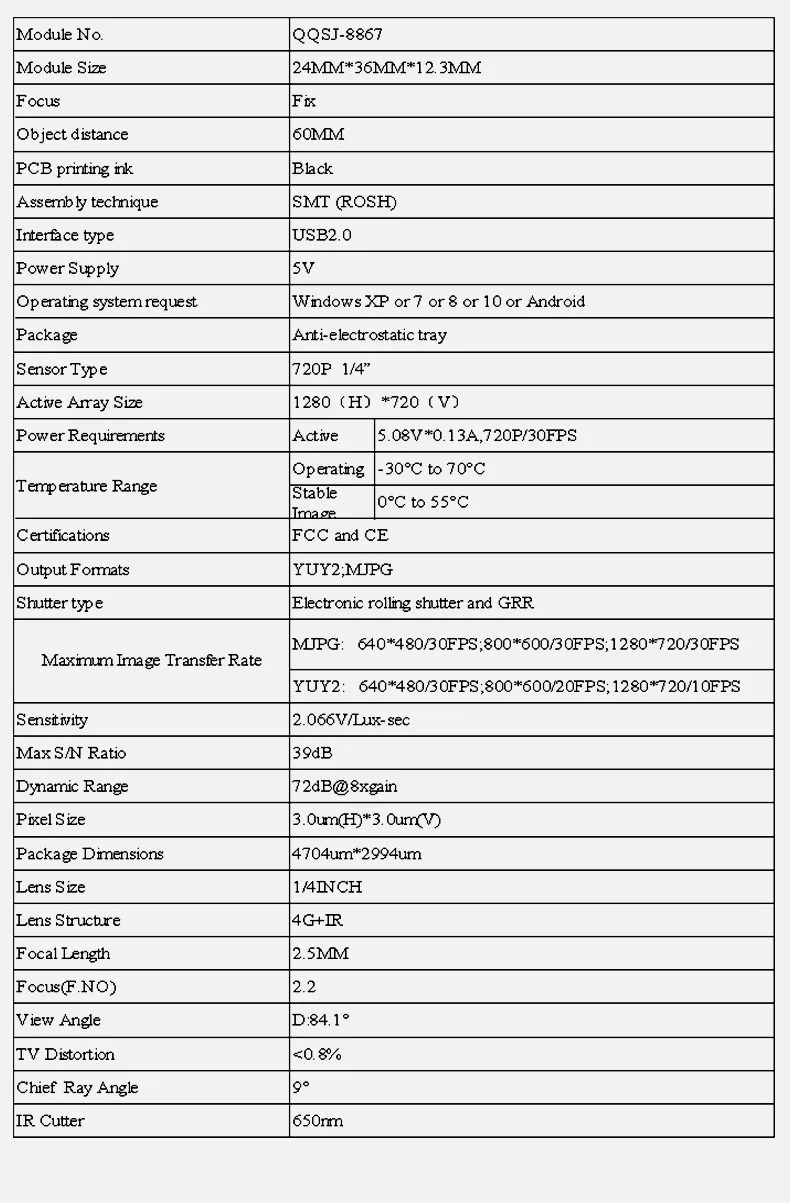

Product Description

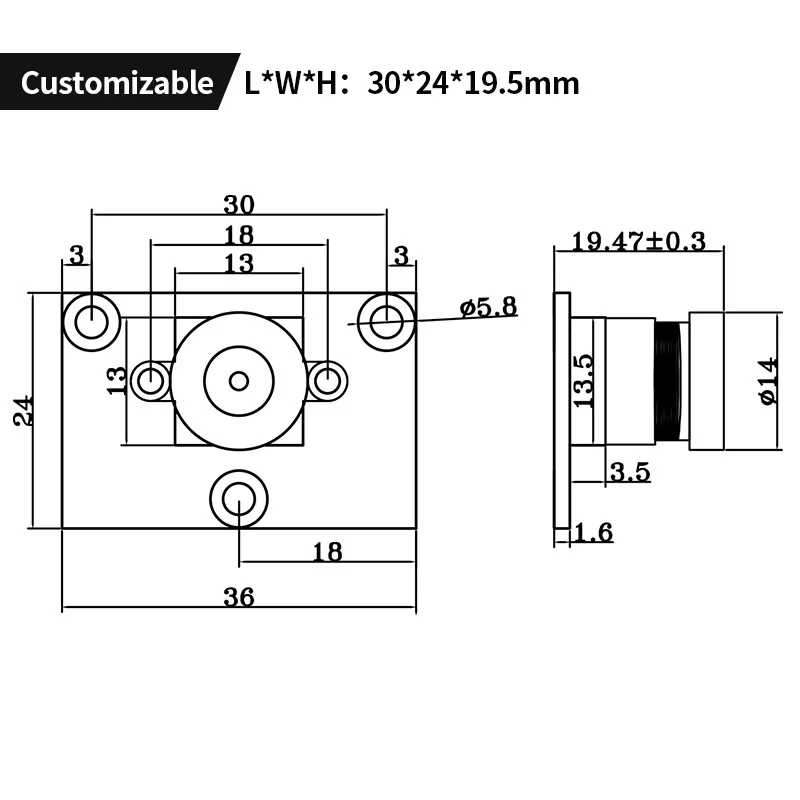

Module Size | 36mm X 24mm |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fix |
Object distance | 60CM |
Resolution | TBD |
PCB printing ink | Black |
interface | USB3.0 |
Power | USB bus power(5V) |
Operating system request | Windows XP or Vistar or win7 or Android |
Package | Anti-electrostatic tray |
Certifications | FCC and CE |
Sensor Type | OV9732 1/4” |
Active Array Size | 1280*720 |
Sensitivity | 2.066V/Lux-sec |
Pixel Size | 3um x 3um |
Maximum Image Transfer Rate | 30FPS full resolution |
S/N Ratio | 39dB |
Dynamic Range | 72dB |
Package | CSP |
AGC/AEC/Whiter balance | Auto |
Output Formats | USB suspend out |
Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK |
Package | TQFP |
