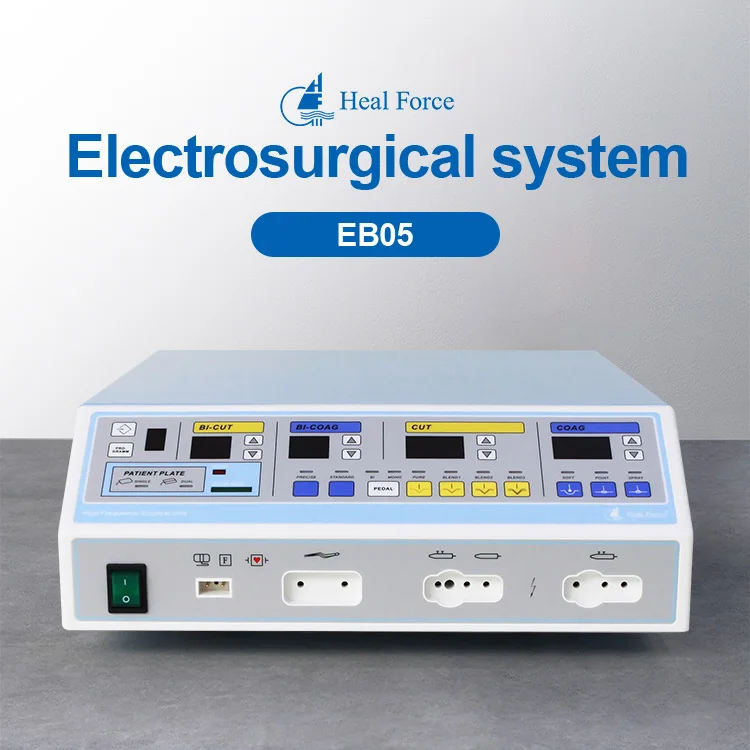

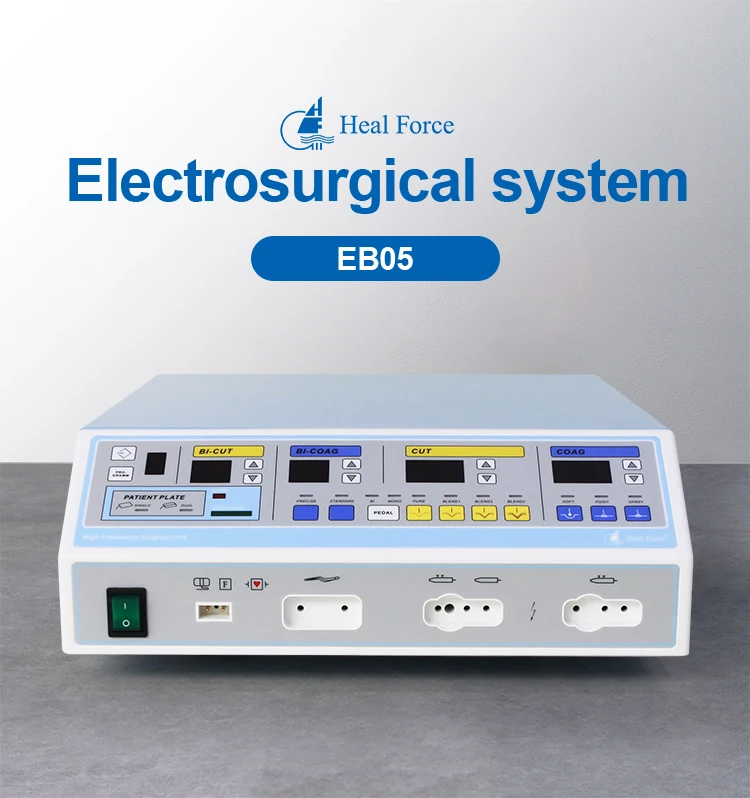

HealForce EB05 Operating Room Radiofrequency Diathermy Electrosurgical Unit Machine
- Category: >>>
- Supplier: Nison Instrument (Shanghai) Limited
Share on (1600398124010):
Product Overview
Description
Products Description

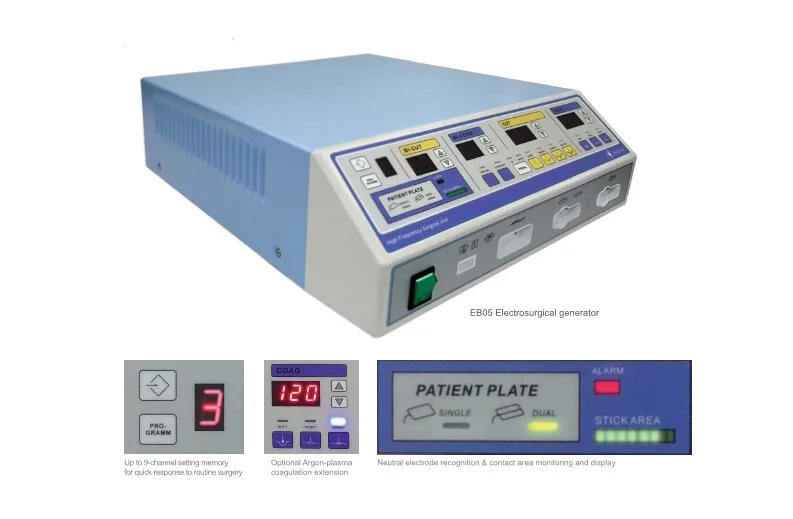

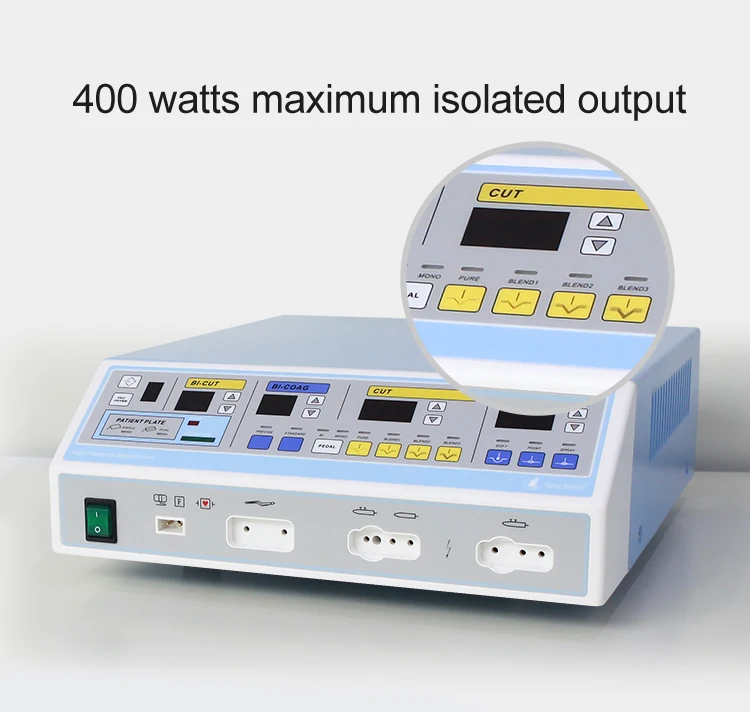

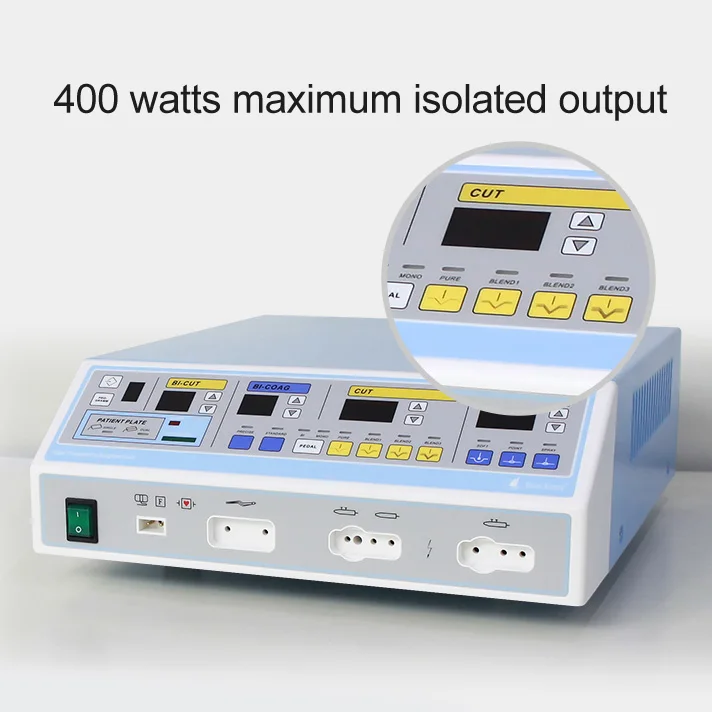

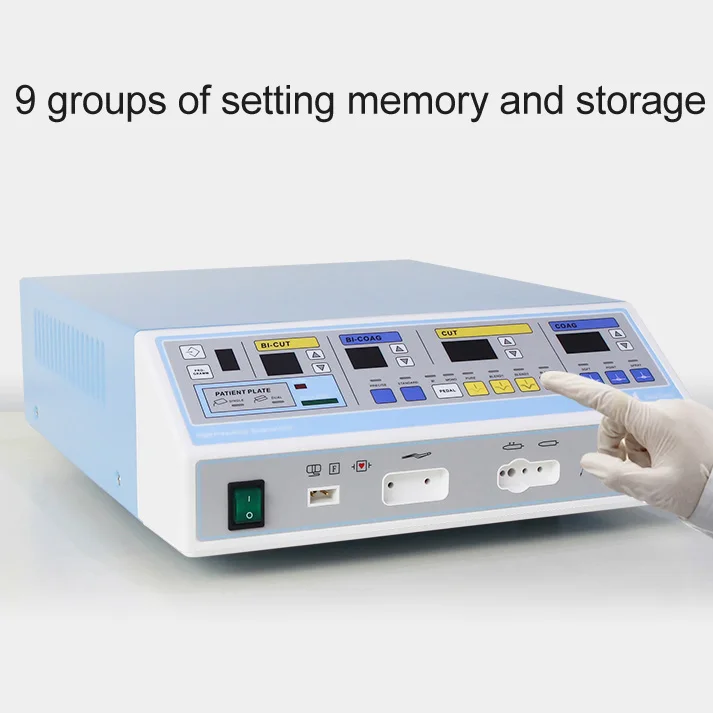

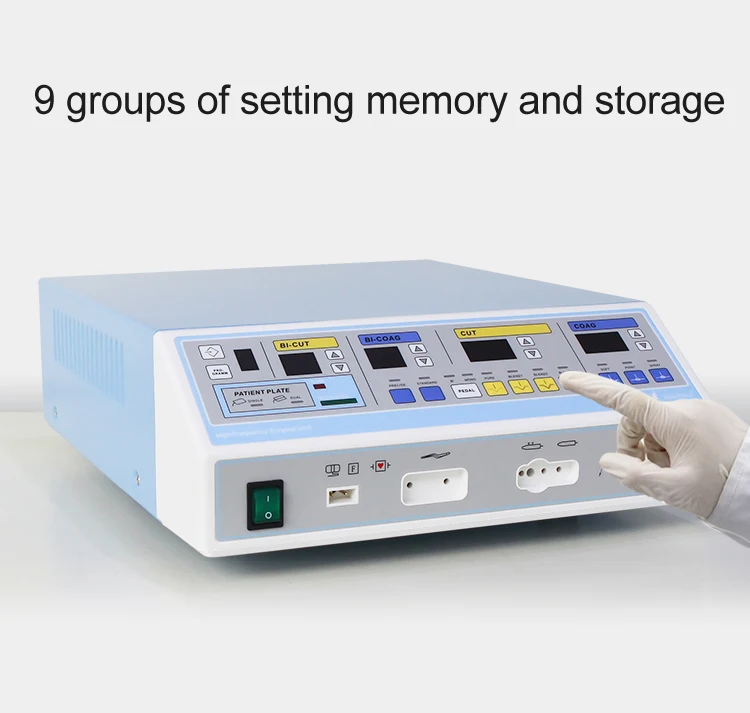

EB05 is a versatile system designed to deliver standard and argon-enhanced electrosurgery. It features 10 different power setting, 9-channel program memory, max.400 watt floating output and optional Argon-enhanced system to give optimal cutting and coagulation with minimal tissue damage, which well combines safety and effectiveness for a broad range of electrosurgical needs, like General surgery, Cardiology, ENT surgery, Gastroenterology, Gynaecology, Laparoscopy, Neuro surgery, Plastic surgery, Thoracic surgery and Urology (like TURP, TUVP)
Product name | Diathermy electrosurgical unit machine | ||||||
Rate frequency | 512 kHz (110/240vAC, 60/50Hz) | ||||||
Isolated output | YES | ||||||

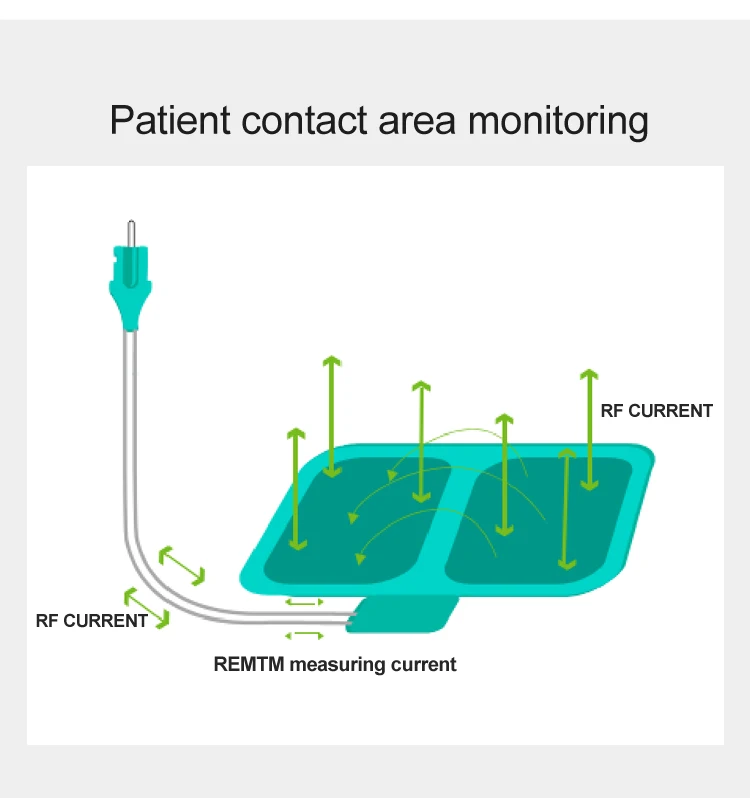

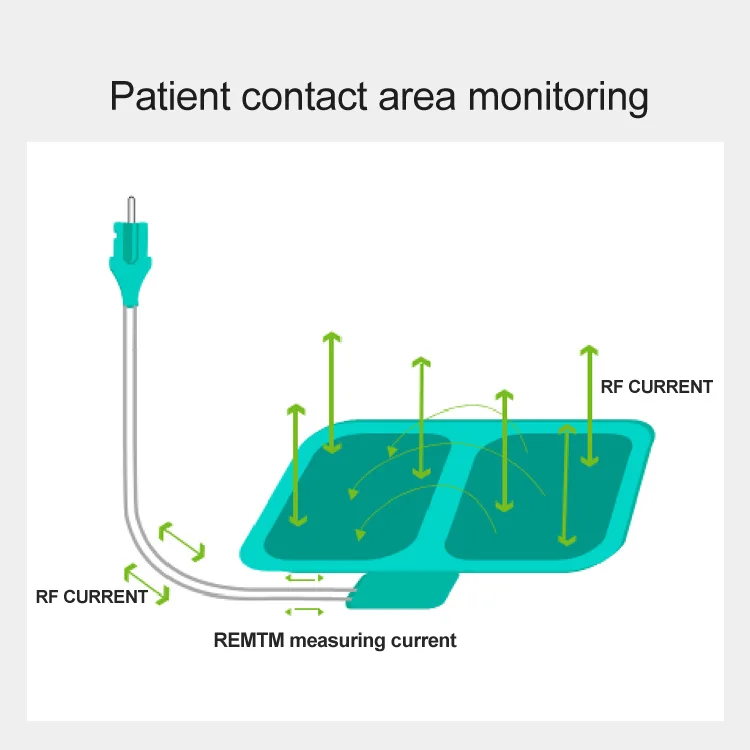

Quantitative display of contact area | YES, for "Split" type of neutral electrode | ||||||
Contact area indicator lamp | 10 lamps (one for 10% contact), alarm beep and flicker if contact < 20% | ||||||
Split/solid neutral electrode definition | YES, "Split" or "Solid" indicator lamp lights up | ||||||
Adjustable alarm volume | YES | ||||||
Operational duty cycle | 10 seconds ON, 30 seconds OFF | ||||||
Cooling method | Convection | ||||||
Accessory & supply connection | Finger-switch pencil | 1 | |||||

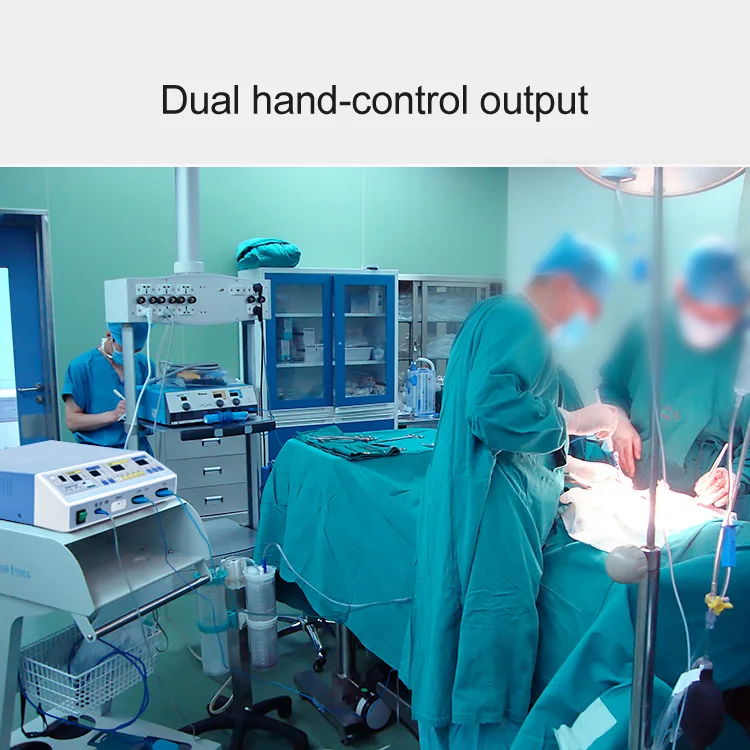

Finger-switch pencil | 2 | ||||||
Patient return electrode | 1 | ||||||
Foot-switch | 1 | ||||||
AC power supply | 1 | ||||||
Equipotential bonding | 1 | ||||||
Surgical smoke evacuator | 1 (but surgical smoke evacuator is optional) | ||||||
Regulation | Type according to EN 60601-1 | CF | |||||
Protection class to EN 60601-1 | class I | ||||||
Protection class to EN 60601-1 | IIb | ||||||
Packaging | Dimension (WxDxH) | 460 x 410 x 160 mm | |||||
Weight | 11.2 | ||||||
Technical Parameter
Monopolar | ||||||||
Cutting mode | Max. power output (watts) | Load (ohms) | Open circuit Vp-p | Crest factor | ||||
Pure | 400w | 500 Ω | 2,300 V | 1.5 | ||||
Blend1 | 300w | 500 Ω | 2,700 V | 2.1 | ||||
Blend2 | 200w | 500 Ω | 3,200 V | 2.5 | ||||
Blend3 | 150w | 500 Ω | 3,700 V | 3.1 | ||||
Coagulation mode | ||||||||
Point | 120w | 500 Ω | 5,600 V | 6.1 | ||||
Soft | 120w | 500 Ω | 3,400 V | 6.1 | ||||
Spray | 120w | 500 Ω | 8,500 V | 8.3 | ||||
Bipolar | ||||||||
Cutting mode | - | - | - | - | ||||
Standard | 70w | 200 Ω | 1,450 v | 1.5 | ||||
Coagulation mode | ||||||||
Standard | 70w | 500 Ω | 240V | 1.5 | ||||
Precise | 70w | 500 Ω | 360V | 1.5 | ||||
