200l laboratory magnetic stirring high pressure hastelloy reactor
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600398178262):
Product Overview
Description
Product Description
200l plant magnetic stirring high pressure hastelloy reactor
200liters hastelloy made pressure autoclave reactor with magnetic drives
Electric heating reactor/ Hastelloy C276 reactor/ High pressure autoclave reactors/ 100liters pressure reactor/ 200liters pressure reactors/ 500liters pressure reactors/ Chemical pressure reactors/ stainless steel pressure reactors/ High pressure reactors.
High pressure reactor volume from 50liters to 100liters, maxiumum pressure up to 200bar.
Heating method： electric heating
Magnetic coupling drive for high pressure conditions.
Applications：Hydrogenation, Gas liquid reaction, Polymerization, Synthesis, Catalytic, Petrochemical, etc.
Volume | 50-500 Liters | |
Pressure | Max.200bar | |
Temperature | 350 ℃ | |
Material | SS304 /SS316 | |
Heating type | Electric Oil Heating | |
Cooling type | Internal spiral coils | |
Sealing type | Magnetic stirrer or mechanical seal | |
Impeller type | Propeller, Turbine, Anchor type | |
Other materials, pressures & temperatures are available. | ||
Product Features

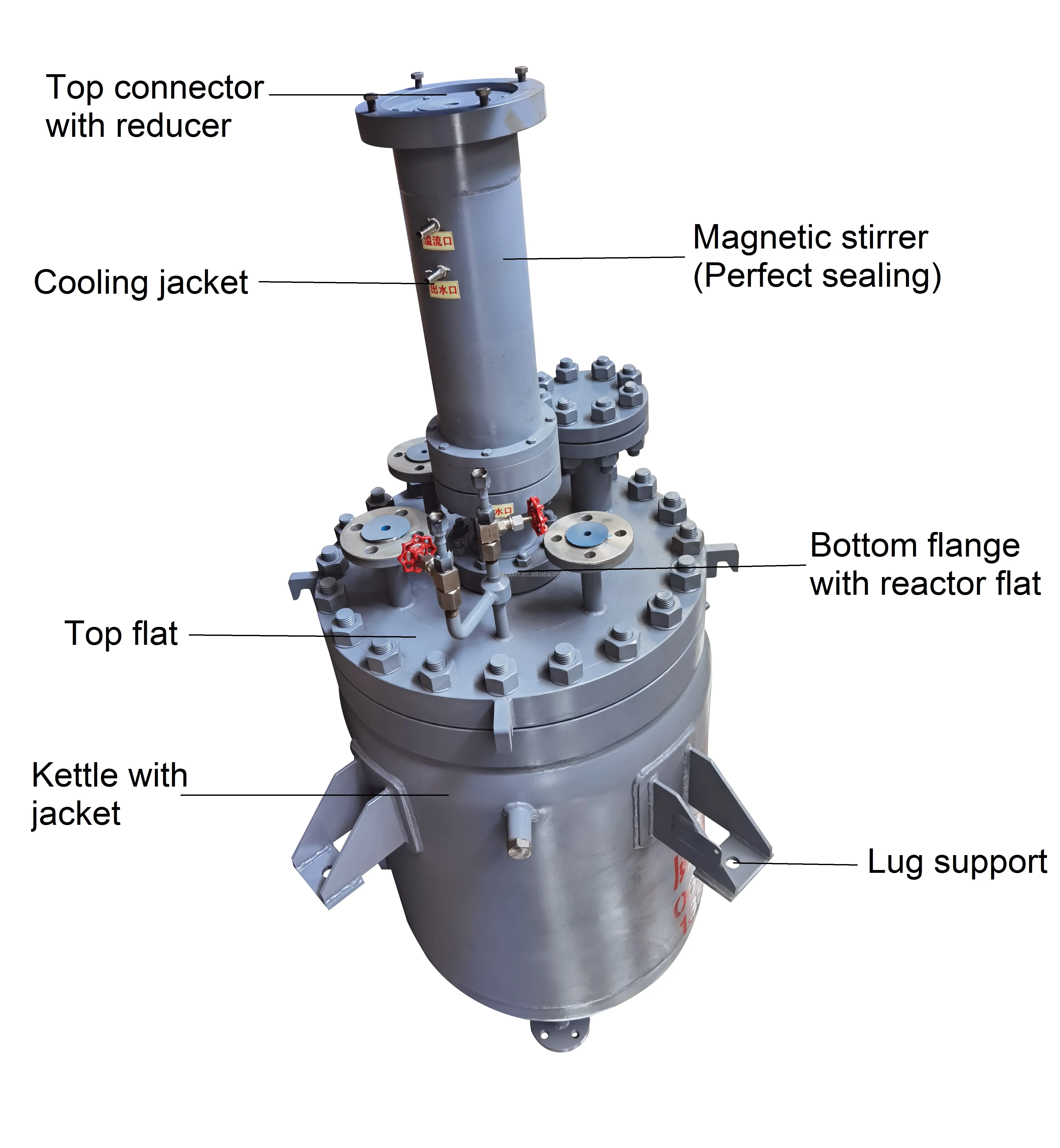

Magnetic Stirrer
* 100% Sealing. Zero leakage.* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
Internal Structure
*Internal spiral coils optional
Quick coolings for material
*Dip tupe device
Used for up discharging
*Gas distributor
Hydrogen emission distribution
*Gas-liquid mixing impeller
Propeller, turbine, gas inducing impeller
Customize for you
Reasonably customize the nozzle port and orientation, including:
*Liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.
Agitator
*Different impeller type available for specific mixing mission.
*Special impeller design according to process condistions
*Special impeller design according to process condistions
*Propeller, turbine type, gassing stirrer, anchor type , frame type,. etc.
Electric heating
*Several group electric heating rod.
*Conduct heating oil
Product Paramenters
Model No. | GSH-100 | GSH-200 | FCH-300 | FCH-500 | |||
Nominal Capacity (L) | 100 | 200 | 300 | 500 | |||
Design Pressure (bar) | -0.1-300 bar customized | ||||||
Material | SS304 or SS316 wetted parts | ||||||
Design Temperature (℃) | 0~350 customized | ||||||
Stirring Speed (r/min) | 0-500 | 0-450 | 0-450 | 0-450 | |||
Motor Power (kW) | 2.2 | 2.2 | 4 | 5.5 | |||
Heating Power (kW) | According to the working temperature | ||||||
Heating Method | Standard electric heating(Thermal oil, steam, far infrared heating available) | ||||||

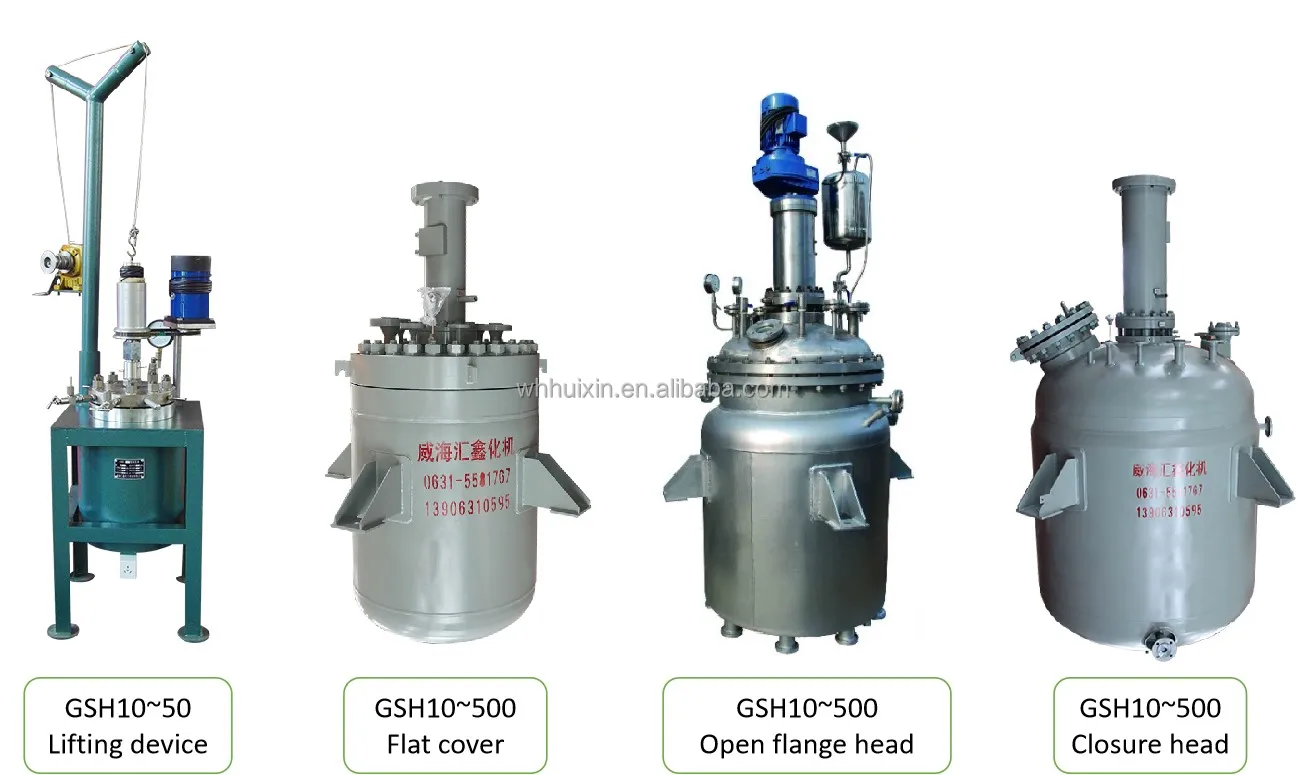

Head type | Flat cover or elliptical flange type | ||||||
Impeller type (Optional) | Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc | ||||||
Cooling type (Optional) | Spiral cooling cools with cooling water | ||||||
Discharging type (Optional) | Discharging from bottom or above. | ||||||
Control panel | PID temperature display and control, accuracy±1 ℃; Stirring speed display; Operation time display; Heating voltage and current display | ||||||
Opening port of head (Optional) | Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port; | ||||||
Detailed Images
SS304/SS316 Vessel

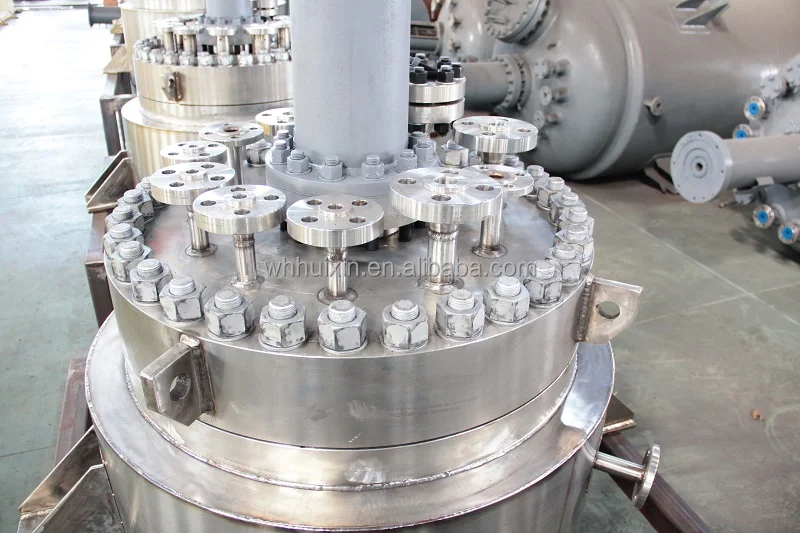

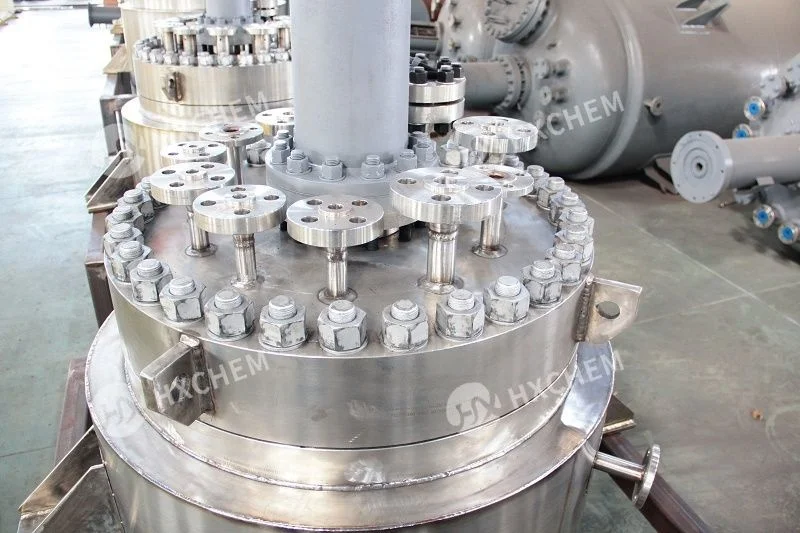

Top Head

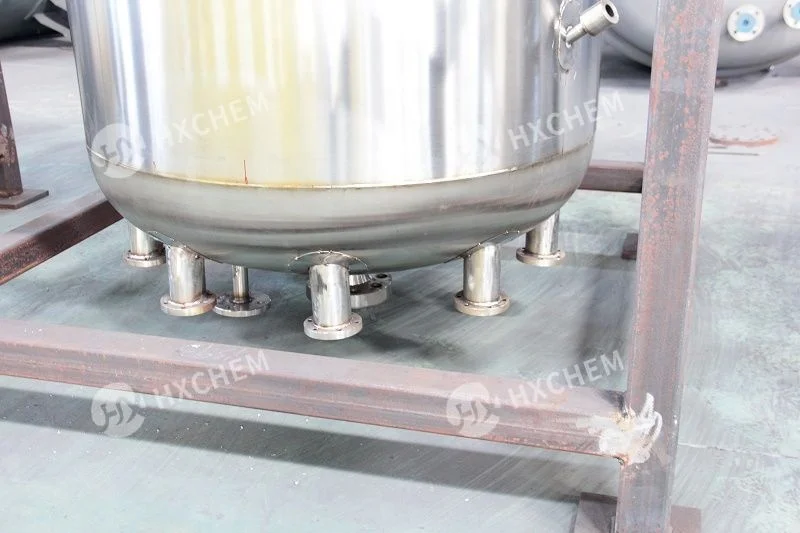

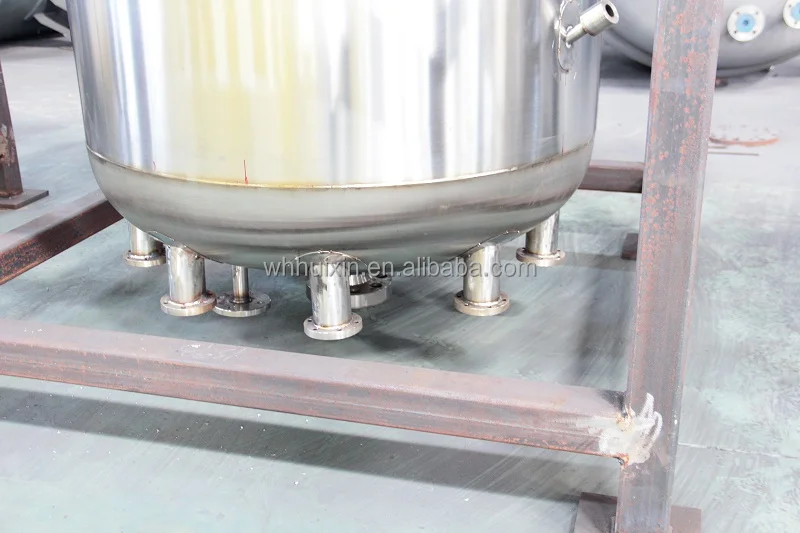

Bttom Head
Pressure/ LeakageTest

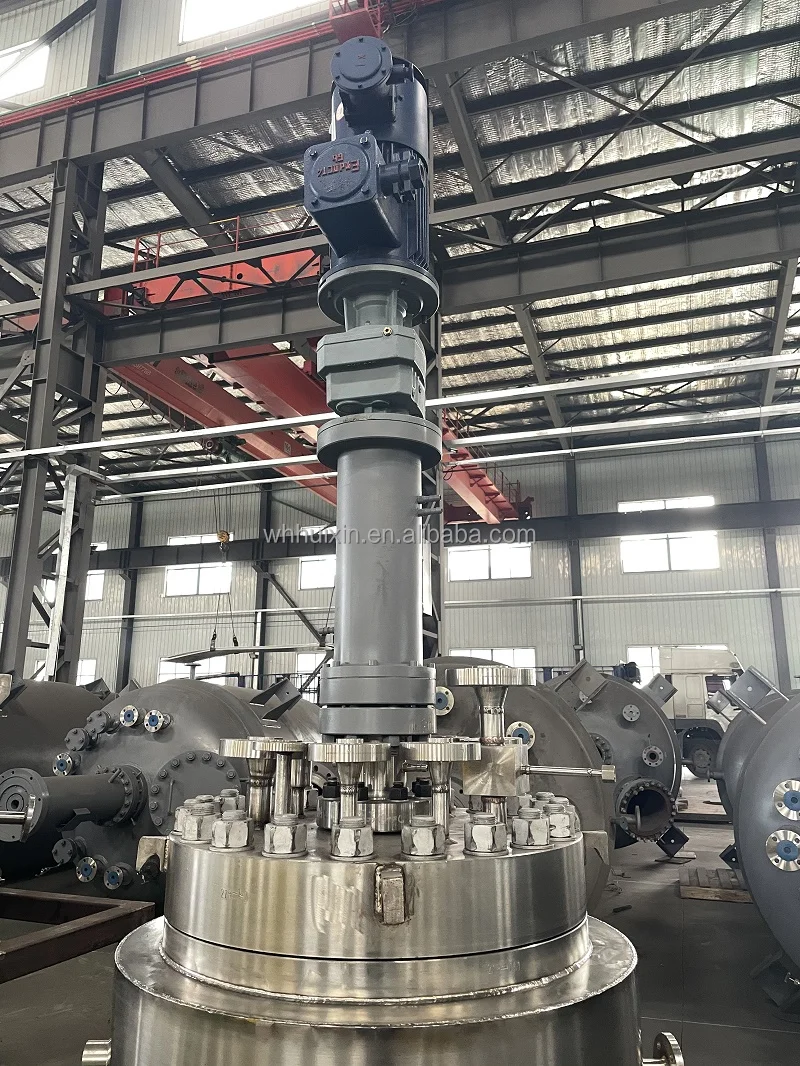

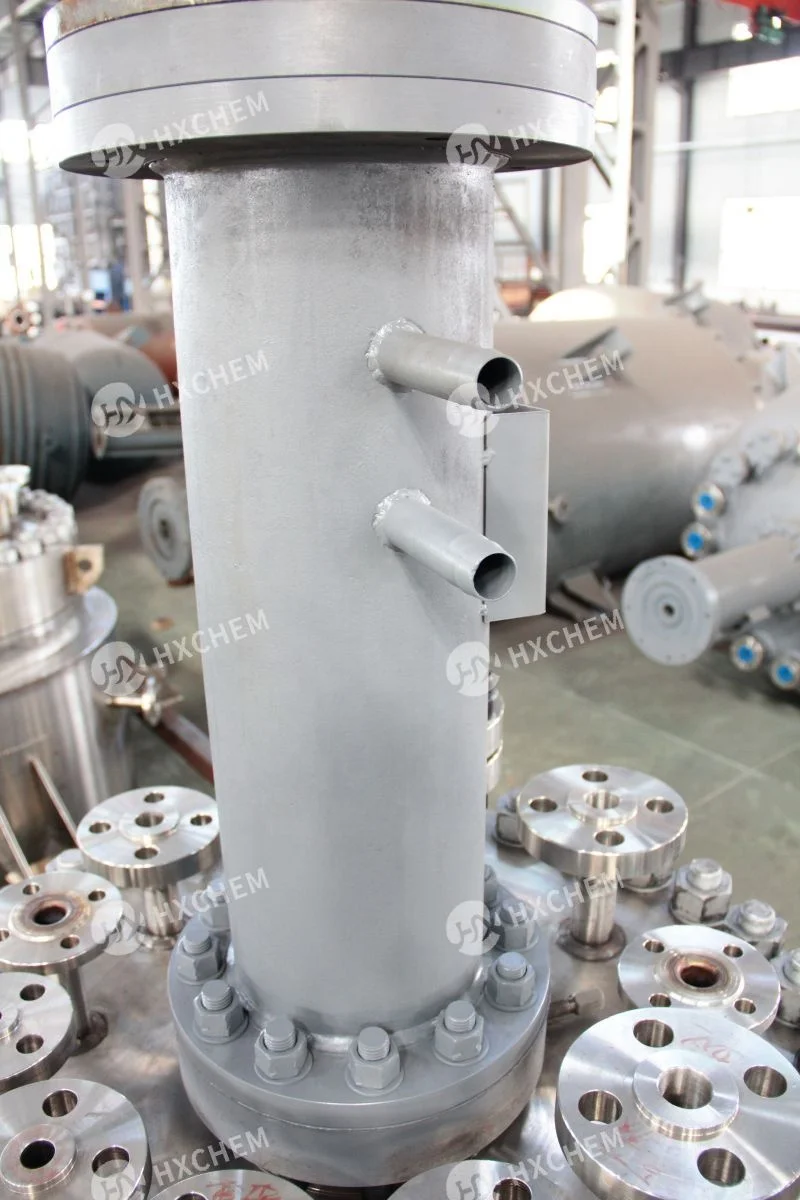

Magnetic stirrer
Axis & Impeller
Customized structure

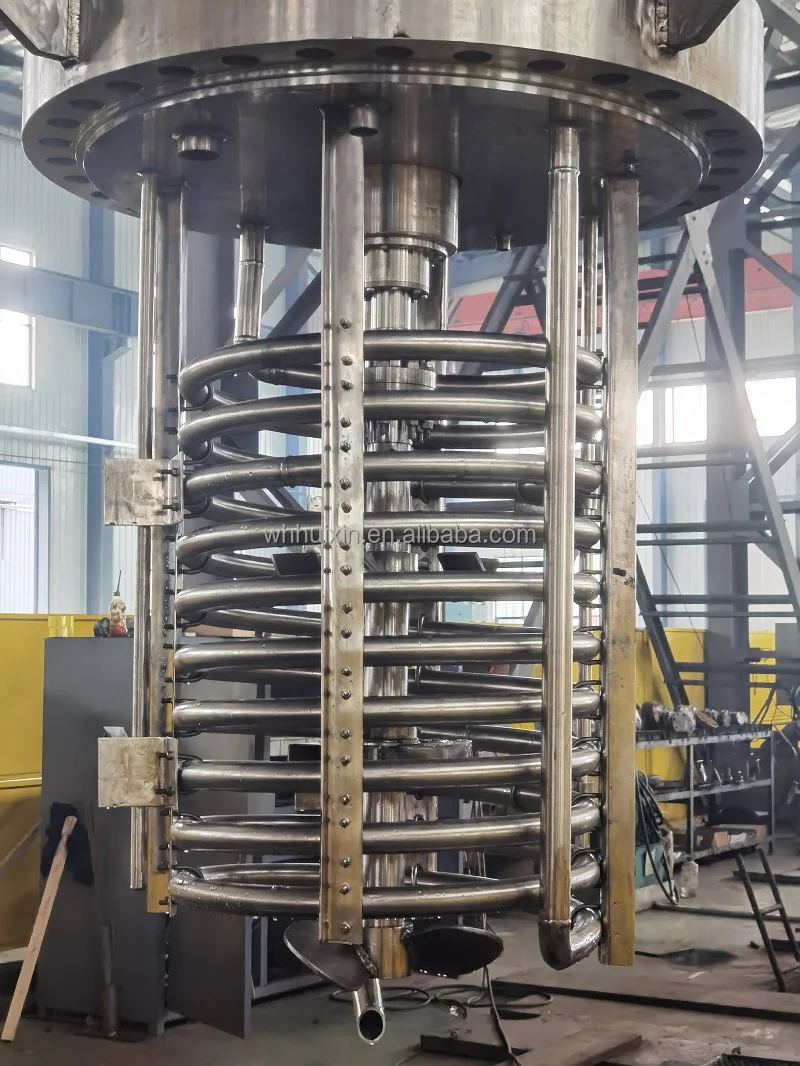

Internal spiral cooling coils
Package
Customization
First step：Design
Pls list your basis process parameters like follows:
1. Reactor volume
2. Working Temperature
3. Working Pressure
4. Reactor Material / Wetted material
5. Agitator type, and the Mixing Speed, motor power request? Explosion-proof?
6. With heating device or not？ Type？
7. Internal cooling coil or not, exchange area?
8. Lifting device or not？（0.5L-500L）
1. Reactor volume
2. Working Temperature
3. Working Pressure
4. Reactor Material / Wetted material
5. Agitator type, and the Mixing Speed, motor power request? Explosion-proof?
6. With heating device or not？ Type？
7. Internal cooling coil or not, exchange area?
8. Lifting device or not？（0.5L-500L）
9. Any certificate requests?
10. Control request?
10. Your other requests?
Second step: Confirmation
10. Your other requests?
Second step: Confirmation
Confirmation based on customer's request;
Third step: Production
Forth step: Finishing and transportation
Fifth step: Technical Documents and after sale service
Third step: Production
Forth step: Finishing and transportation
Fifth step: Technical Documents and after sale service
