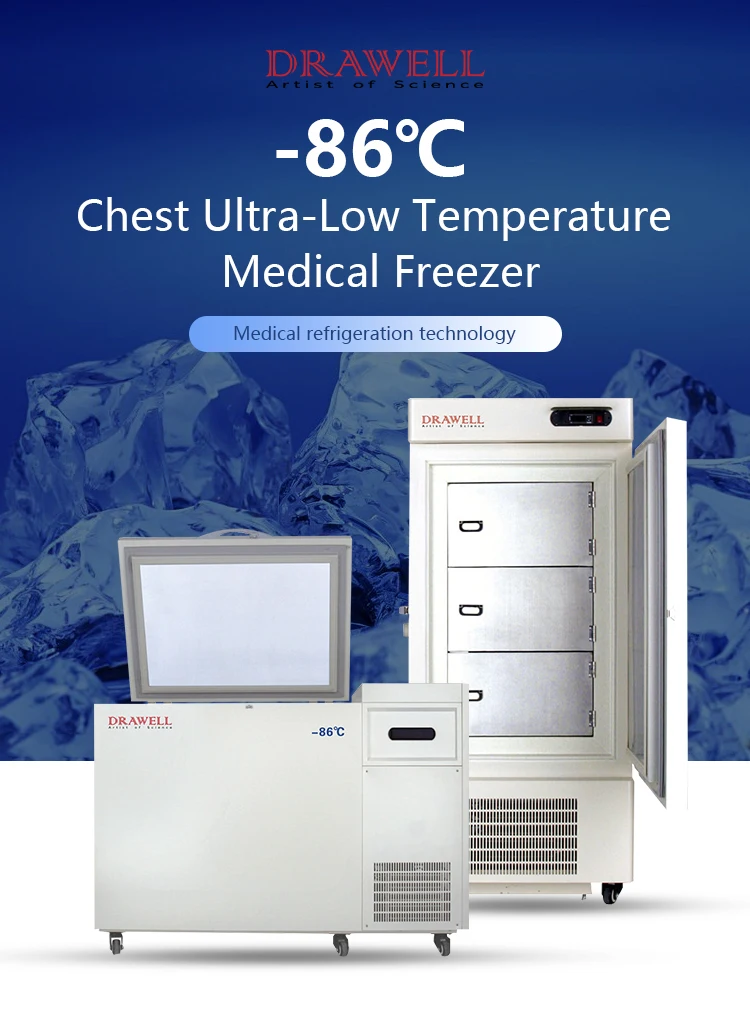

Ultra-low temperature Freezer MDF-86H485

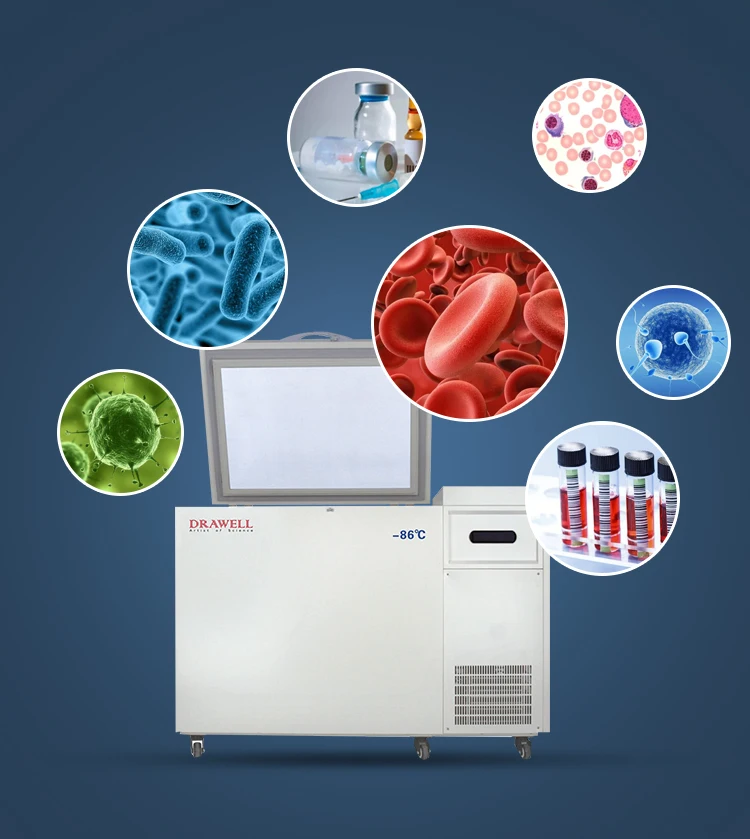

Ideal for long term preservation of virus,germs,vaccines,biological tissues and organs,special food.medicines,reagents etc.
BOX：
The box is made of high quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic
spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.
Temperature control mode：
With the international famous brand computer temperature control system to keep the inner temperature accurate and stable.Temperature adjusted from -40℃~-86℃
High light digital display
High/low temperature alarm, the alarm temperature can be set as needed

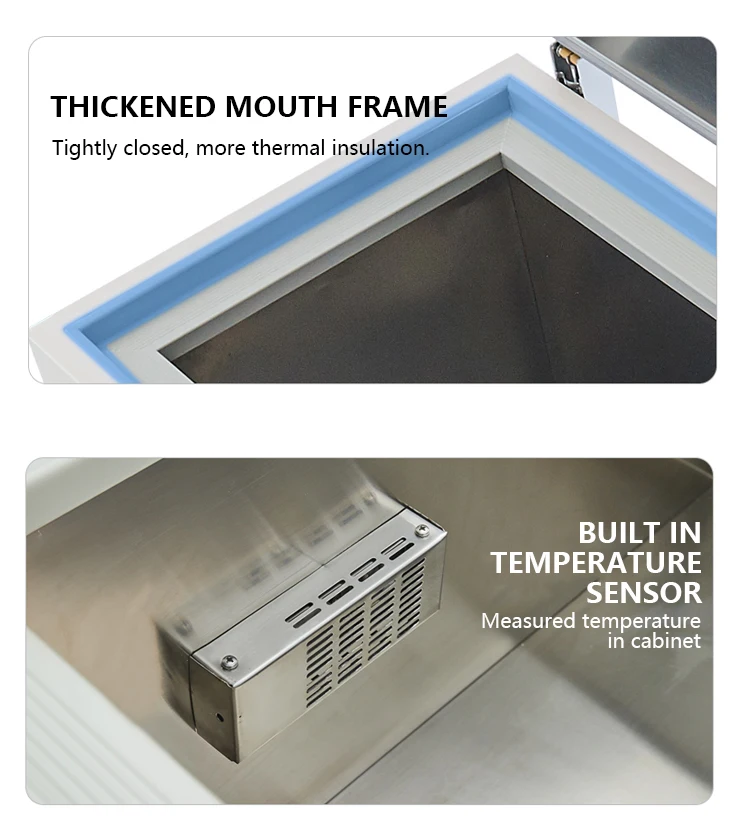

Platinum resistance temperature sensor, sensing temperature accurately
Features：
Safety door lock design to prevent abnormal door open
Wide voltage for AC198V-AC242V
Mute design for salient needed environment
Digital display with big screen, easy to check
Excellent thermal insulation performance with silicone door seal design (second door seal optional)

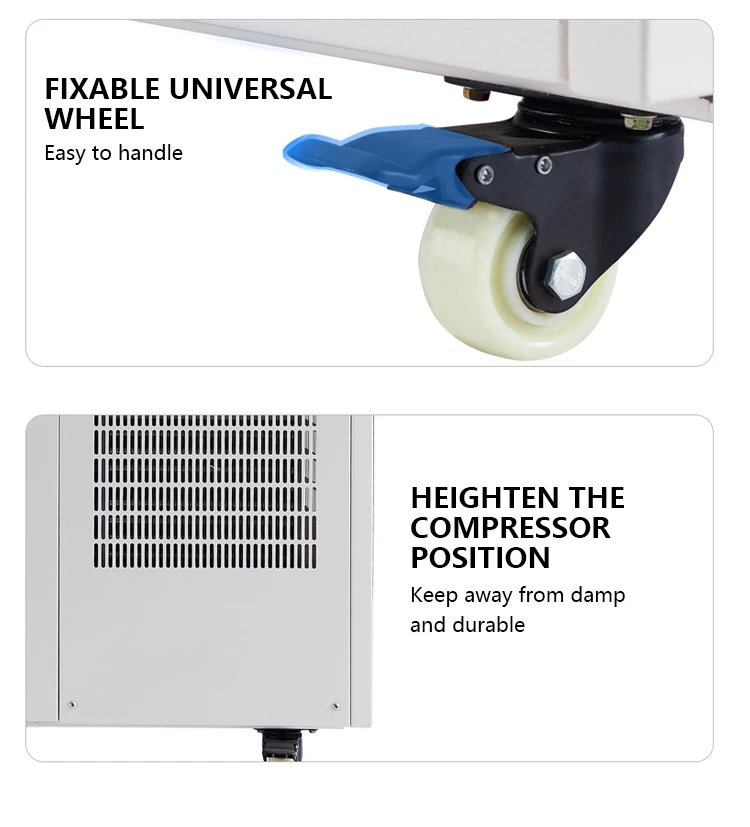

Mobile and fixable wheel for move
Security guarantee：
Temperature high/low alarm, sensor malfunction alarm
Audible and visible alarm
Keyboard lockable, password protection to prevent change running parameter randomly
Display running parameter with real-time monitoring to guarantee the stability of freezer
Refrigeration system：

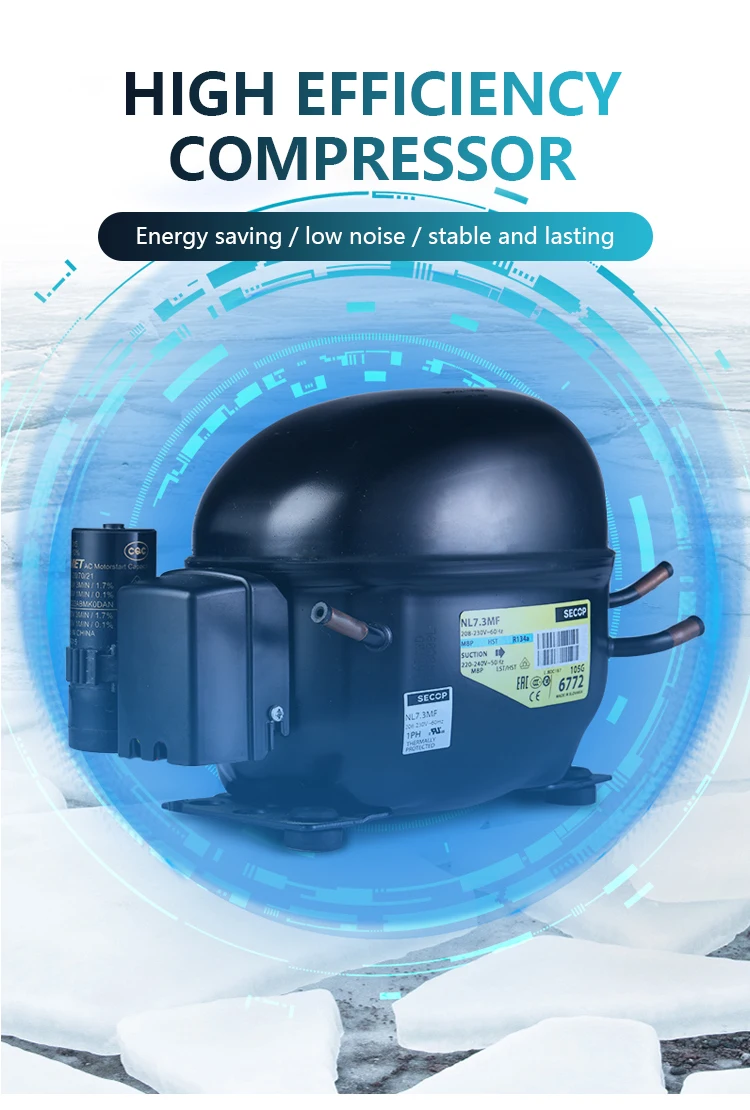

Imported brand compressor work with Mixed refrigerant
High density insulation foam layer with better heat preservation effect
Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption

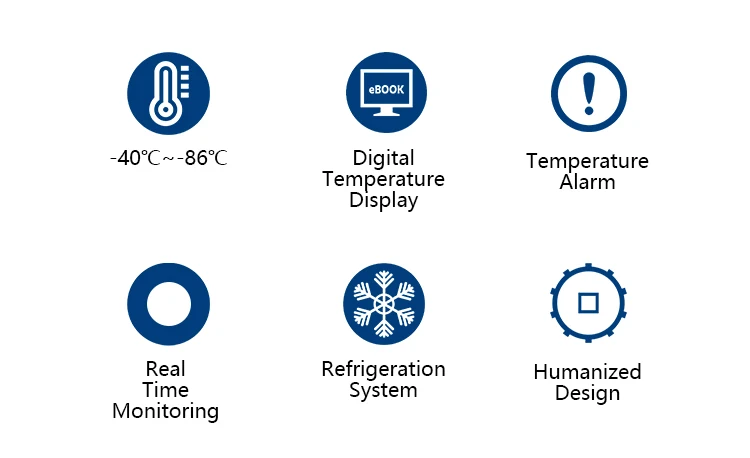

Special:
Mixed refrigerant：Keep fast cooling speed and energy saving Humanized big handle design , easy for one-man operation Large digital display for easy of observation
BOX：
The box is made of high quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic
spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.
Temperature control mode：
With the international famous brand computer temperature control system to keep the inner temperature accurate and stable.Temperature adjusted from -40℃~-86℃
High light digital display
High/low temperature alarm, the alarm temperature can be set as needed
Platinum resistance temperature sensor, sensing temperature accurately
Features：
Safety door lock design to prevent abnormal door open
Wide voltage for AC198V-AC242V
Mute design for salient needed environment
Digital display with big screen, easy to check
Excellent thermal insulation performance with silicone door seal design (second door seal optional)
Mobile and fixable wheel for move
Security guarantee：
Temperature high/low alarm, sensor malfunction alarm
Audible and visible alarm
Keyboard lockable, password protection to prevent change running parameter randomly
Display running parameter with real-time monitoring to guarantee the stability of freezer
Refrigeration system：
Imported brand compressor work with Mixed refrigerant
High density insulation foam layer with better heat preservation effect
Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption
Special:
Mixed refrigerant：Keep fast cooling speed and energy saving Humanized big handle design , easy for one-man operation Large digital display for easy of observation
Performance | Capacity(L) | 485 |
Temperature Range(°C) | -40~-86 | |
Ambient Temperature(°C) | +10~+32 | |
Cabinet Type | Horizontal | |
Control System | Controller | Microprocessor |
Display | Digital Display | |
Refrigeration System | Compressor | 1 |
Refrigerant | Mixed | |
Cooling Type | Direct Cooling | |
Defrost Type | Manual | |
Electrical Data | Power Supply(V/Hz) | 187~242/50~60; 115/60 |
Rated Power(W) | 670 | |
Electrical Current(A) | 3.57 | |
Power Consumption(kWh/24h) | 11.5 | |
Dimensions | Interior Dimension(W*D*H)(mm) | 1455.5×525.2×674 |
Exterior Dimension(W*D*H)(mm) | 1695×840×962 | |
Package Dimension(W*D*H)(mm) | 1765×900×1060 | |
Net/Gross Weight(approx)(kg) | 130/150 | |
Container Load(20'/40'/40'H) | 12/26/26 | |
Alarm | High/Low Temperature | Y |
Sensor Error | Y | |
Controller Error | Y | |
Accessories | Caster | Y |
Testing Hole/Diameter | 1/25MM | |
CO2/LN2 Backup System | Optional | |
Others | Certificate | ISO9001, 14001, 13485 |
Application Field

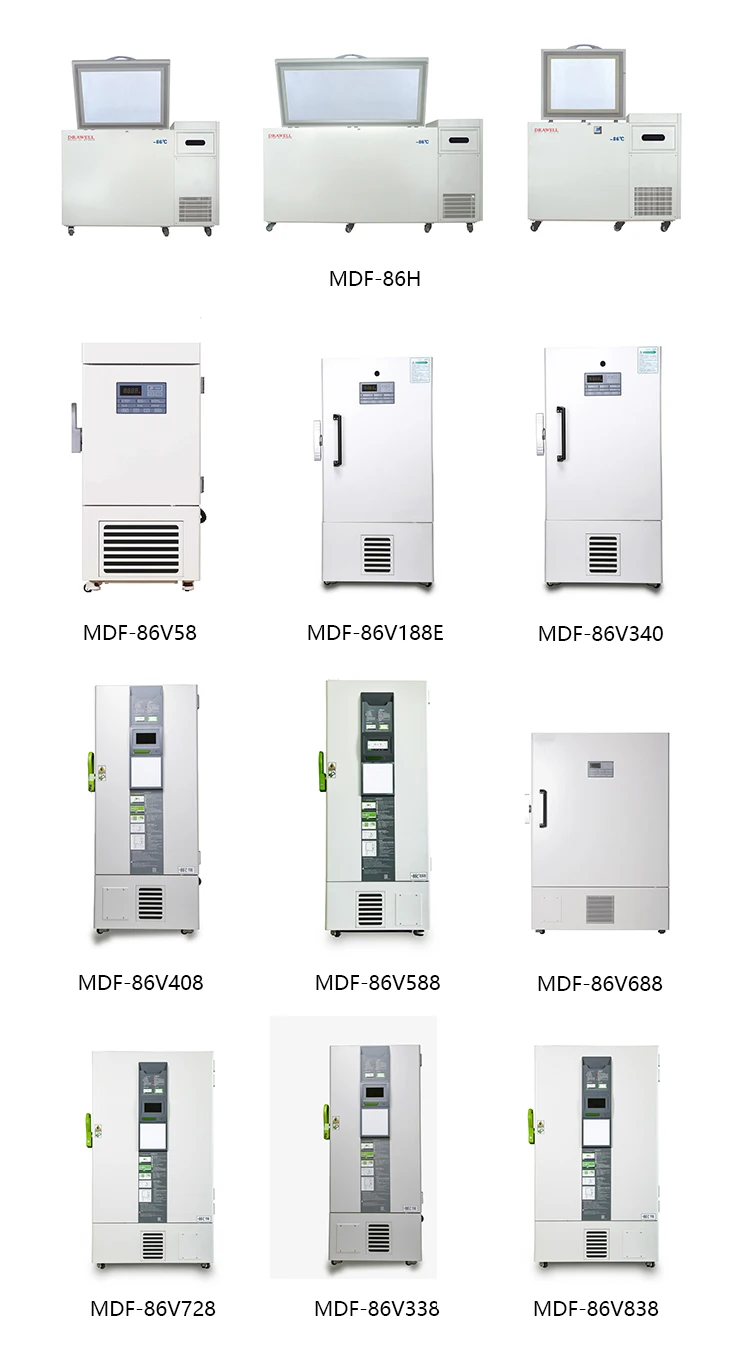

Products Description
