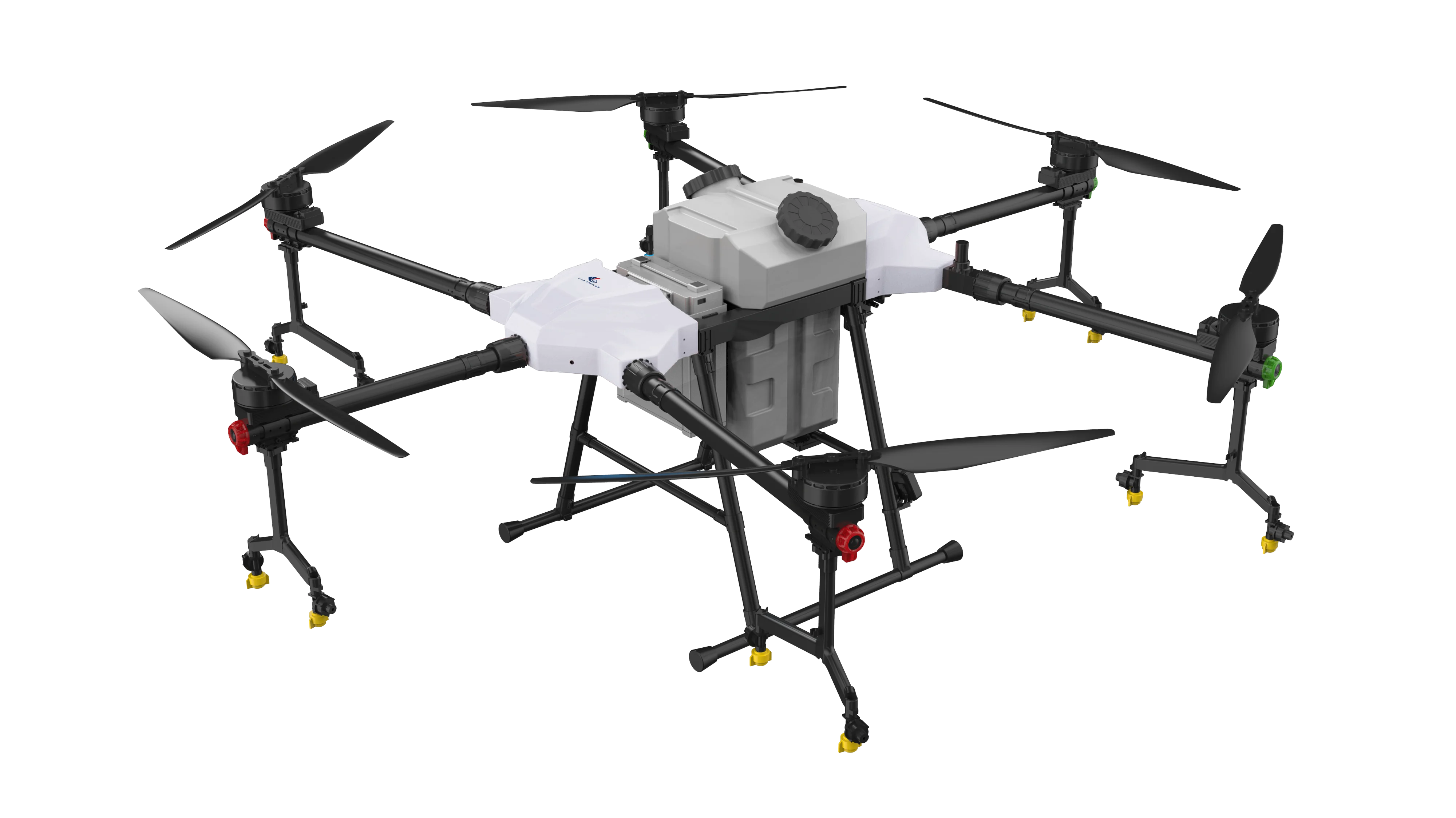

M6E G300 Drone 30KG Powerful Motor Agricultural Sprayer Drone UAV For Sale
- Category: Aircraft >>>
- Supplier: Beijing,TT,Aviation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Agricultural Pesticide Sprayer Drones 30L Agricultural Machine Power Crop Farm Sprayer 30kg Agriculture Spraying drone UAV
Specification
Technical Parameters | ||
Diagonal Distance | 1950mm | |
Dimensions | 2900×2900×780mm (with unfolded arms and unfolded propellers ) | |
2050×1610×780mm (with unfolded arms and folded propellers) | ||
1050×620×780mm (with folded arms) | ||
Spray System - Tank | ||
Quantity | 1pc | |
Tank Volume | 30L | |
Spray System- Pump | ||
Quantity | 2pcs | |
Operating Flow Rate | 5L/min per pump | |
Operating Voltage | 51.8-60.0V | |
Spray System- Pressure Nozzles | ||
Quantity | 10pcs | |
Max Effective Spray Width | 4M-9M (1.5-3.5M above crop) | |
Flying Parameters | ||
Empty Weight（without batteries） | 27.8kg | |
Standard Takeoff Weight | 38.3 kg | |
Max Effective Takeoff Weight | 68.3 kg (horizontal) | |
Hover Accuracy（GNSS） | With J-RTK Enabled：Horizontal ±10 cm, Vertical ±10 cm; | |
With J-RTK Disabled：Horizontal ±0.6m，Vertical ±0.3 m (with radar function enabled：±0.1 m) | ||
RTK / GNSS Frequency Bands | RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5 | |
Battery Capacity | 14S (28000mAh 51.8V) | |
Max Power Consumption | 12000 W | |
Flight Time | 20.10 min (@28000 mAh&takeoff weight of 38.3kg); | |
8.30 min (@28000 mAh&takeoff weight of 68.3kg); | ||
Main Features
Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Automatic spraying mode
Mode 1:
Find your crop field and set waypoint from the GCS GoogleMap, the route will automatically appear. The start point, the final
point and the working direction can all be set.
Find your crop field and set waypoint from the GCS GoogleMap, the route will automatically appear. The start point, the final
point and the working direction can all be set.
Mode 2:
Import Kml file directly , the route will automatically
appear. The start point, the final point and the working direction can all be set.
Import Kml file directly , the route will automatically
appear. The start point, the final point and the working direction can all be set.
Mode 3:
Only need to set A and B point and give the drone a direction order then the drone will fly and spraying
automatically.
Only need to set A and B point and give the drone a direction order then the drone will fly and spraying
automatically.
RTK accurate positioning system
Accuracy:
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.

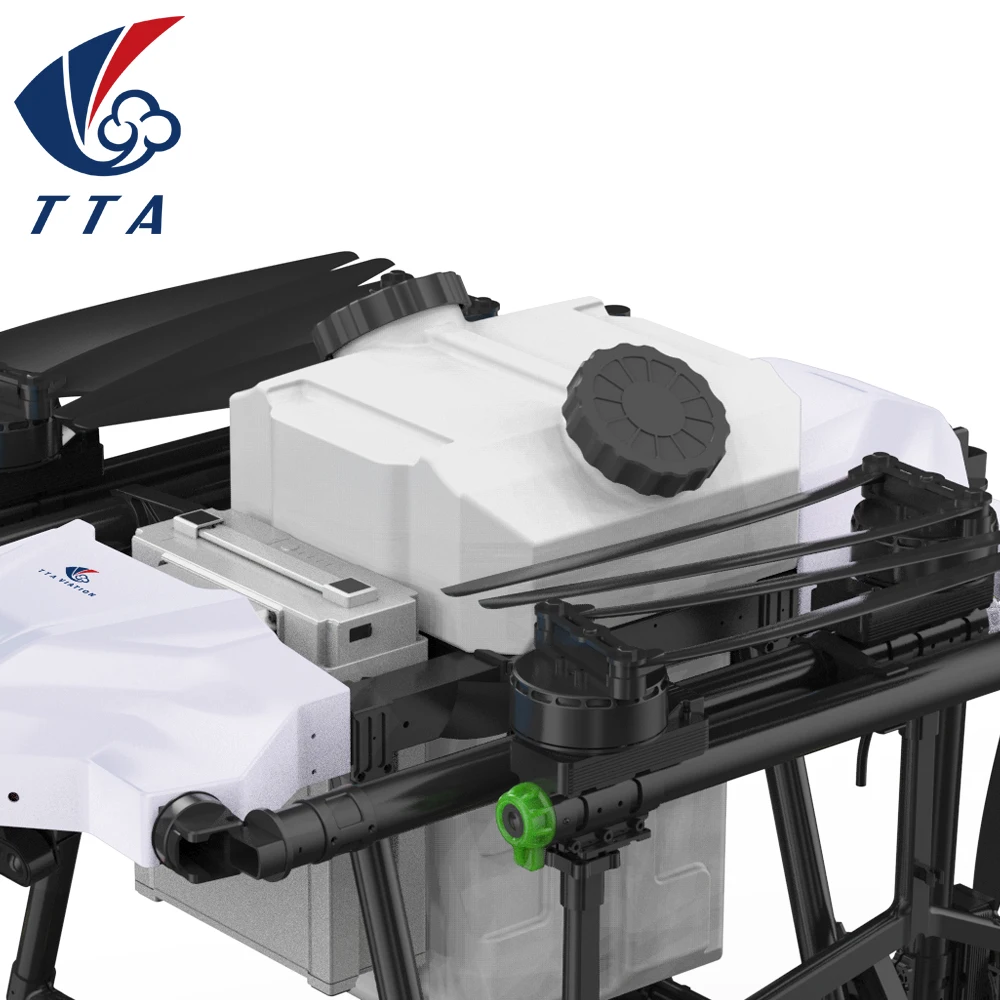

Spraying system
Double water pumps generate bigger pressure , max 4L/min adjustable flow rate.
Bigger inlet for you to fill in the chemical faster and no leaking.
Advanced flow meter makes the error of precise spraying within 2%.
Double water pumps generate bigger pressure , max 4L/min adjustable flow rate.
Bigger inlet for you to fill in the chemical faster and no leaking.
Advanced flow meter makes the error of precise spraying within 2%.
Obstacle avoidance sensor
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid
unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid
unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
FPV camera
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!

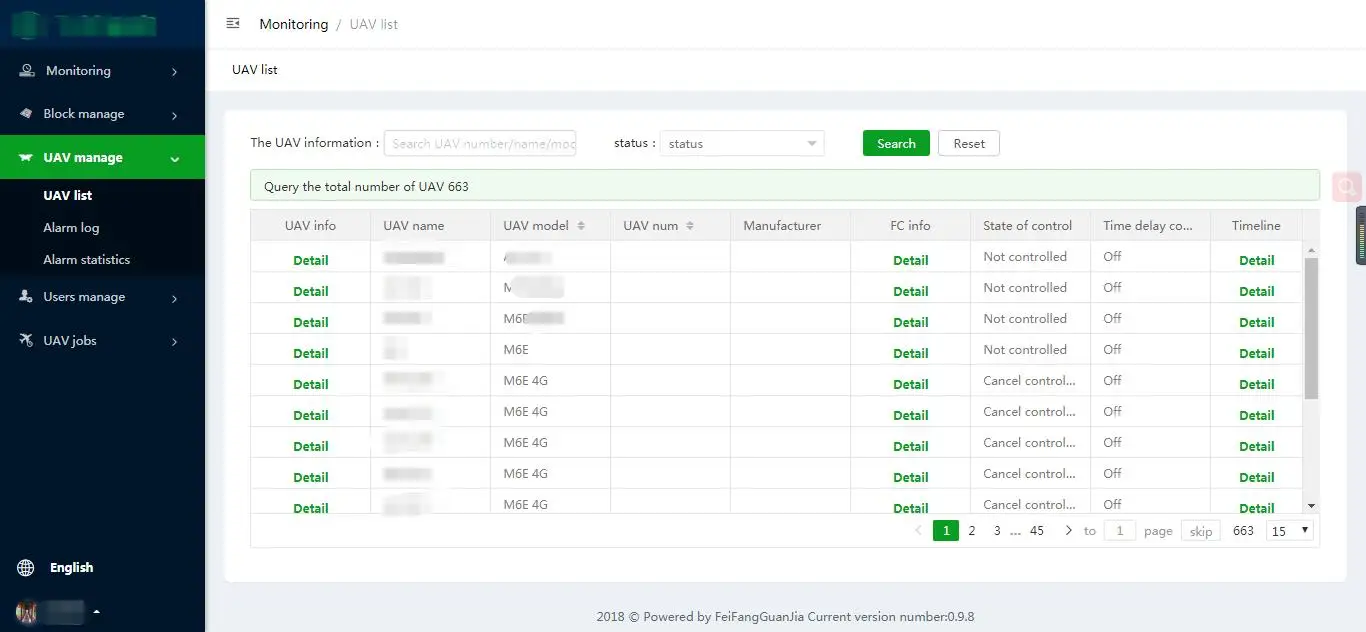

Cloud service / Background management platform
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location,
spraying log, etc.
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location,
spraying log, etc.
Details Images
Company Profile

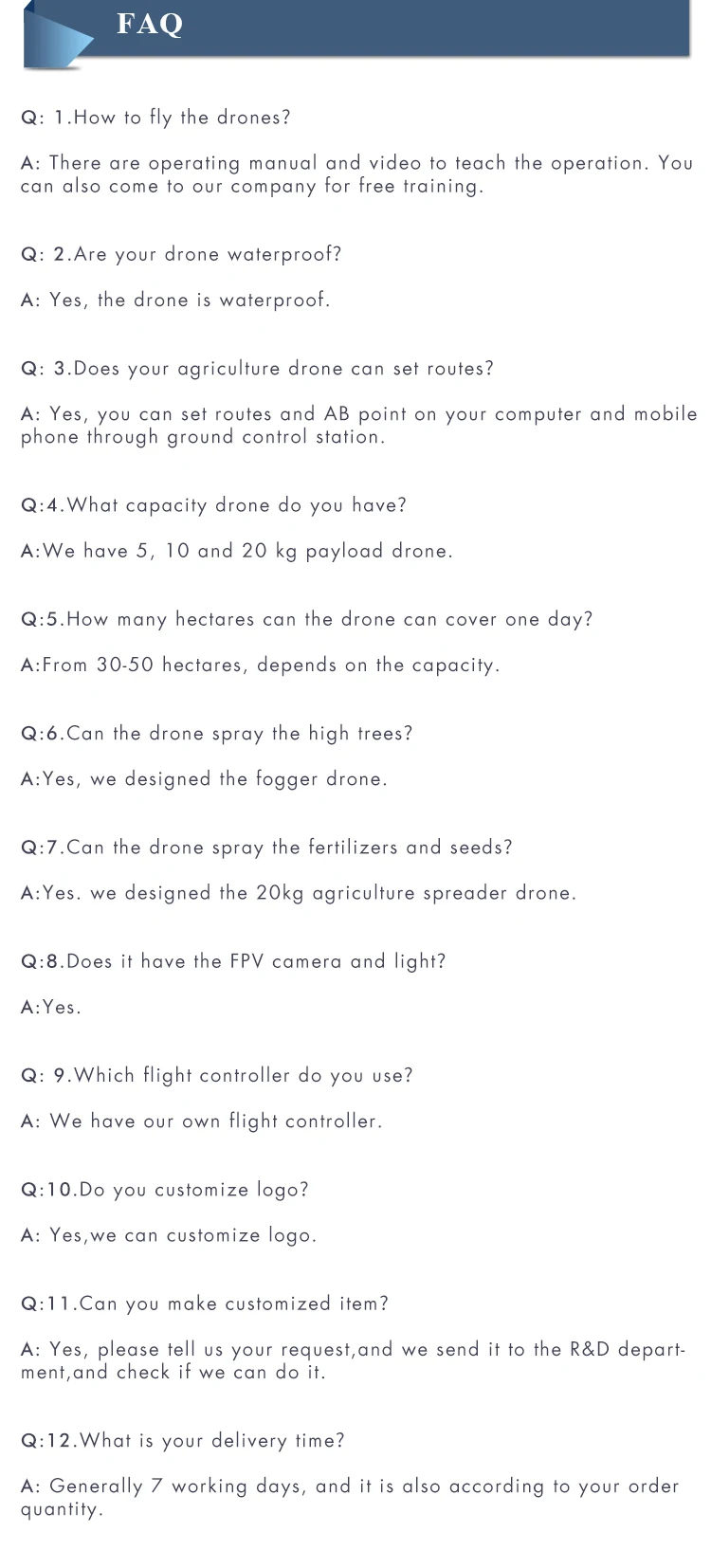

FAQ
