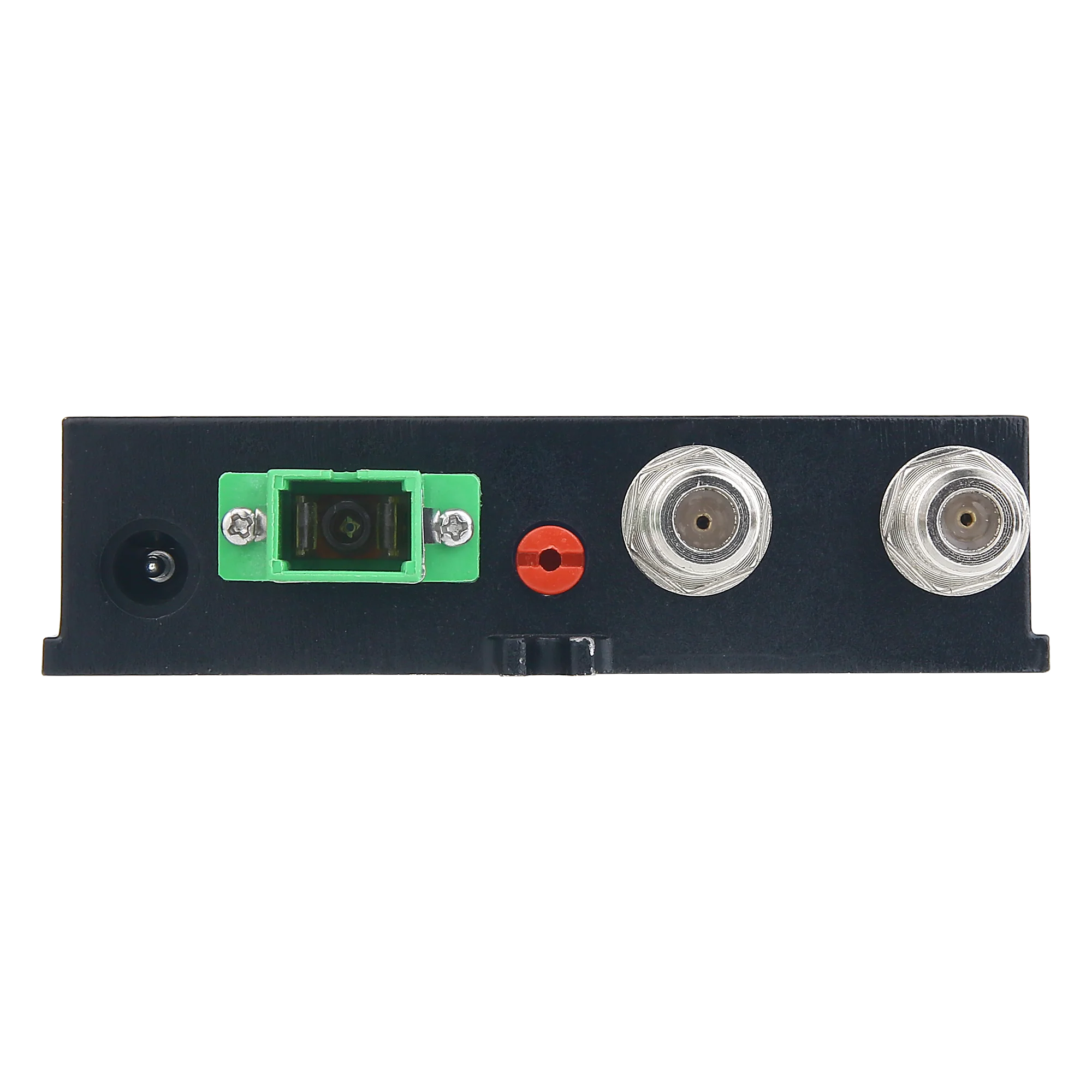

Sanland 1000MHz AGC Optical Receiver FTTH Mini Node Optical Indoor Catv Passive Optic Receiver
- Category: >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (1600398494472):
Product Overview
Description
Products Description
SMO-P28 is a low power, but good performance optical receiver. AGC function make output level stably when in the range of-10~0dBm.
Features
* Excellent linearity
* Extremely low noise
* Excellent flatness
* AGC
* Extremely low noise
* Excellent flatness
* AGC

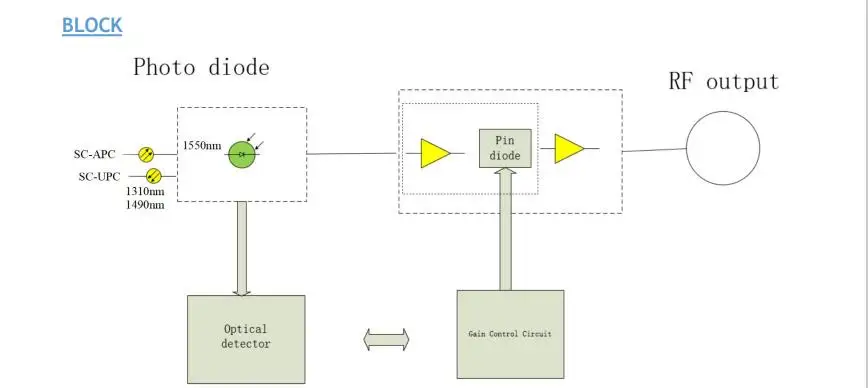

Block Diagram
Specificication
SYMBO | PARAMETER | UNIT | MIN. | TYP. | MAX. | CONDITIONS | |||||||
S | responsively | V/W | 0.9 | 0.95 | - | λ=1550nm | |||||||
FL1 | Flatness of frequency response | dB | - | ±1.0 | ±1.5 | f=50 to 1000 MHZ, wide band flatness | |||||||
FL2 | Flatness of frequency | dB | - | - | -14 | f=50 to 1000 M | |||||||
Itot | Total Current Consumpt | mA | 190 | - | 210 | VB=5V | |||||||
ATT | Manual Attenuatio | dB | 0 | 10 | |||||||||
Automatic Gain Control Receiving Power: -10~0dBm (According to customer requireme | |||||||||||||
Vo1 | Output Voltage | dBuV | 78 | 81 | 83 | Popt= -10~0dBm @175.25MHz 42 channels T=25℃ OMI=4% per channel | |||||||
CTB | Composite Triple Beat | dB | - | - | -57 | Optical power- 0dBm 42channels PAL-D.175.25MHz OMI=4% per channe | |||||||
CSO | Composite Second Order distortion | dB | - | - | -57 | ||||||||
C-spurious | Carrier to spurious | dB | - | - | -57 | ||||||||
CNR | Noise carrier ratin | dB | 47 | - | - | Optical power/- 8dBm 42channels PAL-D.175.25MHz OMI=4% per channe | |||||||
