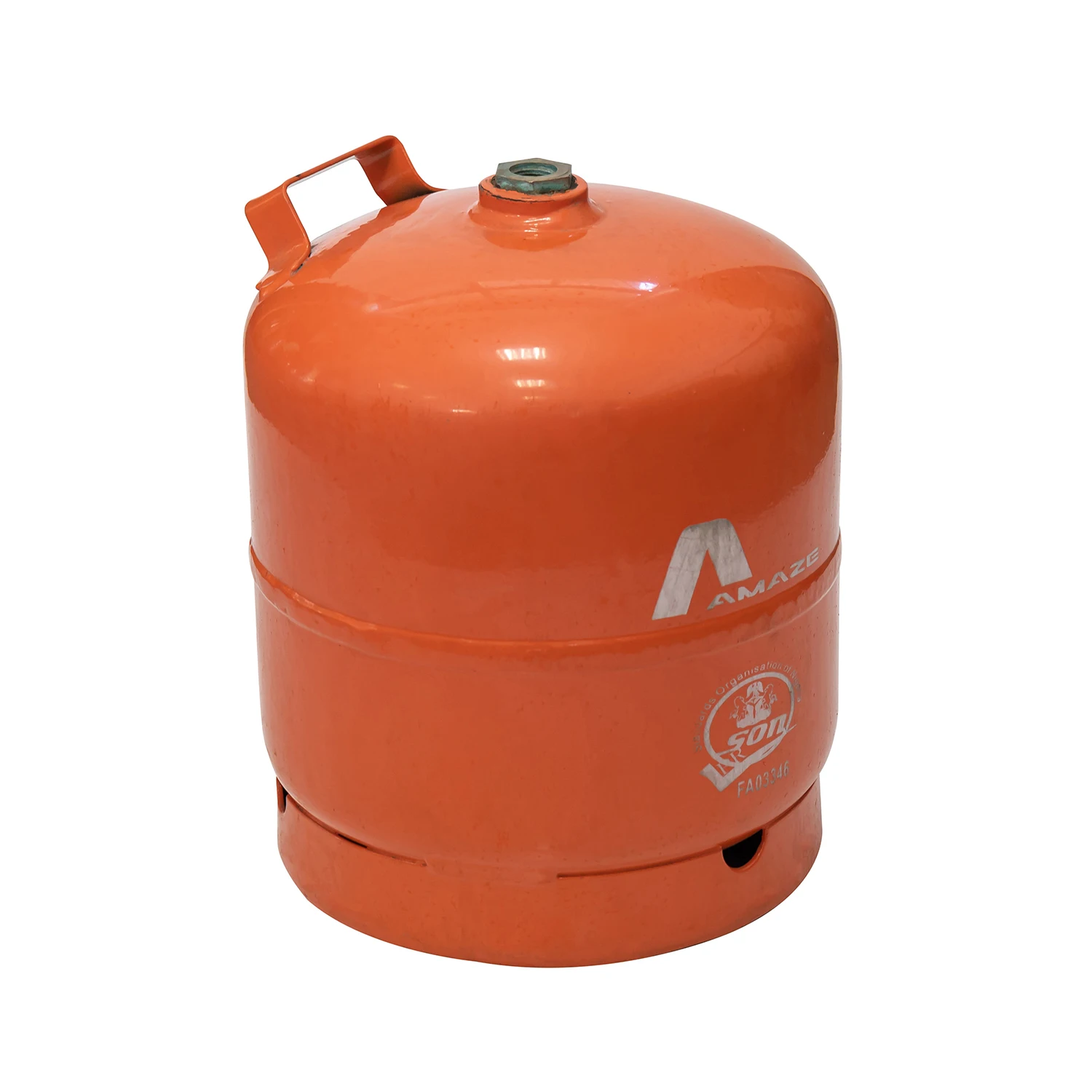

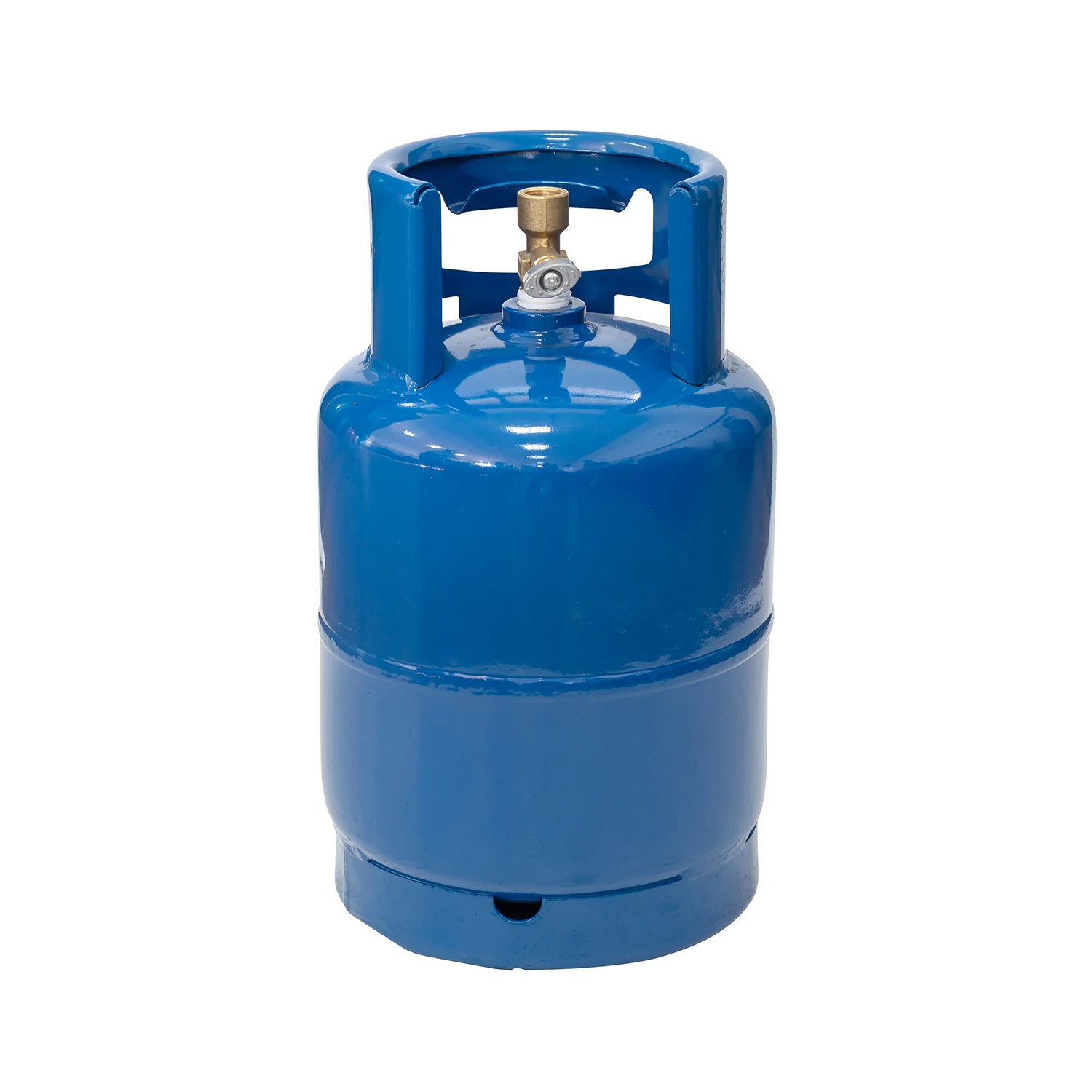

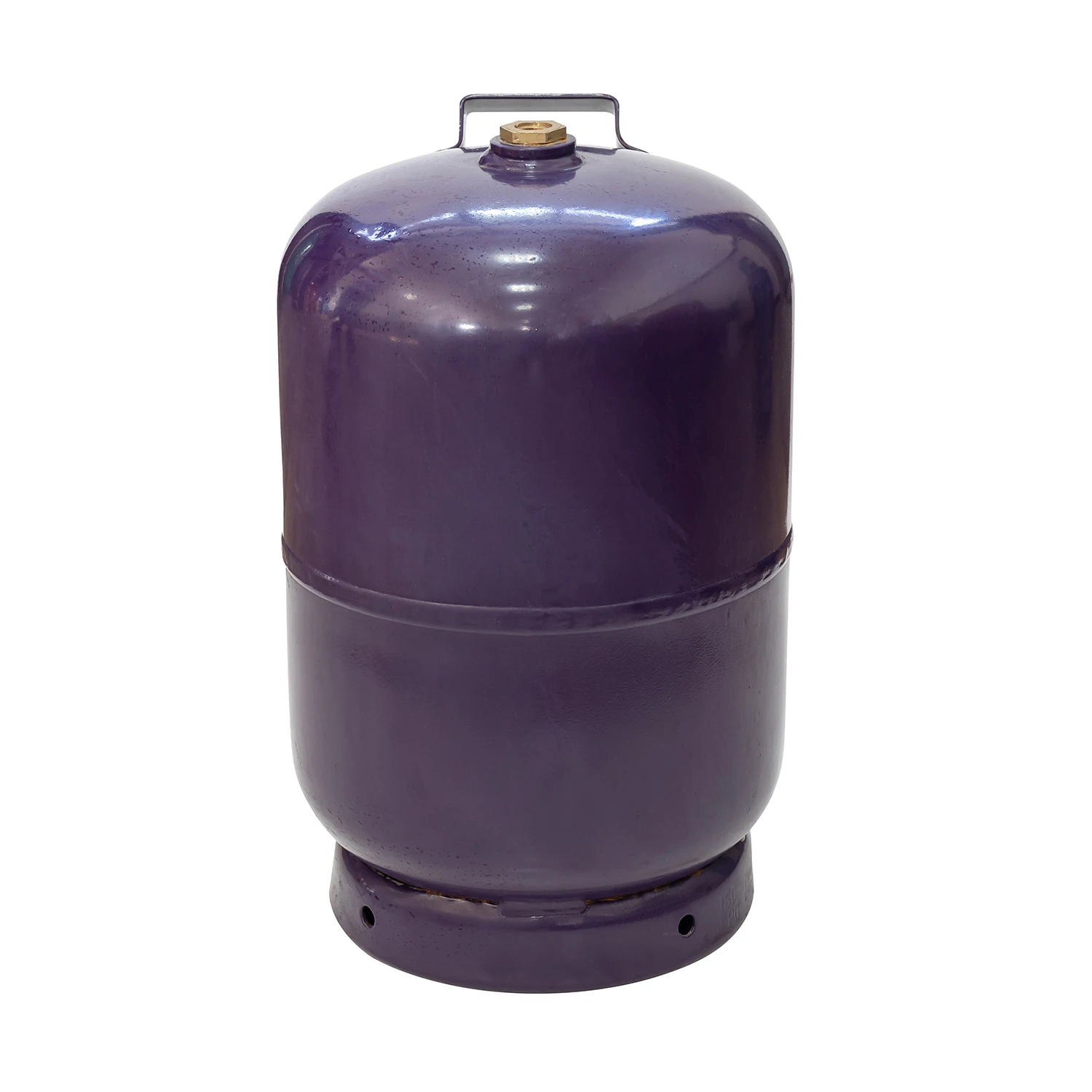

Bina 3kg/5kg/6kg/10kg/12.5kg/15kg/50kg lpg gas cylinder prices low pressure cooking gas cylinder
- Category: >>>
- Supplier: Bina (Shanghai) Gas Cylinder Co. Ltd.
Share on (1600398662000):
Product Overview
Description
Products Description
Before storage, each batch of raw materials needs to be tested mechanical properties (tensile, bending, strength, toughness, corrosion resistance, etc.), chemical element spectrum analysis, etc.
Rich manufacturing experience welders and high-level machine operator equipped with automatic production facilities and advanced production technology, make product safe and reliable Shot blasting, zinc spraying, dry and wet powder coating process with good coating corrosion resistance.

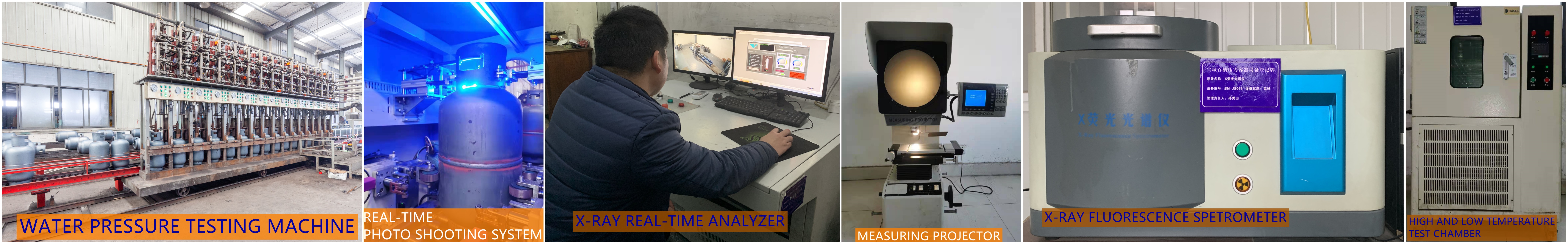

Total quality test of each cylinder before shipment, including airtightness test, hydraulic pressure test, environmental test,
extreme temperature test, x-ray flaw detection, defective blasting test, high-speed impact test, gunshot test, gas pressure cycle test, sulfide stress cracking, coating corrosion evaluation and plastic permeability, etc.
Rich manufacturing experience welders and high-level machine operator equipped with automatic production facilities and advanced production technology, make product safe and reliable Shot blasting, zinc spraying, dry and wet powder coating process with good coating corrosion resistance.
Total quality test of each cylinder before shipment, including airtightness test, hydraulic pressure test, environmental test,
extreme temperature test, x-ray flaw detection, defective blasting test, high-speed impact test, gunshot test, gas pressure cycle test, sulfide stress cracking, coating corrosion evaluation and plastic permeability, etc.
Quality Control System:
We have implemented strict complete quality and security control system, we adopted the advanced technology & equimpents, and more than 15 QC are in their posts everyday, each product will be inspected strictly before delivery to meet the quality and security requirement of our customers.and photo of each product will be taken for record for any quality recall.

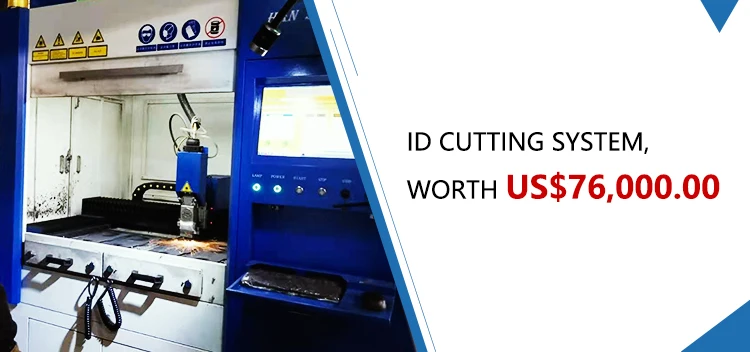

Exclusive ID will be cut onto each cylinder for quality tracking purpose.

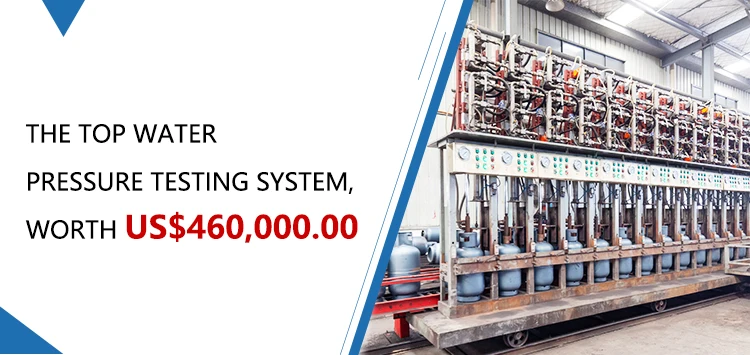

Water pressure of each cylinder will be strictly tested at 3.4Mpa during production line.

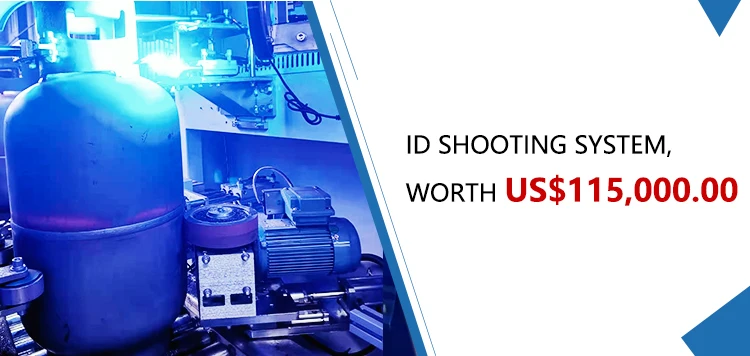

Photos of each ID will be taken during production line and on file for investigation.
Product Paramenters
Model | Diameter Of body(mm) | Water Capacity (L) | Total Height (mm) | Gas Capacity (kg) | Body Thickness(mm) | Diameter Of base(mm) | Diameter Of shroud (mm) | Working Pressure (MPa) | Testing Pressure (MPa) |

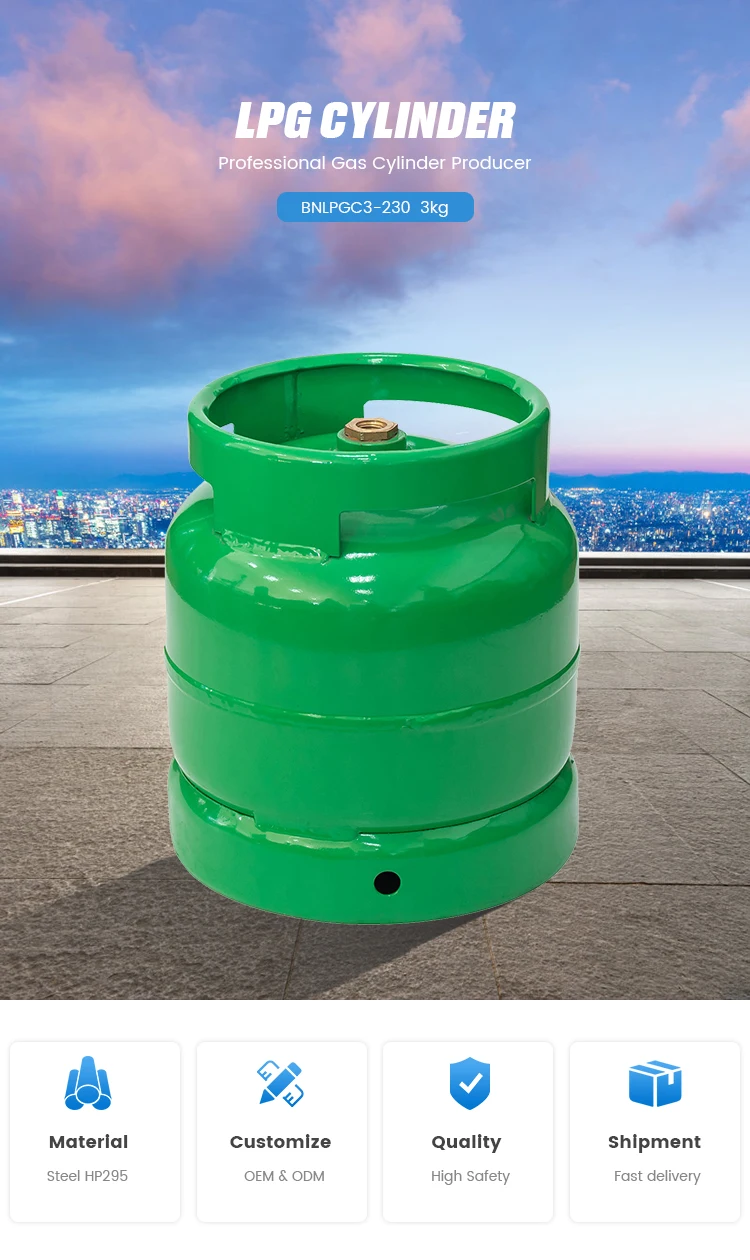

BN-3kg | 190 | 6 | 235 | 3 | 2.3 | 190 | - | 2.1 | 3.4 |
BN-5kg-A | 200 | 12 | 430 | 5 | 2.3 | 200 | 162 | ||
BN-5kg-B | 230 | 11 | 355 | 5 | 2.3 | 190 | - | ||
BN-5kg-C | 249 | 12 | 420 | 5 | 2.3 | 200 | 162 | ||
BN-6kg-A | 302 | 13 | 295 | 6 | 2.3 | 302 | 302 | ||
BN-6kg-B | 294 | 13 | 288 | 6 | 2.3 | 302 | 265 | ||
BN-10kg | 320 | 23.5 | 526 | 10 | 2.9 | 240 | 190 | ||
BN-11kg | 300 | 24 | 595 | 11 | 2.9 | 300 | 190 | ||
BN-12.5kg | 294 | 26.5 | 582 | 12.5 | 2.9 | 300 | 220 | ||
BN-15kg-A | 314 | 35.5 | 680 | 15 | 3 | 300 | 230 | ||
BN-15kg-B | 320 | 35.5 | 680 | 15 | 3 | 240 | 190 | ||
BN-20kg-A | 320 | 47 | 833 | 20 | 3 | 240 | - | ||
BN-20kg-B | 300 | 47.7 | 903 | 20 | 2.9 | 300 | 190 |
Why Choose Us

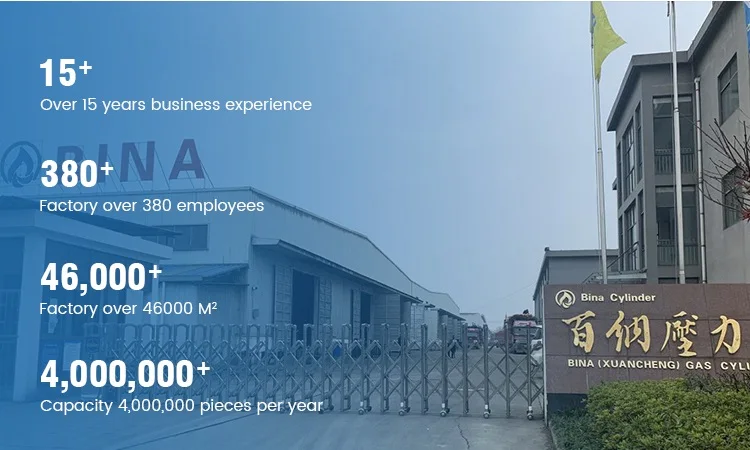

Bina is a group company focus on production of gas cylinder for more than 15+ years. We are member of Professional Committee of Chinese LPG Cylinders Formulate and the biggest supplier of gas cylinder in China.
Bina’s advantages and services :
>One stop solution: LPG filling station, LPG cylinders mill, and LPG cylinders testing station--one stop solution of LPG industry;
>High productivity: Annual capacity 4 million pieces, can undertake all kinds orders;
>Top quality: Top brand machines equipped especially for weld and hydrostatic test to ensure the top quality;
>Top quality: Top brand machines equipped especially for weld and hydrostatic test to ensure the top quality;
>Skilled team: 20 years export team to serve global customers;
>New products development: New composite cylinders coming soon in 2022.
In order to serve overseas customers well, we've set up our branch office --Bina (Shanghai) in 2020, with team members all have more than 20 years of experience in foreign trade. It will focus on sales and service. Shanghai office as an export window, will deliver the best quality and most convenient service to our global customers.
Certifications
We are certified by the ISO 4706 / TPED and etc, but we can produce cylinders under all
kinds of standards of the world.
FAQ
Question 1 Are you factory or trading company? Can we visit your factory?
A: Sure, we are both factory and trading company. Welcome to visit our factory.
Question 2 What's Daly Main Sales Products?
A: We mainly supply lpg cylinder, valve and other parts of cylinder.
Question 3 About payment and delivery time?
A: payment term: 30% for deposit, balance against copy of BL; L/C at sight. Generally, it will take 10 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Question 4 About the sample?
A: In our acceptable range, we can provide a sample by charging freight. We will return the fee after you make an order.
Question 5 How to ensure your cylinder quality?
A: We have ISO9001, BV, CE certificate. and we have been in this field for more than 20 years and ship the goods almost all over the world, especially market in Africa and Southeast Asia.
Question 6 How do your make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where
they come from.
Question 2 What's Daly Main Sales Products?
A: We mainly supply lpg cylinder, valve and other parts of cylinder.
Question 3 About payment and delivery time?
A: payment term: 30% for deposit, balance against copy of BL; L/C at sight. Generally, it will take 10 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Question 4 About the sample?
A: In our acceptable range, we can provide a sample by charging freight. We will return the fee after you make an order.
Question 5 How to ensure your cylinder quality?
A: We have ISO9001, BV, CE certificate. and we have been in this field for more than 20 years and ship the goods almost all over the world, especially market in Africa and Southeast Asia.
Question 6 How do your make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where
they come from.
