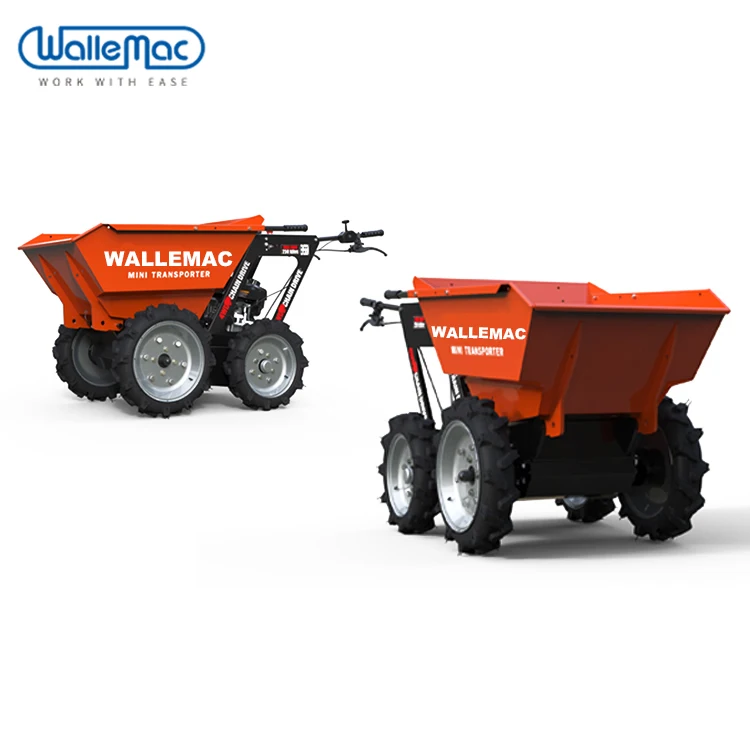

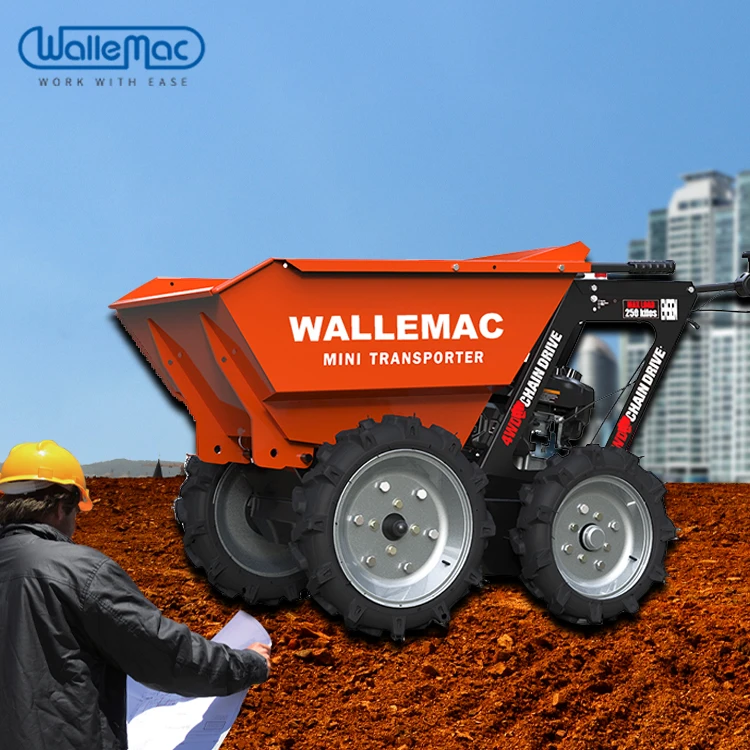

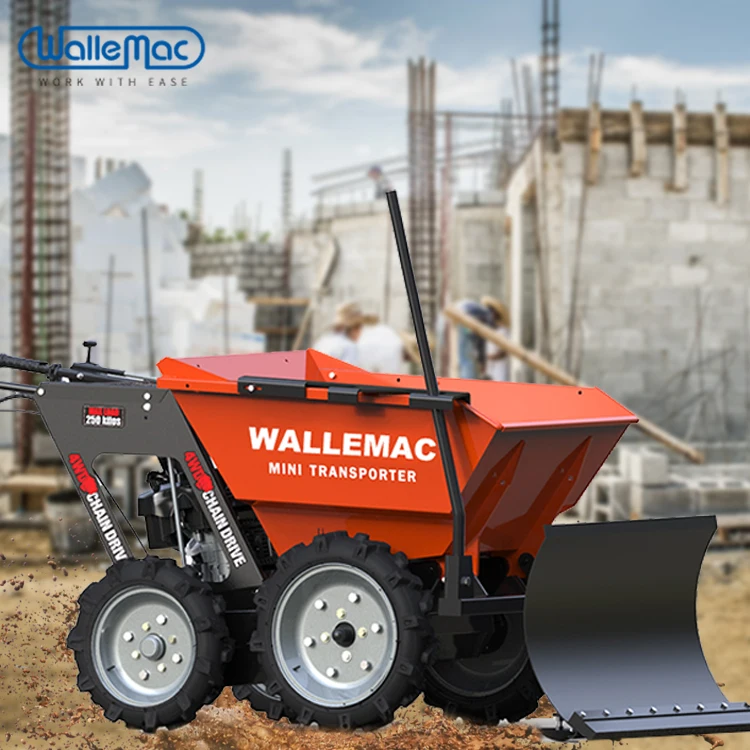

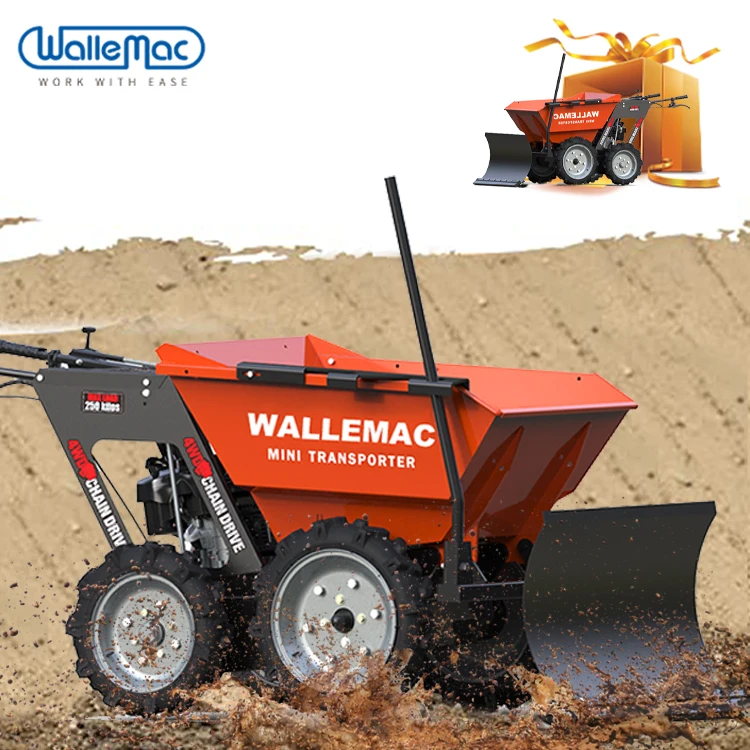

construction motorized wheel barrow mini wheel dumper transporter indoor and outdoor use
- Category: >>>
- Supplier: Walle Machinery Shanghai Ltd.
Share on (1600398693840):
Product Overview
Description
Product Description
This multi-faceted machine can be put to use for variegated purposes like transport of : Sand, Salt, Gravel, Garden waste, Building materials, Stones and bricks, Wood, Crops, and fruits etc.
| Equipment name | mini dumper | |
| Model | WD50T | |
| Engine | Single cylinder, four stroke, air cooling, 7.5hp Ducar, recoil start | |
| Displacement | 212cc | |
| Net Power | kw/rpm | 4.1/3600 |
| Transmission | Fully hydraulic system | |
| Working Pressure | Mpa | 16.5 |
| Driven Type | Track | |
| Track Width | 180 | |
| Track Roller | qty | 4 |
| Track Tensioning | Yes | |
| Hydraulic Pump | Duplex gear pump | |
| Pump Brand | Danfoss or Marzocchi | |
| Hydraulic Motor | qty | 2 |
| Hydraulic Oil Radiator | Yes | |
| Hydraulic Oil Tank | L | 20.5 |
| Loding Capacity | lbs. (kgf) | 1102(500) |
| Tipping Bucket Thickness | 2 | |
| Skip Tipping System | Hydraulic | |
| Limited Grade Ability | 20 degree | |
| Traveling Speed | km/h | 2.17(3.5) |
| Front Loader | No | |
| Minimum Ground Clearance | ft. in. (mm) | 4" (100) |
| Minimum Turning Radius | ft. in. (mm) | 2'9" (850) |
| Wheel Base | ft. in. (mm) | 1'8" (525) |
| Track Base | ft. in. (mm) | 1'1" (345) |
| Overall Lengh | ft. in. (mm) | 5'7" (1715) |
| Overall Width | ft. in. (mm) | 2'5" (760) |
| Overall Height | ft. in. (mm) | 3'9" (1160) |
| Package Method | Plywood case | |
| Package Size | 1750*750*1200 | |
| Gross Weight | lbs. (kgf) | 859(390) |
| Loading Qantity-20GP | qty | 9 |
| Loading Quantity-40HQ | qty | 38 |
Packaging & Shipping
Company Information
Wellemac is an one-stop compact and light duty equipment provider for industries including landscaping, garden, agricultural, Forrest, utility and municipal, as well as general constructions, which means we can offer a package solution for any jobs in these application - whether you need small digging machines and small track dumper or a mini trencher or wood chippers, we will provide you the best fit and cost effective machines for your needs. A variety of compact and maneuverable machines with easy-to-use attachments will definitely assure you the total cost savings .
We strive to make a safe and a green world by investing on technology and design innovation, smart manufacturing and new energy solutions.
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in mini dumper
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basicquantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
