NICON measuring viscous liquids small size pressure sensor with strain gauge flush film pressure transmitter
Products Description
NICON measuring viscous liquids small size pressure sensor with strain gauge flush film pressure transmitter
The strain gauge flat film pressure transmitter can be divided into strain gauge type and diffusion silicon front type,Strain flat film measuring end with special treatment of strong flat film, the hard particle in the medium under test will not damage the isolating leveling film. Compact structure, corrosion resistance, anti-seismic, anti-particle impact, wide range temperature compensation. Especially suitable for high viscosity or particle fluid pressure measurement. Another kind of diffusion silicon front type is made of imported diffusion silicon core. By using adjustment and digital compensation technology, the product has reliable performance, stable output and is widely favored by customers. Widely used in polyester equipment, paper, paint, pharmaceutical and food processing industry, such as chocolate, milk and other processing equipment pressure measurement.
Product Paramenters
Model | 2166-YP |
Pressure range | 0~10~100MPa |
Pressure measurement | Gauge Pressure, Absolute pressure, Sealing pressure |
Output | 4-20mA |
Process connection | M20×1.5/G1/2( or on your demand) |
Power supply | 12~36VDC/5VDC |
Environment temperature | -30~80ºC |
Relative temperature | 0~90％ |
Medium temperature | -30~80ºC |
Accuracy(linearity,Hysteresis and Repeatability) | 0.1%F.S, 0.25%F.S,0.5%F.S |
Long-term stability | ≤0.2%F.S/year |
Overload | 150% |
Housing material | 304/316 stainless steel |
Production grade | IP65 |

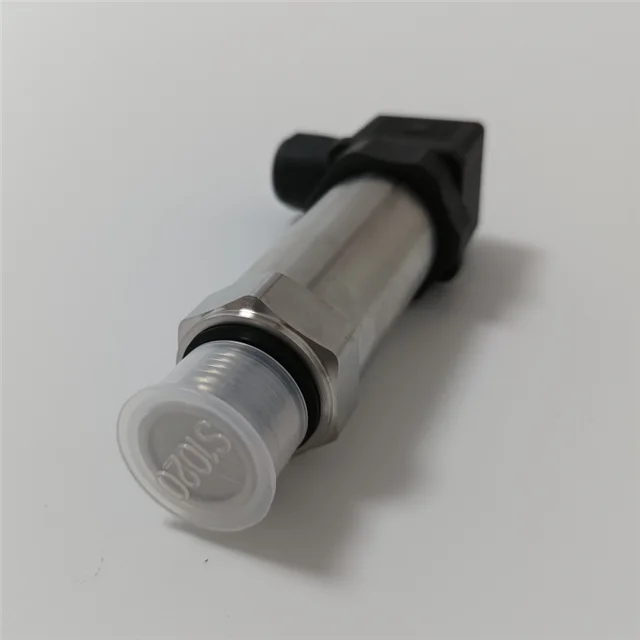

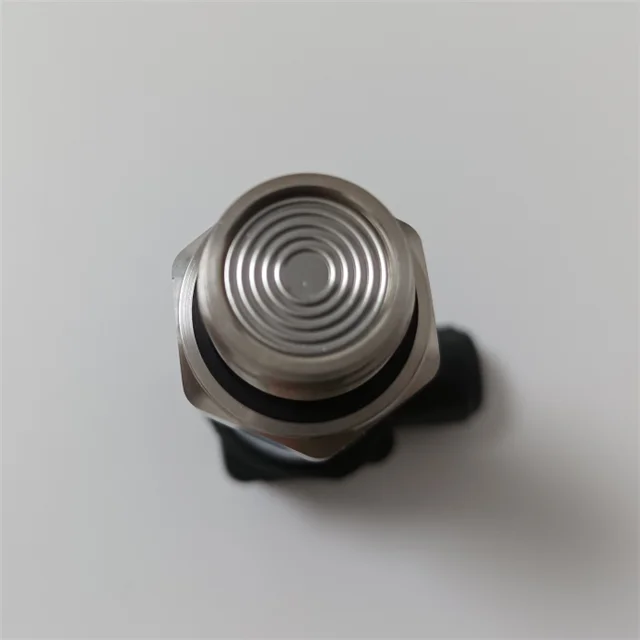

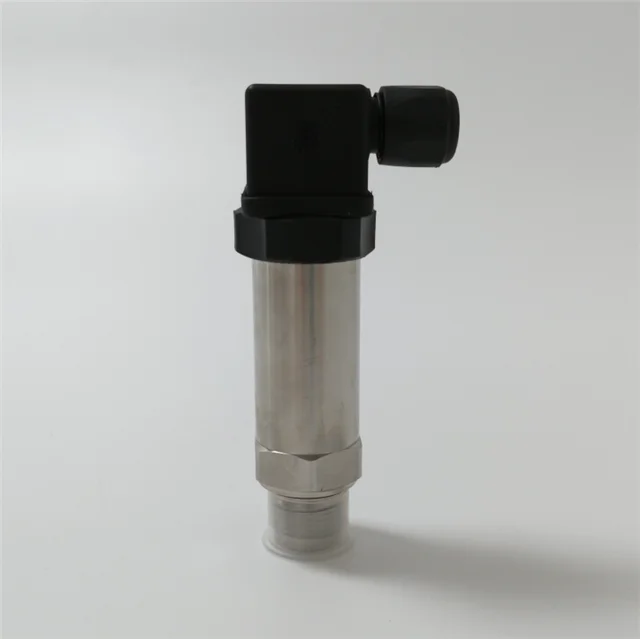

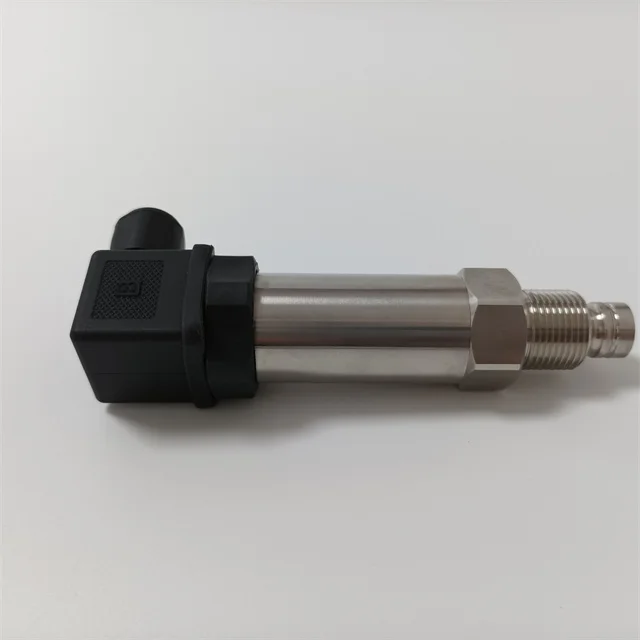

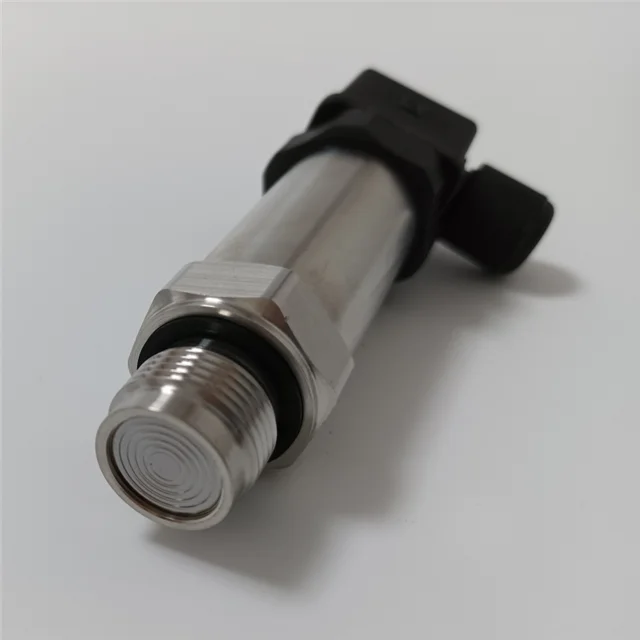

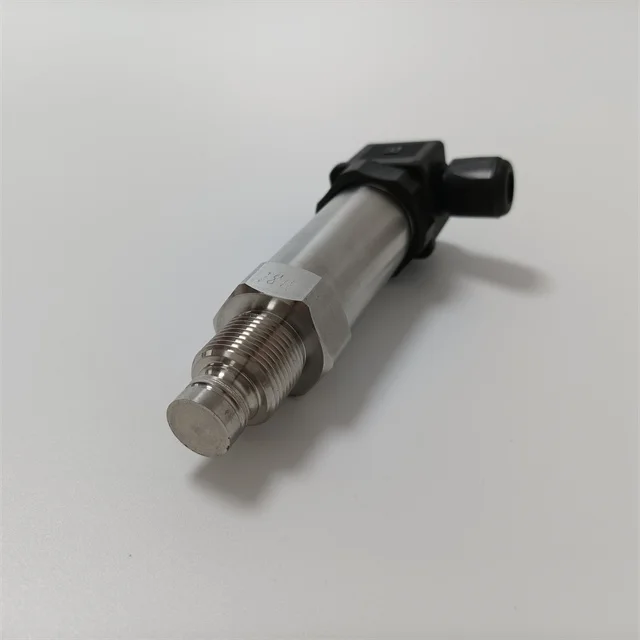

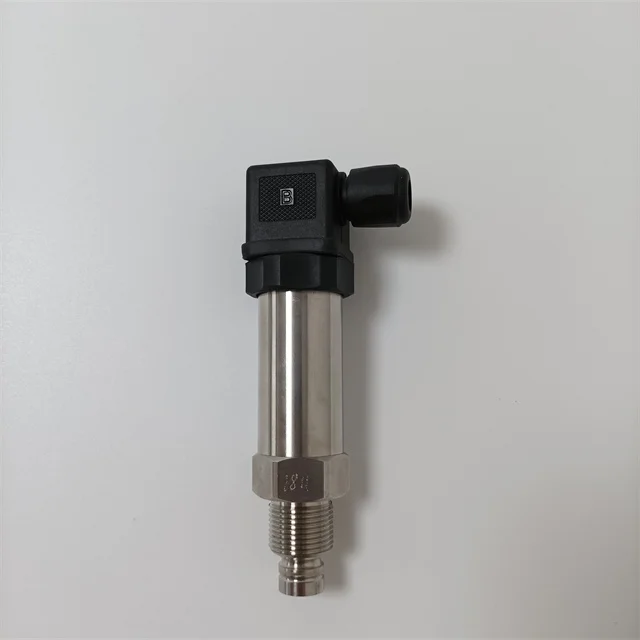

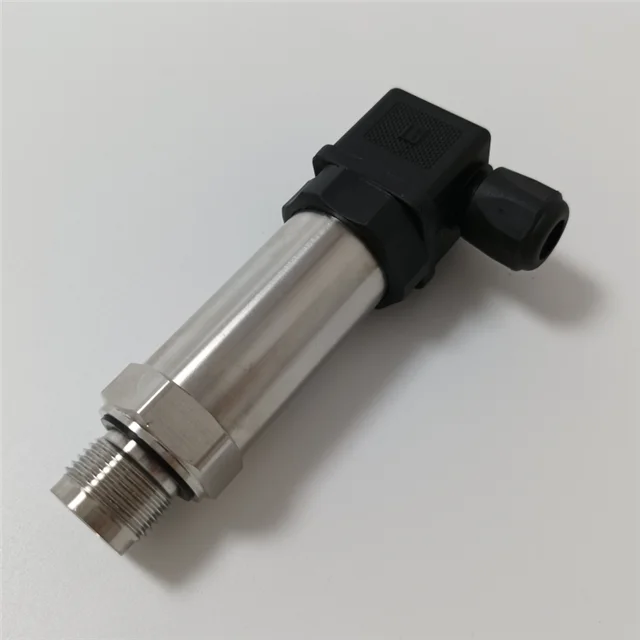

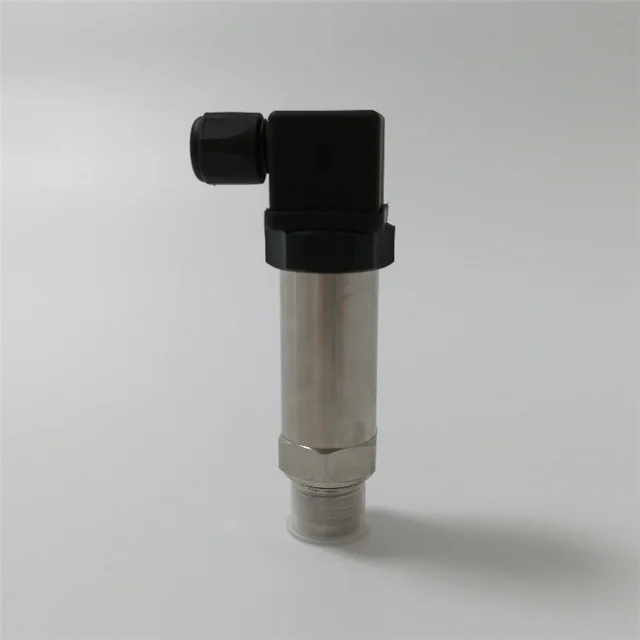

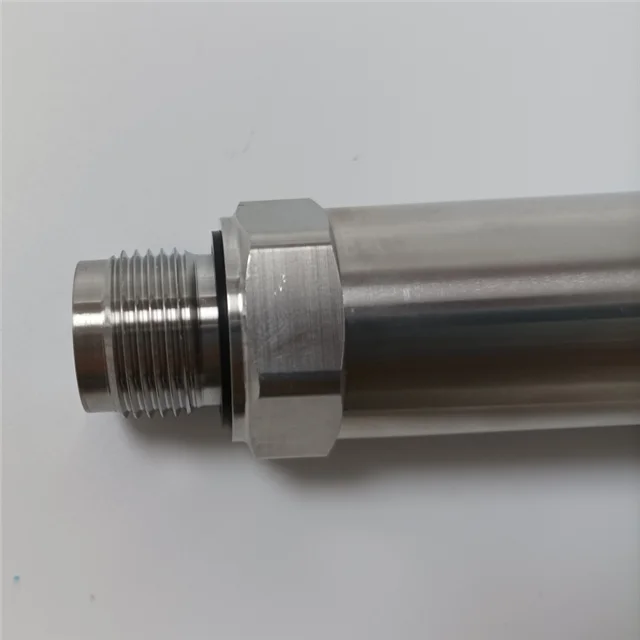

Details Images
Features of small size pressure sensor with strain gauge flush film pressure transmitter:
1. small size, light weight, can be installed in narrow position
2. integrated special chip, few discrete components, good temperature characteristics
3. High precision and high stability amplifier integrated circuits;
4. easy to operate and maintain durable
5. Isolation diaphragm design, integrated structure design, impact resistance, fatigue resistance, high reliability;
6. stainless steel mechanical and electrical integration structure, durable.
2. integrated special chip, few discrete components, good temperature characteristics
3. High precision and high stability amplifier integrated circuits;
4. easy to operate and maintain durable
5. Isolation diaphragm design, integrated structure design, impact resistance, fatigue resistance, high reliability;
6. stainless steel mechanical and electrical integration structure, durable.
Application
The small size pressure sensor with strain gauge flush film pressure transmitter adopts diffused silicon core as sensitive element and intelligent digital circuit. The overall performance is stable and reliable, and can be transmitted over long distance. Easy installation, suitable for gas, liquid, steam pressure measurement and control.
Use scenarios
■ Equipment manufacturing, hydraulic station, metallurgical industry
■ Chemical coatings, paints, mud, asphalt, crude oil and other viscous liquid pressure measurement;
■ Pressure measurement with grain and impurity;
■ Melt pressure measurement;
■ Oil Fume Pipeline Pressure Measurement
■ Chemical coatings, paints, mud, asphalt, crude oil and other viscous liquid pressure measurement;
■ Pressure measurement with grain and impurity;
■ Melt pressure measurement;
■ Oil Fume Pipeline Pressure Measurement
Packaging & Shipping
Company Profile
NICON is a high-tech technology enterprise integrating R&D, design, manufacturing, sales service, engineering design and complete system of industrial automation control equipment. The company has strong technical force, advanced production and testing equipment, excellent product technology, reliable quality, and timely after-sales service, and is deeply trusted by users.
Certifications
High standard production processes
1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer control for you to provide high-quality pressure transmitter.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
