High Performance MCX series Right Angle PCB Solder Mount RF Connector Male Connector

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

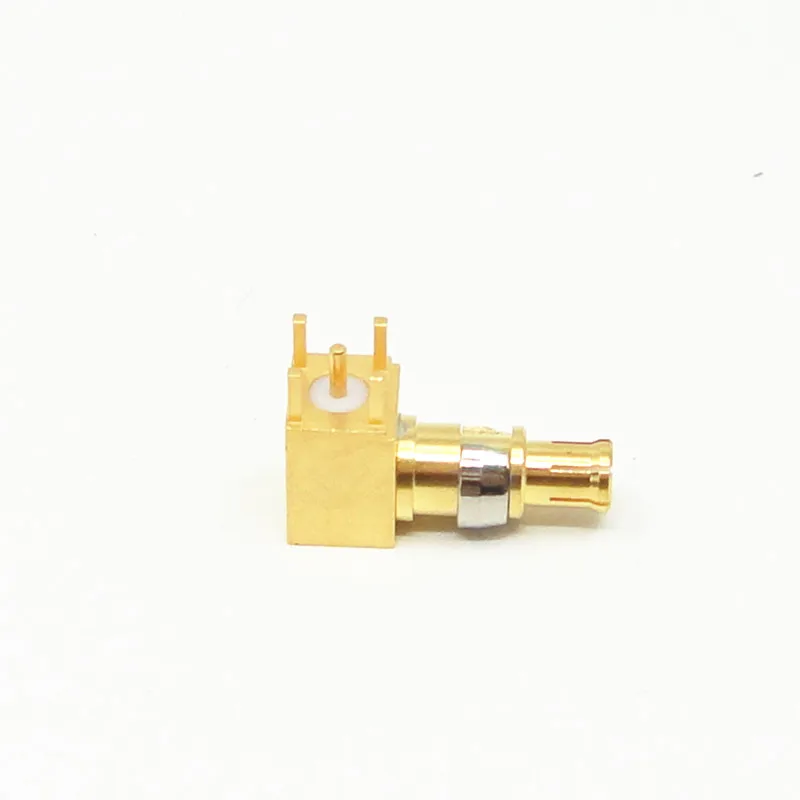

DC~6 GHz MCX Male RF Coxial Connector




MXC series radio frequency coaxial connectors are used for equipment that requires weight and volume. The operating frequency can reach 6GHz. It adopts plug-in interface design and the interface size is similar to SMB. But the volume is smaller, the contact is more reliable, and the connection is more convenient, which can meet the requirements of digital communication density and miniaturization.





Characteristic:







































































Electronic and Material Characterials



Impedance



50Ohm



Frequency Range



DC~6GHz



Rated Voltage



250 VRMS (Maximum sea-level)



Dielectrics Voltage-resistance



750VRMS (Maximum sea-level)



VSWR



≤1.3



Insulation Resistance



≥2000MΩ



Center conductor



Male



Brass, Gold-plated



Female



Beryllium bronze, Gold plated



Shell and other metal parts



Brass , Nickel plated, Gold-plated



Contact Resistance


Inner conductor≤5.0MΩ
Outer conductor

≤2.5MΩ



Elastomer



Beryllium bronze ,Nickle plated



Insulator



PTFE



Seal ring



Silicon rubber



Durablity



500(Cysles)
