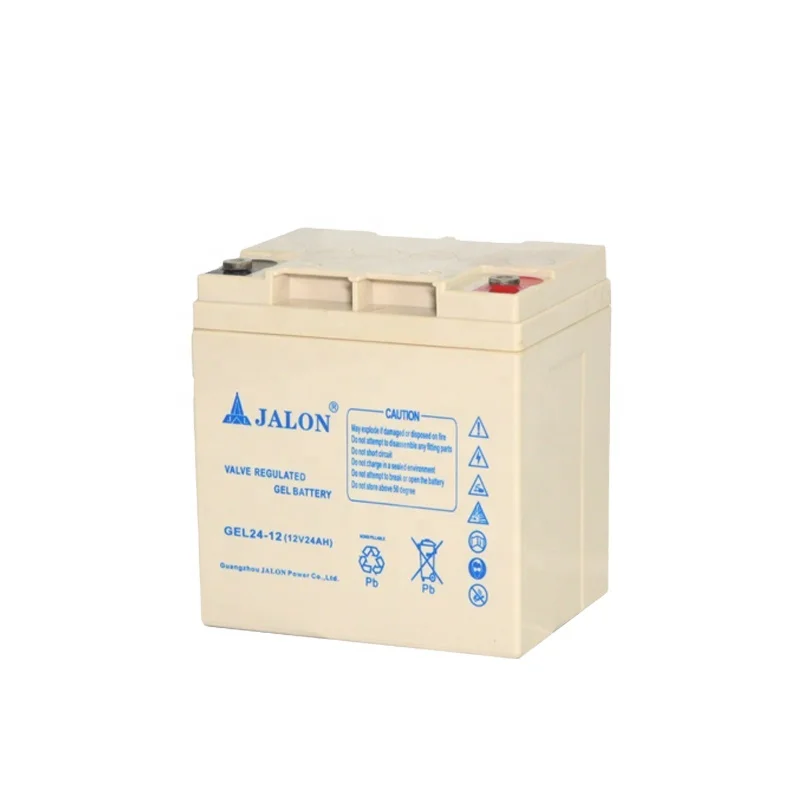

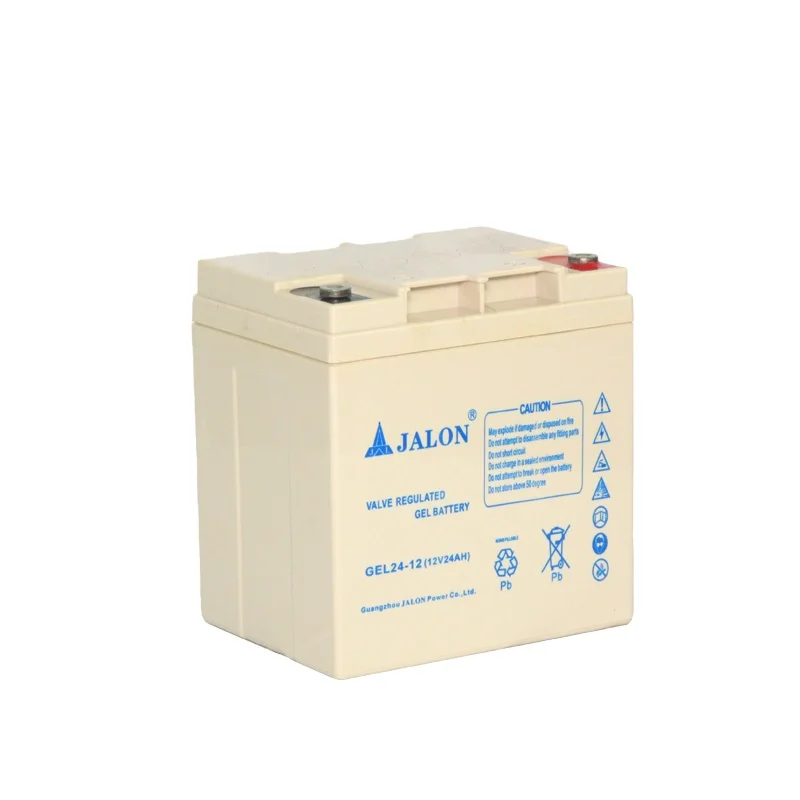

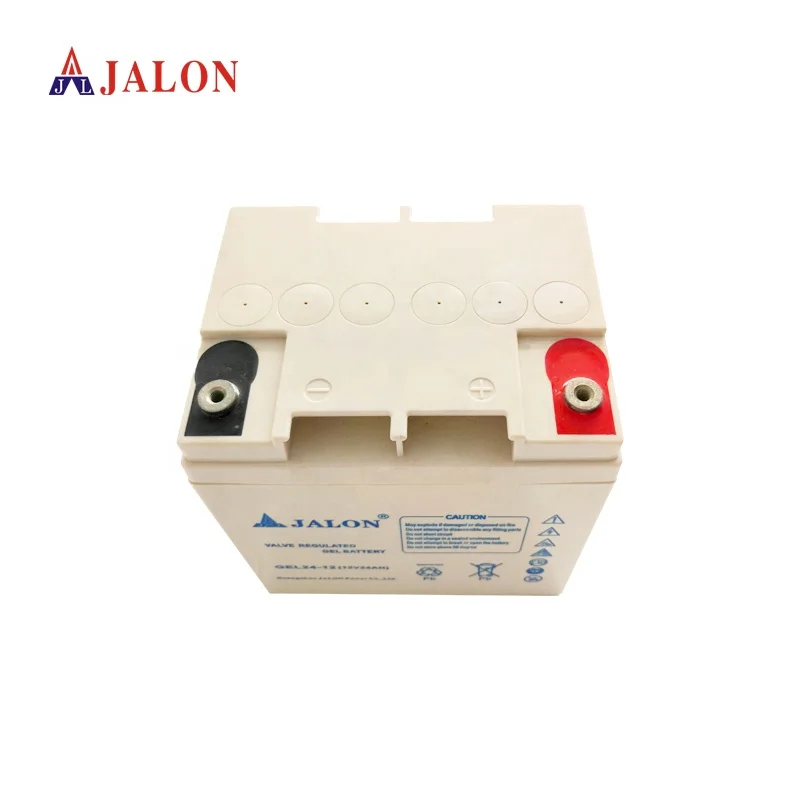

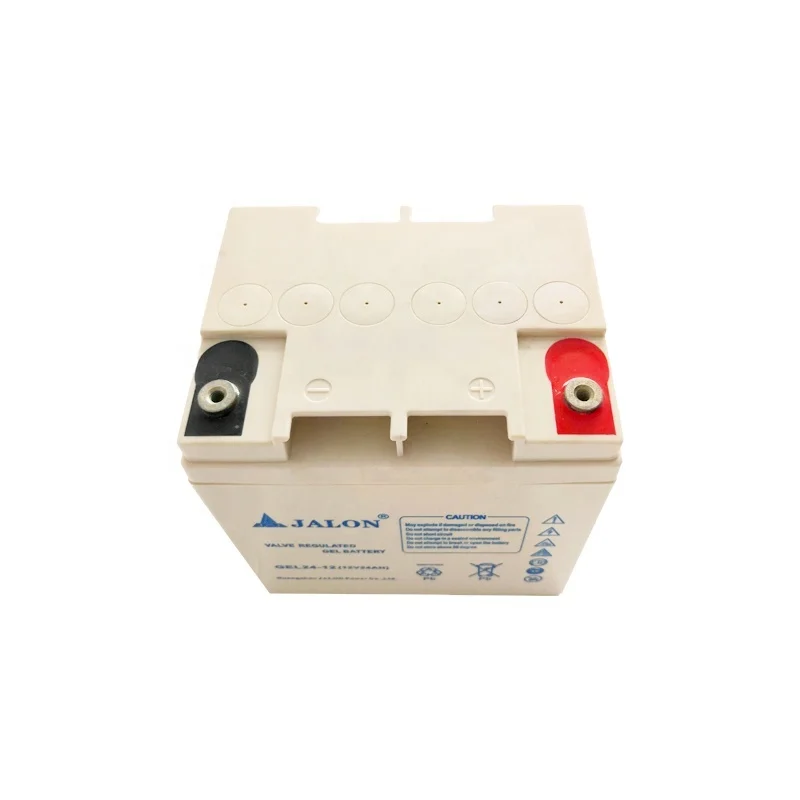

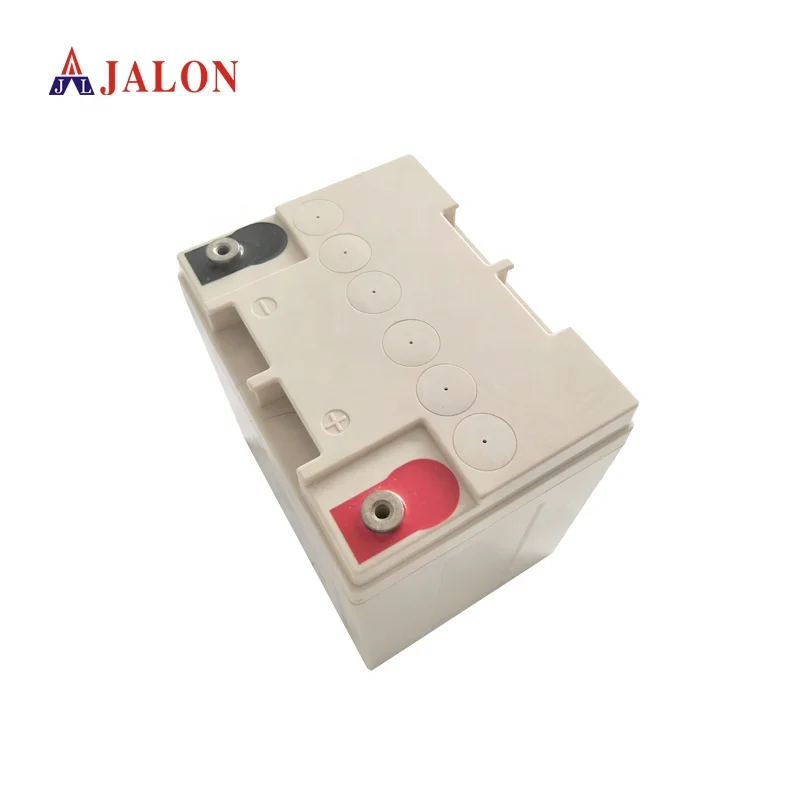

Jalon Agm Free Maintenance Sealed 12v 17ah 24ah 38ah 20hr Rechargeable Storage Battery
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600398794633):
Product Overview
Description
Product Description
Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm/Kg[(±5%)]) | Weight(Kg) |
GEL5-12 | 12 | 5/10HR | 90*70*100 | 1.48 |
GEL7-12 | 12 | 7/10HR | 150*69*95 | 2.03 |
GEL12-12 | 12 | 12/10HR | 150*98*95 | 3.25 |
GEL17-12 | 12 | 17/10HR | 180*76*166 | 5.0 |
GEL24-12 | 12 | 24/20HR | 165*126*179 | 7.7 |
GEL38-12 | 12 | 38/20HR | 197*166*179 | 12.3 |
GEL65-12 | 12 | 65/20HR | 350*167*178 | 20.2 |
GEL80-12 | 12 | 80/20HR | 331*174*240 | 24.8 |
GEL100-12 | 12 | 100/20HR | 331*174*240 | 29 |
GEL120-12 | 12 | 120/20HR | 405*174*235 | 32.3 |
GEL150-12 | 12 | 150/20HR | 484*171*241 | 43.5 |
GEL200-12 | 12 | 200/20HR | 522*240*244 | 58.2 |
GEL250-12 | 12 | 250/20HR | 520*268*245 | 70 |
Application & Product features
NominalVoltage | 12V | ||
Nominal Capacity(20HR) | 24AH | ||
Length | 176 ± 1mm & 165 ± 1mm | ||
Width | 166 ± 1mm & 126 ± 1mm | ||
Container Height | 125 ± 1mm & 175 ± 1mm | ||
Total Height (withTerminal) | 126 ± 1mm & 176 ± 1mm | ||
Terminal | Approx 7.5kg | ||
Operating Temp.Range | Discharge : -15~45℃ | ||
Charge : -10~40℃ | |||
Storage : -20~40℃ | |||
Nominal Operating Temp. Range | 25 ± 3℃ (77 ± 5℉ ) | ||
Cycle Use | Initial Charging Current less than 7.2 A.Voltage | ||
14.4V~14.9V at 25℃(77℉)Temp. Coefficient -30mV/℃ | |||
Standby Use | No limit on Initial Charging Current Voltage | ||
13.6V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃ | |||
Capacity affectedby Temperature | 40℃ (104 ℉) 103% | ||
25℃ ( 77 ℉ ) 100% | |||
0℃( 32℉ ) 86% | |||
Self Discharge | Techfine batteries may be stored for up to 6months at 25℃(77℉) and battery should be recharge before use . For higher temperatures | ||
the time interval will be shorter. | |||
Factory Images
Packaging
Customer Photos
Exhibition
Company Profile
JALON Power Co., Ltd. founded in 2003, is a professional manufacturer of storage battery. We owns two battery brands Jalon and eFOX. Products consists of full series of 12V valve regulated lead-acid battery, gel battery, deep cycle battery, front terminal battery and full series of 2V storage battery. Full specifications, large scale, main series consists of 12V7AH-250AH, 2V100AH-3000AH.
Our company is a big scale high-tech enterprise, specialized in the study, develop, manufacture, and sales of valve regulated lead-acid battery. For many years, our products are constantly exported to different countries, also gained rapid development home. Products are applied in various fields, especially in UPS/EPS, solar power, wind power, communication and so on. Our products have passed ISO9001:2015, CE, Export pass and etc. “Quality first, customer first ” is the operation rules. What we dedicate to provide are best quality high-tech products that are not only suitable our national environment, but also our high effective, best quality and quick service. Customer satisfaction are always our pursuit. First-level company is our goal.
Our company is a big scale high-tech enterprise, specialized in the study, develop, manufacture, and sales of valve regulated lead-acid battery. For many years, our products are constantly exported to different countries, also gained rapid development home. Products are applied in various fields, especially in UPS/EPS, solar power, wind power, communication and so on. Our products have passed ISO9001:2015, CE, Export pass and etc. “Quality first, customer first ” is the operation rules. What we dedicate to provide are best quality high-tech products that are not only suitable our national environment, but also our high effective, best quality and quick service. Customer satisfaction are always our pursuit. First-level company is our goal.
JALON Power Co., Ltd. founded in 2003, is a professional manufacturer of storage battery. We owns two battery brands Jalon and eFOX. Products consists of full series of 12V valve regulated lead-acid battery, gel battery, deep cycle battery, front terminal battery and full series of 2V storage battery. Full specifications, large scale, main series consists of 12V7AH-250AH,2V100AH-3000AH.
Certifications
1. who are we?
We are based in Guangdong, China, start from 2003,sell to Domestic Market(30.00%),Africa(15.00%),North America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Storage Batteries - Valve Regulated Lead-Acid Battery,GEL Battery,Solar Battery,Deep Cycle Battery and UPS Battery
4. why should you buy from us not from other suppliers?
1. We are AGM/GEL battery factory 2. more than 20 years expeirence on batteries. 3. Raw material was produced by ourself to save the cost. 4. Short lead time. 7-10 days 5. Providing OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2003,sell to Domestic Market(30.00%),Africa(15.00%),North America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Storage Batteries - Valve Regulated Lead-Acid Battery,GEL Battery,Solar Battery,Deep Cycle Battery and UPS Battery
4. why should you buy from us not from other suppliers?
1. We are AGM/GEL battery factory 2. more than 20 years expeirence on batteries. 3. Raw material was produced by ourself to save the cost. 4. Short lead time. 7-10 days 5. Providing OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
