molybdenum disilicide heating element mosi2 ceramic heater for industrial furnace
- Category: >>>
- Supplier: Yancheng Hongtai Alloy Electric Apparatus Co. Ltd.
Share on (1600398808341):
Product Overview
Description
Product Description

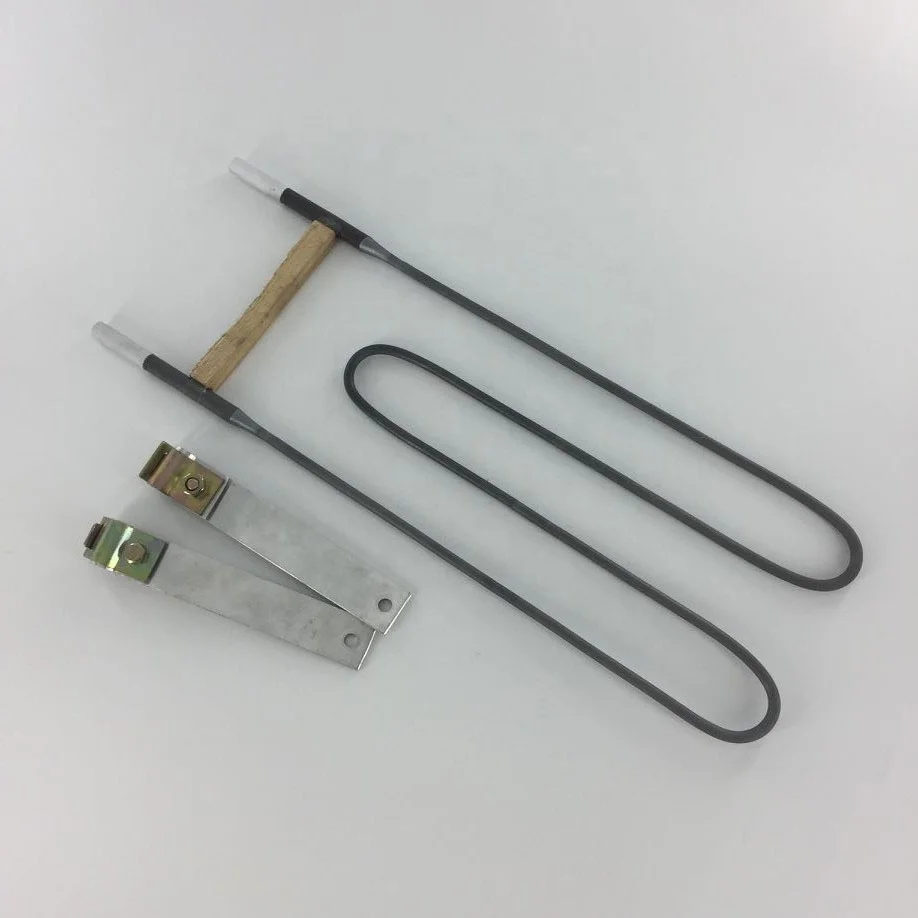

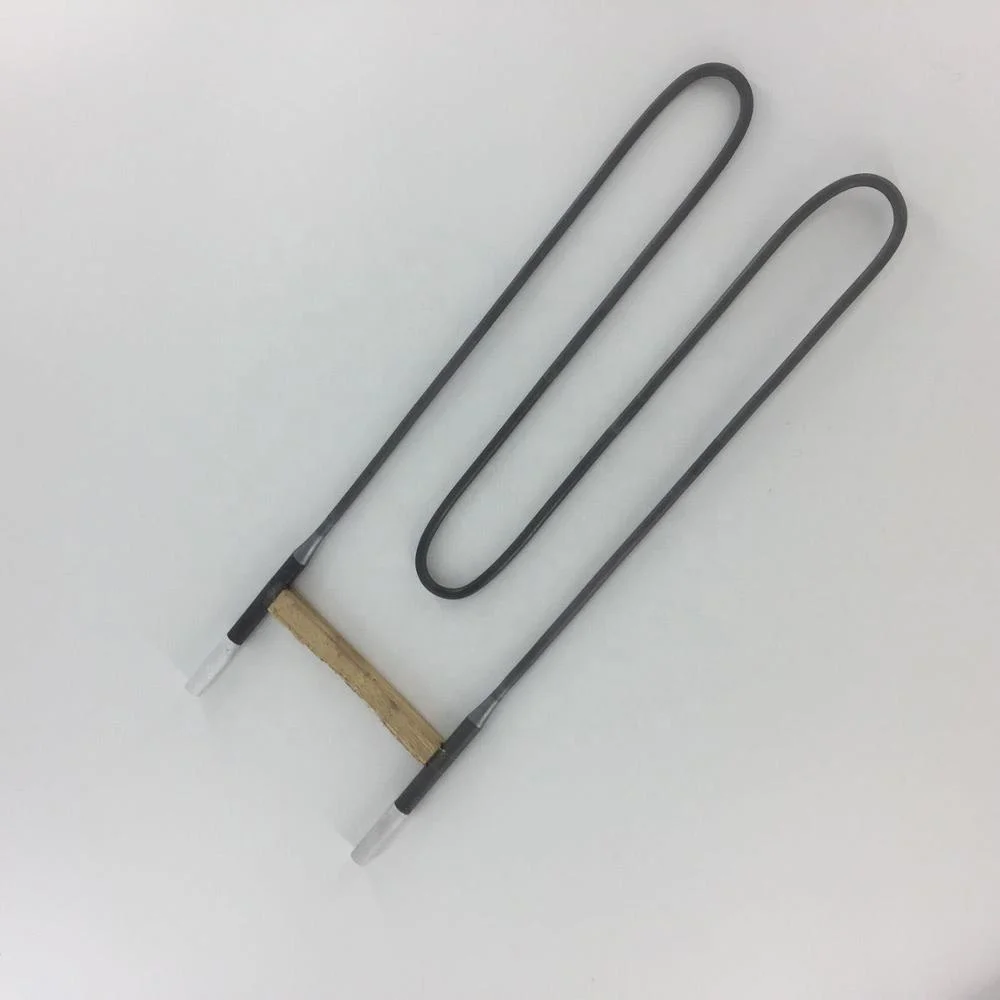

MoSi2 rod heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.
Products Show
Molybdenum disilicide MoSi2 rod heating element size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .

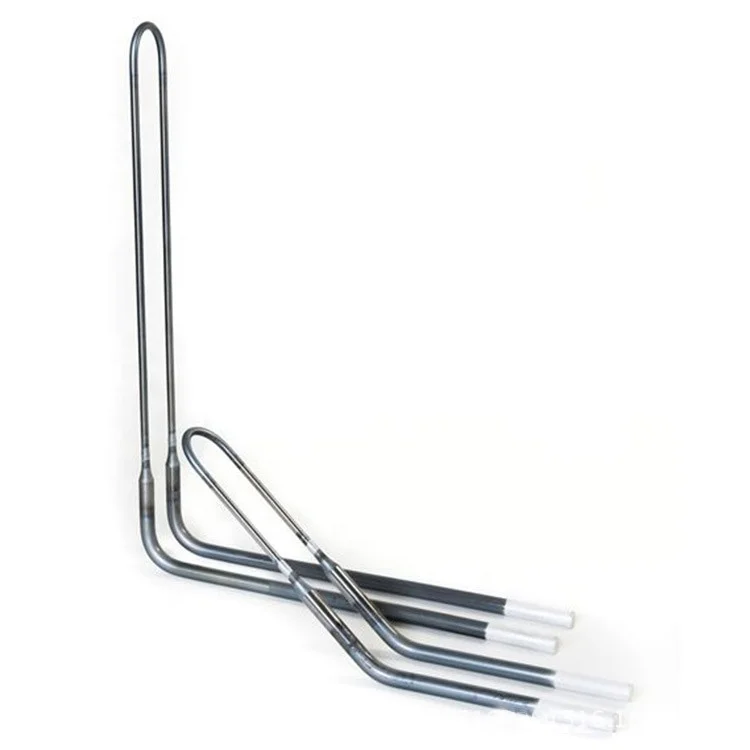

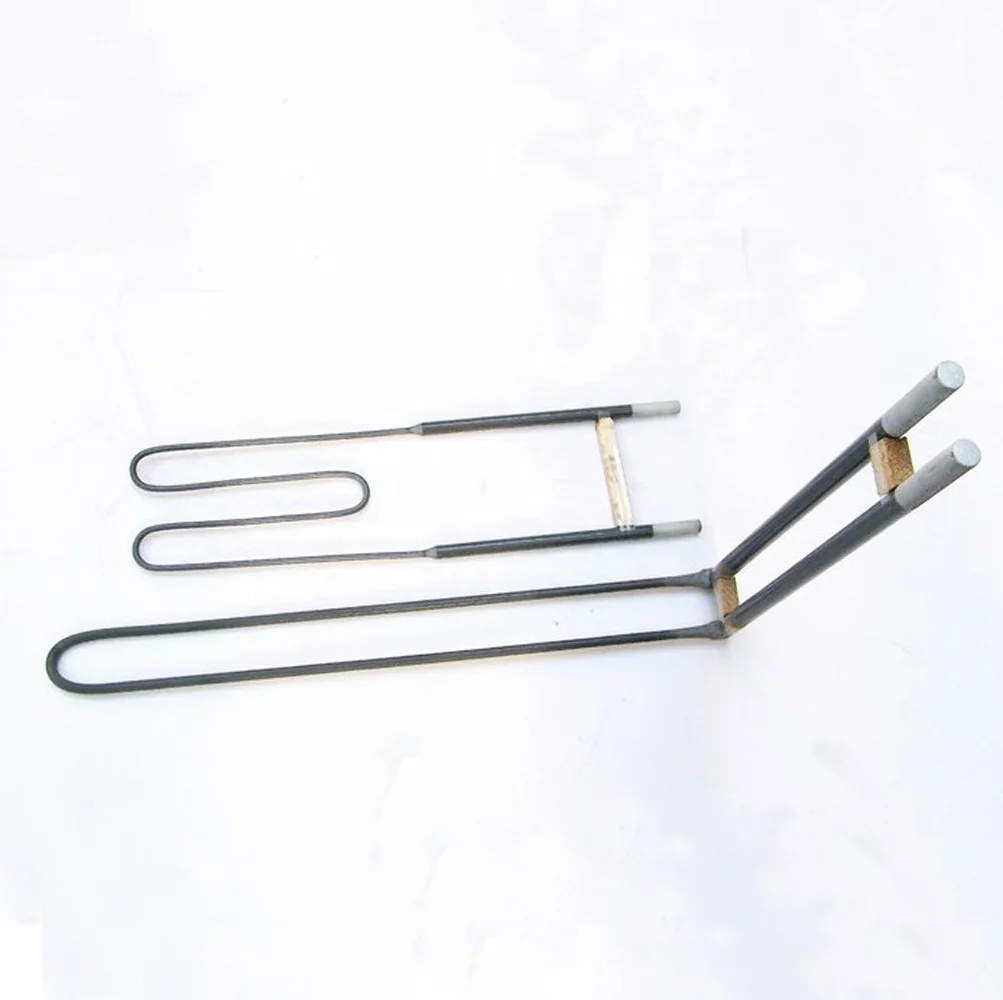

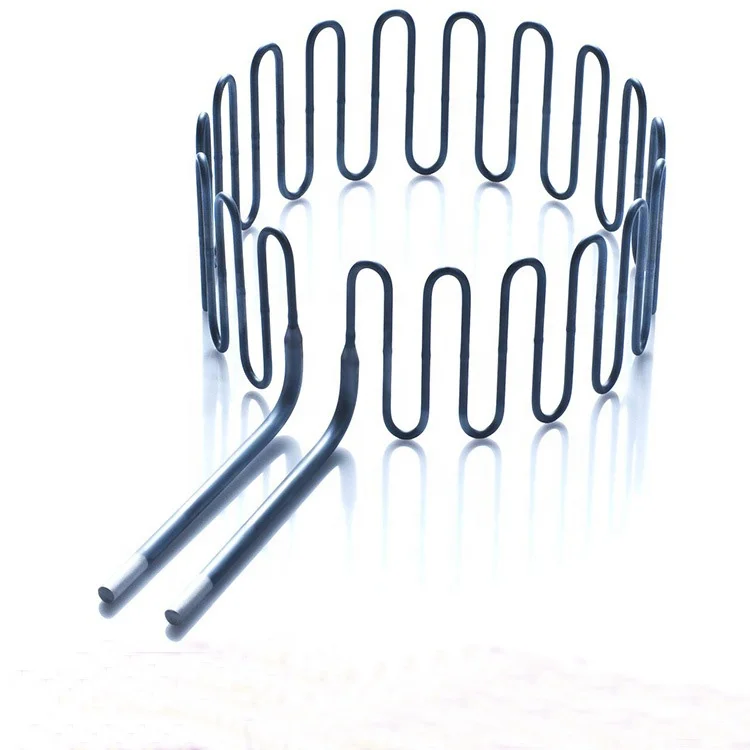

4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .
4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .
How to order ?
Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?
Specification
Diameter of hot zone | Diameter of cold zone | Length of hot zone | Length of cold zone | Terminal center distance |
3mm | 6mm | 80-300mm | 80-500mm | 25mm |
4mm | 9mm | 80-350mm | 80-500mm | 25mm |
6mm | 12mm | 80-800mm | 80-1000mm | 25-60mm |
7mm | 12mm | 80-800mm | 80-1000mm | 25-60mm |
9mm | 18mm | 100-1200mm | 100-2500mm | 40-80mm |
12mm | 24mm | 100-1500mm | 100-1500mm | 40-100mm |
Certifications
Our Company
Packing & Delivery
Packaging for cast in heater
1) plastic bag + carton for cast in heater
2) wooden box for cast in heater
Shipping for cast in heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
Each heater use bubble bag and wrapped first
Choose the right box for the heaters
Exported Wooden case can protect the heaters very well
