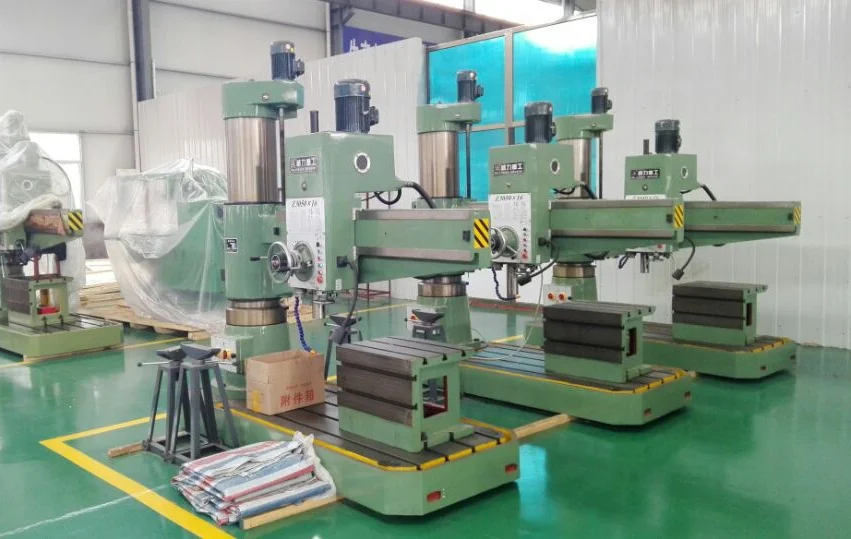

Heavy Duty Radial Arm Column Drill Press Machines Z3050x16 China Radial Drilling Machine
- Category: >>>
- Supplier: Shandong Weili Heavy Industry Co. Ltd.
Share on (1600398826465):
Product Overview
Description
Products Description

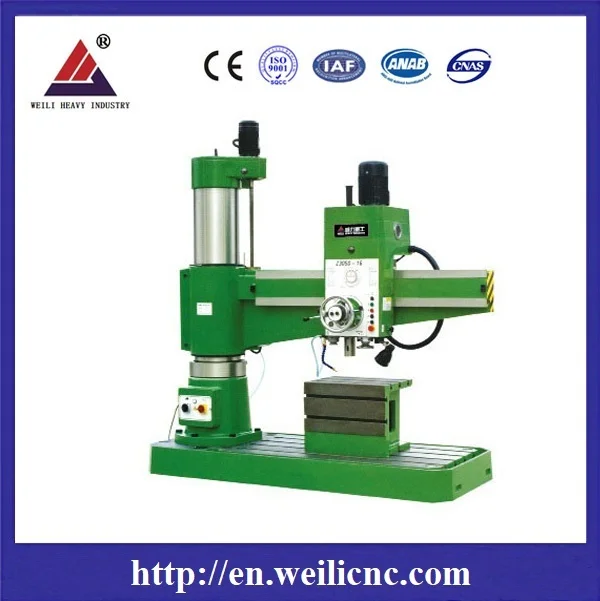

Z3050x16
1.The main key pieces of high strength cast iron and special steel.
2.By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.
3.Spindle positive, parking ( brake ),
2.By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.
3.Spindle positive, parking ( brake ),
transmission, free action, with a handle control, operate more conveniently andquickly.
4.Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are conducted
quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.
5.Have good safety protection device and the outer column protection.
6.The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the precision of the machine tool durability and the service life of the whole machine are enlarging.
7.The new coating technology and the continuous improvement of appearance display style of the times.
4.Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are conducted
quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.
5.Have good safety protection device and the outer column protection.
6.The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the precision of the machine tool durability and the service life of the whole machine are enlarging.
7.The new coating technology and the continuous improvement of appearance display style of the times.
Manufacturing Technique
Specification | Units | Z3050×16 |
Max. drilling diameter | mm | 50 |
Distance between spindle axis and column | mm | 350-1600 |
Distance spindle nose and work surface of base | mm | 320-1220 |
Rocker arm lifting distance | mm | 580 |
Rocker arm lifting speed | m/s | 0.02 |
Spindle travel | mm | 315 |
Spindle taper | Morse | 5 |
Range of spindle speeds | r/min | 25-2000 |
Number of spindle speeds | step | 16 |
Range of spindle feeds | mm/r | 0.04-3.20 |
Number of spindle feeds | step | 16 |
The maximum torque of the spindle | N.M | 500 |
Spindle maximum feed resistance | N | 18000 |
Table size | mm | 630×500 |
The spindle box of horizontal moving distance | mm | 1250 |
Spindle motor power | kw | 4 |
Hydraulic clamping motor power | kw | 0.75 |
Cooling pump motor power | kw | 0.09 |
Arm lift motor power | kw | 1.5 |
Machine weight | kg | 3500 |
Overall dimension | mm | 2500x1070x2840 |

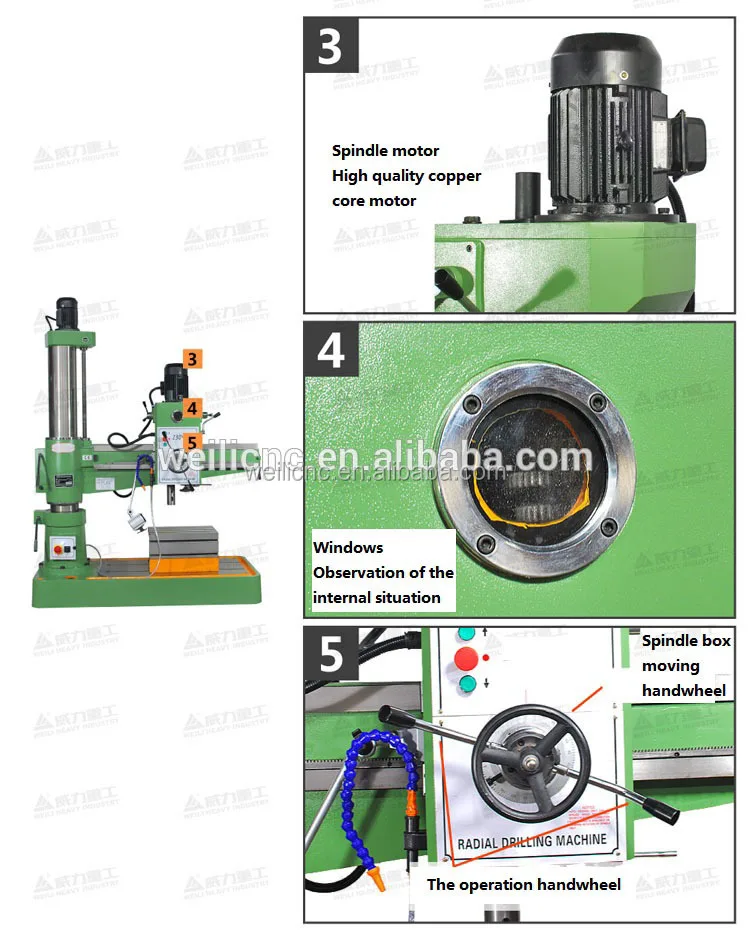

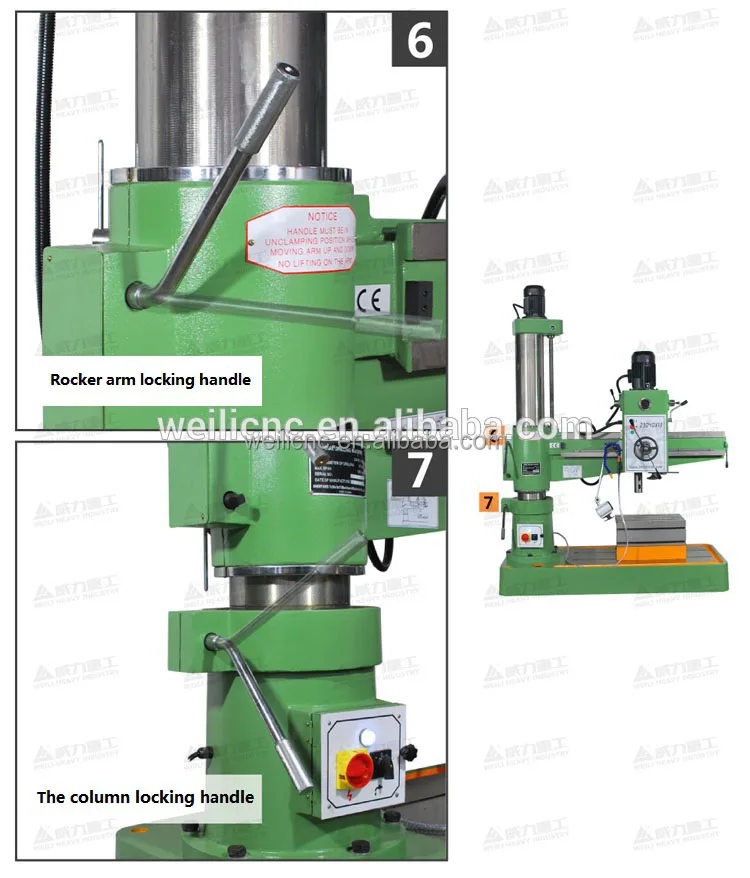

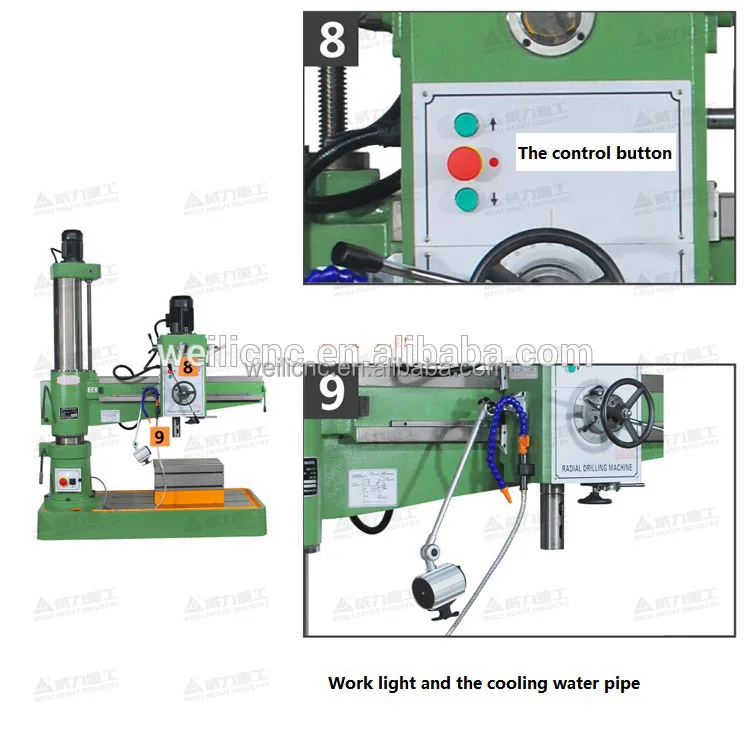

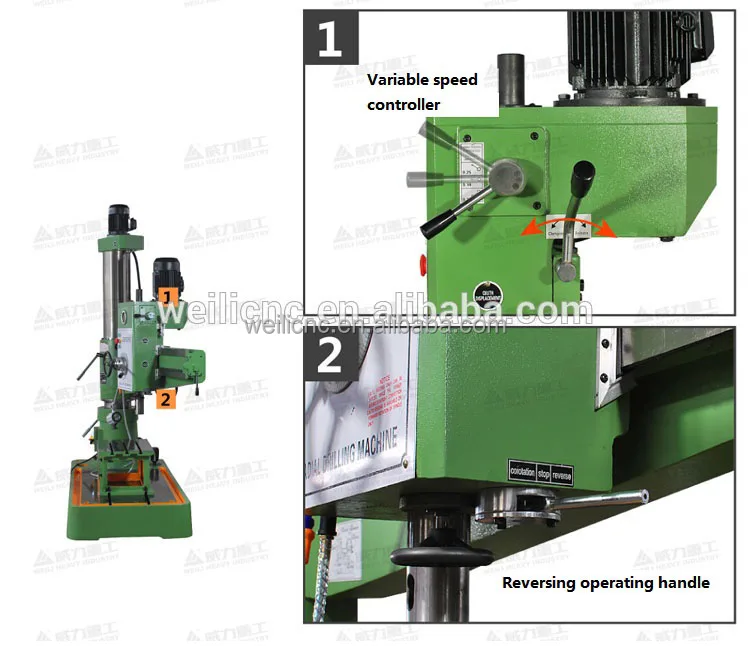

Details Images

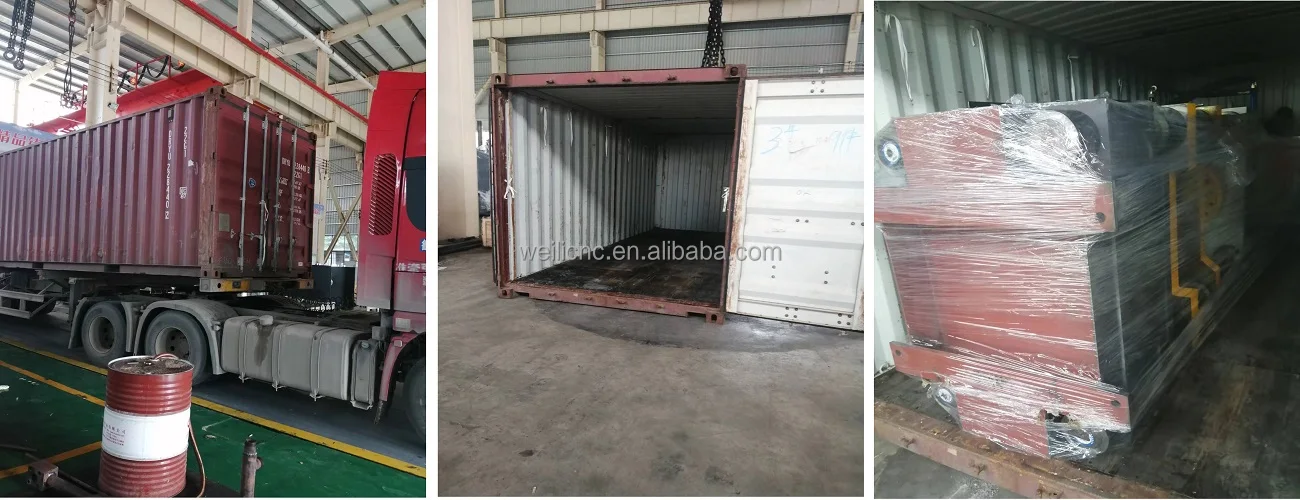

Product packaging

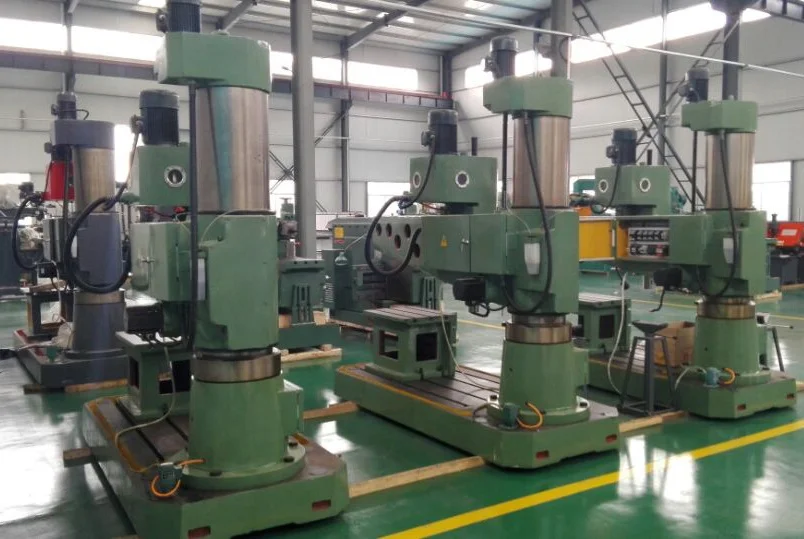

Some products
Customer Photos

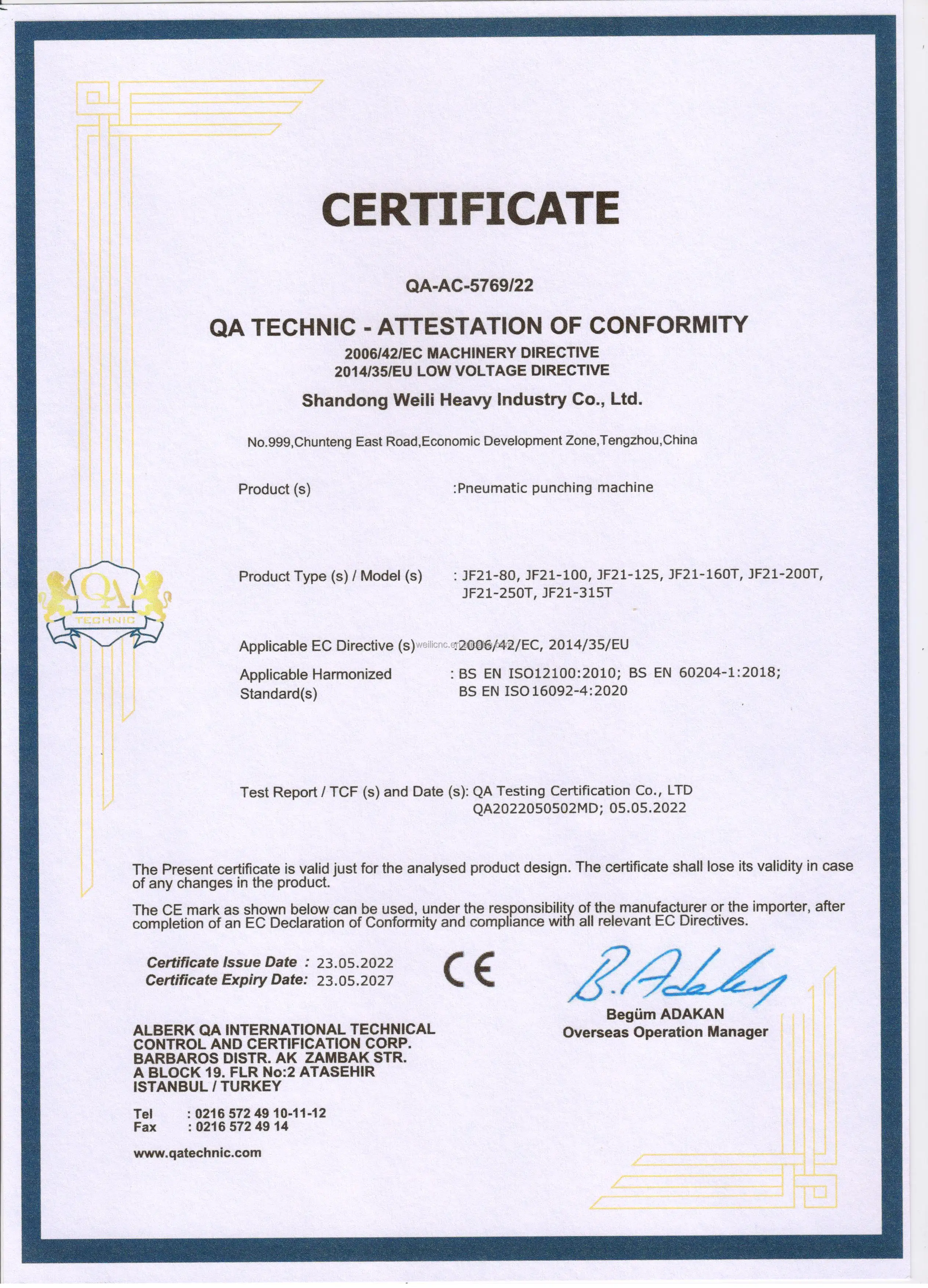

Certifications
