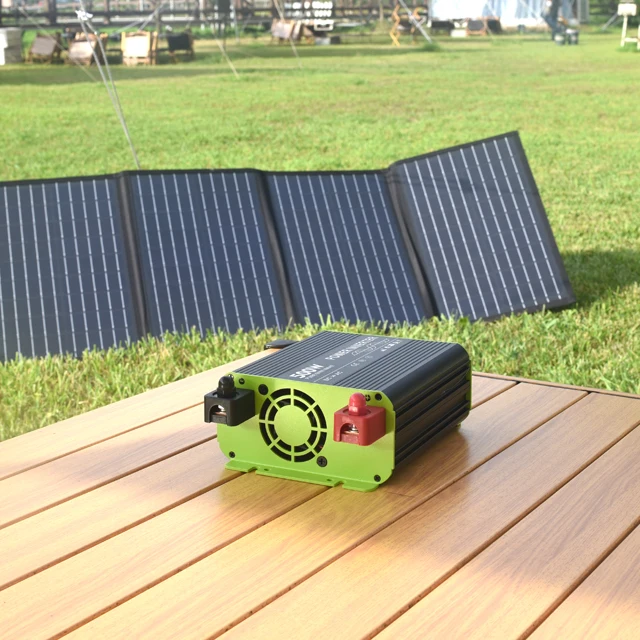

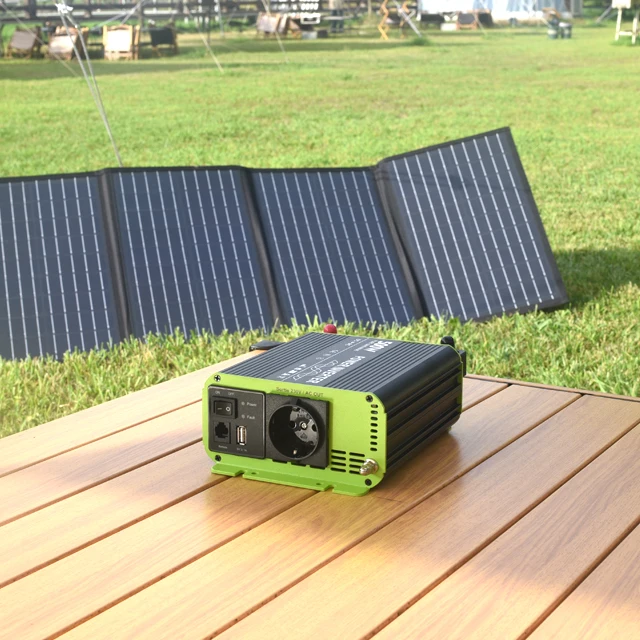

1500 Watt 3000 watt inverter dc 12V24V48V to ac 110V220V230V solar power inverter for off grid solar system with CE approval
- Category: >>>
- Supplier: Ningbo Kosun New Energy Co. Ltd.
Share on (1600398956026):
Product Overview
Description
Products Description

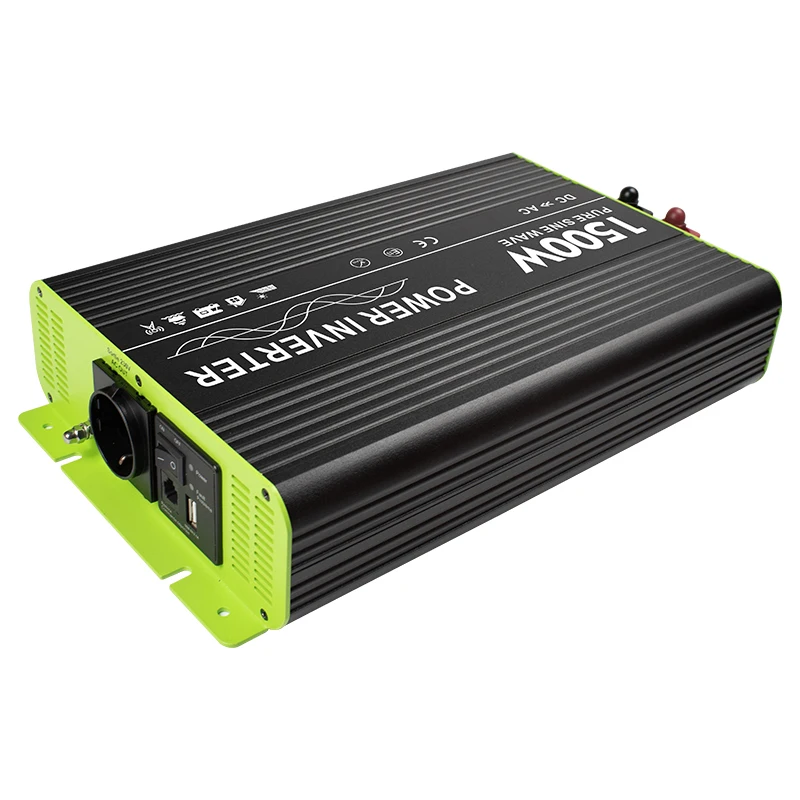

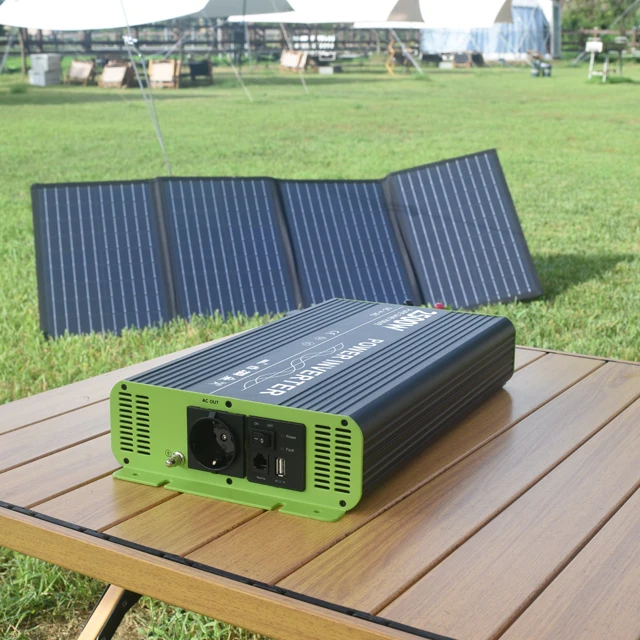

1500W Pure Sine Wave Inverter
1500W Pure Sine Wave Inverter safely turns 12V battery power into 300W of Pure Sine Wave 120 Volt or 230Volt AC. It allows you to run all your home comforts off the grid with Thermal, Overload & Short-Circuit protection for added safety.
Features
◆Pure sine wave output (THD<4%).
◆Continuous power:1500W.
◆Max constant power start:3000W continue 10s.
◆High efficiency up to 90%.
◆Power ON-OFF switch.
◆Front panel indicator for operation status.
◆Load and Thermostatically controlled cooling fan.
◆Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp/ Output short / Input polarity reverse / Overload.

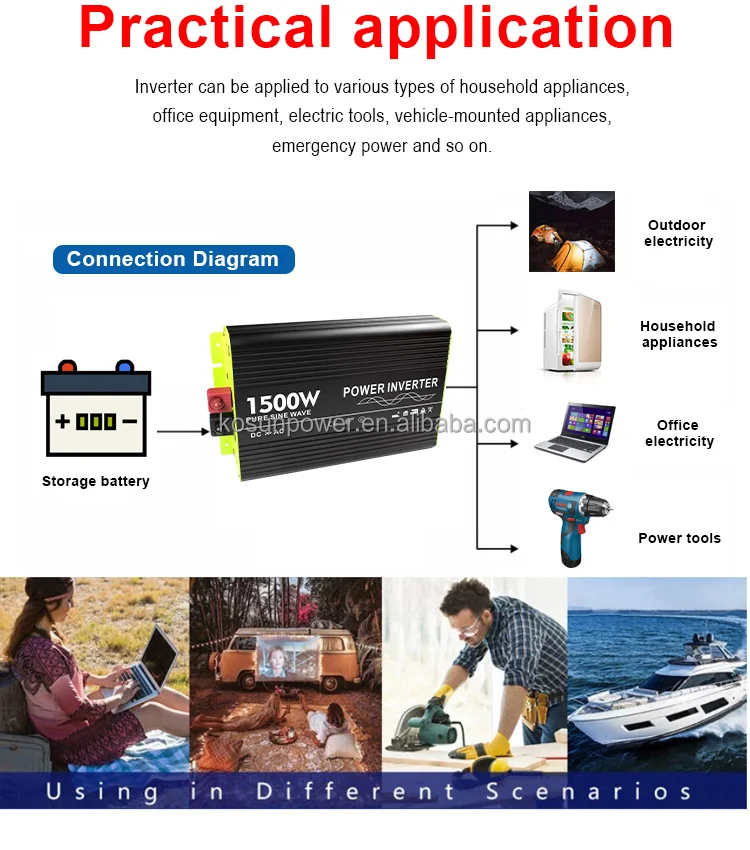

◆Application : Home appliance, power tools, office and portable
equipment, vehicle and yacht ..etc.
◆One years warranty.
◆Continuous power:1500W.
◆Max constant power start:3000W continue 10s.
◆High efficiency up to 90%.
◆Power ON-OFF switch.
◆Front panel indicator for operation status.
◆Load and Thermostatically controlled cooling fan.
◆Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp/ Output short / Input polarity reverse / Overload.
◆Application : Home appliance, power tools, office and portable
equipment, vehicle and yacht ..etc.
◆One years warranty.
Details Images
Product Paramenters
MODEL | KS-1500P-112 | KS-1500P-124 | KS-1500P-148 | KS-1500P-212 | KS-1500P-224 | KS-150P-248 | ||||||
OUTPUT | RATED POWER(Typ.) | 1500watt | 300W | 300W | 300W | 300W | 300W | |||||
MAX OUTPUT POWER | 3000W for for 10 sec | |||||||||||
AC VOLTAGE | 100 / 110 / 115 / 120VAC | 200 / 220 / 230 / 240VAC | ||||||||||
FREQUENCY | 60±0.2Hz/50±0.2Hz | |||||||||||
WAVEFORM | Pure sine wave (THD<4%) at rated input voltage | |||||||||||
AC REGULATION (Typ.) | ±10% | |||||||||||
FRONT PANEL INDICATOR | Output load level, fault and operation status | |||||||||||
INPUT | BAT. VOLTAGE | 12V | 24V | 48V | 12V | 24V | 48V | |||||
VOLTAGE RANGE (Typ.) | 10 ~ 15VDC | 20 ~ 30VDC | 40~ 60VDC | 10 ~ 15VDC | 20~ 30VDC | 40~ 60VDC | ||||||
DC CURRENT (Typ.) | 147A | 74A | 37A | 147A | 74A | 37A | ||||||
NO LOAD DISSIPATION | ≤0.65A | ≤0.35A | ≤0.17A | ≤0.65A | ≤0.35A | ≤0.17A | ||||||
EFFICIENCY (Typ.) Note.1 | 88% | 89% | 90% | 89% | 90% | 91% | ||||||
BATTERY TYPES | Open & sealed Lead Acid | |||||||||||
BAT. LOW ALARM | 10.5±0.5V | 21±1V | 42±2V | 10.5±0.5V | 21±1V | 42±2V | ||||||
BAT. LOW SHUTDOWN | 10±0.5V | 20±1V | 40±2V | 10±0.5V | 20±1V | 40±2V | ||||||
BAT.OVER SHUTDOWN | 16±0.5V | 32±1V | 64±2V | 16±0.5V | 32±1V | 64±2V | ||||||
BAT. POLARITY | By external/internal fuse open | |||||||||||
OUTPUT PROTECTION | OVER TEMPERATURE | ≥45ºC or ≥60% rated power, cooling fan open;≥75ºC,Shut off. | ||||||||||
Protection type : Shut down o/p voltage, re-power on to recover; | ||||||||||||
OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | |||||||||||
OVER LOAD (Typ.) | 120% rated load for 10 sec. | |||||||||||
Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||||
ENVIRONMENT | WORKING TEMP. | 0 ~ +40℃ @ 100% load ; 60℃@ 50% load | ||||||||||
WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||||||
STORAGE TEMP., HUMIDITY | -30℃~ +70℃/ -22 ~ +158 ℉, 10 ~ 95% RH | |||||||||||
FAQ
1,Q:Why your quotation is higher than other suppliers?
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.

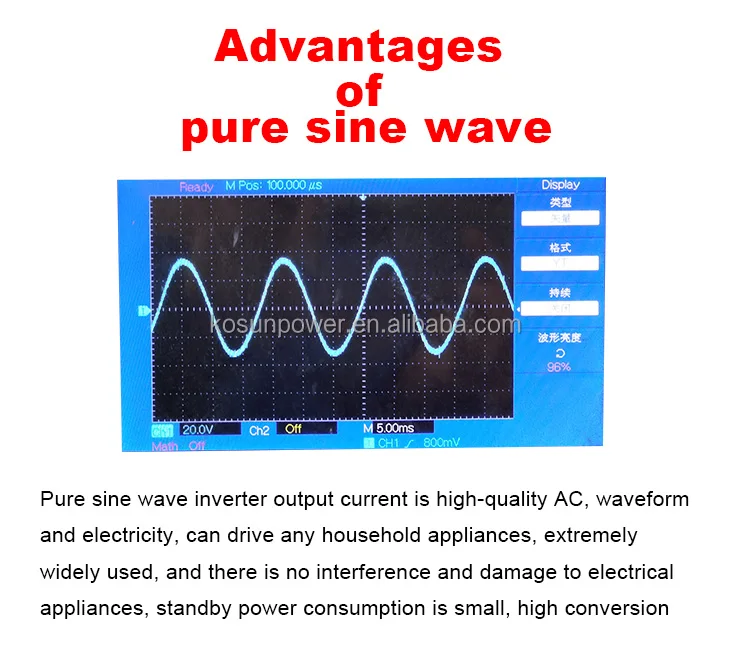

Type two: Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the
output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common
electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz
andTV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it
does not exist grid tie electromagnetic pollution.
..............................................................................................................................................................
3,Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
..............................................................................................................................................................
4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available
to them.
..............................................................................................................................................................
6,Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
Type two: Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the
output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common
electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz
andTV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it
does not exist grid tie electromagnetic pollution.
..............................................................................................................................................................
3,Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
..............................................................................................................................................................
4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available
to them.
..............................................................................................................................................................
6,Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
