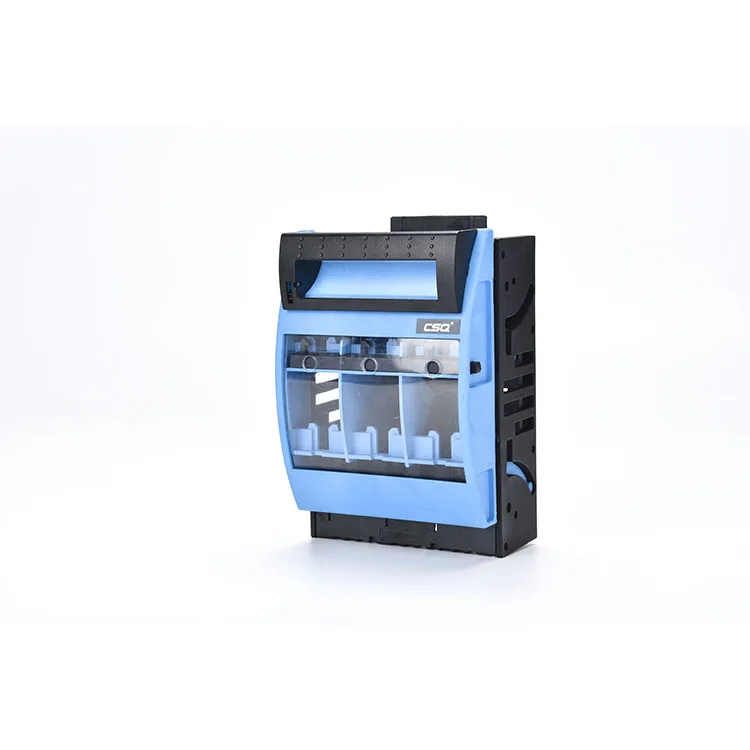

HYCR17 Low Voltage Fuse Disconnect Switch 3P 250A AC 400V Fixed Type NH Fuse Switch Disconnector
- Category: Other Switches >>>
- Supplier: Siqi,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
HYCR17series integrate control, isolation, and fuse base function in one device. These functions can also be realized by using of different components.
HYCR1 Fuse switch disconnector has following functions :
1)The load change over . The work speed and breaking capacity of the fuse is associated with the specific operation situation of the operator.
2)Fuse brake piece form the dynamic contact of the fuse.
3)Fuse is installed in the fuse base
4)By manipulating the handle , the fuse base can operate the main active contact.
5)When the fuse base is in the OFF position(OFF), contacts can indicate information.
6)With DIN type blade industry fuse (NH), it can provide power distribution circuit with short circuit or overload protection The solution of different combined components By using isolating switch and the fuse installed on different fuse base,it can protect the power distribution circuit and the motor.
The function of each component can provide the load switch (opening and closing) and isolation (isolating switch)
Short circuit or overload protection (fuse) With the aid of these components,it has Interpact INS isolating switch function between 40A ~ 800A .
HYCR1 Fuse switch disconnector has following functions :
1)The load change over . The work speed and breaking capacity of the fuse is associated with the specific operation situation of the operator.
2)Fuse brake piece form the dynamic contact of the fuse.
3)Fuse is installed in the fuse base
4)By manipulating the handle , the fuse base can operate the main active contact.
5)When the fuse base is in the OFF position(OFF), contacts can indicate information.
6)With DIN type blade industry fuse (NH), it can provide power distribution circuit with short circuit or overload protection The solution of different combined components By using isolating switch and the fuse installed on different fuse base,it can protect the power distribution circuit and the motor.
The function of each component can provide the load switch (opening and closing) and isolation (isolating switch)
Short circuit or overload protection (fuse) With the aid of these components,it has Interpact INS isolating switch function between 40A ~ 800A .
Product Paramenters
Current | 160A | 250A | 400A | 630A | 800A | ||||
Rated insulation voltage Ui | 690V | ||||||||
Rated impaction withstand voltage Uimp | 8KV | ||||||||
Rated working voltage Ue | AC380V | ||||||||
Rated working current Ie | 160A | 250A | 630400A | 630A | 800A | ||||
Position | I-O | ||||||||
Rated making capacity | 10Ie | ||||||||
Rated breaking capacity | 8Ie | ||||||||
Rated limting short-circuit current | 50KA | ||||||||
Rated short time withstand current Ie | 7KA | ||||||||
Poles | 3p & 4p | ||||||||
Voltage of control power supply | AC220V | ||||||||
Energy consumption of the motor | 40W | ||||||||
Weight Kg | 2 | 3 | 5 | 8 | 15 | ||||
Company Profile
About Siqi
Siqi Technology Co.,Ltd is a high-tech enterprise specializing in research and development, production, sales and services of automatic transfer switch, miniature circuit breaker, molded case circuit breaker and switch disconnector, load break switch, power meter, contactor, which is located in Yueqing city, the global capital of low-voltage electrical appliances.
Recommend Products
Factory introduction
Exhibition

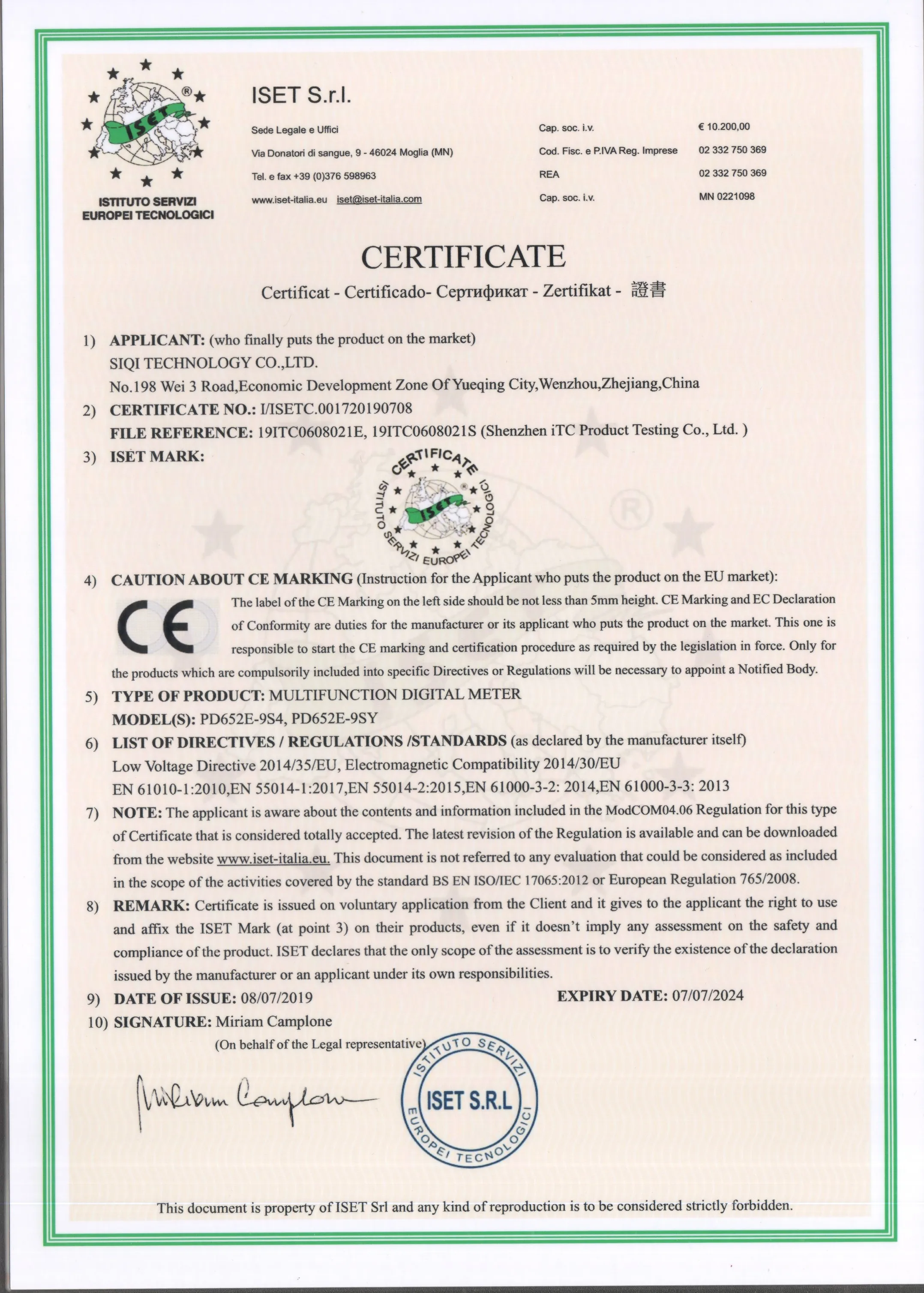

Certifications
FAQ
1. How long is your products warranty?
A1: The warranty period of our products is 24 months.
2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.
3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.
4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.
5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.
6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
A1: The warranty period of our products is 24 months.
2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.
3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.
4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.
5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.
6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
