Hot Dip Galvanized Steel Ring lock scaffoldings system ledger for construction
- Category: >>>
- Supplier: Guangzhou Shuangma Steel Template Co. Ltd.
Share on (1600399016845):
Product Overview
Description
Product application

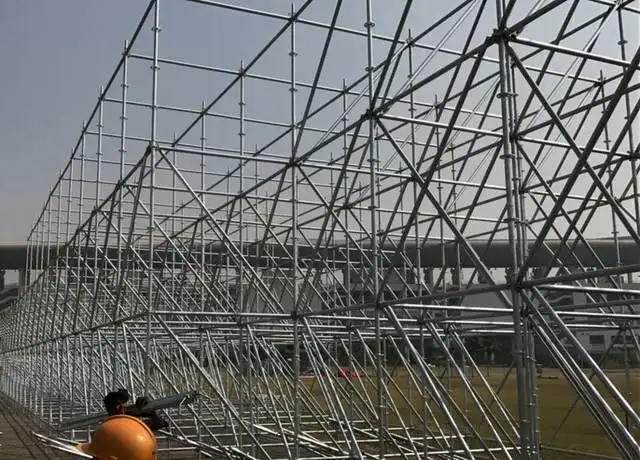

Ringlock Scaffolding, also called all roound scaffolding, is one of the most popular modular system scaffolding for construction.It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance,etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform /grandstand for events, and also plays a heavy load duty in many kinds of project.

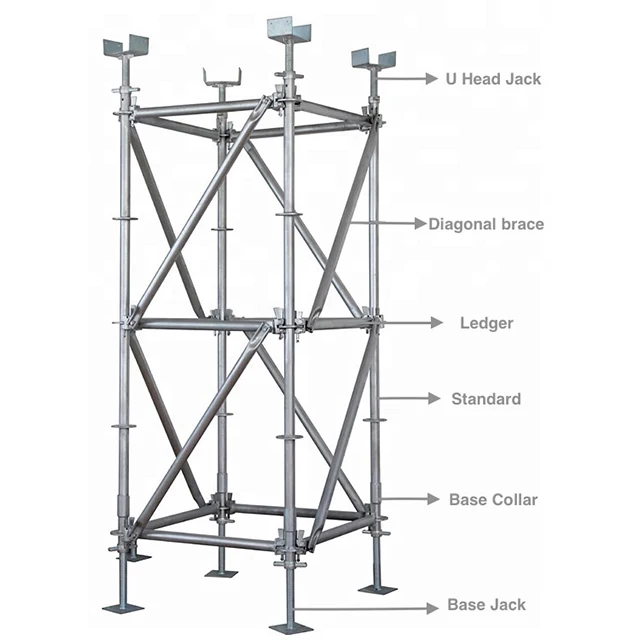

Product Description
Code | Description | Weight (kg) |
RS.S.400P | 4.00M Standard | 18.68 |
RS.S.350P | 3.50M Standard | 16.42 |
RS.S.300P | 3.00M Standard | 14.17 |
RS.S.250P | 2.50M Standard | 11.92 |
RS.S.200P | 2.00M Standard | 9.66 |
RS.S.150P | 1.50M Standard | 7.41 |
RS.S.100P | 1.00M Standard | 5.16 |
RS.S.050P | 0.50M Standard | 2.90 |
Code | Description | Weight (kg) |
RS.L.305 | 3.05M Ledger | 11.47 |
RS.L.244 | 2.44M Ledger | 9.28 |
RS.L.213 | 2.13M Ledger | 8.19 |
RS.L.183 | 1.83M Ledger | 7.10 |
RS.L.152 | 1.52M Ledger | 6.01 |
RS.L.122 | 1.22M Ledger | 4.91 |
RS.L.115 | 1.15M Ledger | 4.66 |
RS.L.107 | 1.07M Ledger | 4.37 |
RS.L.091 | 0.91M Ledger | 3.82 |
RS.L.065 | 0.65M Ledger | 2.87 |
RS.L.061 | 0.61M Ledger | 2.73 |
Code | Description | Weight (kg) |
RS.DB.305200 | 3.05x2.0M Diagonal Brace | 11.33 |
RS.DB.244200 | 2.44x2.0M Diagonal Brace | 9.97 |
RS.DB.213200 | 2.13x2.0M Diagonal Brace | 9.35 |
RS.DB.183200 | 1.83x2.0M Diagonal Brace | 8.78 |
RS.DB.152200 | 1.52x2.0M Diagonal Brace | 8.26 |
RS.DB.122200 | 1.22x2.0M Diagonal Brace | 7.82 |
RS.DB.115200 | 1.15x2.0M Diagonal Brace | 7.73 |
RS.DB.107200 | 1.07x2.0M Diagonal Brace | 7.63 |
RS.DB.091200 | 0.91x2.0M Diagonal Brace | 7.47 |
RS.DB.065200 | 0.65x2.0M Diagonal Brace | 7.25 |
RS.DB.061200 | 0.61x2.0M Diagonal Brace | 7.22 |
Code | Description | Weight (kg) |
RS.SST.213 | 7' Stringer Stair set | 134.25 |
RS.SST.STR | 7' Stringer | 25.56 |
RS.SST.TRD | 32" Tread | 8.31 |
Code | Size (Metric) | Weight(kg) |
SP2.24305 | 240x3048mm | 19.80 |
SP2.24244 | 240x2438mm | 16.20 |
SP2.24213 | 240x2134mm | 14.50 |
SP2.24183 | 240x1829mm | 12.68 |
SP2.24152 | 240x1524mm | 10.90 |
SP2.24122 | 240x1219mm | 9.12 |
SP2.24115 | 240x1150mm | 8.84 |
SP2.24106 | 240x1067mm | 8.25 |
SP2.24091 | 240x914mm | 7.36 |
SP2.24065 | 240x650mm | 5.79 |
SP2.24061 | 240x610mm | 5.55 |
Automatic-weling-machine
With automatic welding technology,stable quality,uniform and smooth surface
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.

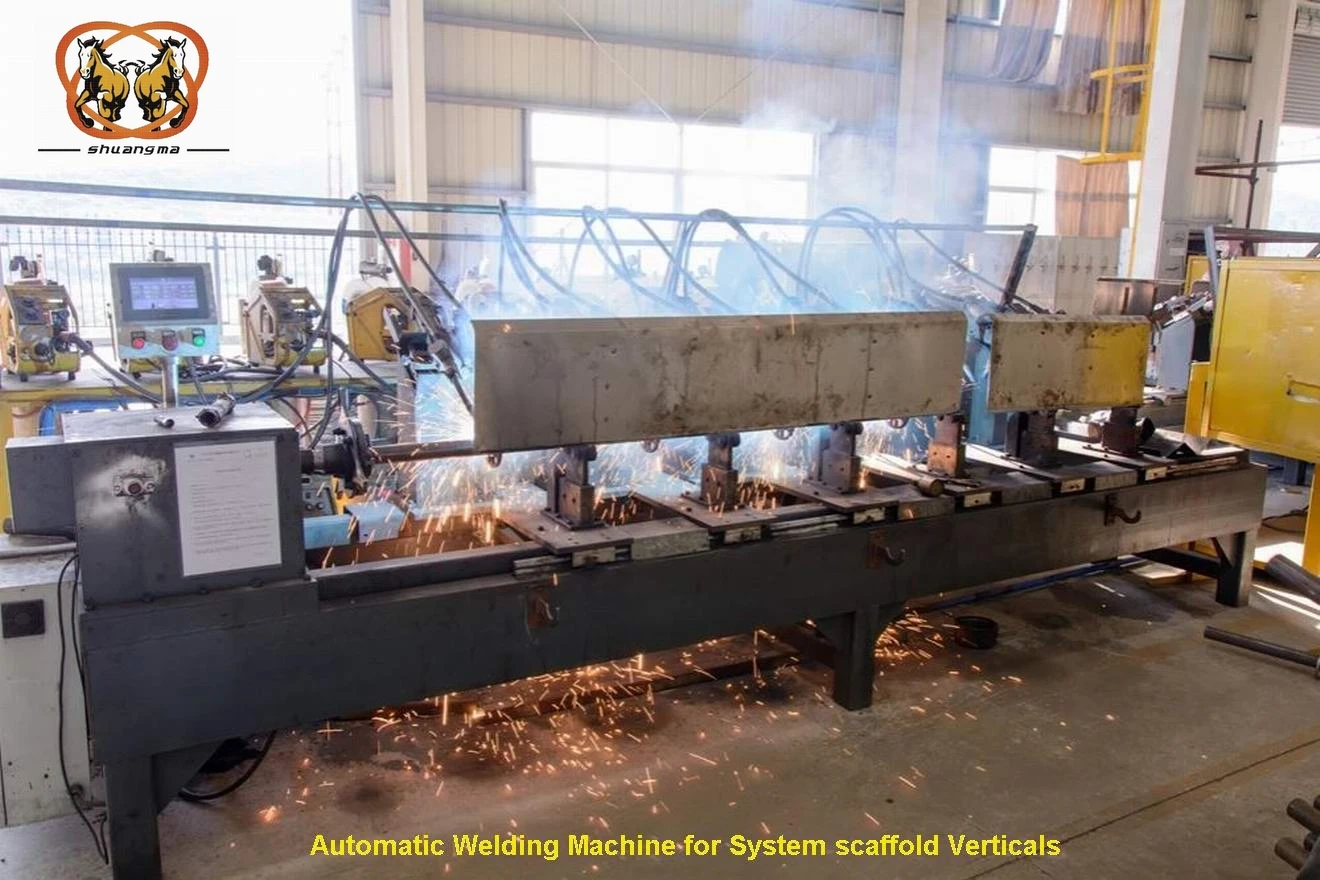

Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
Company Profile
SHUANGMA SCAFFOLDING
Started from 1986, SHUANGMA is a mature enterprise which integrates the manufacture, sales and construction services of scaffolding, formwork and metal stucture. The company covers land area of 50000sqmt and factory constuction area more than 28000sqmt, and production capacity more than 1000tons per month. The company locates in North-east outskirt of Guangzhou City, about 55km closes to Guangzhou Baiyun International Airport and Huangpu Port / Nansha Port, has convenient and faster delivery.
Since its establishment, SHUANGMA has set up friendly partnerships with many shipyards. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
Besides, our products have been passed SGS and Intertek tests of EN12810/BS1139/EN74, and sold well both domestically and internationally and gained reputation globally.
Our main products include: Ring Lock scaffolding, Cross Lock scaffolding, kwikstadge scaffolding, Cup Lock scaffolding, Framework scaffolding, Shoring Props, Stair
system, Movable scaffolding, self-climbing scaffolding system, aluminum scaffolding, and so on.
system, Movable scaffolding, self-climbing scaffolding system, aluminum scaffolding, and so on.
Need high quality products with good prices and services? Contact us now !
Our Advantages
1 | 35 years of scaffolding experience and construction services. |
2 | Great production capacity of more than 1000tons per month which ensure faster delivery. |
3 | Modern factory and before/after sales technical supports. |
4 | Good reputation and relationship with China's top shipyard companies. |
5 | Varied types of scaffolding supply to satisfy different demands of clients. |
6 | Has own Powder Coating production line, to provide fine coating for scaffolding. |

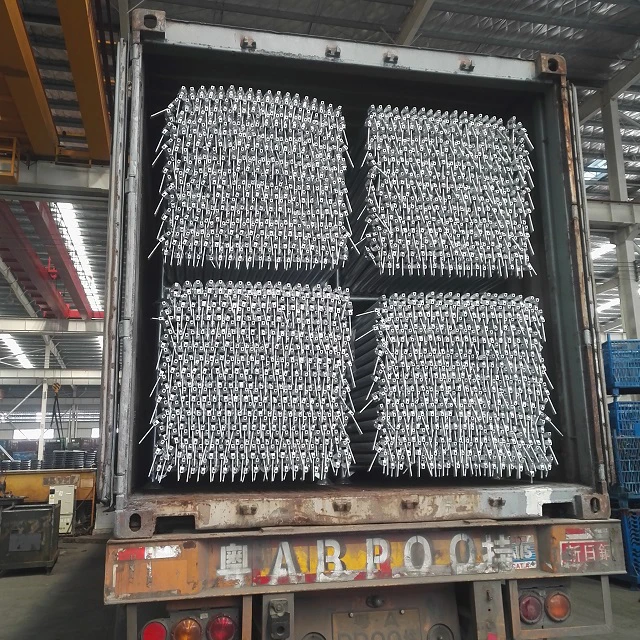

Packing & Delivery

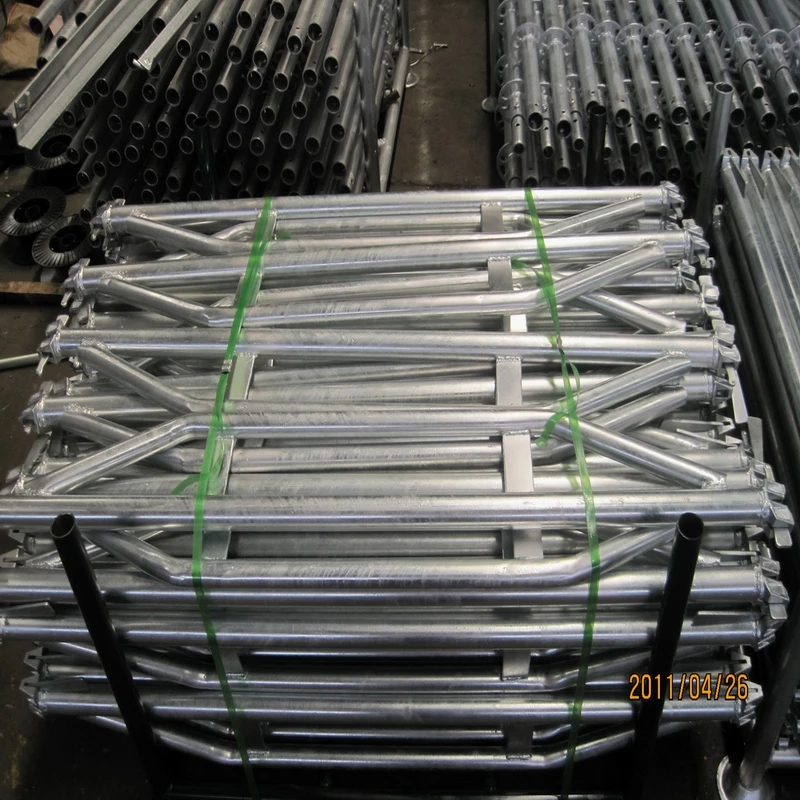

On Steel Pallets
Certifications
Membership of China Formwork And Scaffold Association
Standard Committee Membership of China Construction Materials Rental Contractor Association.

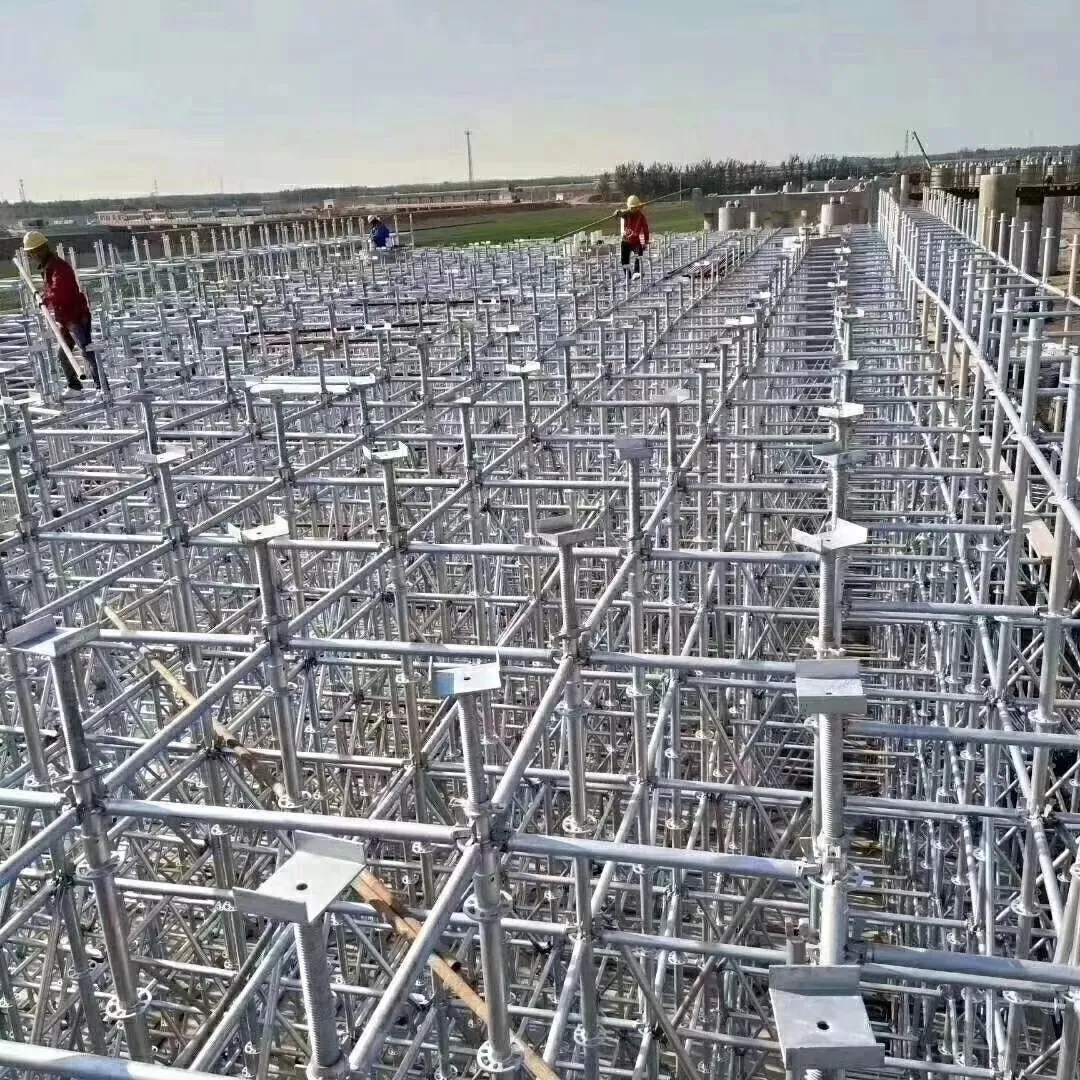

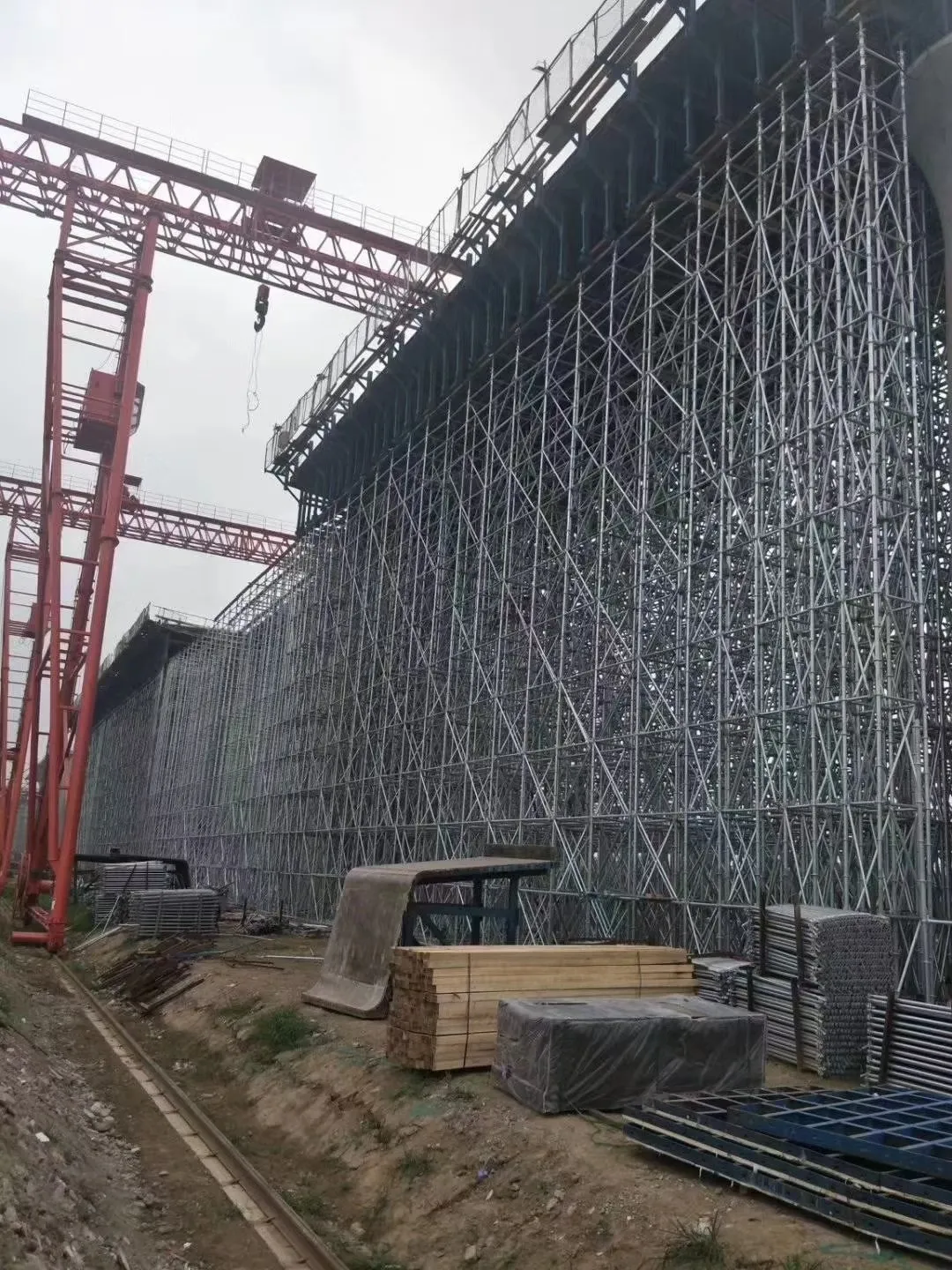

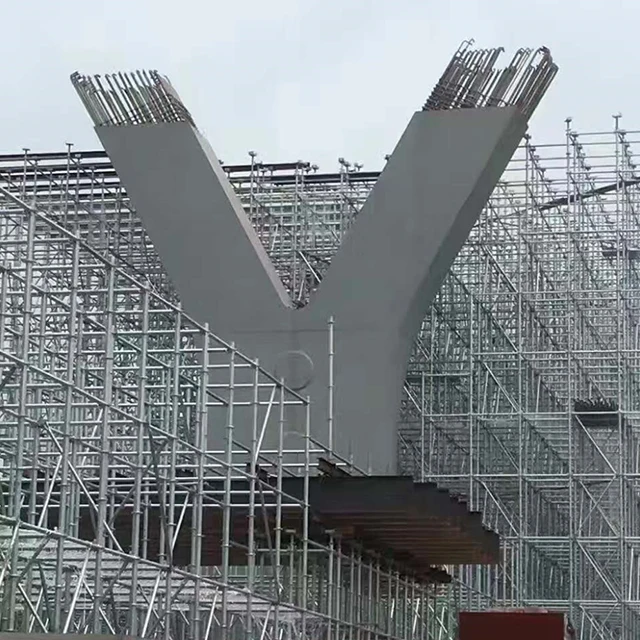

Scaffold Projects
