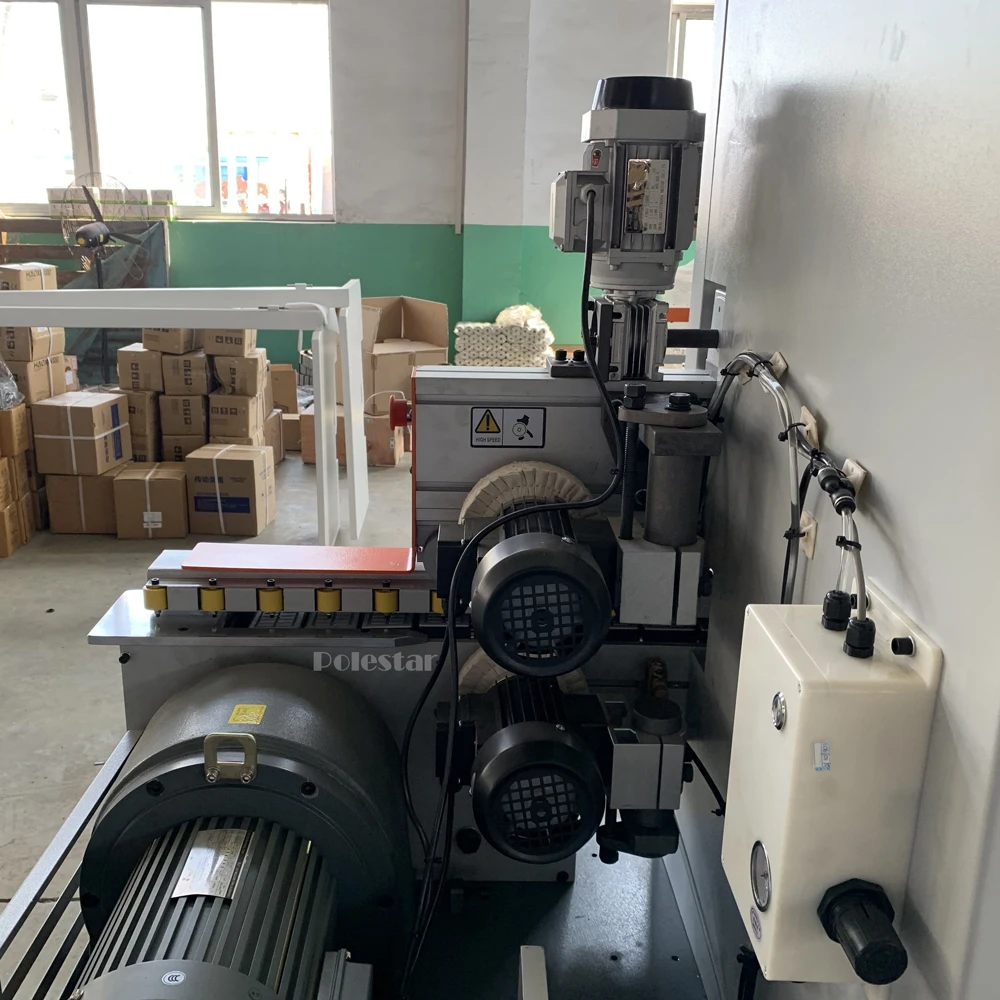

automatic veneer edgebander carpenter equipment cnc pvc pre milling edge banding woodworking

 Model

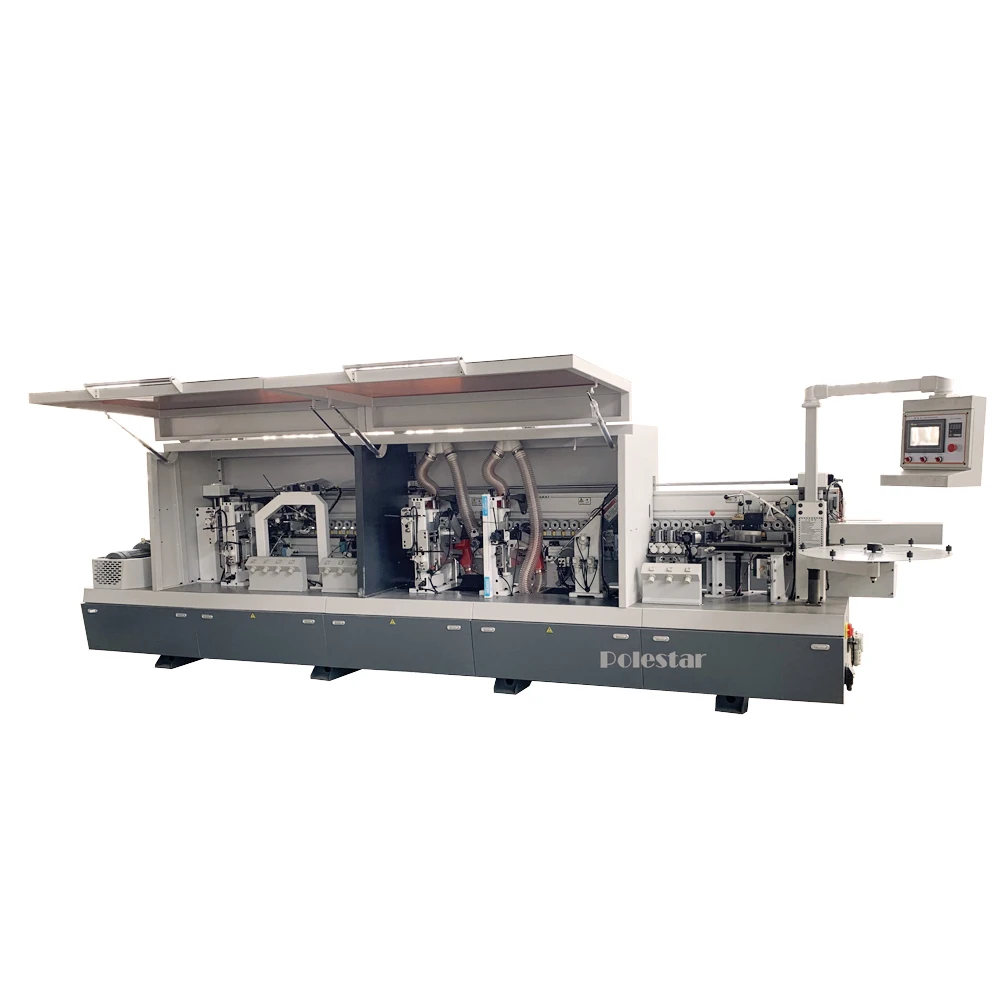

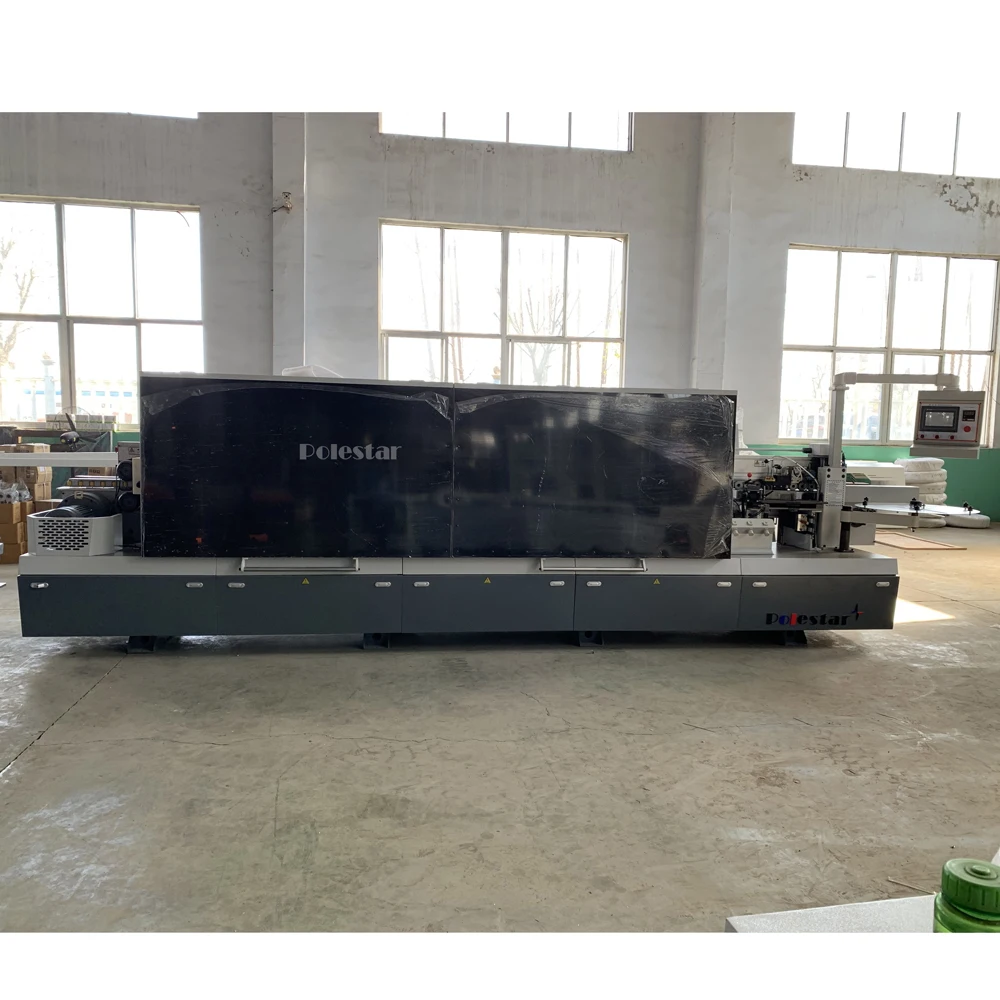

 MF450D Full automatic Edge bander machine

 MF450D Functions:

 Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.

 Workpiece thickness

 10-60mm

 Feed speed

 12-20m/min

 Workpiece width

 ≥60mm

 Total power

14.69kw

 Workpiece length

 ≥80mm

 Air press

 0.7Mpa

 Edge height

 10-60mm

 Weight

 2500kg

Feeding power

3.7kw

End trimming power

0.75kw*2

Rough trimming power

0.75kw*2

Fine trimming power

0.75kw*2

Scrapping power

0.75kw*2

Polishing power

0.37kw*2

 Edge thickness

 0.4-3mm

 Overall size

 5800 x 1100 x 1600mm

1

MF501

 Gluing, Fine trimming, Scraping, Buffing.

2

MF505

 Gluing, End cutting, Fine trimming, scrapping. Buffing.

3

MF506

 Gluing, End cutting, Rough trimming, Fine trimming, scrapping. Buffing.

4

MF506D

 Gluing 1, Gluing 2, End cutting, Rough trimming, Fine trimming, scrapping. Buffing.

5

MF506P

Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, scrapping. Buffing.

6

MF506PG

Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, scrapping. Buffing. Grooving.

7

MF360D

 Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.

8

MF360J

 Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.

9

MF450D

Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.

10

MF450DJ

Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.

11

MF450KDS

 Gluing 1, Gluing 2, Quick End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
