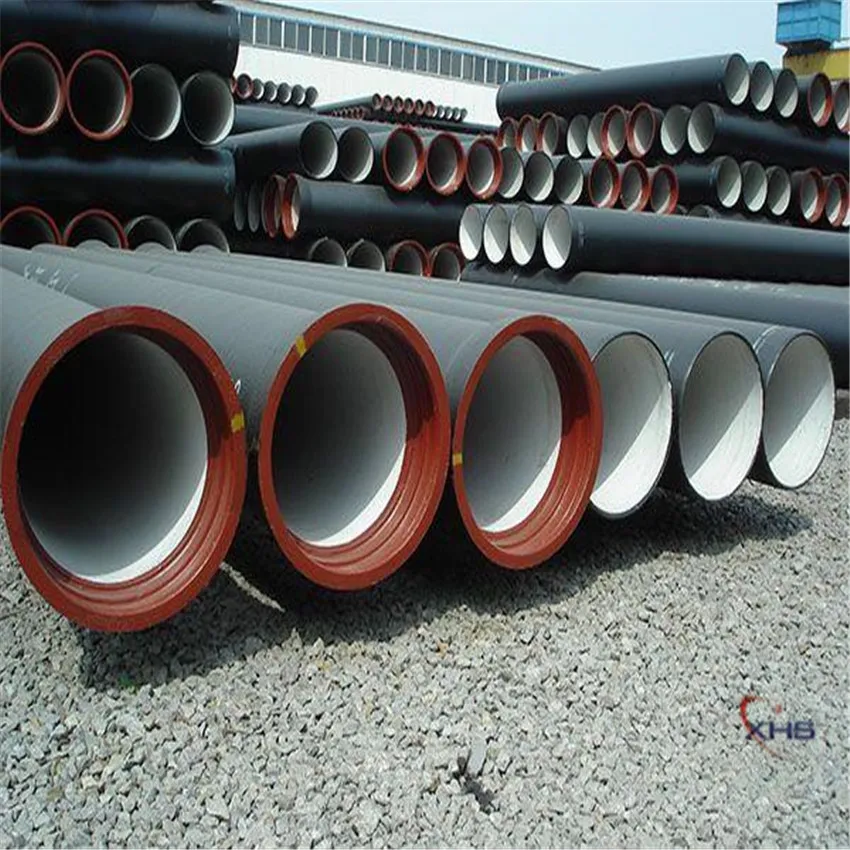

Высококачественные черные Трубы из ковкого чугуна C40 C30 C25 K9 ISO2531 EN545
- Category: >>>
- Supplier: Shandong Xinhongsheng Metal Products Co. Ltd.
Share on (1600399237491):
Product Overview
Description
Details Images
Product Description

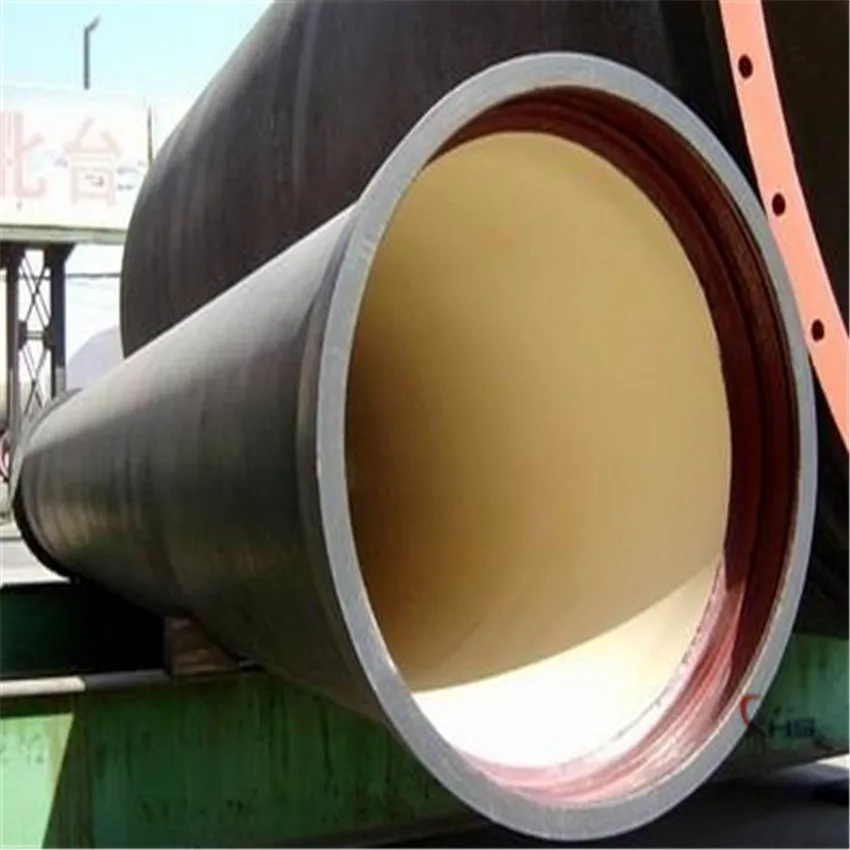

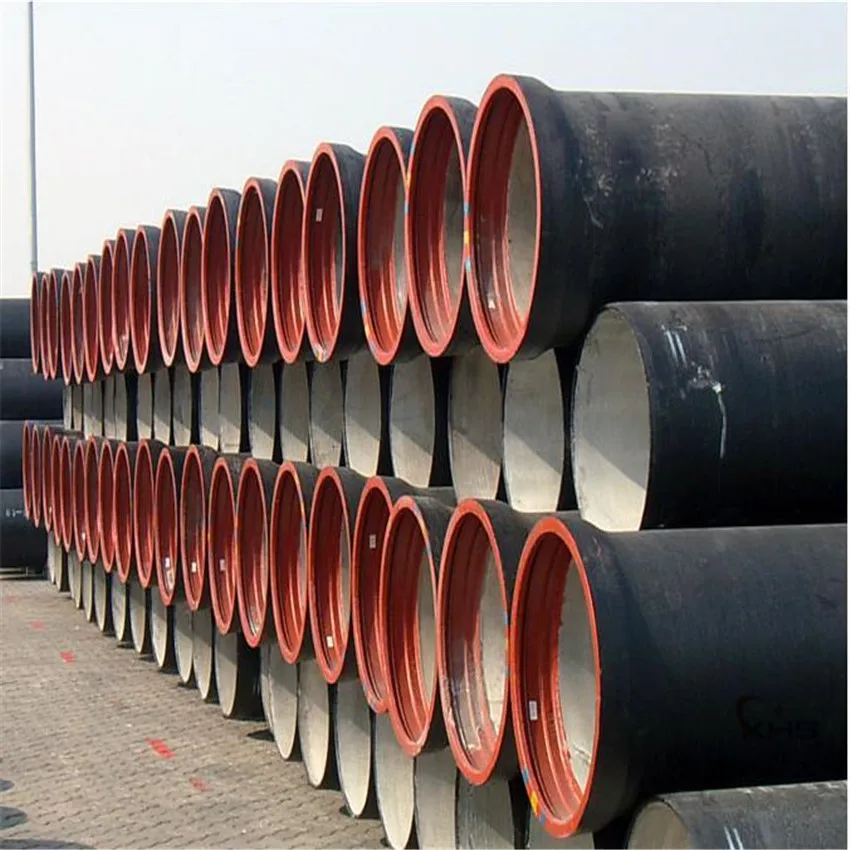

C40 C30 C25 K9 ISO2531 EN545 Black Ductile Cast Quality Ductile Iron Pipes
Specification
1) The standard of pipe: ISO 2531, EN545 , EN598. | 2) Pipe class: K9, C40, C30, C25, etc. |
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint | 4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment. |
5) Internal lining: cement mortar lining as per ISO4179 | 6) Zinc coating: at least 130g/m2 as per ISO 8179 |
7) Bitumen painting: at least 70um as per ISO 8179 | 8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633 |
9) DN 80 - 2,600 mm | 10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time |
11) Checked by automatic inspection equipment | 12)Chemical composition: (%) |
13)Mechanical properties | C: 3.5 - 4.0 |
Tensile strength: ≥420MPa | Si: 1.9 - 2.6 |
Yield strength: ≥300Mpa | P: <0.06 |
Hardness: ≤230HB | Mn:0.15 - 0.45 |
Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7 | S: <0.02 |
14) Process and testing: | a) Induction furnace and treated metallic (Chemical analysis of raw material, spheroidizing & Nodularity) |
b) Casting (Visual check and weight check) | c) Heat treatment (Micro structure) |
d) Hydrostatic test (Pressure test) | e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance) |
f) Zinc spraying (Thickness testing) | g) Lining and coating (100% visual check, thickness testing randomly) |
i) Marking and packing (100% visual check) | 15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc. |

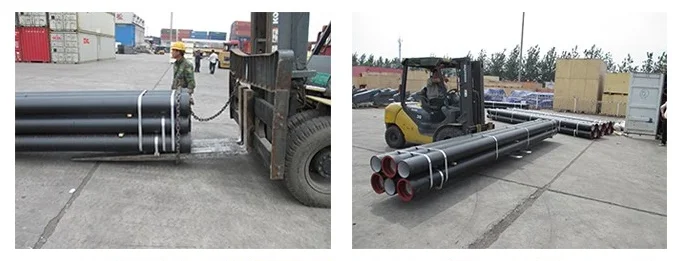

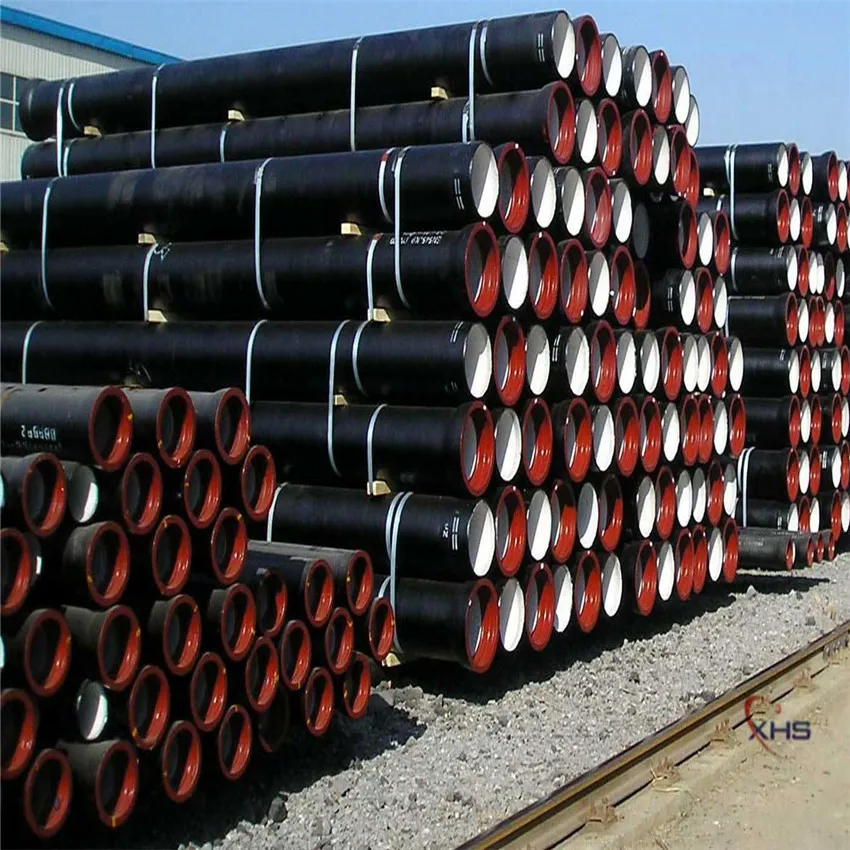

Packing: bundled with steel belts or in bulk

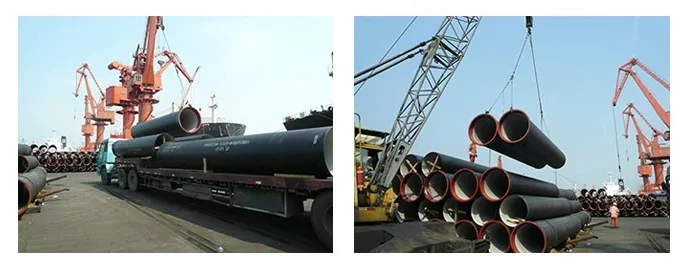

Shipment: in bulk or container
Shipment: in bulk or container
Technical parament
Model Number | Ductile Iron Pipes-01 |
Length | 6M or as per your requirement |
Standard | ISO2531 |
Application | Various Pipeline Projects |
Shape | Round |
Hardness | 240 |
Pipe Wall Thickness | K7 |
Pull Strength | 450 |
Yield (≥ MPa) | 600 |
Material | Ductile Iron |
Type | Cast Iron Pipes |
Processing Service | Welding, Bending, Punching, Decoiling, Cutting |
Material | 100% graphit iron |
Inner Treatment | as per ISO4179 |
Outer Treatment | as per ISO8179 |
Test | 100% water pressure test |
Quality Control | strictly inspection as per standard |
Place of origin | Shandong,China |
Surface treatment | Black Paint |
Color | Customer's Requests |
Packing & Delivery
Related products
Company Profile
Shandong Xinhongsheng Metal Products Co. Ltd. is located in Liaocheng, Shandong Province ,with a registered capital of 28.88
million yuan .It is specialized steel company integrating domestic trade and foreign trade .The company’s products are mainly stainless steel coil , stainless steel sheet, stainless steel pipe , stainless steel bar, aluminum coil, aluminum sheet , aluminum circle and few copper products.The company can also provide rolling, cutting,folding ,wire drawing, spraying,oxidation,filming,punching sheet metal processing and other services according to customer requirements.The warehouse has a total inventory of more than 10,000 tons with complete specifications.
million yuan .It is specialized steel company integrating domestic trade and foreign trade .The company’s products are mainly stainless steel coil , stainless steel sheet, stainless steel pipe , stainless steel bar, aluminum coil, aluminum sheet , aluminum circle and few copper products.The company can also provide rolling, cutting,folding ,wire drawing, spraying,oxidation,filming,punching sheet metal processing and other services according to customer requirements.The warehouse has a total inventory of more than 10,000 tons with complete specifications.
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
