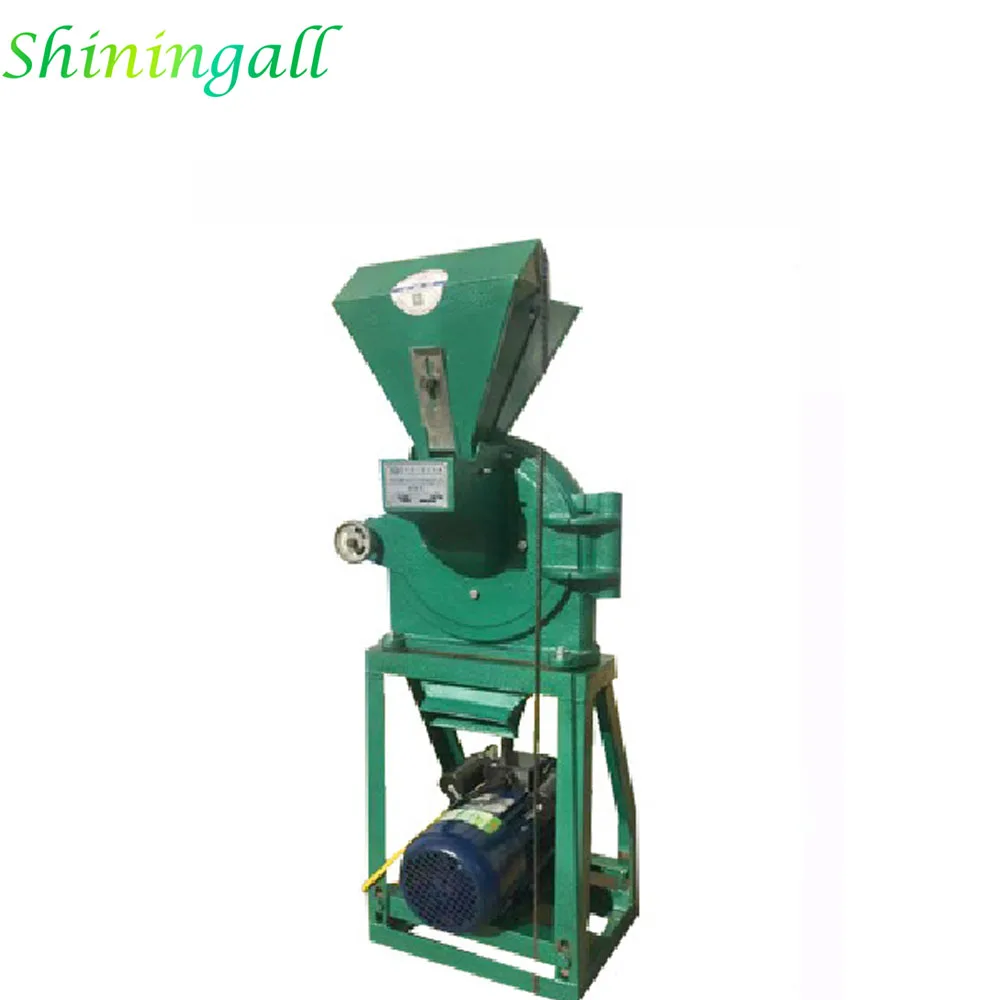

shiningall 9fc 45d grander grinder corn feed processing machine small flour mill
- Category: >>>
- Supplier: Zhuhai Shining Technology Co. Ltd.
Share on (1600399264516):
Product Overview
Description
Products Description
Model 9FC-37
Metal base, good stability
Grinding evenly and finely
Automatic material suction
saves time and effort
saves time and effort
Multi-object grinding,
strong power
strong power
Factory direct sales
support customization
support customization
Stable performance
9FC-37 self-priming crusher has small size, low power and stable performance.
The host can be made of cast steel, 304 or 316 stainless steel, and there are different body materials for your choice.
9FC-37 self-priming crusher has small size, low power and stable performance.
The host can be made of cast steel, 304 or 316 stainless steel, and there are different body materials for your choice.
Longer life
The fixed gear plate can be replaced by cast steel material to make the body more wear-resistant and prolong its service life

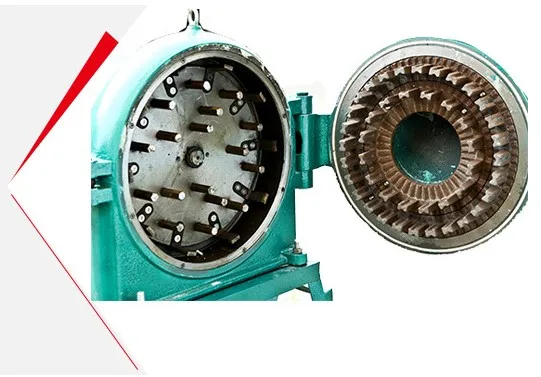

Excellent productivity
Double flat teeth speed up the discharge speed, high air cooling efficiency, less time-consuming, high crushing fineness, and outstanding output

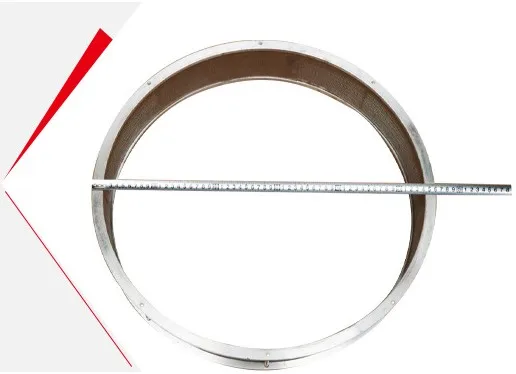

Uniform particles
The net width of the screen is 88mm, the particle size is uniform, and the crushing effect is good Screen diameter 560mm
The fixed gear plate can be replaced by cast steel material to make the body more wear-resistant and prolong its service life
Excellent productivity
Double flat teeth speed up the discharge speed, high air cooling efficiency, less time-consuming, high crushing fineness, and outstanding output
Uniform particles
The net width of the screen is 88mm, the particle size is uniform, and the crushing effect is good Screen diameter 560mm

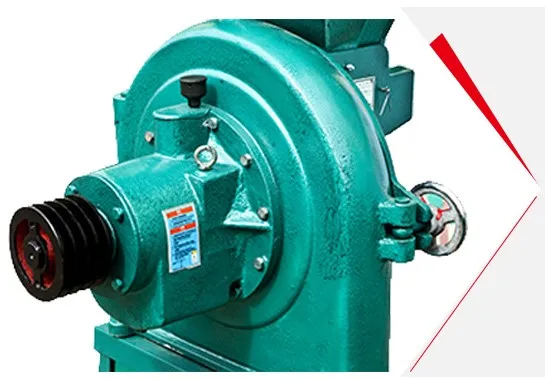

Running smoothly
The oil tank type bearing chamber is suitable for long-term work for more than 12 hours to prevent the temperature of the bearing from rising, and the operation is stable without reducing the output
Wide range of applications
Chemicals, food, paper, Chinese medicinal materials, feed processing plants, farms
The oil tank type bearing chamber is suitable for long-term work for more than 12 hours to prevent the temperature of the bearing from rising, and the operation is stable without reducing the output
Wide range of applications
Chemicals, food, paper, Chinese medicinal materials, feed processing plants, farms
Parameters of different models of this series of products
Model | 9FC-70 | 9FC-60 | 9FC-45D | 9FC-37 | 9FC-26 | 9FC-15 |
capacity（corn) | 3000KG/H | 2000KG/H | 950KG/H | 450KG/H | 230KG/H | 55KG/H |
Motor power | 30/37KW | 22/30KW | 11/15KW | 7.5/11KW | 3/4KW | 1.1KW |
Net weight | About 475KG | About 396KG | About 300KG | About 226KG | 82KG | 17KG |
Dimension | 1640*630*1500 | 1500*600*1260 | 1350*850*1020 | 1100x400x1270 | 800x370x840 | 580x260x260 |
Flour mesh | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 |
Feed size | <7cm | <6cm | <5cm | <5cm | <3cm | <3cm |
Main shaft speed R/Min | 3000 | 3000 | 3300 | 3600 | 5800 | 9000 |
Disc outer diameter | 600mm | 500mm | 450mm | 370mm | 255mm | 150mm |
Number of flat teeth | 5 long+5 short | 5long+5short | 5 | 4 | 4 | 3 |
Number of round teeth | 17 | 10 | 12 | 8 | 4 | 3 |
Number of V-belts | 6 | 6 | 4 | 3 | 3 | 1 |
Screen size | 2100*146mm | 1800*146mm | 1580*130mm | 1350*74mm | 900*74mm | 175*43mm |
Please click the pictures below for details of other models
9FC-70 | 9FC-23 | 9FC-19 | 9FC-15 |
You may also need the following products.Click it as you like.
Flour Mill Machine
Model: 6FW-40
√.Capacity:200~250KG/H
√.Flour mesh:40~120
√.Advantage: Super fine flour,low consumption.
√.Capacity:200~250KG/H
√.Flour mesh:40~120
√.Advantage: Super fine flour,low consumption.
Corn Mill Machine
Model: 6FW-PD1
√.Capacity:300~350KG/H
√.Products:corn bran,corn grits, corn flour
√.Products:corn bran,corn grits, corn flour
Dal Mill Machine
Model: 6FW-S18
√.Capacity:400-500KG/H√.Peeling rate:98%
√.Advantage: low consumption.
