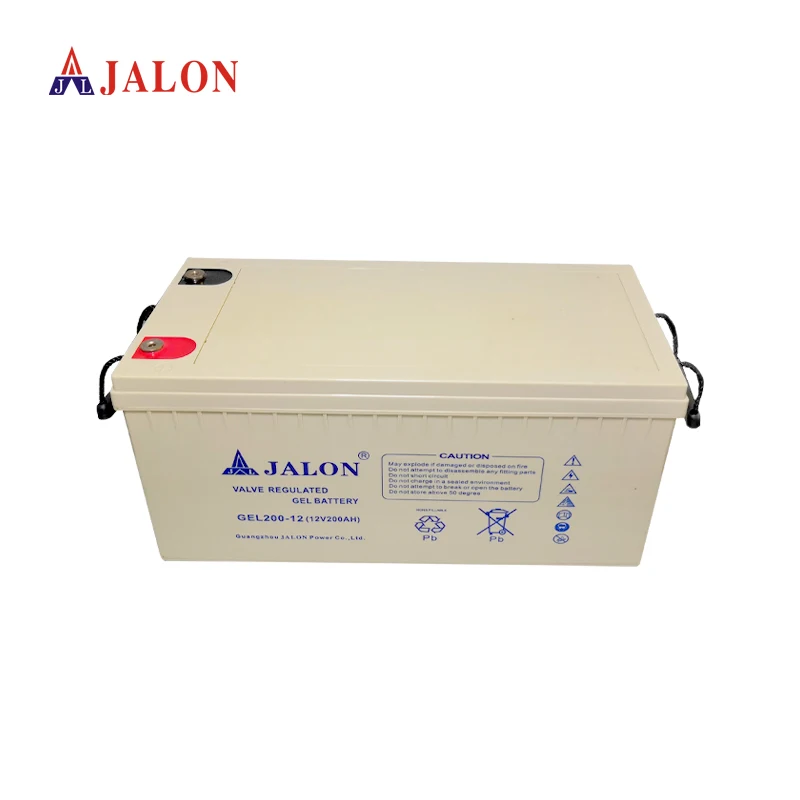

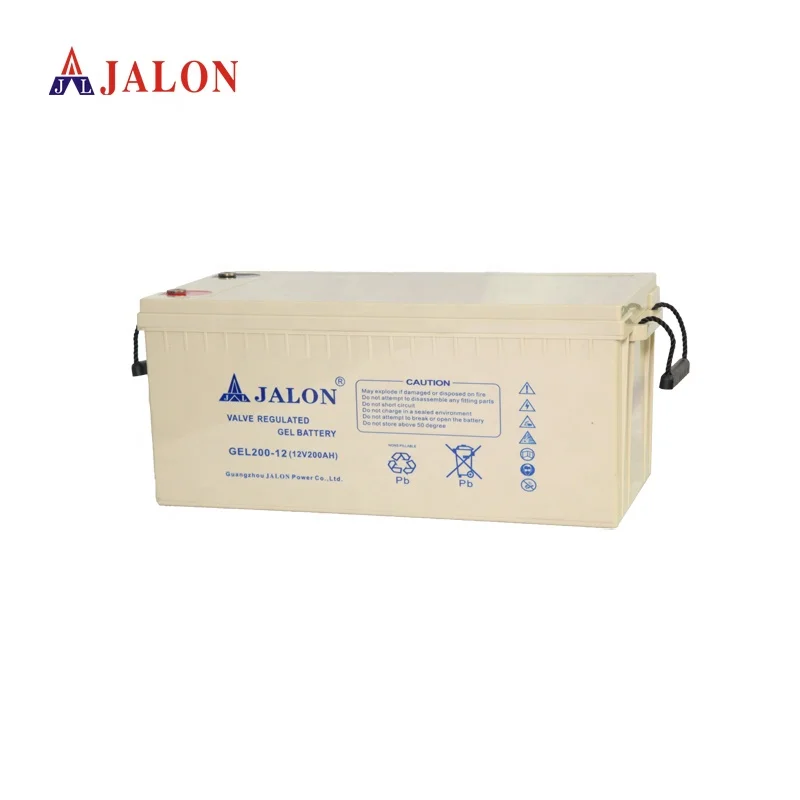

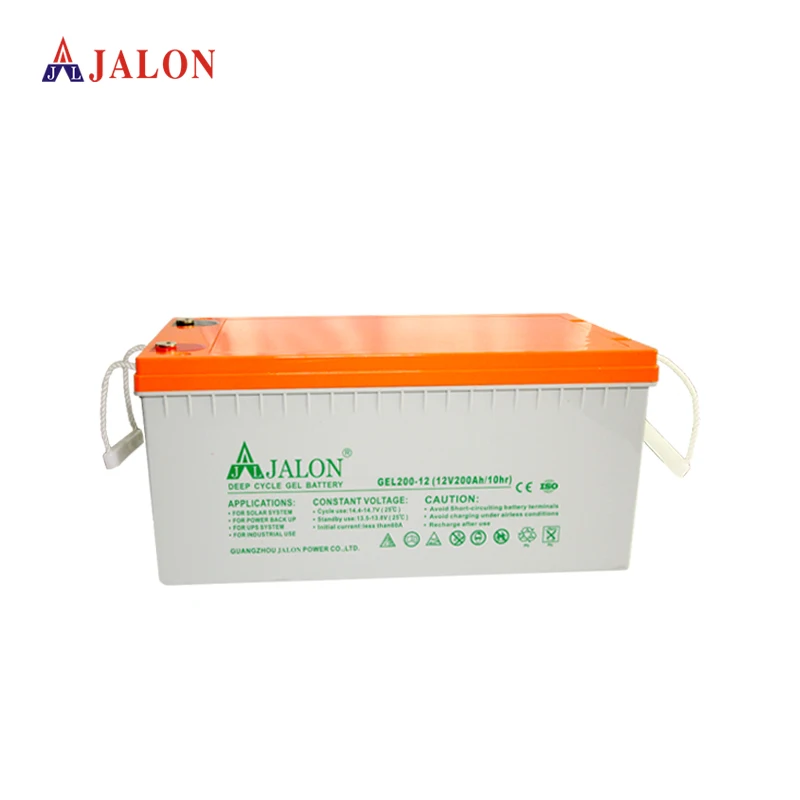

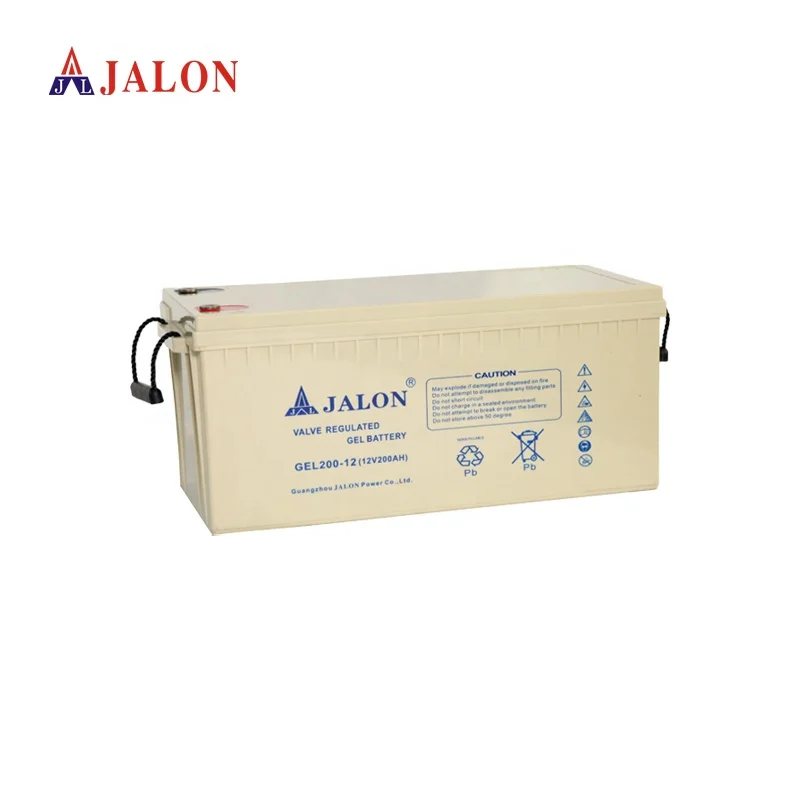

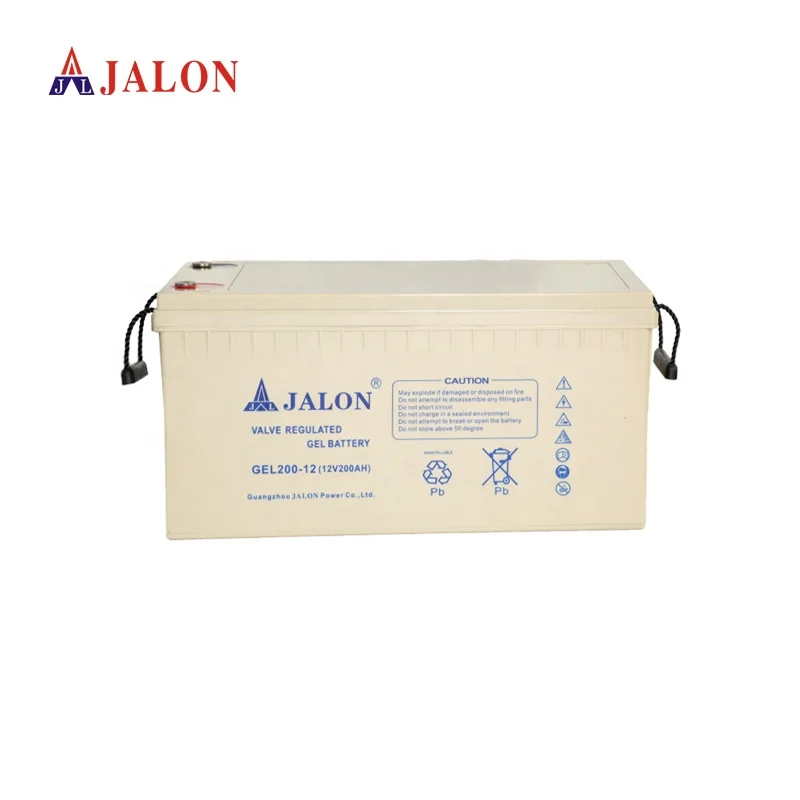

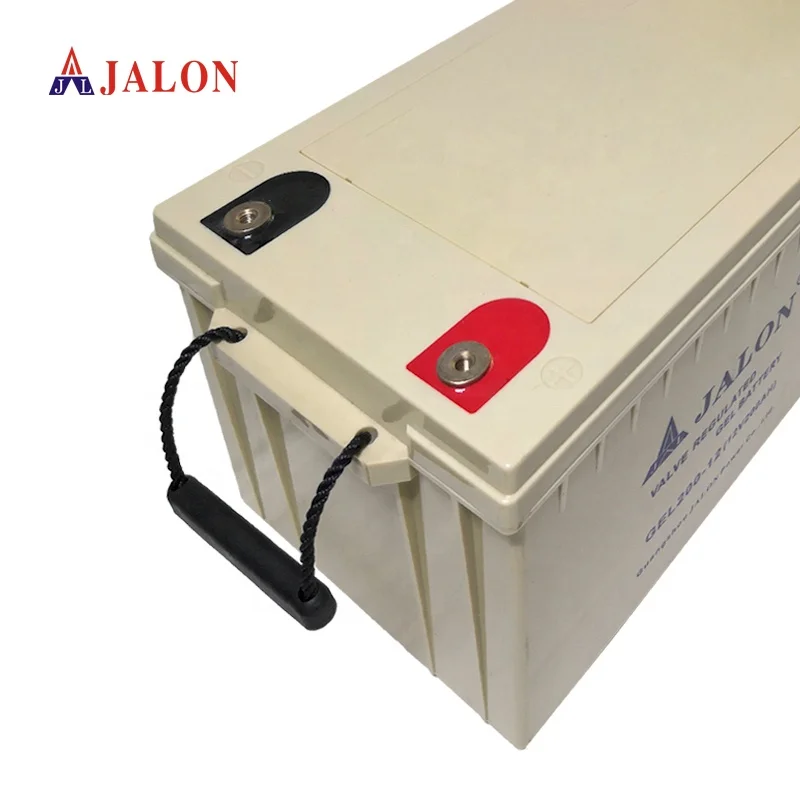

Guangdong Battery Jalon Sealed Maintenance Free Battery Gel 12v 65AH 120AH 150AH 200ah battery
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600399353211):
Product Overview
Description
Product Description
Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm/Kg[(±5%)]) | Weight(Kg) |
GEL5-12 | 12 | 5/10HR | 90*70*100 | 1.48 |
GEL7-12 | 12 | 7/10HR | 150*69*95 | 2.03 |
GEL12-12 | 12 | 12/10HR | 150*98*95 | 3.25 |
GEL17-12 | 12 | 17/10HR | 180*76*166 | 5.0 |
GEL24-12 | 12 | 24/10HR | 165*126*174 | 7.8 |
GEL38-12 | 12 | 38/10HR | 197*166*174 | 12.4 |
GEL50-12 | 12 | 50/10HR | 229*138*212 | 15.9 |
GEL65-12 | 12 | 65/10HR | 351*167*178 | 24.3 |

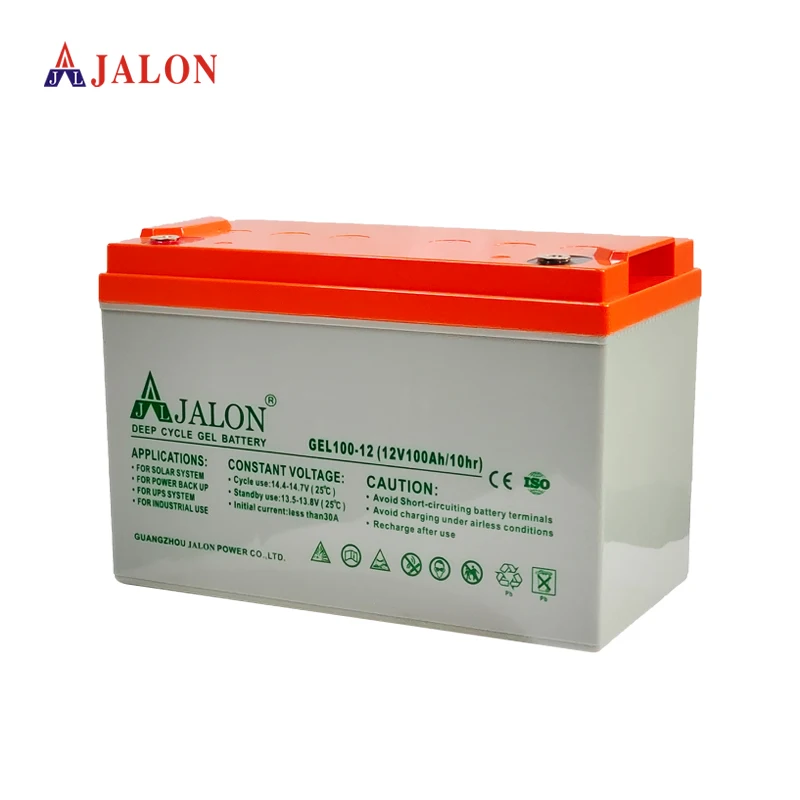

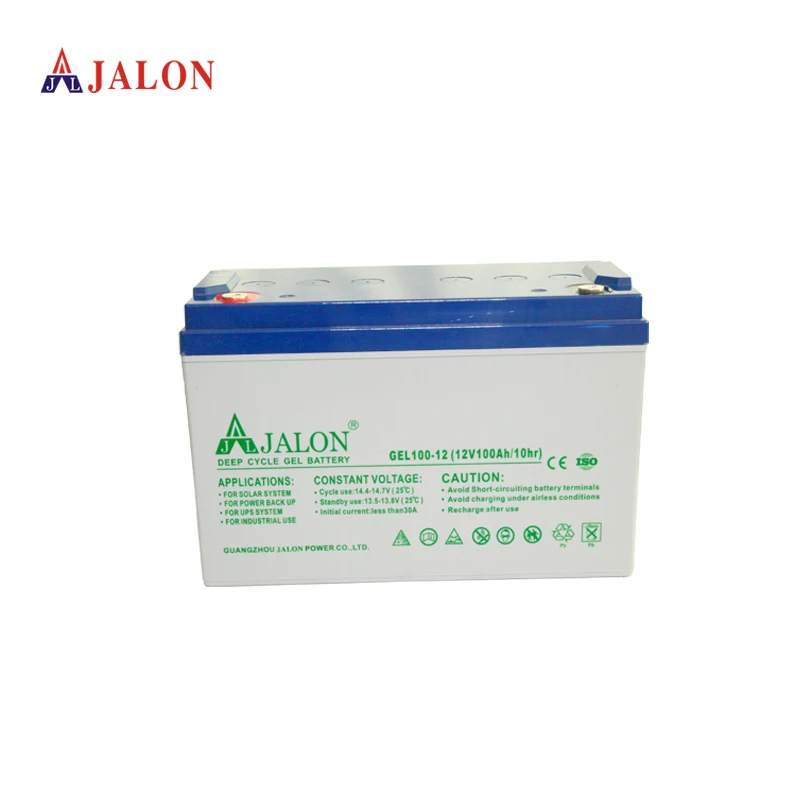

GEL100-12 | 12 | 100/10HR | 331*174*219 | 29.2 |

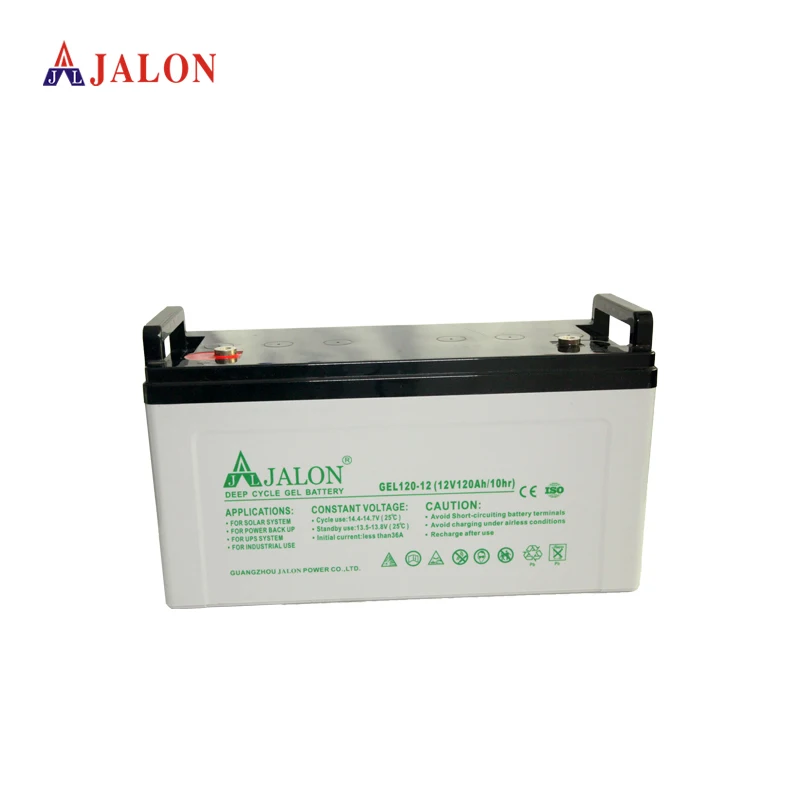

GEL120-12 | 12 | 120/10HR | 407*174*233 | 34.4 |

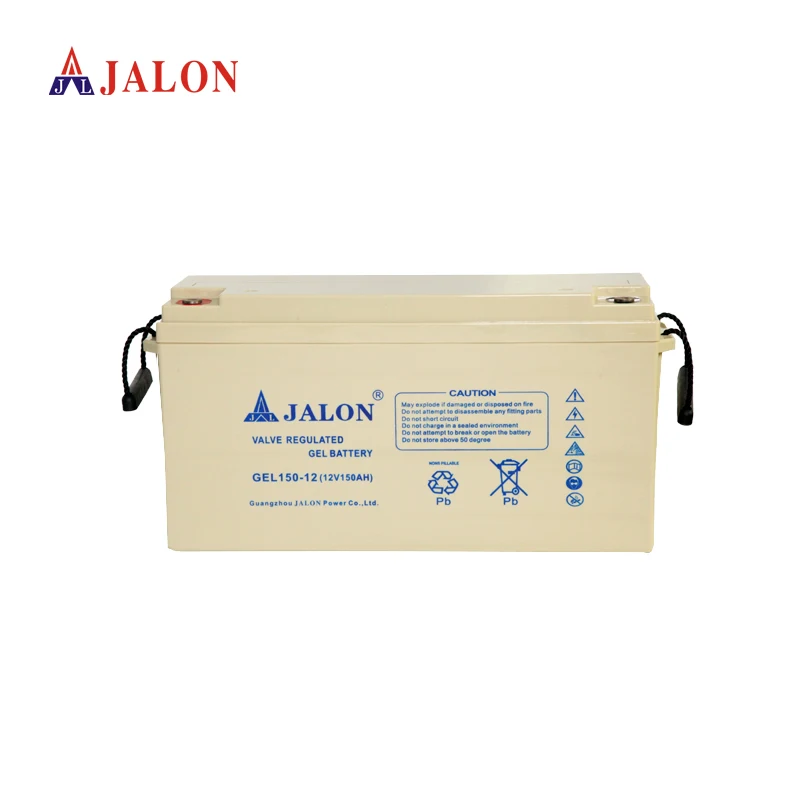

GEL150-12 | 12 | 150/20HR | 484*171*241 | 38.2 |

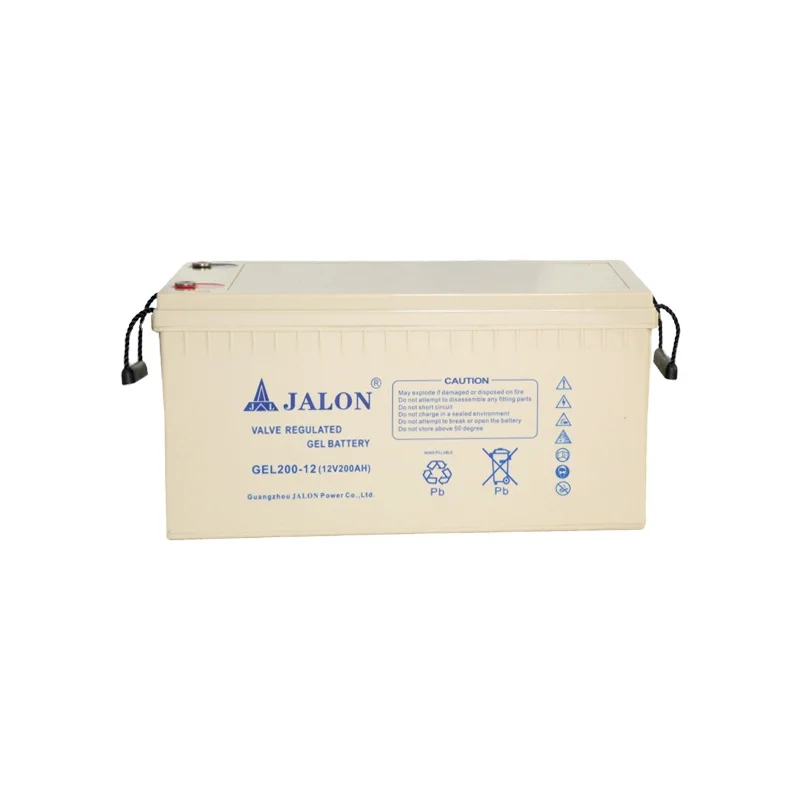

GEL200-12 | 12 | 200/10HR | 522*240*224 | 55.5 |
GEL250-12 | 12 | 250/10HR | 520*268*225 | 65.5 |
Application & Product features
Nominal Voltage | 12V | ||
Nominal Capacity(10HR) | 200AH | ||
Length | 522 ±3mm | ||
Width | 240 ±2mm | ||
Container Height | 218 ±2mm | ||
Total Height (withTerminal) | 224 ±2mm | ||
Approx Weight | Approx 58.5kg | ||
Terminal | T5 | ||
Container Material | ABS | ||
Rated Capacity | 214.4 AH/10.7A | (20hr ,1.80V/cell,25℃/77℉) | |
200.0 AH/20.0A | (10hr,1.80V/cell,25℃/77℉) | ||
Max. Discharge Current | 2000A (5s) | ||
Internal Resistance | Approx 2.7mΩ | ||
Operating Temp.Range | Discharge : -15~45℃ | ||
Charge : -10~40℃ | |||
Aircraft signal Storage : -20~40℃ | |||
Nominal Operating Temp. Range | 25 ±3℃ | ||
Cycle Use | Initial Charging Current less than 60.0A.Voltage Communication power supply 14.4V~15.0V at 25℃ Temp. Coefficient -30mV/℃ | ||
Standby Use | No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃ Temp. Coefficient -20mV/℃ | ||
Capacity affectedby Temperature | 40℃ 103% | ||
25℃ 100% | |||
0℃ 86% | |||
Self Discharge | Techfine batteries may be stored for up to 6 months at 25℃ and battery should be recharge before use . For higher | ||
temperatures the time interval will be shorter. | |||
Factory Images

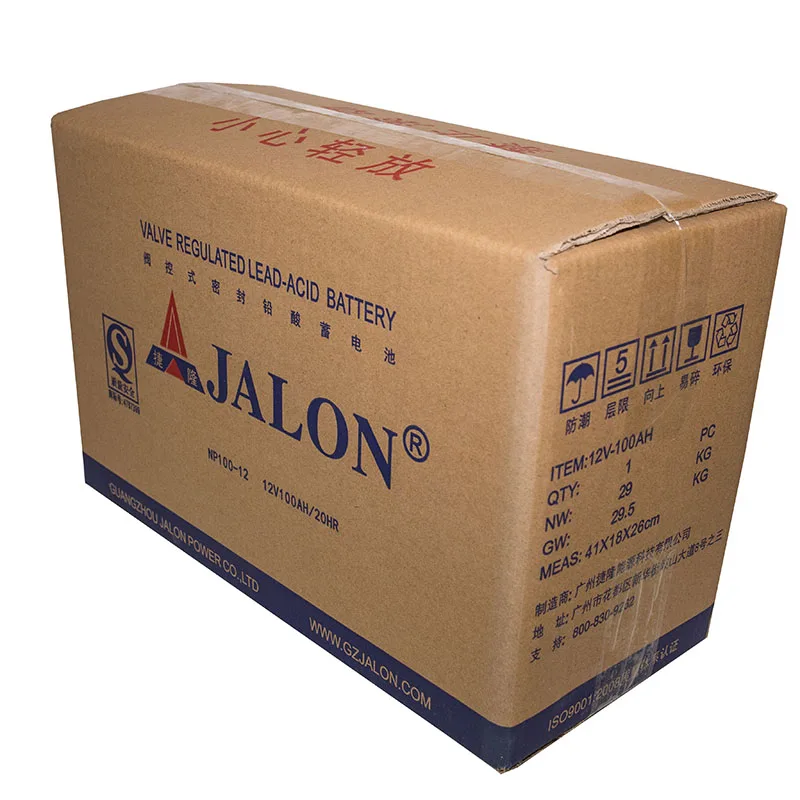

Packaging
Customer Photos
Exhibition
Company Profile
Guangzhou Jalon Electronic Equipment Co., Ltd. is a manufacturer of all kinds of batteries with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in UPS systems, electricity and telecommunications backup power systems, automatic control, wind and solar power systems and other industries.
Our company, set up in 1997, Jalon manufactures and sells environmentally friendly sealed Lead Acid (SLA) batteries. Jalon introduces and develops advanced technology, and adopts the world's most advanced production equipment and testing measures to ensure long product life, high energy density, and environmental protection features such as cadmium-free,leading the domestic counterparts.
The factory is a high-tech enterprise headquartered in Huadu district, Guangzhou, China. Jalon battery has won high praise from users at home and abroad.
Company information
1, Direct manufacutrer on lead-acid battery. be found in 1997 years. more than 20 years experiences in this field. main business:
Manufacturing and Exporting.
2, Department: R&D, Production, Package, Sales and After-sales.
3, Main products: Agm battery, Gel battery, Deep-cycle battery.
4, Related products: Battery cabinet, battery charger, power inverter.
5, Company culture: For win-win cooperation based on legal, integrity and friendly.
6, Welcome OEM.
Our services
* For products: Manufacturing lead-acid battery. also can offer related products from our cooperated factory in cost price for
you.
( Battery cabinet, battery charger, power inverter, solar panel, UPS...)
*For shipment: Offer price based on EXW. also can arrange shipment for you.
*For technical: Our enginner can recommend right items as your project for you.
* For brand: welcome custom.
Our company, set up in 1997, Jalon manufactures and sells environmentally friendly sealed Lead Acid (SLA) batteries. Jalon introduces and develops advanced technology, and adopts the world's most advanced production equipment and testing measures to ensure long product life, high energy density, and environmental protection features such as cadmium-free,leading the domestic counterparts.
The factory is a high-tech enterprise headquartered in Huadu district, Guangzhou, China. Jalon battery has won high praise from users at home and abroad.
Company information
1, Direct manufacutrer on lead-acid battery. be found in 1997 years. more than 20 years experiences in this field. main business:
Manufacturing and Exporting.
2, Department: R&D, Production, Package, Sales and After-sales.
3, Main products: Agm battery, Gel battery, Deep-cycle battery.
4, Related products: Battery cabinet, battery charger, power inverter.
5, Company culture: For win-win cooperation based on legal, integrity and friendly.
6, Welcome OEM.
Our services
* For products: Manufacturing lead-acid battery. also can offer related products from our cooperated factory in cost price for
you.
( Battery cabinet, battery charger, power inverter, solar panel, UPS...)
*For shipment: Offer price based on EXW. also can arrange shipment for you.
*For technical: Our enginner can recommend right items as your project for you.
* For brand: welcome custom.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2003,sell to Domestic Market(30.00%),Africa(15.00%),North America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Storage Batteries - Valve Regulated Lead-Acid Battery,GEL Battery,Solar Battery,Deep Cycle Battery and UPS Battery
4. why should you buy from us not from other suppliers?
1. We are AGM/GEL battery factory 2. more than 20 years expeirence on batteries. 3. Raw material was produced by ourself to save the cost. 4. Short lead time. 7-10 days 5. Providing OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2003,sell to Domestic Market(30.00%),Africa(15.00%),North America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Storage Batteries - Valve Regulated Lead-Acid Battery,GEL Battery,Solar Battery,Deep Cycle Battery and UPS Battery
4. why should you buy from us not from other suppliers?
1. We are AGM/GEL battery factory 2. more than 20 years expeirence on batteries. 3. Raw material was produced by ourself to save the cost. 4. Short lead time. 7-10 days 5. Providing OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
