Best selling model 12V/24V 10a 30a solar mppt controller 20a solar system battery charger mini portable solar charge controller
- Category: >>>
- Supplier: Shenzhen,Sheng,Shi,Tian,He,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Best selling model 12V/24V 10a 30a solar mppt controller 20a solar system battery charger mini portable solar charge controller
Product Features:
1, LCD screen display,2, Easy operation interface,
3, PWM charging mode+MPPT,
4, Parameter user can reset,
5, A key to open and close the load,
6, A key to restore the factory settings,
7, Battery reverse discharge protection,
8, Battery reverse polarity protection
9, Battery under voltage protection,
10, Overload, short-circuit protection,
11, Automatic temperature compensation function,
12,Can charge and discharge at the same time, Always keep the battery in full status
13, USB 5V charge (current 1500mA) Optional
Specification of Solar charge controller
This is a three-Period(time) controller into the evening (evening) working time ,an interval of rest or pause time,Dawn working time (morning light function),the user can according to their needs ,set a different time.
A: time(evening working)
B: time(Pause working)
C: time(dawn working)
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10%-30%higher than the ordinary controller charging efficientcy, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
Professional advice:
The main function of the MPPT function is integrated in the circuit board and the chip. Some people think that [IF there is a large inductor coil so it is a MPPT controller]BUT It is not correct. For example the mobile phone has been invented until now, its size has become smaller and smaller. and its functions have become more and more powerful. The MPPT function is not measured by its size.
Parameters/Model | MPPT10 | MPPT20 | MPPT30 | MPPT40 | ||||
Maximum Power Current | 12A | 20A | 30A | 40A | ||||
Installation Lin mm² | 4mm² | 8mm² | 10mm² | 12mm² | ||||
Installation Line(AWG) | 10 (AWG) | 8(AWG) | 7(AWG) | 6(AWG) | ||||
Weight | 280g | 300g | 475g | 480g | ||||
Dimensions | 143×89×46 mm | 187*97*61 mm | ||||||
System load loss | ≤13mA | |||||||
Loop Buck | ≤100mV | |||||||
Battery float voltage | 13.8V 12V system /27.6V 24V system | |||||||
Battery under voltage) protection | 10.6V 12V system /21.2V 24V system | |||||||
Battery (under voltage) recovery voltage | 12.6V 12V system /25.2V 24V system | |||||||
Charge mode | MPPT +PWM MODE | |||||||
Operating Temperature | -10~60°C | |||||||
Storage Temperature | -30~70°C | |||||||
Humidity requirements | ≤90%, No condensation | |||||||
Temperature compensation | -4mV/Cell/°C | |||||||
Temperature Probe (built components) | NTC 100K thermistats | |||||||
aximum open circuit voltage of the solar panel | 18V-24V 12V system 36V-48V 24V system) | |||||||
Solar panels maximum open circuit voltage (V) | ≤48V | |||||||
(Cases) 12V system standard configuration | ||||||||
The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V | ||||
Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W | ||||
Battery capacity configuration | ≥100mAh | ≥200mAh | ≥300mAh | ≥400mAh | ||||

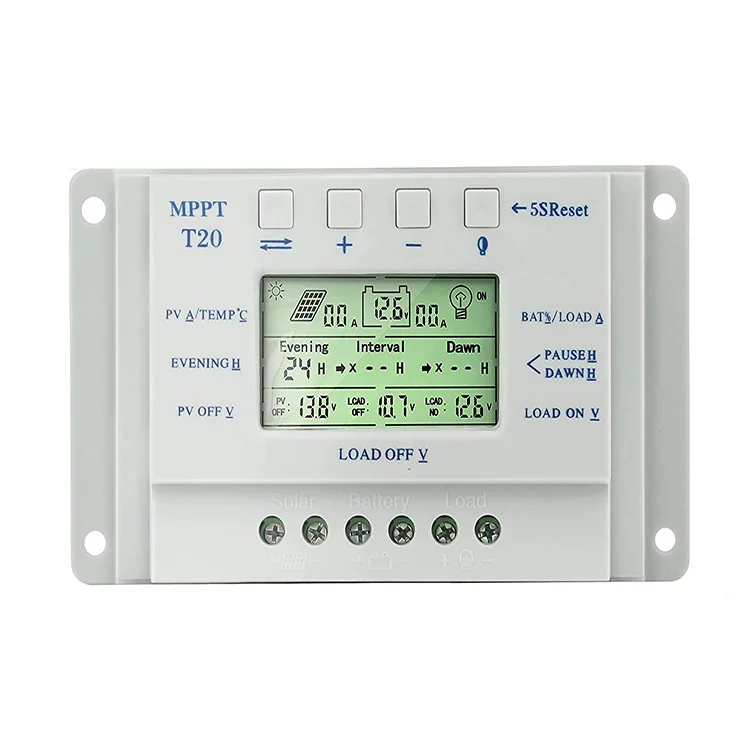

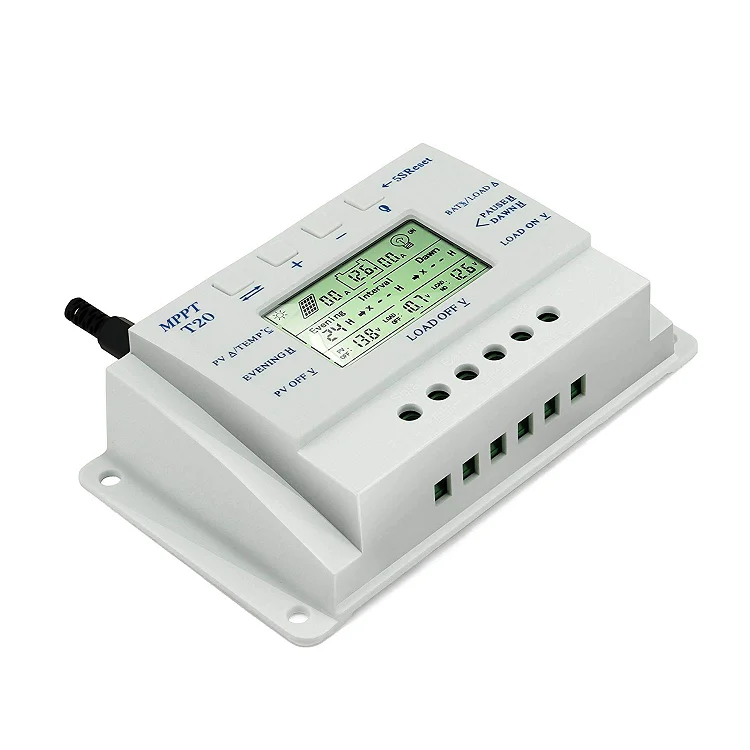

Detailed Images

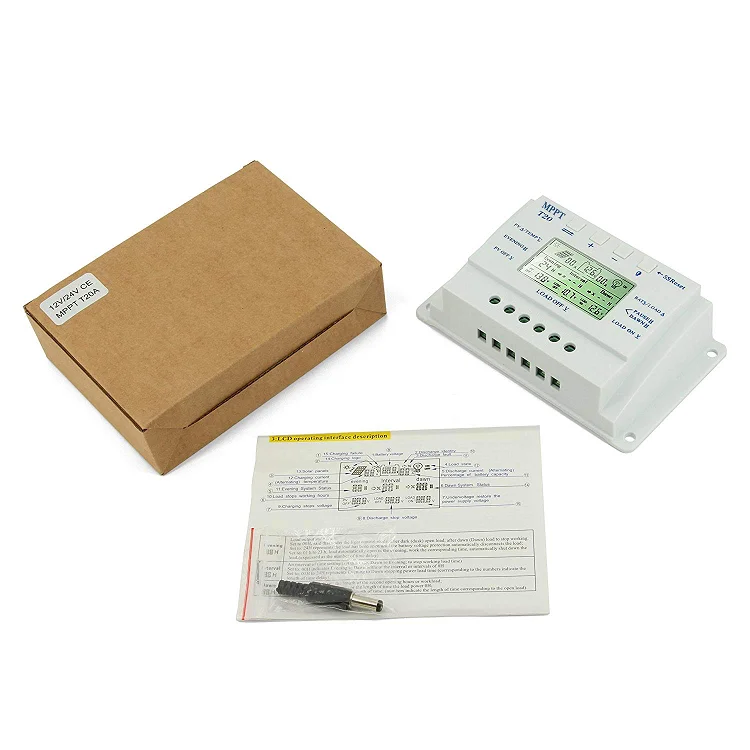

Product packaging
Product name | MPPT solar charge controller |
Packing | Box |
PCS/CTN | 50pcs |
Carton Dimension | 48X26.5X33.8CM |
Unit Weight | 0.3KG |
Net weight (N.W) | 15KG |
Gross weight(G.W) | 18KG |
Product Paramenters
Certifications
Company Profile
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
