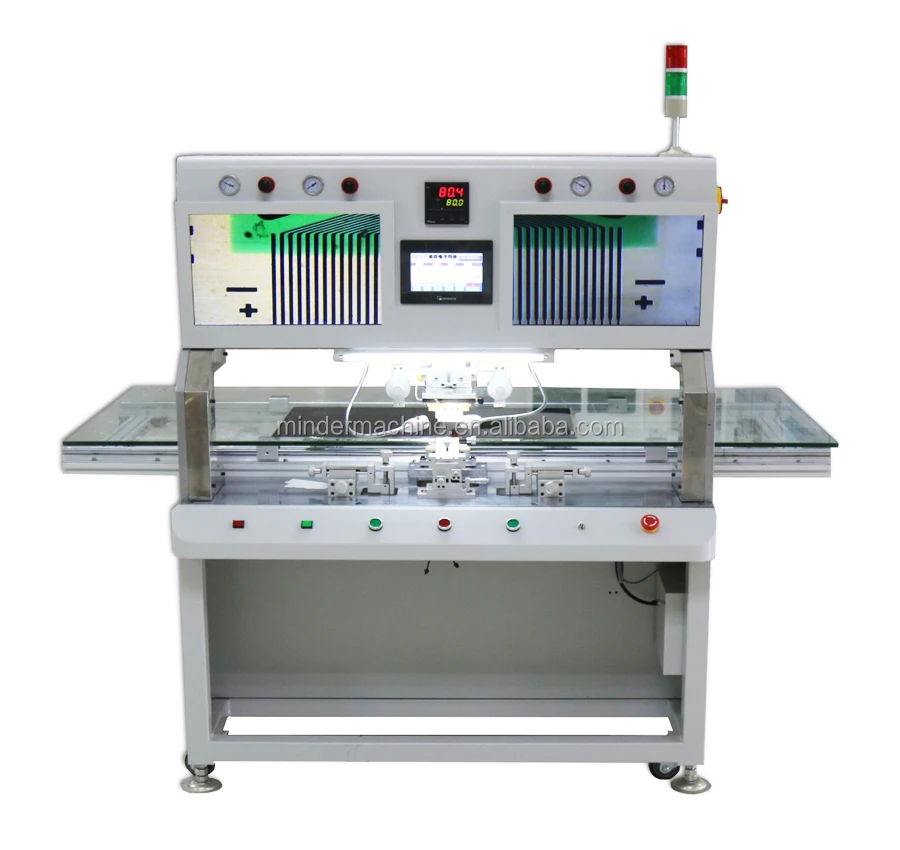

MD-880SH Single Head Bonding Machine is designed for LCD/LED TV repair, which can solve the problem of ACF/COF/TAB fault, the function of MD-880SH is replacing, bonding, re-bonding COF/TAB on LCD glass and PCB.

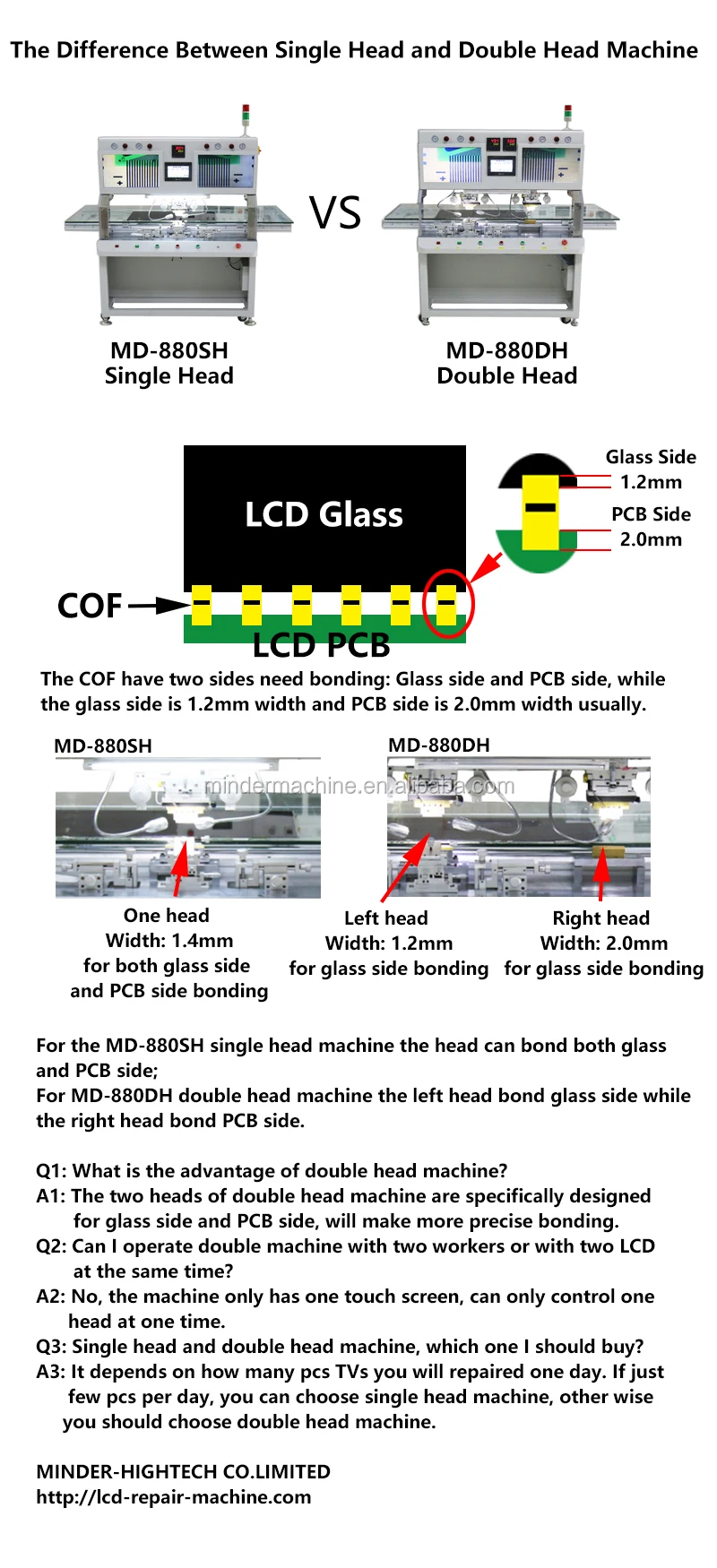

SPECIFICATIONS FOR MD-880SH and MD-880DH
MD-880SH
MD-880DH
Head Number
1
2
Head Size
50*1.4mm
50*1.2mm (left head)
50*2.0mm (right head)
Platform size
65 inches, max can extend to 100 inches
LCD repair size
12” ~ 65”, max can extend to 100”
Support TV Type
LCD, LED
Support TV Brand
Almost all brand of TV
Bonding Accuracy
Within ±1.5μm
Cylinder
Japan SMC original thin cylinder
Heating Type
Pulse hot bar
Temperature Control
Temperature precision: ±3 ℃;
Room temperature to 180℃ heating: within 2-3 seconds
Bonding Head
Material: USA titanium;
Precision: 0.001mm
Thermocouple Type
K type original US OMEGA wire
PLC
Panasonic FX-C16T
Image Display
Camera Position: Bottom
Optical Path: Lens→Quartz→ITO Electrode→COF
Magnification: 30 ~ 120
Screen Size: 19 inch × 2
COF Fixture
COF mechanical clamping type, Z tilt radius micrometer trimming
Platform Type
Manual sliding or fixed
Power Supply
AC 220V/110V 50Hz/60Hz
Peak Power
800W
Size
1800L×1200W×1520Hmm
Weight
380kg
Packing
1.\t1300L×850W×1690Hmm, 350kg
2.\t1930L×220W×1040Hmm, 110kg

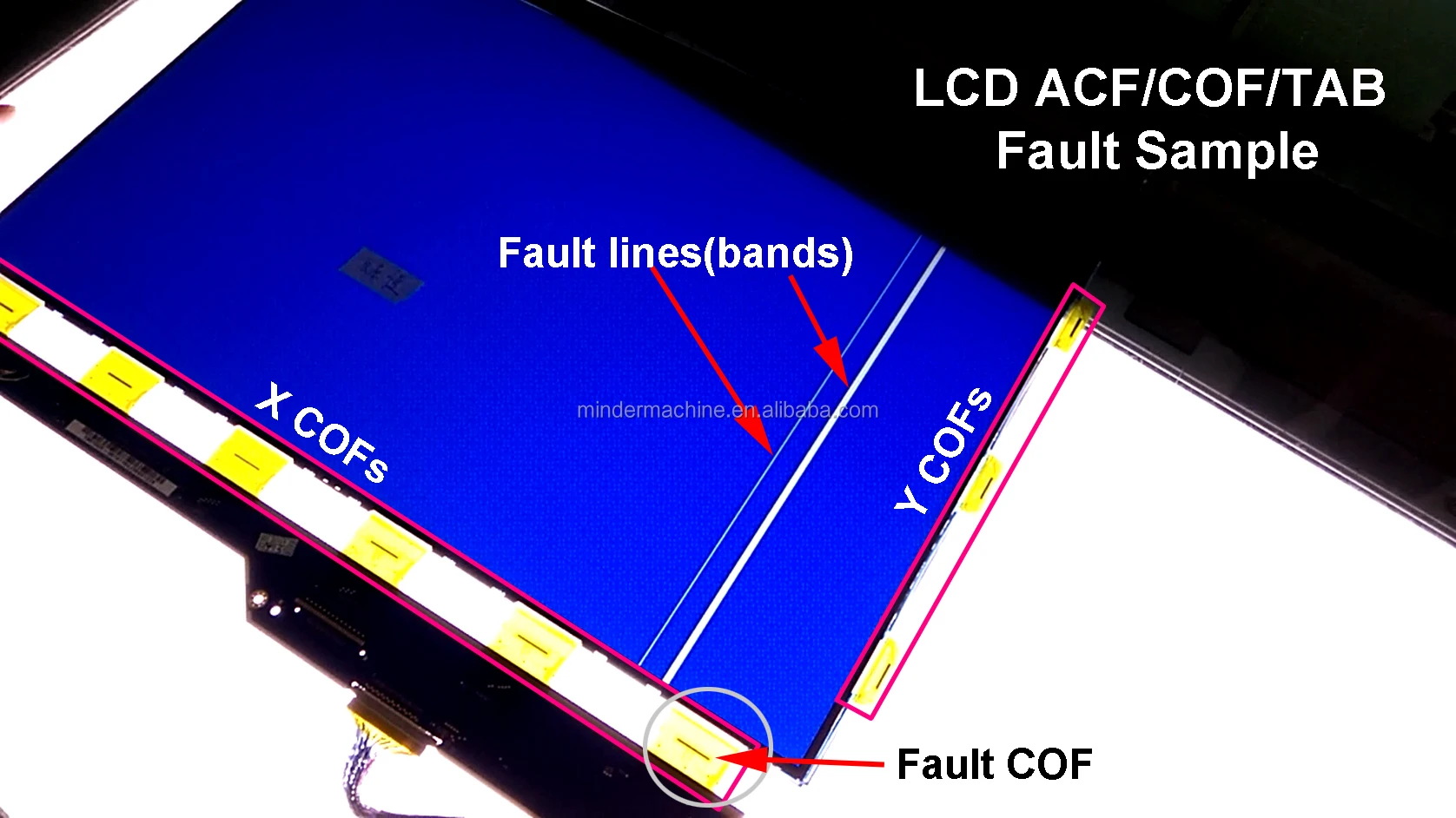

What problem can bonding machine repair?

There are some COFs which connected the LCD glass and PCB board, we called it X COFs and Y COFs. Sometimes the COF will be damaged, and the screen will appear some lines or bands. The bonding machine is a profession machine for COF replacement. After replace with a new COF, the lines or bands will disappeared, and the LCD got repaired.

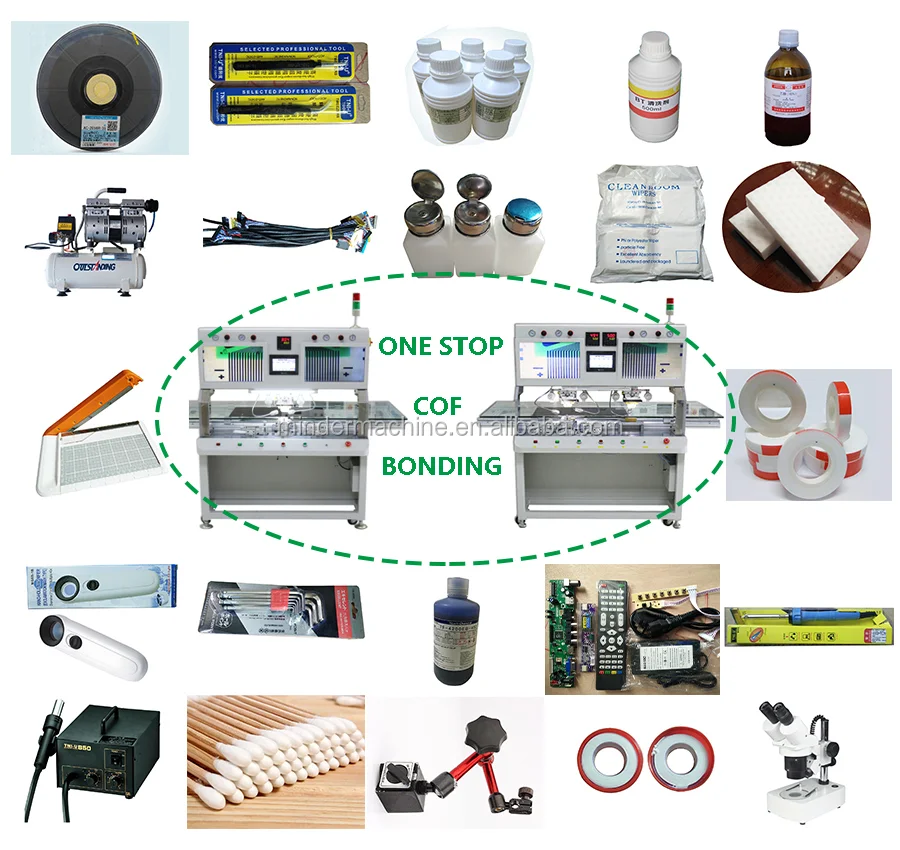

Accessories:

The bonding process need some tools and material. We provide one-stop service for our customers around the world.
We will give the follow accessories with the machine as gift, help you quick start the repairing business.

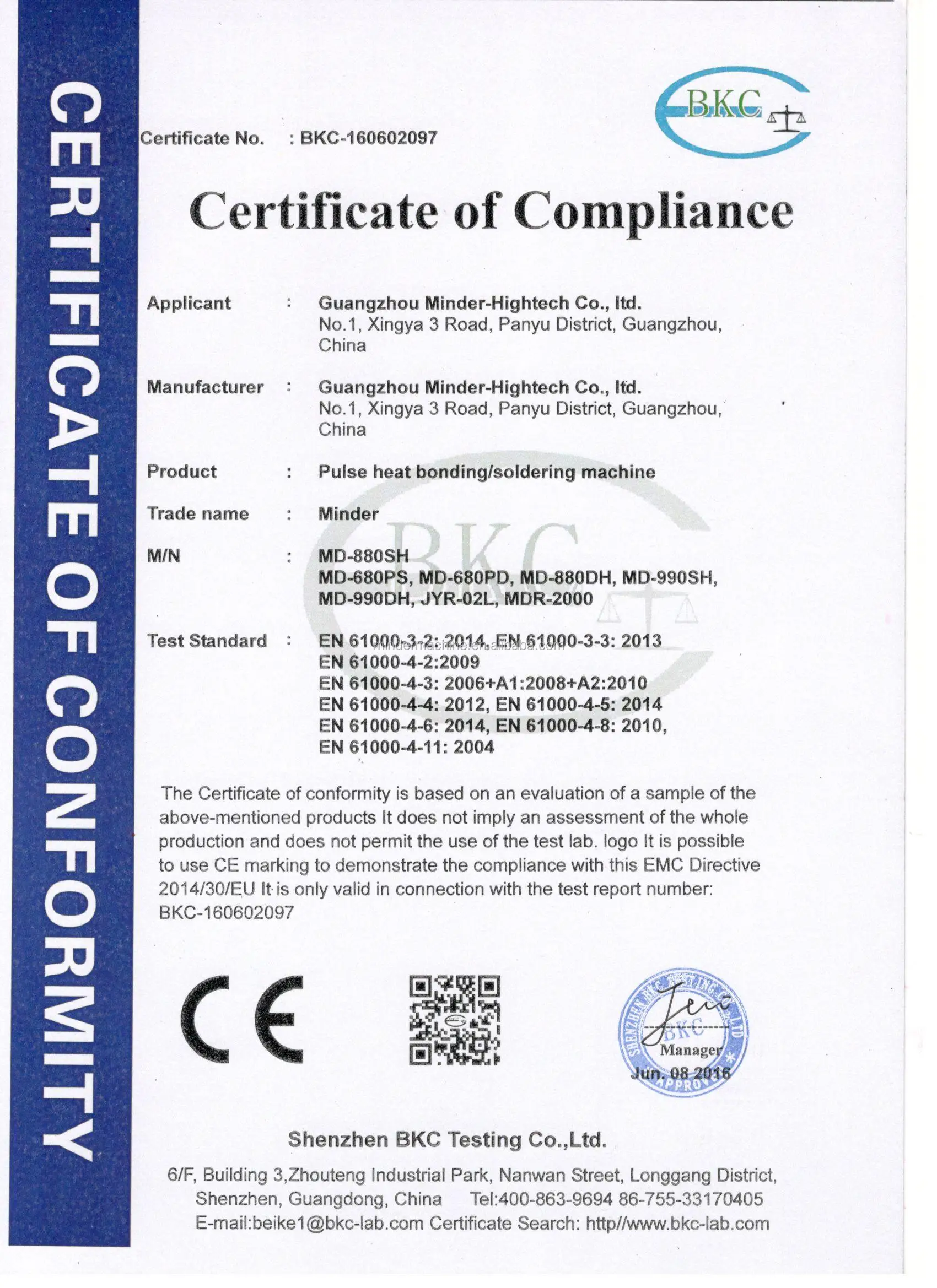

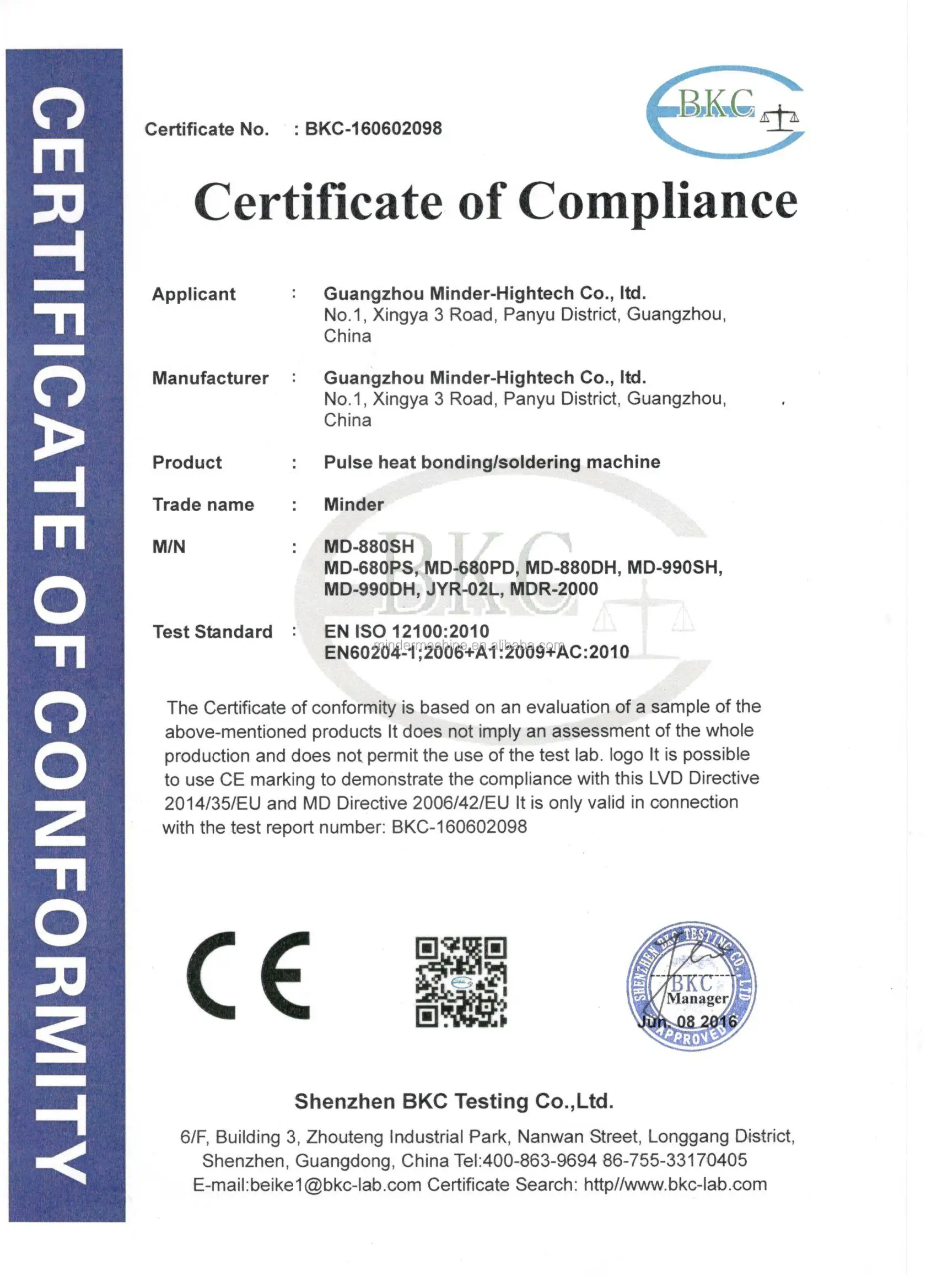

Certifications

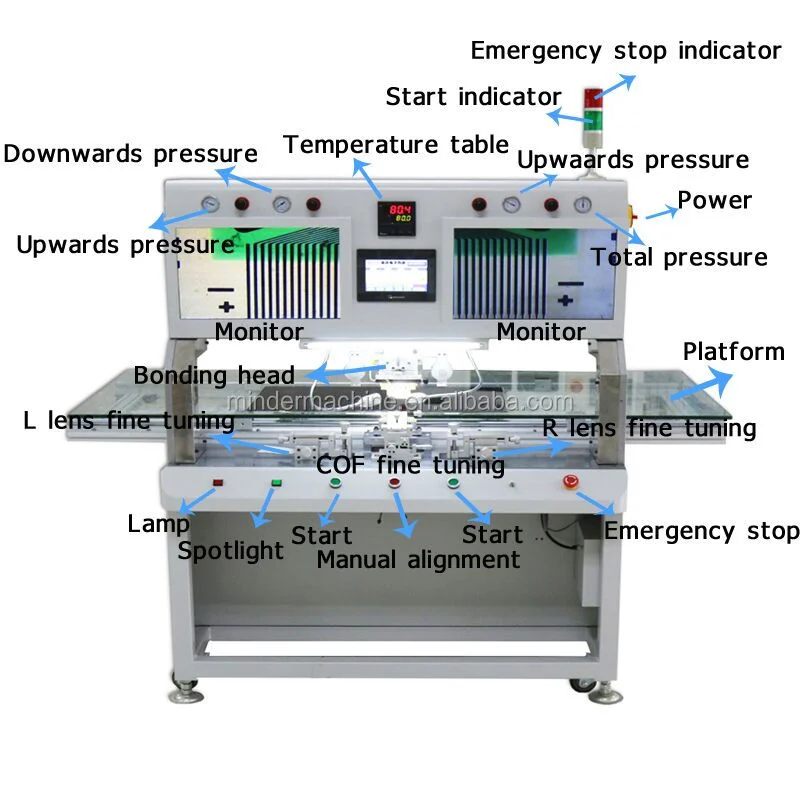

Detailed Images


Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Training videos.

* Engineers available to service machinery overseas.

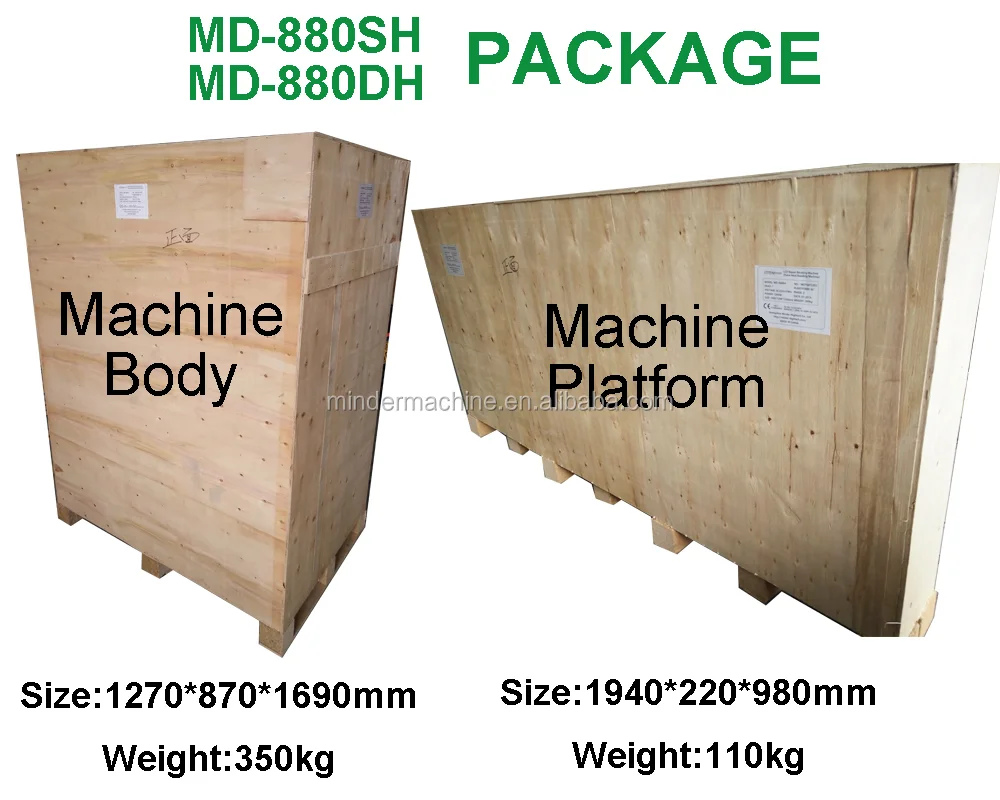

Packing & Delivery


Packaging
Size
1270 (L) * 870 (W) * 1690 (H) mm
1940 (L) * 220 (W) * 980 (H) mm
Weight
460kg



Packaging Details
Two wooden box packing.


Related Products




FAQ
1. Why do customers choose to cooperate with us?
Our company has many years of production experience, with superior quality and good after-sales service.

2. How long does it take to respond to customer inquiries?
We have multiple online business people, the response is usually <8 hours

3. How do we control product quality? What is the satisfaction of after-sales service?
We will guarantee the quality of the machine, and perform a second test on the machine before leaving the warehouse to ensure that each set of equipment runs well, and provide long-term after-sales service to 100% customer satisfaction.

4. Can I customize the machine?
Yes, you can. We can provide you with customized services according to your needs, but we need to provide detailed design documents.
