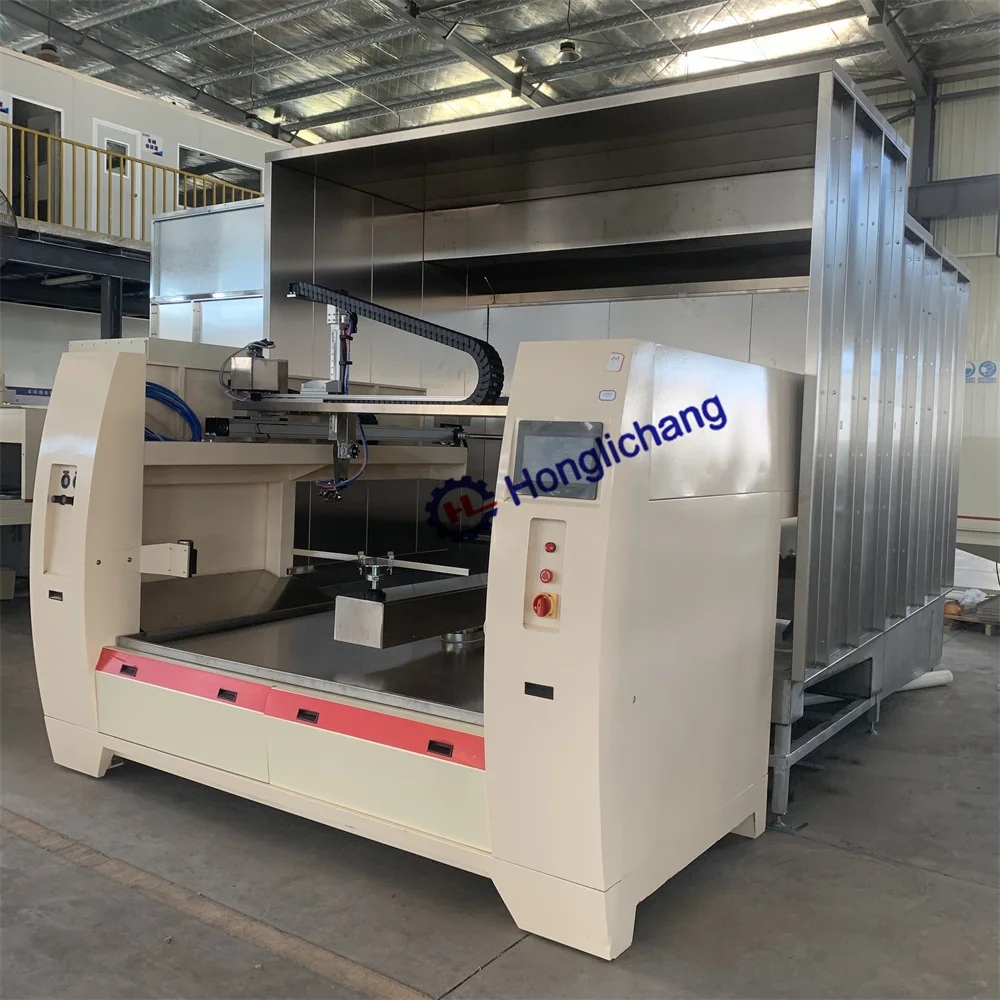

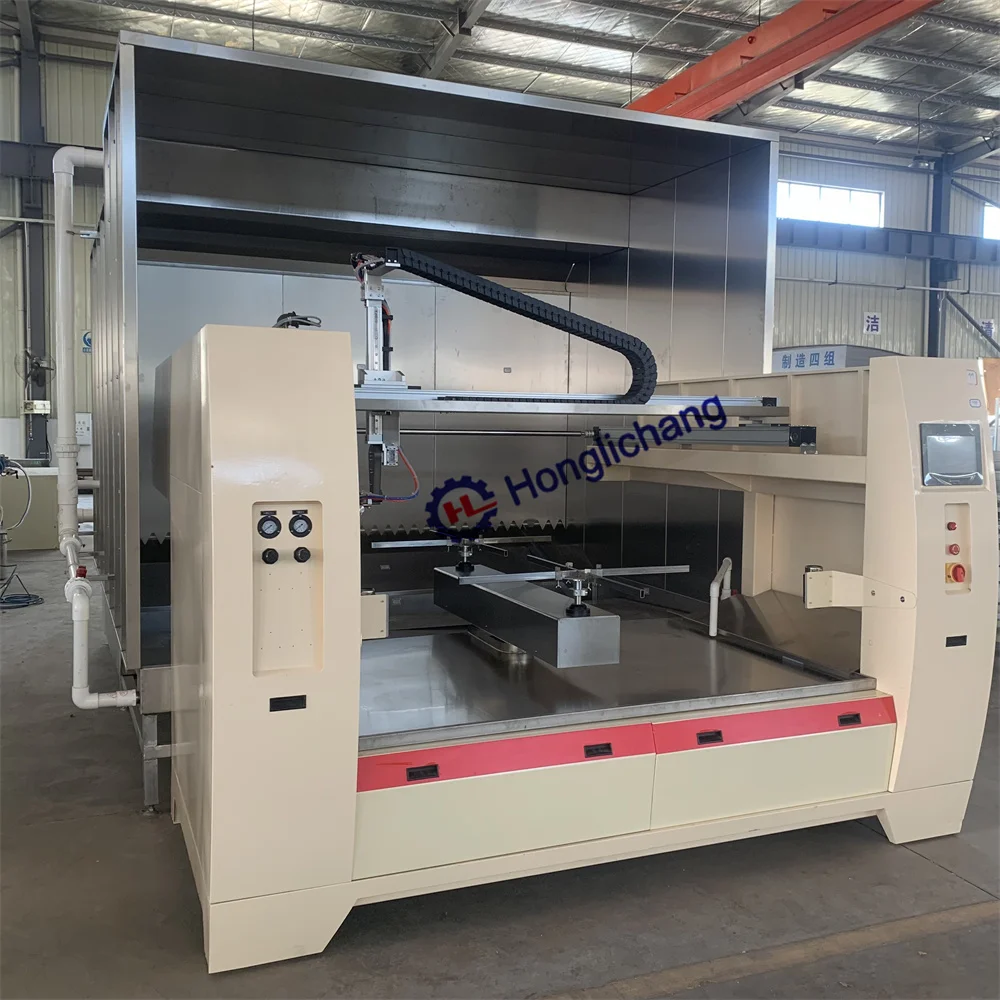

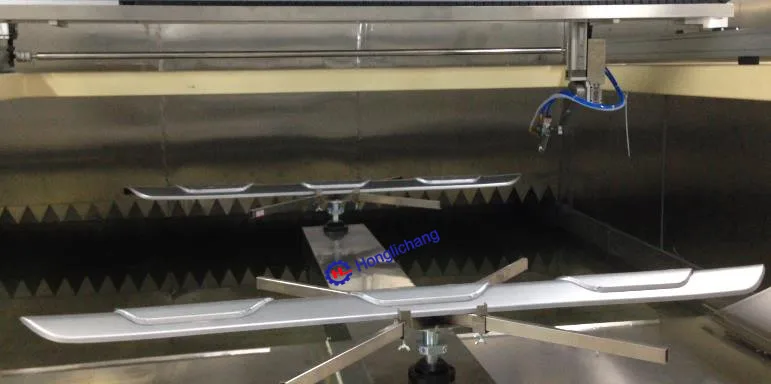

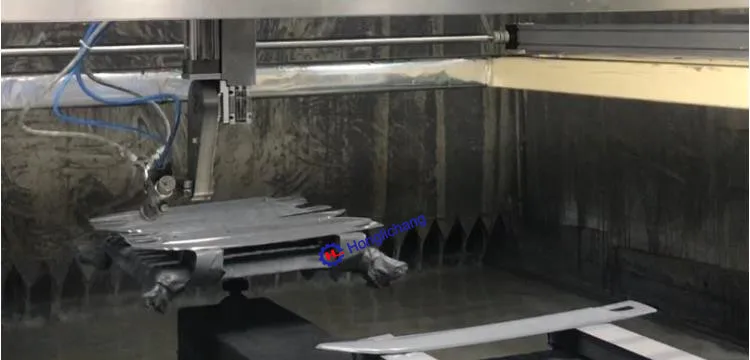

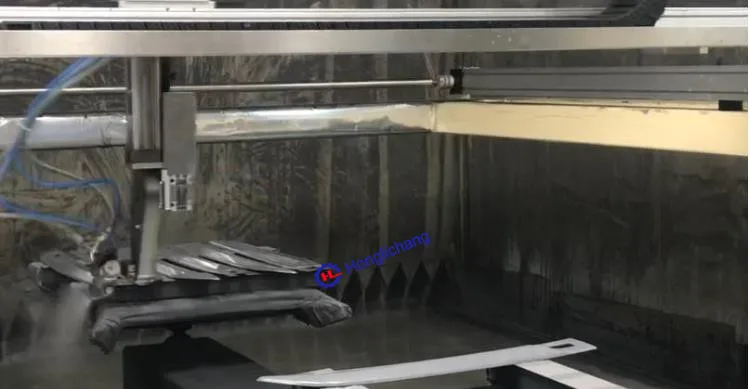

5 axis Automatic Linear Robotic Painting Machine for Car Parts

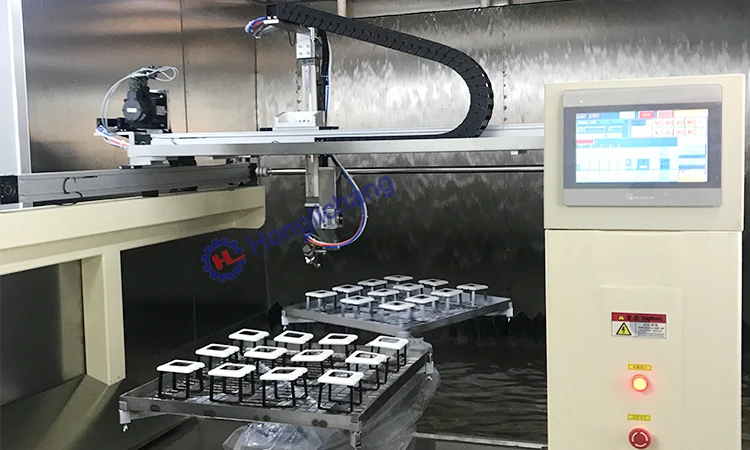

 Features of Touch Screen Control Panel 5-axis Automatic Reciprocating Painting Machine with Rotation Table for Car Exterior Parts:

1. Machinery: W2300*L2100*H2300mm
2. Axis X: 1-1.5mtrs motion for slide; working speed: 1.5m/s; synchronous belt: MEGADYNE brand, Italy Make;
   Servo Motor: Panasonic, ±0.5mm
3. Axis Y: 1-1.0mtrs motion for slide; working speed: 1-1.5m/s; synchronous belt: MEGADYNE brand, Italy Make;
   Servo Motor: Panasonic, ±0.5mm
4. Axis Z: screw rod structure, 200W Panasonic motor, 0.3m/s, H300mm
5. Axis R: for spray gun angle change 0-90°, horzontal rotation, step motor
6. Turn Table & Tray:
6.1. 2 trays, Tray size: 600mmx600mm, weight load 5kg;
6.2. Tray Revolution: 2-4sec, graduator+chain transimission+gear motor+VFD
6.3. Tray Rotation: servo motor+gear box, 0-360° continuous rotation"
7. Structure Material: 100x100 square pipe, paint finish
8. Electrical & Pneumatic Controllers
8.1. MCCB: OMRON, with outlet for input and output
8.2. Touch Panel: Taiwan make, model 6070
8.3. Emergency Switch: Schneider
8.4. Sensor: Taiwan Yangming
8.5. Cable: China make in control panel & Germany make
8.6. Software: digital system; motion & speed adjustable"
9. robot control system
