Product Overview
Description
Products Description
Model\tQF-354
Type\t4X4 wheeled type
Main dimensions (mm)\t2930X1500X2000
Wheel base (mm)\t1605/1730
Front wheel (mm)\t1070/1170/1270 Adjustable
Rear wheel (mm)\t 1000/1100/1200/1300 Adjustable
Type\t4X4 wheeled type
Main dimensions (mm)\t2930X1500X2000
Wheel base (mm)\t1605/1730
Front wheel (mm)\t1070/1170/1270 Adjustable
Rear wheel (mm)\t 1000/1100/1200/1300 Adjustable
Basic Parameters
NO | ITEM | DATA |
1 | Model | QF-354 |
2 | Type | 4X4 wheeled type |
3 | Main Dimensions L*W *H (mm) | 2930X1500X2000 |
4 | Wheel Base (mm) | 1605/1730 |
5 | Front Wheel (mm) | 1070/1170/1270 Adjustable |
6 | Rear Wheel (mm) | 1000/1100/1200/1300 Adjustable |
7 | Min. Ground Clearance (mm) | 330 |
8 | When One-side Braking | 2.5±0.2 |
9 | No braking | 2.9±0.2 |
10 | Tractor dry mass (kg) | 1400 |
11 | Front/Rear Ballast (kg) | 50/60 |
12 | Max. PTO Power (kw) | 26.9 |
13 | Transmission box | Mechanic gear box |
14 | Gear shifts | (4+1)X2 |
15 | Theoretical speed (km/h) | F2.07-31.54 R2.72-12.59 |
16 | Differential | closed, 2 planetary gear |
17 | Differential lock | Jaw type |
18 | Diesel Engine | |
19 | Type | Vertical 4 stroke, water cooled |
20 | Number of Bores | 3 |
21 | Bore dia. X stroke (mm) | 85X95 |
22 | Combustion chamber | direct injection |
23 | Rated Power (kw) | 22.06 |
24 | Fuel consumption (g/kw.h) | ≤248.9g/kw.h |
25 | Engine oil consumption (g/kw.h) | ≤2.04g/kw.h |
26 | Front tyre size | 6.00-16 |
27 | Rear tyre size | 9.50-24 |
28 | Steering system | Power steering |
29 | Brake | Shoe brake |
30 | Tri-point Hitch system | Rear mounted, ball-hinged |
31 | Max. lifting capacity (kN) | 4.96 |
32 | PTO type | Rear mounted, nonindependent |
33 | PTO Rev. (rpm) | 540/720 r/min |

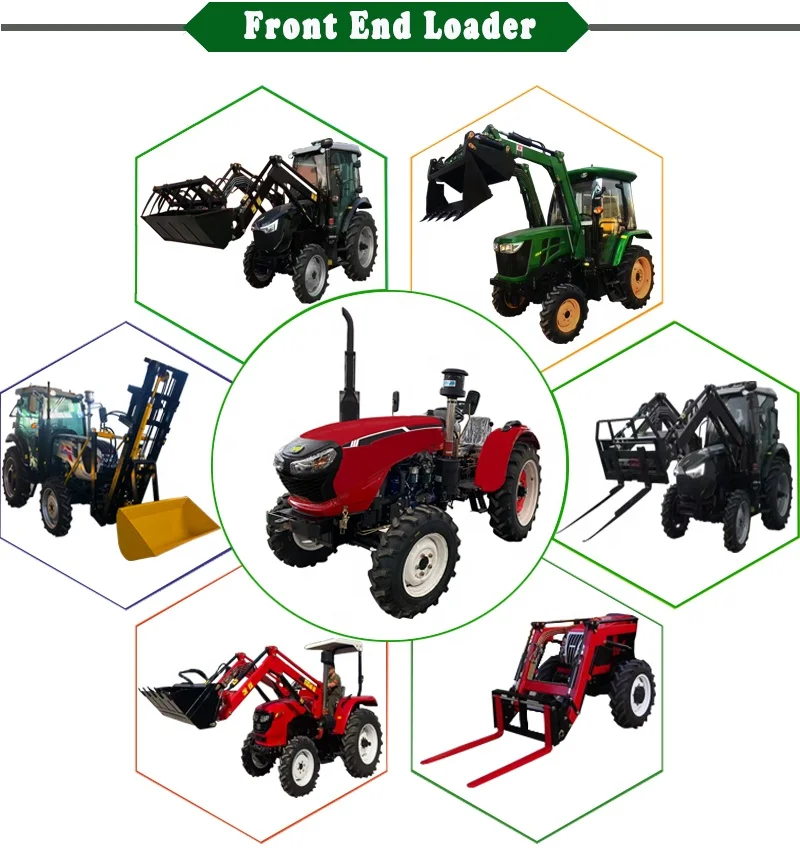

>>>>>> Front End Loader Parameter <<<<<<
Model | QF03E | QFQF04E | QFTZ06E | TZ08E | QFQF10E | TZ12E | |
Rated lift capacity | kg | 300 | 400 | 600 | 800 | 1000 | 1200 |
Max. dump height | mm | 1800 | 2000 | 2200 | 2350 | 2350 | 2500 |
Digging depth | mm | 100 | 120 | 140 | 180 | 180 | 200 |
Bucket capacity | m³ | 0.18 | 0.3 | 0.4 | 0.48 | 0.6 | 1 |
Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
Weight | kg | 400 | 450 | 550 | 600 | 700 | 800 |
Optional Details
Tire | Herringbone Tire | Flat Flower /High Flower | Stanard Pressure | 200 kPa | |
Paddy Tire | |||||
Radial Tire | |||||
Gear | 8+4 | 8+8 | Adjustable according to your request | ||
12+8 | 12+12 | ||||
16+8 | 16+16 | ||||
Cabin | AC | Adjustable according to your request | |||
Adjustable Air Seat | |||||
Radio, Revise Image | |||||
Company Profile
Packing & Delivery
Customers Visit
FAQ
Q1. What is Your Terms Of Packing?
A: Generally, The Finished Machine With Nude Packing, The Spare Parts With Plywood Box Or Iron Box
Q2. What is Your Terms Of Payment?
A: We Do As International Business Rule, 30% Tt Deposit, 70% Balance Before Delivery. We'Ll Show You The Photos Of The Products
And Packages.
Q3. What is Your Terms Of Delivery?
A: EXW, FOB, CFR, CIF.
Q4. How About Your Delivery Time?
A: Generally, It Will Takes 7 To 10 Working Days After Receiving Your Deposit. If The Quantity Is Too Much ,The Longest Time
Around 15 To 30 Days .
Q5. What is Your Sample Policy?
A: We Can Supply The Sample If We Have Ready Parts In Stock, But The Sample Cost And The Courier Cost Should Be Yours.
Q6. Do You Inspect All Your Goods Before Delivery?
A: Yes, We Test All Machines And All Parts Before Loading. We Will Provide The Support Of Pictures And Videos For Your Reference.
Q7: How’s The After-Sales Services?
1. We Are Manufacture, We Are Responsible For The Machines We Did.
2. We Support With Complete Inspection System And Test Report Before Shipment
3. We Provide The Assemble Installation Videos And Online Support.
4. We Are Online With 24 Hours, If You Have Any Problems, Pls Feel Free To Contact Us At Any Time, Our Equipment Technician Will
Solve Asap.
A: Generally, The Finished Machine With Nude Packing, The Spare Parts With Plywood Box Or Iron Box
Q2. What is Your Terms Of Payment?
A: We Do As International Business Rule, 30% Tt Deposit, 70% Balance Before Delivery. We'Ll Show You The Photos Of The Products
And Packages.
Q3. What is Your Terms Of Delivery?
A: EXW, FOB, CFR, CIF.
Q4. How About Your Delivery Time?
A: Generally, It Will Takes 7 To 10 Working Days After Receiving Your Deposit. If The Quantity Is Too Much ,The Longest Time
Around 15 To 30 Days .
Q5. What is Your Sample Policy?
A: We Can Supply The Sample If We Have Ready Parts In Stock, But The Sample Cost And The Courier Cost Should Be Yours.
Q6. Do You Inspect All Your Goods Before Delivery?
A: Yes, We Test All Machines And All Parts Before Loading. We Will Provide The Support Of Pictures And Videos For Your Reference.
Q7: How’s The After-Sales Services?
1. We Are Manufacture, We Are Responsible For The Machines We Did.
2. We Support With Complete Inspection System And Test Report Before Shipment
3. We Provide The Assemble Installation Videos And Online Support.
4. We Are Online With 24 Hours, If You Have Any Problems, Pls Feel Free To Contact Us At Any Time, Our Equipment Technician Will
Solve Asap.
