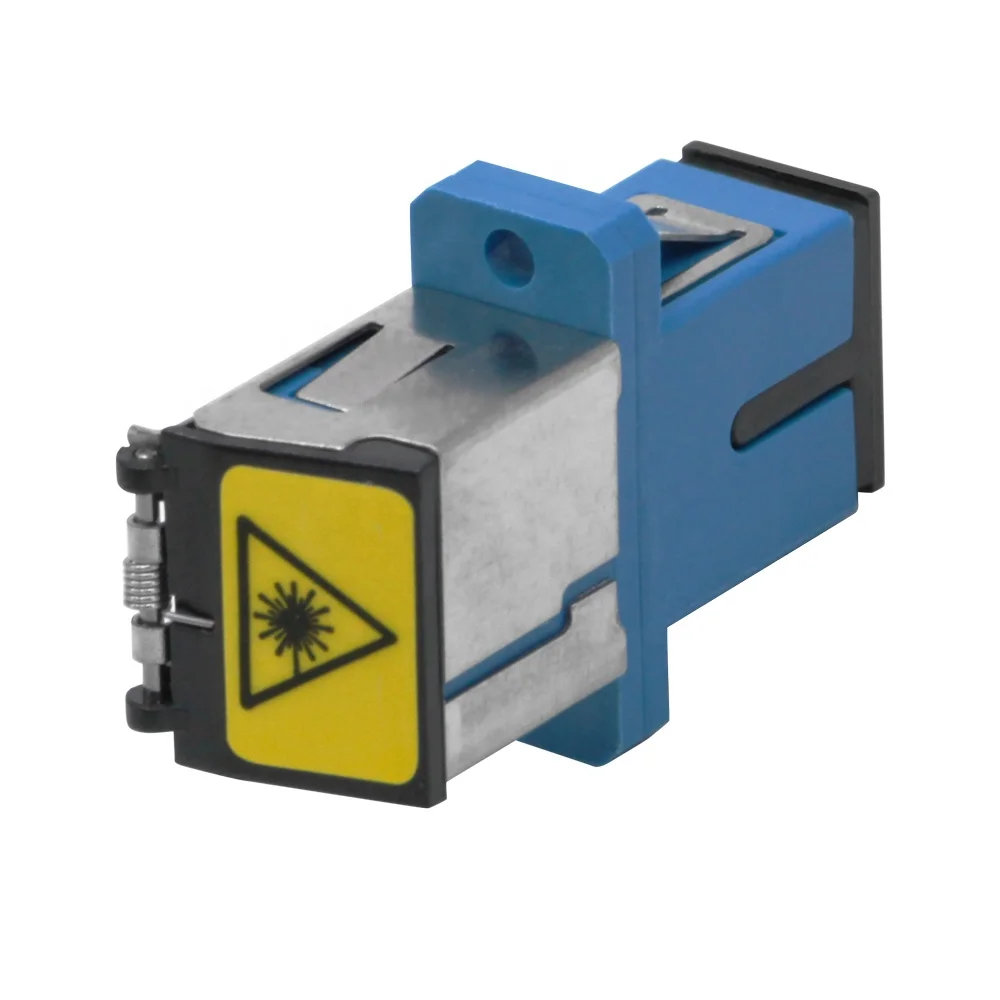

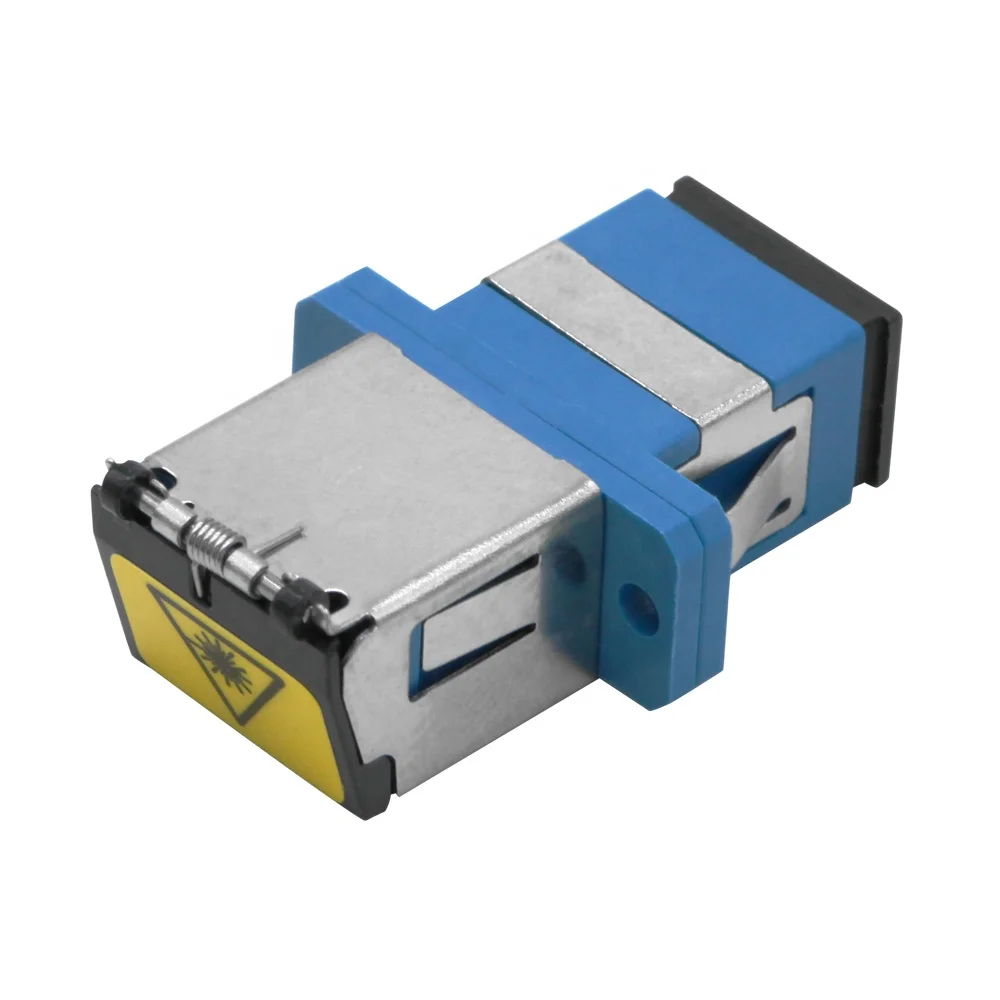

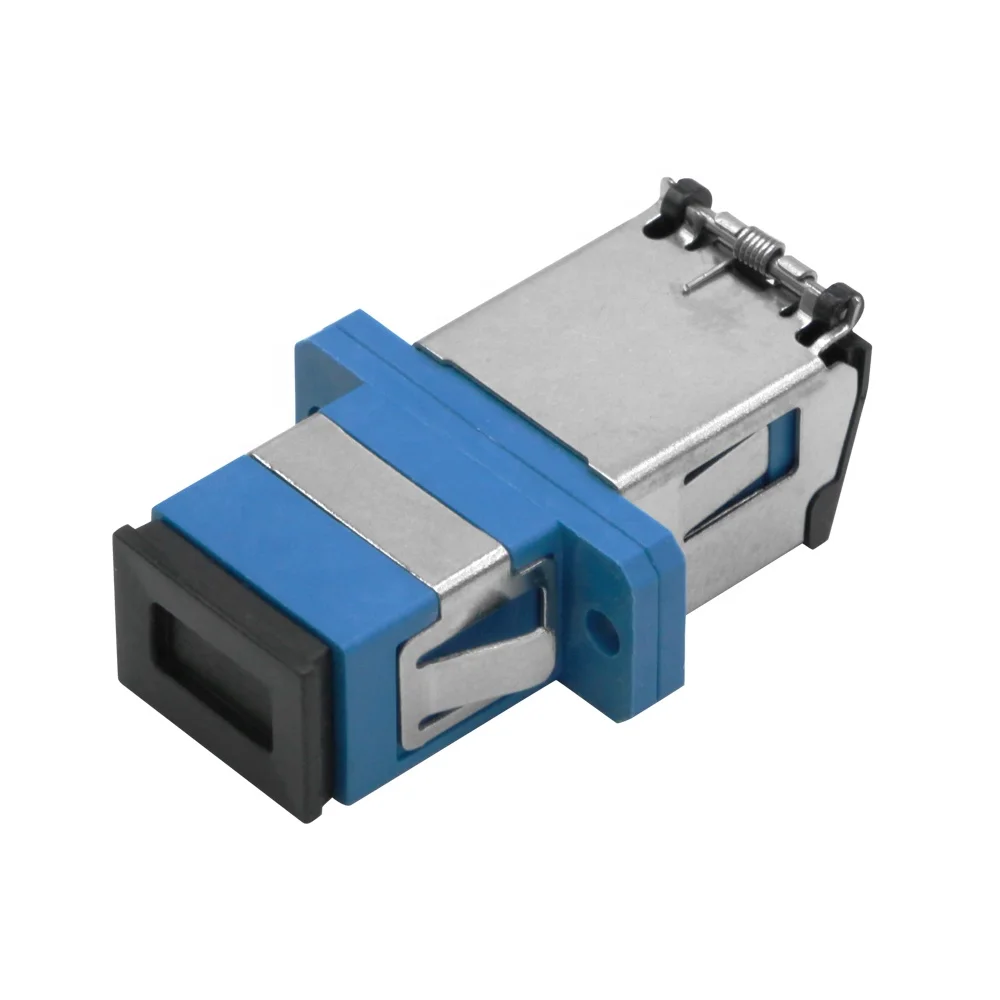

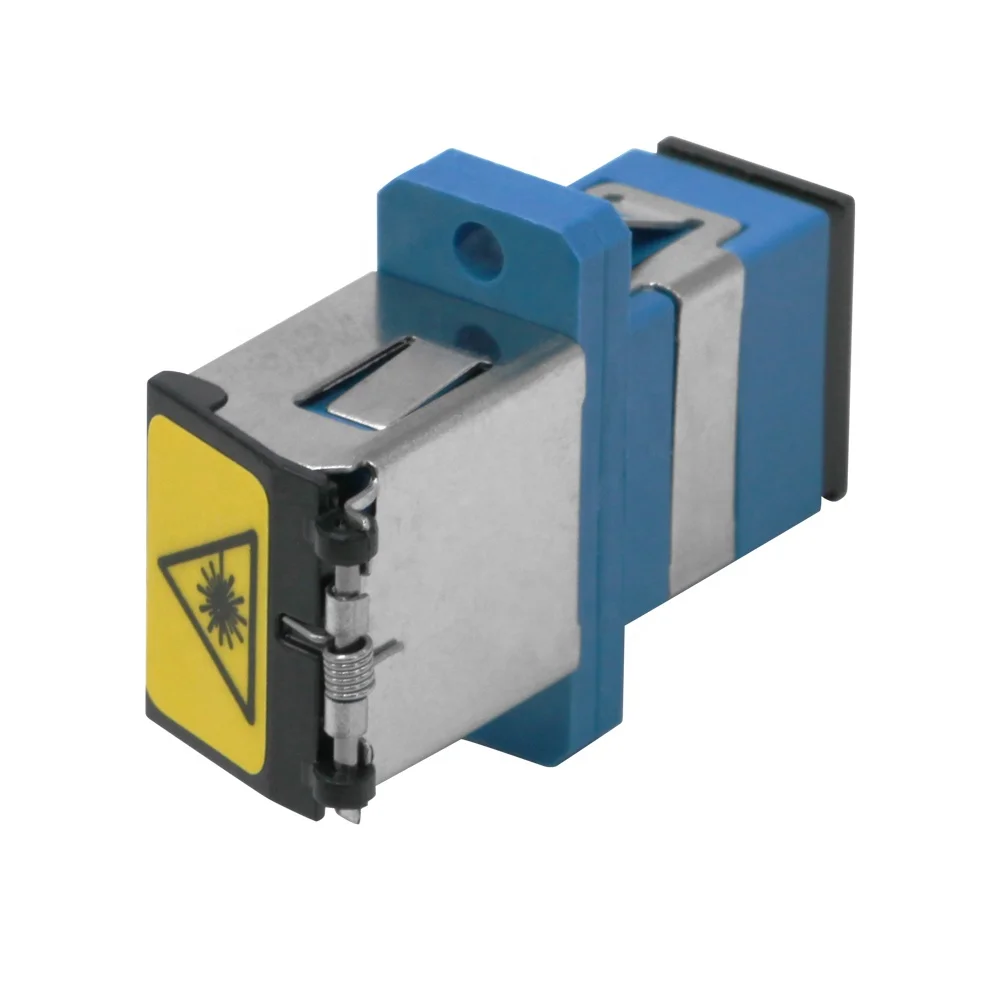

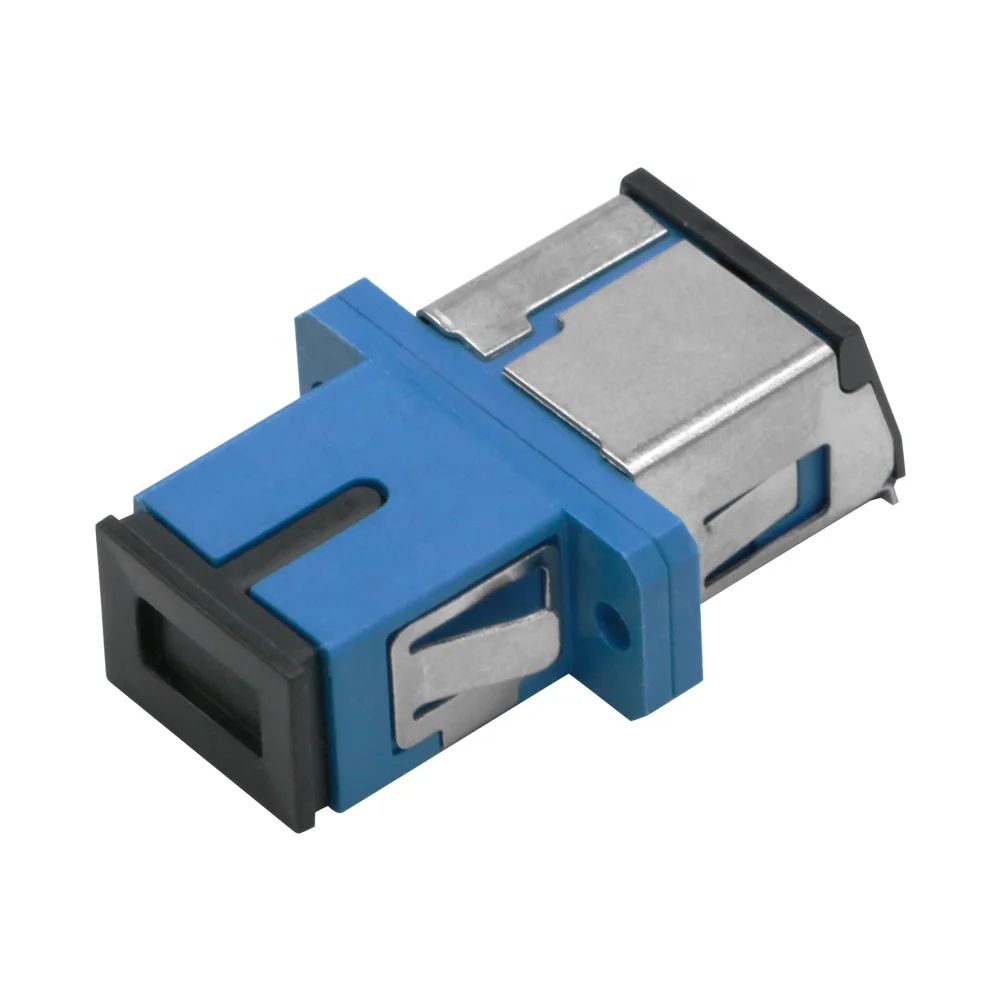

Customizable SC UPC fiber sc sx adapter adaptor metal fiber optic adapter sc with shutter
- Category: >>>
- Supplier: Dongguan Qingying Industry Co. Ltd.
Share on (1600400072728):
Product Overview
Description
2Port LC APC Simplex Fiber Adapter Zirconia Sleeve LC UPC APC SM DX Blue Coupler Optic Fiber Adapter Fiber optical adapter
Why Choose Us
① One-stop supplier from molding design, plastic injection.
② 10000 square meters manufacturing plant.
③ 10 Production lines, 300 workers.
④ An R&D team of 30 with degree, a quality system team of 30.
⑤ ISO 9001, CE, RoHS certification.
⑥ 12-month after-sale warranty.
② 10000 square meters manufacturing plant.
③ 10 Production lines, 300 workers.
④ An R&D team of 30 with degree, a quality system team of 30.
⑤ ISO 9001, CE, RoHS certification.
⑥ 12-month after-sale warranty.
Products Description
Fiber Optic Adaptor(also called coupler, or flange coupler)is the device to couple two connectors together.
QY's adaptor adopts a high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by the customer, and with options for flange or flangeless body.
Features
1.Excellent Optical Performance
2.Percision Aligment Ceramic sleeve
3.Extraordinary Stability
SC connectors are mostly used in telecommunication. It is also used in active equipment such as video converters and media. It ensures easy, quick connection and it is resistant to connection defects. The shape of the connector assures easy and stable assembly.
Besides usage in telecommunication, SC connector is also used in LAN, WAN, and CATV networks, measuring techniques, and on the railway.
Singlemode fiber has a small core diameter that supports only one mode of light. The signal is traveling in a single light beam with close to no reflection. A low reflection ratio means lower dispersion.
It is used to connect two multimode fiber optic cables with SC (Square connector) UPC (Ultra Polished Connector) connectors. It can be used with fiber optic patch cords, which send high-speed data through a network. The adapter is a part of the optical path, it guarantees the stability of transmission parameters, and high-quality ceramic ferrule, which is polished at an 8-degree angle, assures lower return loss. Openable clips ensure easy assembly and disassembly.

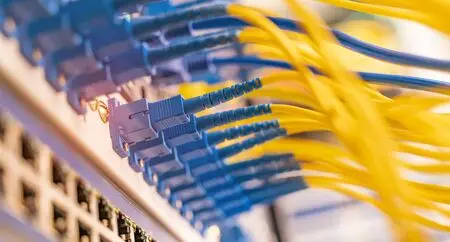

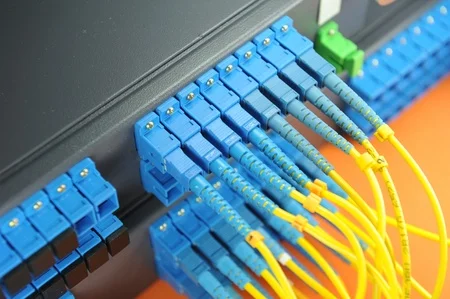

Applications
Specifications
SC/UPC Optical Fiber Adapter | FC/APC Field Installable Connector | |||||
Item Name | Unit | Grade S (Standard) | Grade P (Premium) | |||
Insertion Loss | dB | ≤0.2 | ≤0.1 | |||
Repeatibility | dB | ≤0.1 | ||||
Interchangebility | dB | ≤0.2 | ||||
Operating Temp. | ℃ | ﹣25~﹢70 | ||||
Durability | times | ≥1,000 | ||||
Fiber Count | --- | Simplex | ||||
Packing
Recommend Products
Company Briefing
Founded in 2010, Dongguan Qingying Industrial Co., Ltd (QY) is a sophisticated fiber company located in two cities, Dongguan and Chongqing, in China. With more than 10,000m2 plant area, QY is now a company with integrated capability of R&D, production, trading and international sales.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
After-sales service
Return Window | Exchange Window | Warranty Period | Notes |
30 Days | 30 Days | 1 Year | In the case of not affecting secondary sales, a 30-day return is available for in-stock items (excluding customized products). |
