Распродажа, пластиковые бутылки для домашних животных, сортировка, горячая стиральная сушильная машина, линия переработки/установка
- Category: >>>
- Supplier: Baoding Haorui Machinery Manufacturing Co. Ltd.
Share on (1600400088413):
Product Overview
Description
Product Description
Machine name | hot sale Plastic PET Bottles Sorting Hot Washing Drying Recycling Machine Line / Plant |
capacity | 1000kg/h |
solution | PET flakes |
Flakes size | 8mm 10mm 12mm 14mm 16mm etc. |
Material | Carbon steel or 304SS |
Machine size | 80m(L)*4M(W)*4M(H) |
Energy consumption | 200kw |
Water consumption | 3~4tons water |
Workers | 12~15 workers |
hot sale Plastic PET Bottles Sorting Hot Washing Drying Recycling Machine Line / Plant
PET bottle washing line capacity can be 500~7000kg/h, with food grade and fiber grade.
Product Despriction
Detail Display

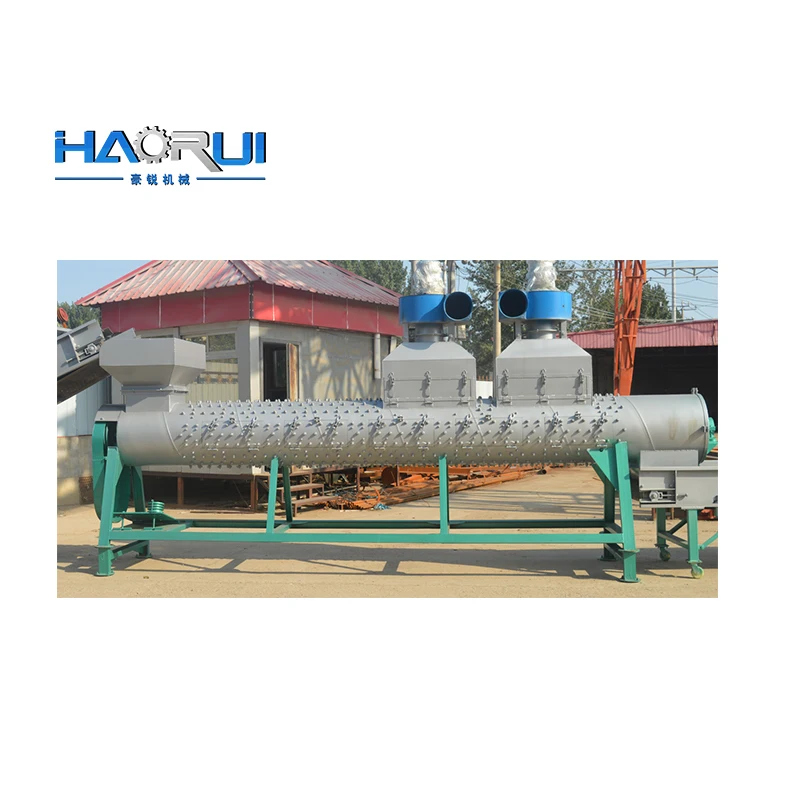

Label remover
Usage: remove the pvc labels of the PET bottles
1. knife material:alloy
2. Capacity:1000kg/h
3. Shafts:single shaft
4. Spare parts：motor,fan, V-belt ,protective cover
Usage: remove the pvc labels of the PET bottles
1. knife material:alloy
2. Capacity:1000kg/h
3. Shafts:single shaft
4. Spare parts：motor,fan, V-belt ,protective cover

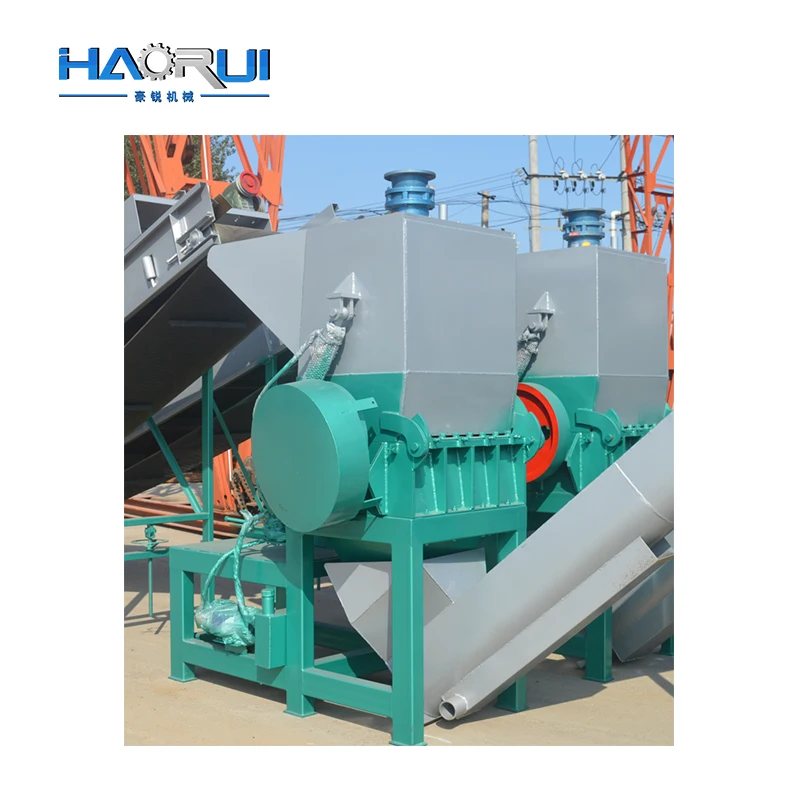

Plastic crusher
Usage: To crush PET bottle with water into flakes.
1. Capacity:1000kg/h
2. Type:1000type
3. The cover opening method: hydraulic elevator
4. Blade material:SKD-11
5. Material:carbon steel / 304SS
6. Bearing: Chinese famous brand (HRB brand)
Usage: To crush PET bottle with water into flakes.
1. Capacity:1000kg/h
2. Type:1000type
3. The cover opening method: hydraulic elevator
4. Blade material:SKD-11
5. Material:carbon steel / 304SS
6. Bearing: Chinese famous brand (HRB brand)
Floating tank
Usage:rinse PET flakes, automatically separate bottles caps and other floating debris ,effectively separate varieties of silt and paper scraps With three push rollers and a small screw conveyor for the PP PE caps1. Material: carbon steel
2. Number of roller wheels:4pcs
3. Number of bottom worm shaft:1 pc
Dewatering machine
Usage: Dry flakes through centrifugally spinning,automatic feeding and discharging the flakes
1. Whole screen type dewatering machine
2. Type: Horizontal
3. Discharge the PET flakes from side, drain water from bottom
4. Mesh material: 304 stainless steel
5. Helical blades material:carbon steel
6. Bearing: ZWZ bearing( Chinese famous brand)
Usage: Dry flakes through centrifugally spinning,automatic feeding and discharging the flakes
1. Whole screen type dewatering machine
2. Type: Horizontal
3. Discharge the PET flakes from side, drain water from bottom
4. Mesh material: 304 stainless steel
5. Helical blades material:carbon steel
6. Bearing: ZWZ bearing( Chinese famous brand)
Flakes size:10mm 12mm 14mm 16mm ect
Recommend Products
Company Profile
HAORUI Machinery was established in 1992,a professional manufacturer & exporter of PET bottle recycling machine, PP PE plastic bag / film /bottle recycling machine, pelletizing machine etc.We already helped over 40 clients solve the plastic recycling investment solution in Africa, Asia, Middle East, South America etc.
We have over 300 employees, an annual sales figurethat exceeds USD10 million dollars and are currently exporting 30% of our production.There are over 100 technicians in our workshops which covers 20000m 2.Over 30 years experience and our 9 persons’R&D team make our machine design unique,OEM &ODM are welcome.
Always insist on“quality is first” and inspect after producing which makes us more popular in Domesticand gained a global sales network all over the world.
We have over 300 employees, an annual sales figurethat exceeds USD10 million dollars and are currently exporting 30% of our production.There are over 100 technicians in our workshops which covers 20000m 2.Over 30 years experience and our 9 persons’R&D team make our machine design unique,OEM &ODM are welcome.
Always insist on“quality is first” and inspect after producing which makes us more popular in Domesticand gained a global sales network all over the world.
Customer Photos
Over 30 years'factory,Over 40 clients in Middle East AfricaSouth America,South East,South Asia USA and so on.OEM &ODM are welcome.
Certifications
Packing and Delivery
Packing with film, pallet or wooden case.(according to customers' request).

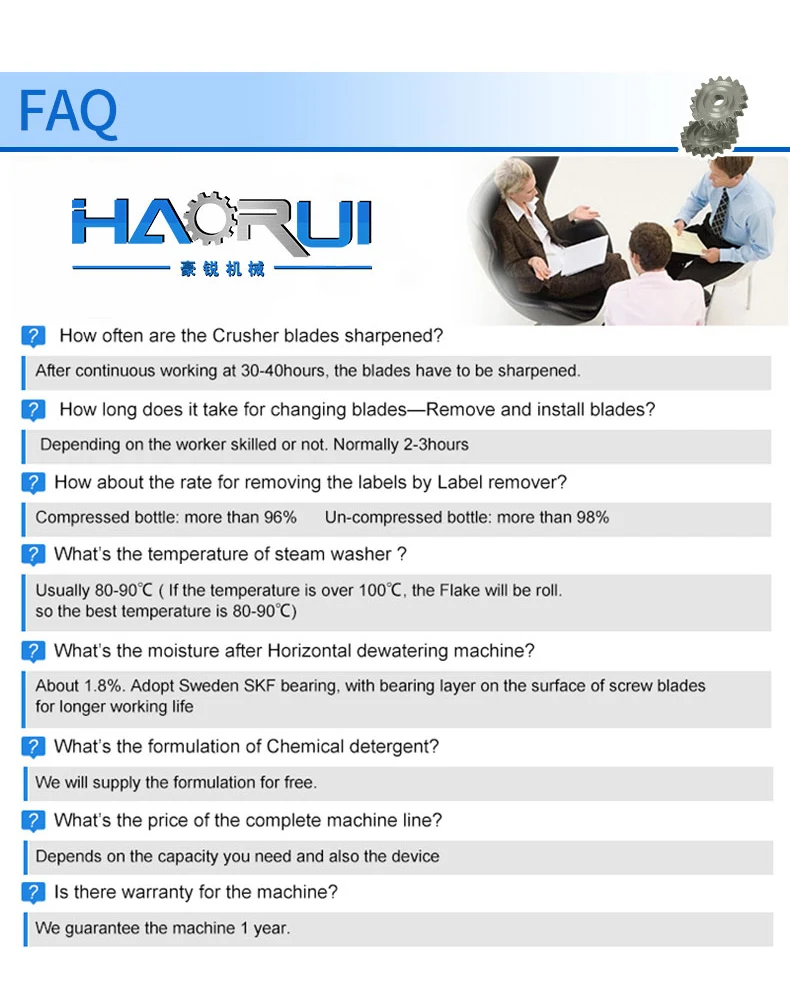

FAQ
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What’s the temperature of steam washer ?
A: Usually 80-90℃ ( If the temperature is over 100℃, the Flake will be roll.so the best temperature
is 80-90℃)
Q: What’s the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What’s the temperature of steam washer ?
A: Usually 80-90℃ ( If the temperature is over 100℃, the Flake will be roll.so the best temperature
is 80-90℃)
Q: What’s the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
