Belden Equivalent 8760 LSF PVC LSZH jacket PE insulation cables 2x18awg with 20AWG tinned copper drain wire
- Category: Control Cables >>>
- Supplier: Haiyan,Ads,Special,Cable,Co.,Ltd.
Share on:
Product Overview
Description
ADS Special Cable
Product Description
Characteristics
18AWG Stranded(16x30) tinned copper conductors,
polypropylene insulation ,
twisted pairs,
Overall Aluminum Foil Shielded,
20AWG stranded tinned copper drain wire,
LSF jacket
polypropylene insulation ,
twisted pairs,
Overall Aluminum Foil Shielded,
20AWG stranded tinned copper drain wire,
LSF jacket
Belden Equivalent Cable Application;
This range is designed and manufactured to exacting standards to provide high-speed and high-quality end-to-end data transmission.
It covers communication technology applications including data transfer, sound and video communications, signaling and
instrumentation providing connectivity in industries as diverse as automation & process control, power generation and data centers
The range of applications covered by our vast range of Belden alternatives / equivalent cables include those set out in the
Electronic Industries Alliance (EIA) standards EIA 232 (formerly RS232), EIA 422 (formerly RS422), EIA 423 (formerly RS423) and
EIA 485 (formerly RS485).And It is also accord to UL1581,UL758 and UL444 test standard.
This range is designed and manufactured to exacting standards to provide high-speed and high-quality end-to-end data transmission.
It covers communication technology applications including data transfer, sound and video communications, signaling and
instrumentation providing connectivity in industries as diverse as automation & process control, power generation and data centers
The range of applications covered by our vast range of Belden alternatives / equivalent cables include those set out in the
Electronic Industries Alliance (EIA) standards EIA 232 (formerly RS232), EIA 422 (formerly RS422), EIA 423 (formerly RS423) and
EIA 485 (formerly RS485).And It is also accord to UL1581,UL758 and UL444 test standard.
Conductor | copper / tinned copper wire |
Insulation material | PVC |
Sheath material | LSH |
Color | Gray |
Production range | - |
Core number | multi cores |
Part No. | No.of Cores | condcutor size | Screened | Outer Diamter | Sheath |
8760/PVC | 2 | 16/0.25mm TC | Aluminum foil | 5.6mm | PVC |
8760/LSF | 2 | 16/0.25mm TC | Aluminum foil | 5.6mm | LSF |
8760/LSZH | 2 | 16/0.25mm TC | Aluminum foil | 5.6mm | LS |

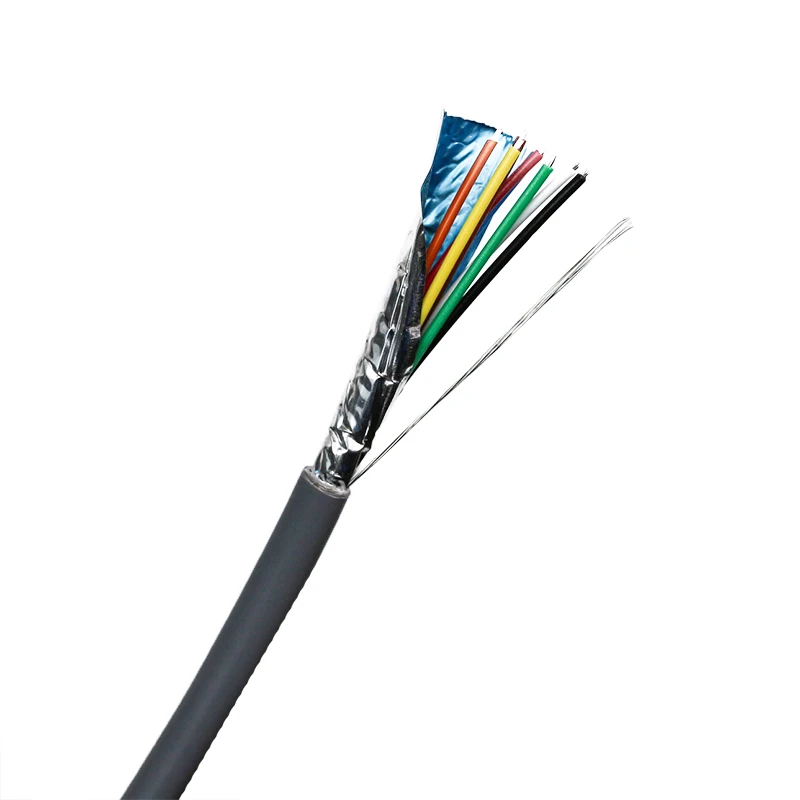

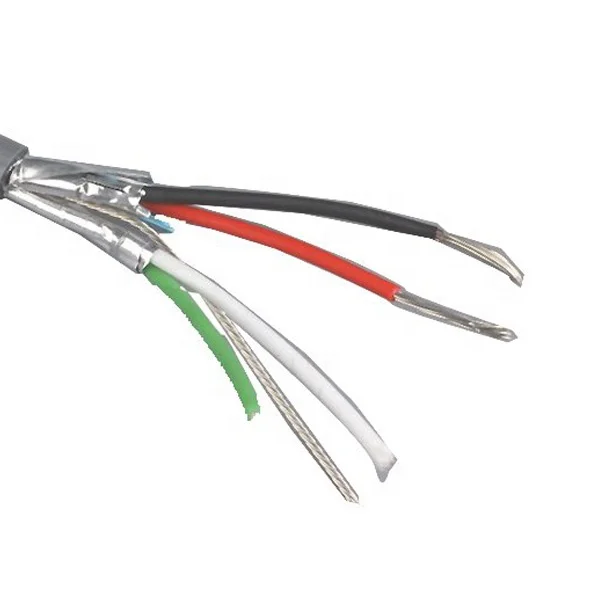

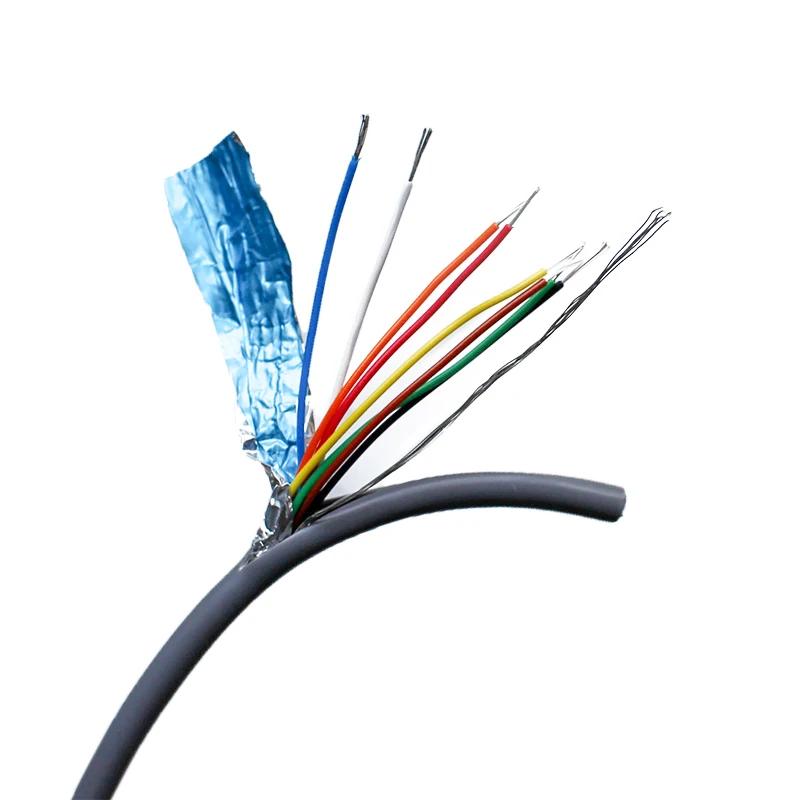

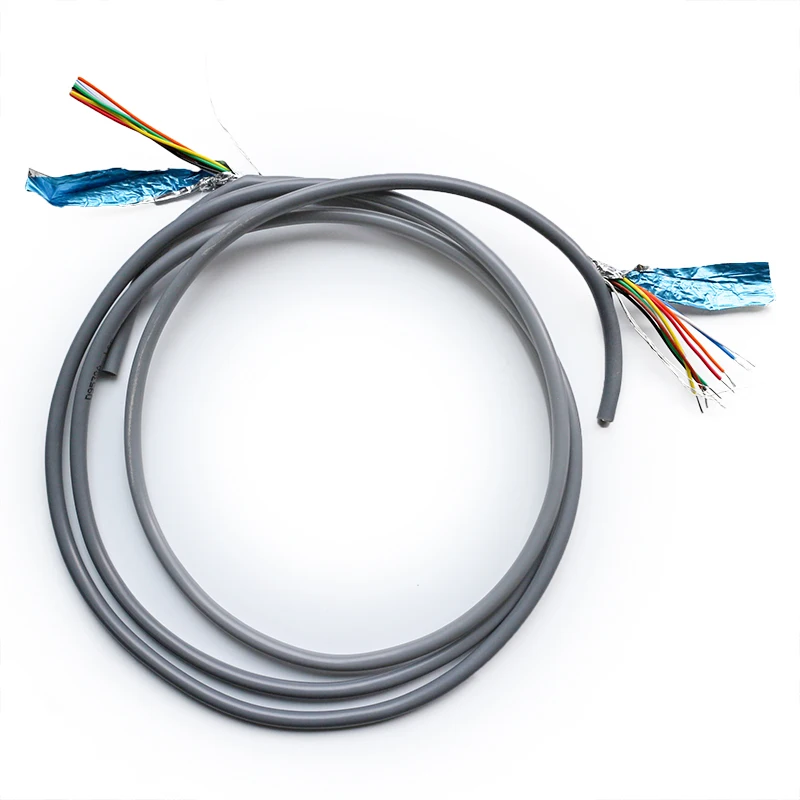

Productor Details
PS:Pictures are taken on the basis of physical objects to ensure authenticity.
Packing & Delivery
Packing
According to customer's requirements, Common packing methods:
Roll
Wrapping Film Plastic Sealing
with paper label
Plastic reel/spool
50meters/100meters/300meters
Wrapping Film Plastic Sealing
Carton box
High-grade packaging
Wrapping Film Plastic Sealing
Delivery
By Express, Logistics, Air, or Sea
