Product Overview

Description



Production Picture

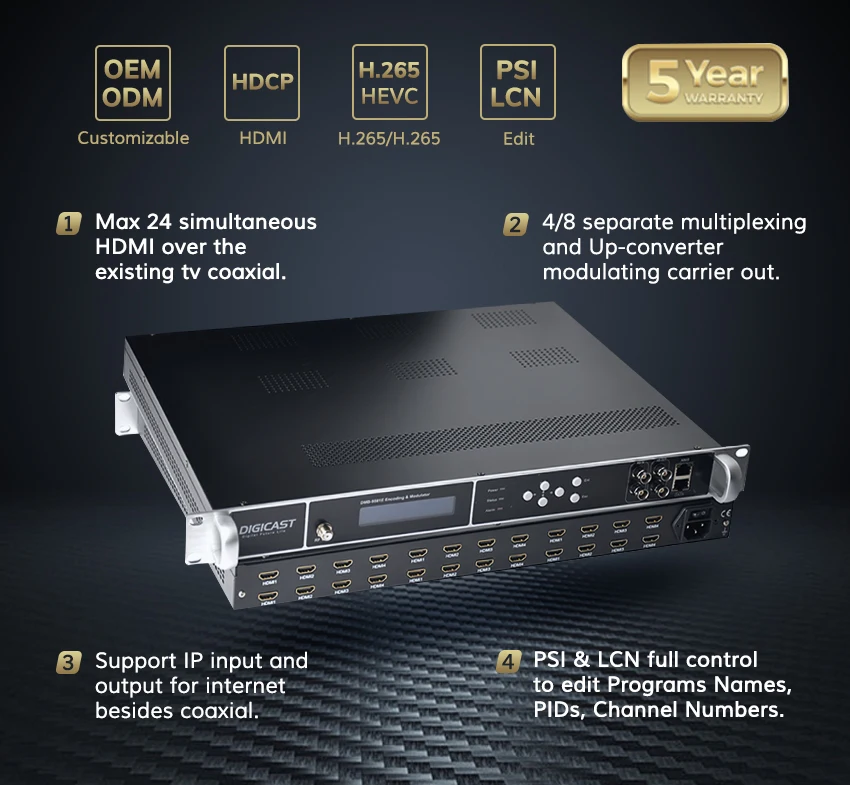

Convertes your HDMI to Digital RF to TVs
1: Plug-in-Play HDMI Video Distribution system, drives to unlimited TVs directly
2: Max 24 simultaneous hdmi over the existing tv coaxial

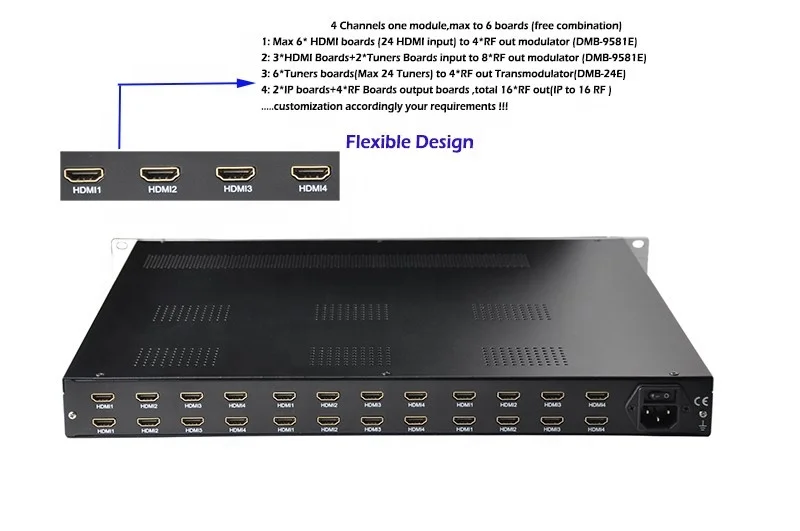

3: 4/8 separate multiplexing and Up-converter modulating carrier out
4: Support IP input and output for internet besides coaxial
5: PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers




Product Description


Features of HDMI to RF Modulator

Support modulation modules DVB-T, DVB-C, ATSC-T, DVB-S, ISDB-T/Tb and DTMB switchable from web
Support  H.264 HD video encoding

Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Support PID, PSI/SI compilation and LCN setting
Equipped with multiplexing module, able to multiplex local programs with external TS
Support TS over IP out, applied to IPTV applications.
Support IP empty packet filtering capability
Cut-off memory capability
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface

Features of HDMI to RF Modulator

Support modulation modules DVB-T, DVB-C, ATSC-T, DVB-S, ISDB-T/Tb and DTMB switchable from web
Support  H.264 HD video encoding

Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Support PID, PSI/SI compilation and LCN setting
Equipped with multiplexing module, able to multiplex local programs with external TS
Support TS over IP out, applied to IPTV applications.
Support IP empty packet filtering capability
Cut-off memory capability
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface



Specification
H.264 HD Encoding Module
Video input: 8/12/16/20/24 HD MI
Video compression standard: MPEG-2, H.264 HD video encoding
Resolution input : 1920×1080@60P, 1920×1080@60i,
1920×1080@50P, 1920×1080@50i,1280×720@60P, 1280×720@50P
720×576@50i,720×480@60i
output:  1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P,
720×576@25P,720×480@30P
Audio input: HD MI
Audio compression standard:
MPEG1 Layer II(default),(LC-AAC, HE-AAC optional)
Audio sampling rate: 48KHz
Audio bit-rate: 64 ~ 320kbps
ASI Input
Channel: 2*ASI
Interface: BNC, 75 ohm
Input bit-rate: ≤100Mb/s
Packet mode: Byte mode
Packet length: 188/204 Bytes
ASI output
Channel: 2*ASI(Independent)
Standard: compliant with EN 50083-9 ASI
Output loss: >10dB
Interface: BNC, 75 ohm
IP Output
TS over IP Outputs: 8*SPTS over IP(UDP/RTP/RTSP)
Support empty packet filtering
Interface: RJ45 (10/100M)
Output MODULATION MODULES (optional)
DVB-T Modulation
Channel: 4*DVB-T frequency
Modulation standard: EN300 744, EN304 744
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
FET mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥42dB
RF output frequency range: 30~960MHz, in 1KHz steps
RF output level: -30~10dBm (81~97dbµV), in 0.1dB steps
ACLR: 55dB
DVB-C Modulation
Channel: 4*DVB-C adjacent frequencies
Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan)
Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM
RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30 ~ 960MHz, in 1KHz steps
Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed
Out-of-band rejection: 55dB
Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M
ATSC-T  Modulation
Channel:  8VSB*4 adjacent frequencies
Modulation standard: ATSC A/53
Constellation: 8VSB
RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30~960MHz, in 1KHz steps
DTMB Modulation
Channel: 4*DTMB frequency
Modulation standard: GB20600-2006
Bandwidth: 8MHz
Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM
Qty. of modulation carriers: 1(single carrier) or 3780(multi-carriers)
Guard intervals: PN420, PN595, PN945
Internal error correction code: LDPC
Encoding efficiency: 0.4, 0.6, 0.8
Interlace depth: 240, 720
MER: ≥42dB
ACLR: 55dB
Frequency range: 110 ~ 960MHz, in 1KHz steps
RF out level: -26dBm ~ -10dBm, in 0.5dB steps
ISDB-T Modulation
Channel: 4*ISDB-T frequency
Modulation standard: ARIB STD-B31
Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k)
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8)
External code: RS (204, 188)
Guard interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 6MHz
RF output frequency range: 30 ~ 960MHz, in 1KHz steps
MER: ≥42dB
RF output level: -26dBm ~ -10dBm, in 0.1dB steps

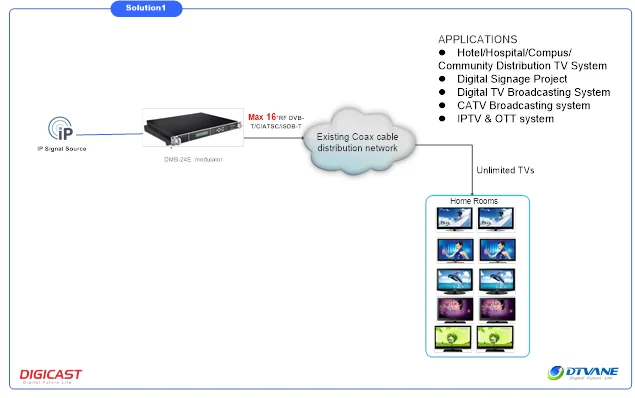

Application










Related Products


Customers who bought this product also bought


DMB-90E UP TO 24 CHANNELS PROFESSIONAL RECEIVER
* Powerful receiver with competitive price, supports up to 24 channels FTA tuners input, supports DVB-S/S2, DVB-C, DVB-T/T2, ATSC, IDSB-T/Tb, DTMB tuner
* Smart construct, support up to 6 module, supports 2*ASI input+480*IP(SPTS)/4*IP(MPTS)+2*ASI output, support RTSP, IPCAB
* .High tech, high quality,supports BISS encryption
* Amazing function, capable of multiplexing , support LCN, PSI/SI editing&inserting
DMB-8820E up to 24 channels HD HDMI Encoder
* Strong encoder with competitive price, supports up to 24 channels HDMI input
* Smart construct, supports up to 6 module, Input: 2*ASI(separate) + 4/8/12/16/20 and up to 24 Channel HDMI. Output: 2*ASI(one for backup) + N*IP(SPTS)+1*IP(MPTS). Capable of multiplexing.
*N=input channel
* High tech, high quality, support resolution up to 1080@60P, Built-in PCR capability
* Amazing function, Providing PSI/SI compilation and NIT, LCN insertion


DMB-9581E UP TO 24 CHANNELS HD Encoding&Modulator
* Powerful Encoding&Modulator with competitive price, all in one, supports up to 24 channels HDMI encoding, supports DVB-C, DVB-T/T2, ATSC, IDSB-T/Tb modulator module
* Smart construct, support up to 6 module, supports Input: * ASI(separate) + 4/8/12/16/20 and up to 24 Channel HDMI.Output: 2*ASI(one for backup) + 4*RF DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb +N*IP(SPTS)+1*IP(MPTS). Capable of multiplexing.(note: N==number of HDMI in)
* High tech, high quality,supports Lower power consumption and high reliability with
MTBF(Mean Time Between Failure) ≦87800 Hours
* .Amazing function, capable of multiplexing, PID, PSI/SI compilation and LCN setting
DMB-24E Tuner to RF
Input: 2*ASI(separate) + 128*IP(MPTS/SPTS) + FTA 8/12/16/20/24*Tuner in(DVB-T/T2, DVB-C, ATSC, DVB-S/S2, ISDB-T, DTMB for option) (Note: DVB-T/T2, ISDB-T/Tb only with 12*Tuner in).

Output: 4*RF DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb at same time(switchable from UI menu)+1*IP(SPTS/MPTS) + 2*ASI(one for backup). Capable of multiplexing.


DMB-24E IP to RF
IP & ASI to digital RF Modulator. Swappable module design.
Up to 20*RF output within one device.
Standard Modulation Output: 4*RF[DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb for option]. Providing 8*RF for option.
for IP to 4* ISDB-T /8*ISDB-T out, only 1*ASI input 1*ASI output
DMB-9004CIA
It equipped with 4*CI Slots with descrambling function which designed in 1U chassis, fully compliant with up to 4 independent tuners from DVB-T / T2, DVB-C, DVB-S / S2 demodulation standards for option. It also support 4*IP and 1*ASI input.




FAQ


Q4: What about your Warranty?

A4: All products has 5 years' warranty
whatever you ordered from our Agents or from us directly , as long as it is DIGICAST Brand,we offer original factory Warranty
and technical supports online/phone, repair services by our experienced after-sales specialist.

Service time: 9:00AM~23:59PM(GMT+8)

Q5: What is your Lead time and method of Shipment?

A5: we are factory ,adequate inventory, Generally delivery within 1-2 workdays after payment confirmed , all goods have to go through 100% QC testing and Aging

Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 3-6 workdays to your designated address



Q6: What's your Payment method supported?

A6: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc.



Q1:What is the application for your encoder

A1: Our Video to IP Encoder series designed for streaming the Video/Audio channels to Media Live Platform(Wowza/Ustream,Facebook...) and Servers

Best Partner for IPTV&OTT Project, also can be used for Live Applications Churchs, Schools, Classrooms, GYM, Airport, Business, Trains, homes, video conference and so on

Q2: Can I get some Samples for testing?

A2: Yes, sample order acceptable . Furthermore you can check the web management by remote, we can sending the testing TS files, pushing the streaming to your servers

Our professional engineers will offer the services according your testing requirements

Q3: Can you provide OEM service as per our request?

A3: Yes, DIGICAST as the original factory , our R&D department can realized function customization based on your project application .

also we offer Brand OEM services to global Agents &Clients

Please consult the sales for detailed requirements.
