4GE 2.4GHz/5GHz Dual Band AC 11 Wi Fi 1 VOIP CATV USB xPON ONU EPON GPON ONT
- Category: >>>
- Supplier: Ningbo Snow Sea Optoelectronic Technology Co. Ltd.
Share on (1600400417005):
Product Overview
Description

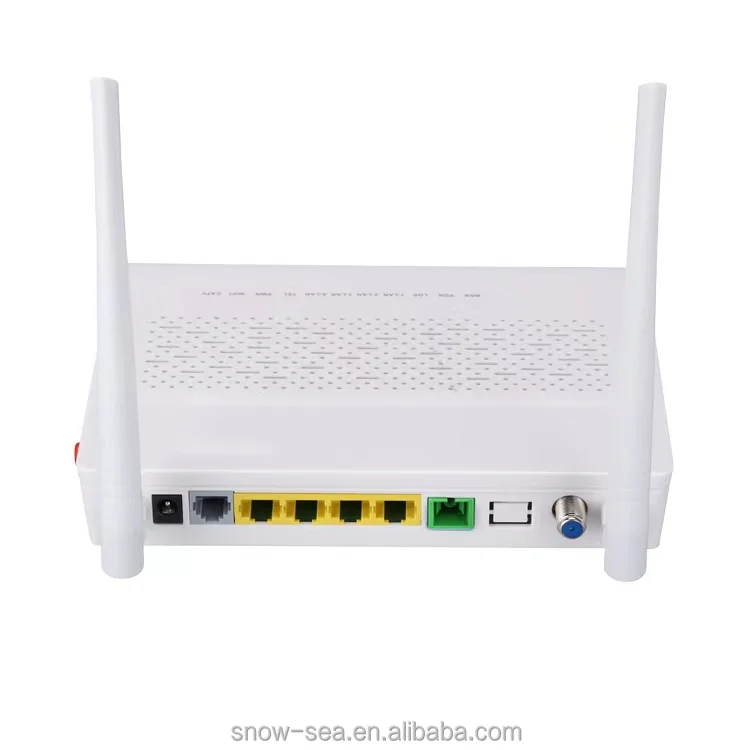

4GE+2.4GHz/5GHz Dual Band AC 11 Wi-Fi+1 VOIP+CATV+USB xPON ONU EPON GPON ONT
1,Product Overview
ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,ONU is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON REALTEK chipset and has high reliability, easy management,flexible configuration,robustness,good quality service guarantee(Qos).
This ONU supports WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac) concurrently ,a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.
ONU supports the G/E PON switching function automatically
ONU supports a RJ11 interface for VOIP applications application and one RF signal for TV.
2,Product Features
comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
support bidirectional FEC and RS(255,239) FEC CODEC
support 32 TCONT and 32 GEMPORT
support AES128 decryption function of G.984 standard
support SBA and DBA dynamically broadband allocation
support the PLOAM function of G.984 standard
support Dying-Gasp check and report
support synchronous Ethernet
good interworking with the OLT from different manufacturers,such as HuaWei ,ZTE,Cortina etc
down-link LAN ports: 4*10/100/1000M with auto-negotiation
support the rogue ONU alarm function
Support VLAN function
operation mode: HGU
support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI
antennas gain: 5DBi with external
support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac
support multiply SSID
Multiple encryption methods:WFA,WPA,WPA2,WAPI
one port for VOIP,support SIP protocol optional
comply fully with IEEE802.3ah standard and CTC-3.0 specification
one RF port for TV application
3,Basic Characteristics
Indicator LED | 10 pcs,refer to NO.6 definition of indicator LED |
DC supply interface | input+12V 1A,footprint:DC0005 ø2.1MM |
Power | ≤7W |
Operating temperature | -5~+55℃ |
Humidity | 10~85%(non-condensation) |
Storage temperature | -30~+70℃ |
Dimension(MM) | 185*125*32mm(mainframe) |
Weight | 0.5Kg(mainframe) |
WIFI characteristics
Tech features | description |
antenna | 2T2R Mode; gain:5dBi |
rate | 300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5 |
encryption methods | WFA,WPA,WPA2,WAPI |
Tx power | 17dBm for 2.4GHz ;19dBm for 5GHz |
Rx sensitivity | WIFI4:-59dBm @ channel 11 MCS7; WIFI5:-50dBm @ channel 155 AC80; |
WPS function | Support |
VOIP Technical features
Tech features | description |
Voltage and Current Monitoring | The continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
protocol | Protocol : SIP; Codec type selection :G722,G729,,G711A,G711U, FAX:T38; |
Thermal Overload Shutdown | If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down |
CATV Technical features
Tech features | description |
Optical wavelength | 1100~1650nm(Dual Fiber,NO PWDM) 1540~1560nm(Single Fiber,internal PWDM component) |
Optical input range | 0~-15 DBm |
Optical return loss | ≥45 DB |
Bandwidth | 45~1000 MHz |
Flatness | 1 DB |
RF output level | ≥72 dBuv |
AGC control range | 0~-14 DBm |
RF Output return loss | ≥14 DB |
Output impedance | 75Ω |
CNR | ≥50 DB |
CTB | ≥60 DB |
CSO | ≥60 DB |
4,Ordering information
Item name | Mode NO. | Suffix of Mode NO. |
ONU:4LAN+2WIFI+VOIP | XPON | 4GE-2.4G&5GWIFI-POTS |
ONU:4LAN+WIFI+VOIP | XPON | 4GE-2.4GWIFI-POTS |
ONU:4LAN+2WIFI | XPON | 4GE-2.4G&5GWIFI |

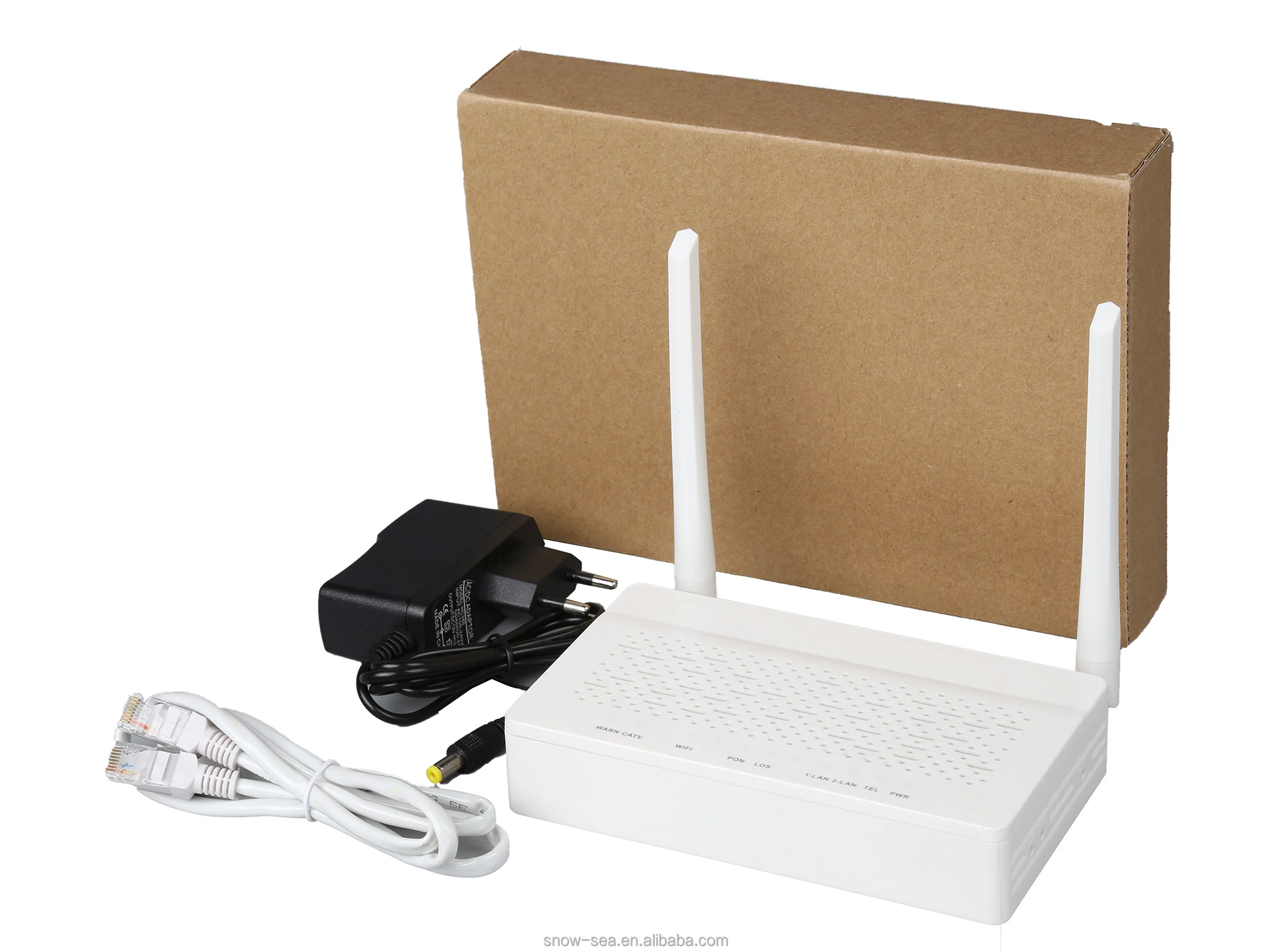

5,Packing list
Name | Quantity | Unit |
XPON ONU | 1 | pcs |
supply power | 1 | pcs |
Manual & warranty card | 1 | pcs |
