single channel real time imaging water detector 300 meters depth
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Shanghai,Aidu,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
300M Depth Underground Water Detector 300SX Series
Our company has more than 40 years of R & D history, has obtained dozens of invention patents, and has been supported by science and technology innovation funds such as the Ministry of science and technology, Shanghai Municipal Science and Technology Commission, Minhang District Economic Commission and other science and technology innovation funds. It is a national high-tech enterprise and a specialized, special and innovative enterprise in Shanghai. It has passed the iso9001:2015 quality management system certification.

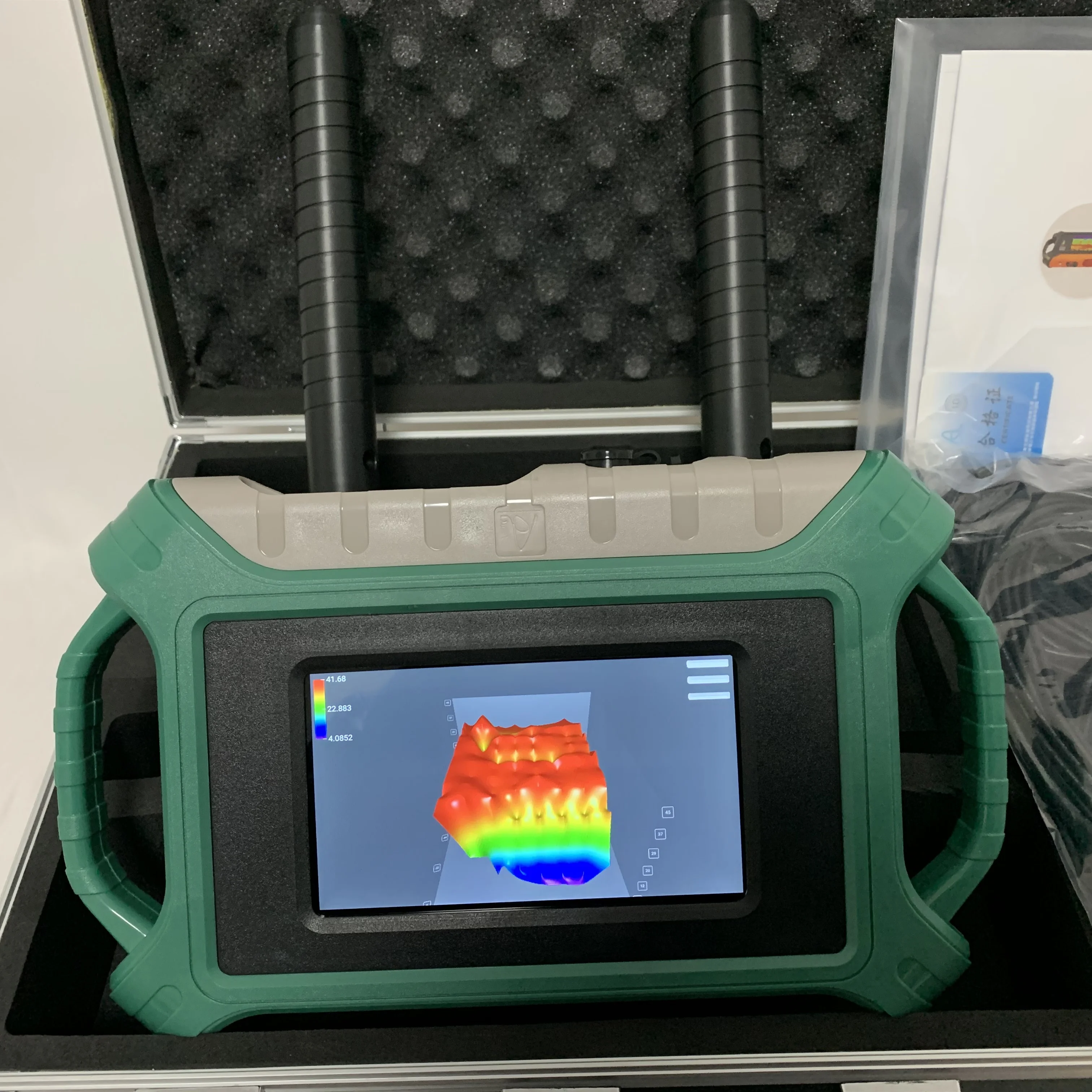

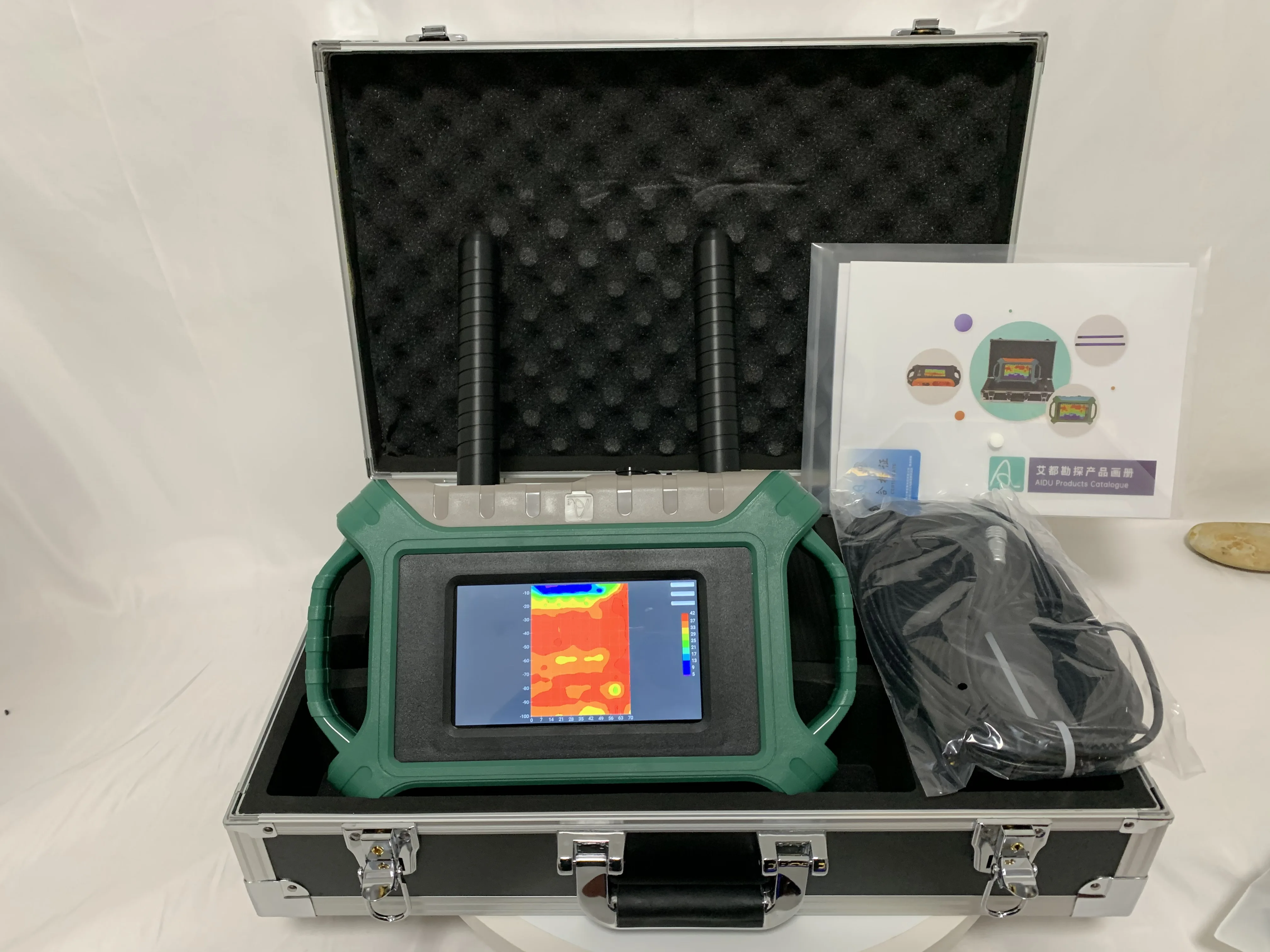

Product display

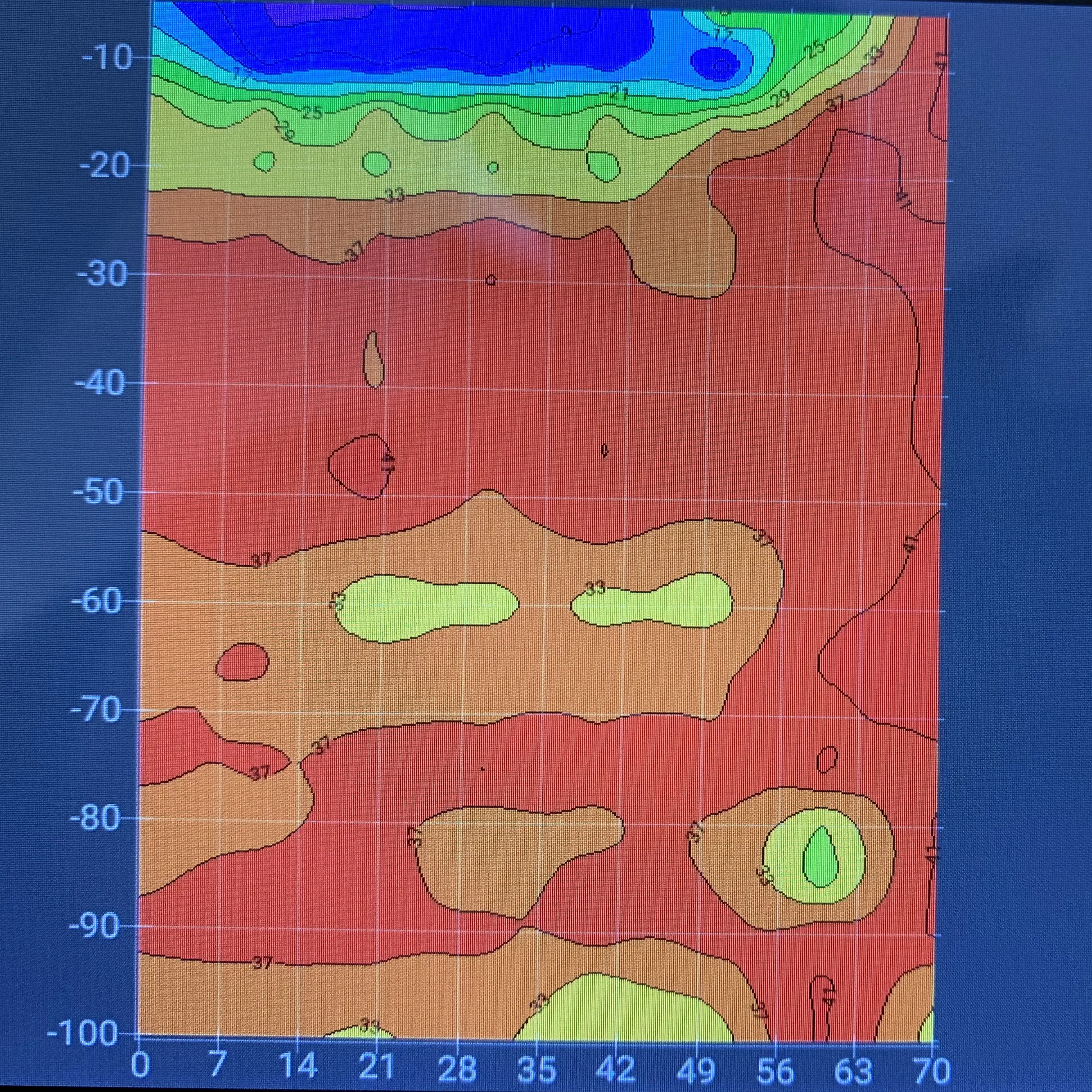

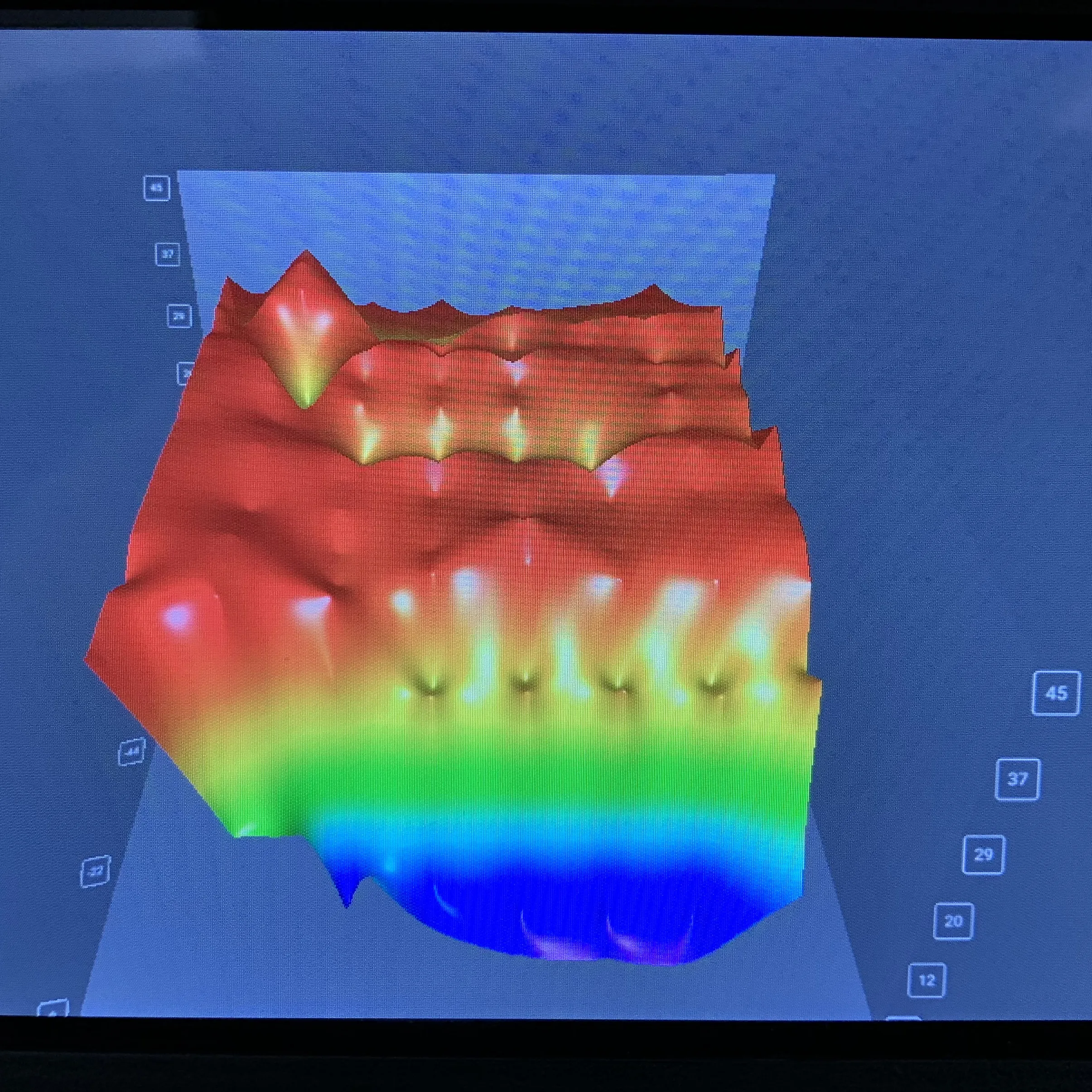

2D Drawing And 3D Drawing
| Parameters / Model | ADMT-300S-X | |
| Maximum depth (m) | ≤300 | |
| Optional depth | 100/200/300 m | |
| Connection method | Serial port, Wifi, bluet*oth 4.0, USB (optional 4G communication) | |
| Display screen | 7-inch IPS wide-angle 178° visible touch screen | |
| operating system | Android 6.0.1 | |
| CPU | ARM Cortex-A7 (AD24 bit 1Msps) | |
| The main function | Optional depth, real-time 2D/3D drawing, removable battery | |
| Measurement mode | MN/TT | |
| Measuring range | ±5V | |
| Frequency range (HZ) | 1-8K | |
| Frequency selective filtering | Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times overlay optional | |
| Resolution | 0.1mV±5% | |
| Sampling time (seconds) | 40-280 | |
| Battery power consumption | 600mA/H | |
| Host weight | 2.3kg | |
Customers visit and use the site:
