Wholesaler reci fiber laser source 1000w laser equipment as RECI laser

Share on (1600400583271):


Price:$2,145.00

Quantity:


Product Overview

Description



Product Description


Wholesale high quality laser fiber source 1000w fiber laser source max laser fiber source

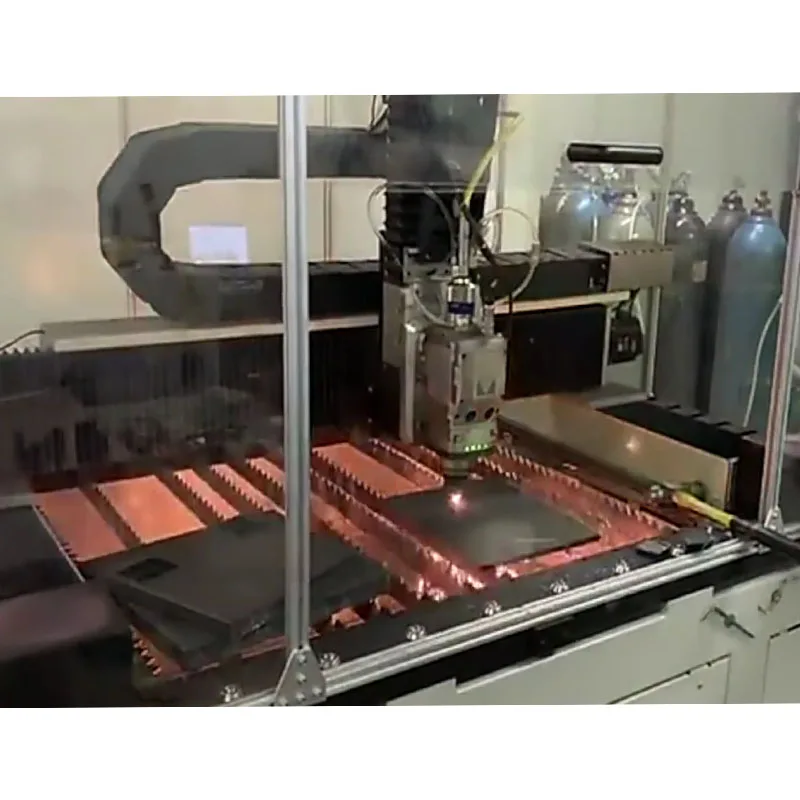

FSC series high-power single-mode continuous-wave fiber laser is developed and produced by Beijing Reci Laser Technology Co., Ltd. The average power exceeds 4000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.

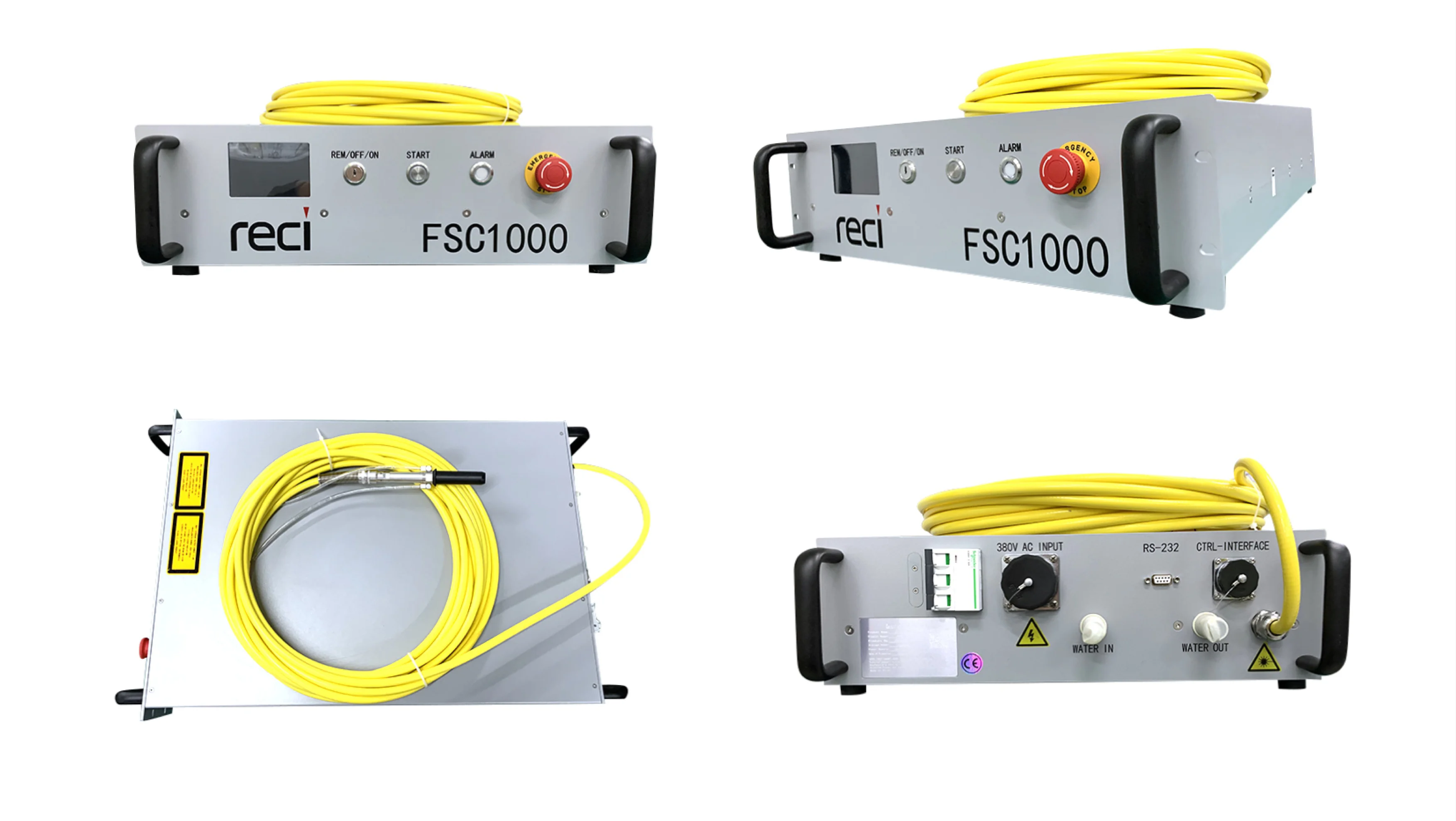

MODEL

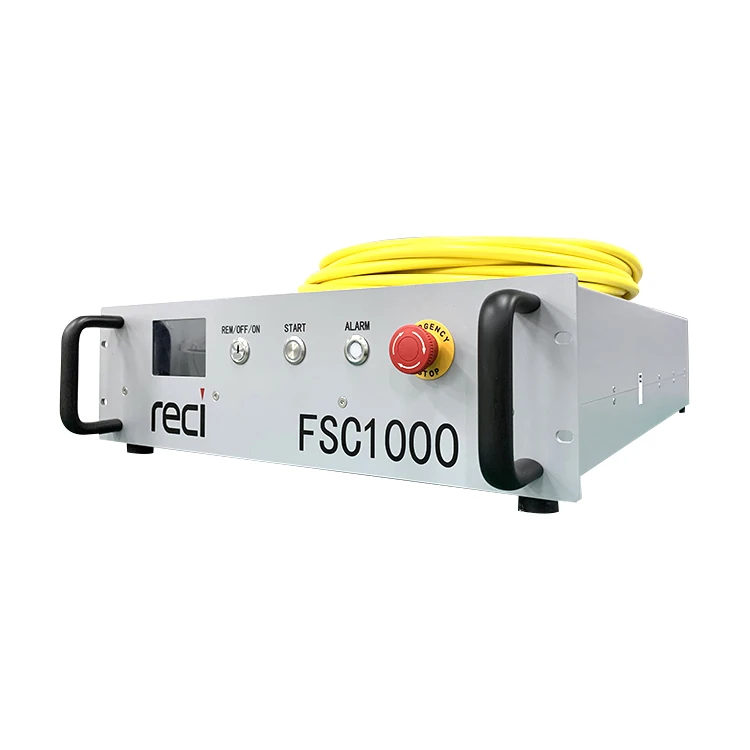

FSC1000

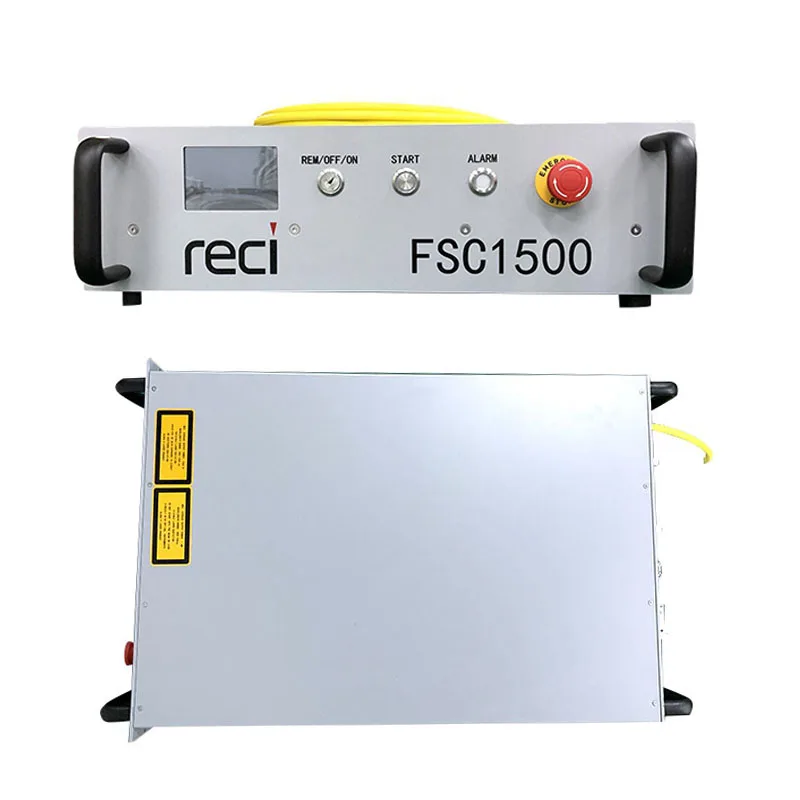

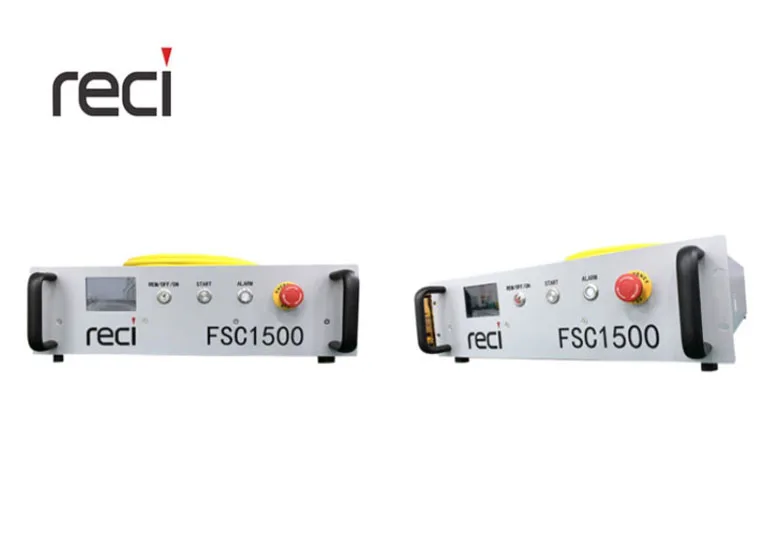

FSC1500



FSC2000



FSC3000



Output Power (W)



1000



≥1500



≥2000



≥3000



Operating Mode



CW/Modulate



Power Range (%)



10~100



Central Wavelength (nm)



1080±3



Max. Modulation Frequency (kHz)



20



Beam Delivery Optics



QBH



Output Fiber Diameter (μm)



20 or 50



30 or 50



50 or 100



Beam Quality M2



<4



<9



<13



Delivery Fiber Length (m)



15



20



20



Operating Voltage (VAC)



AC 220V 50/60Hz



AC 380V 50/60Hz



Control Mode



Ext. RS 232/Ext. AD/Hyper terminal



Dimensions W×H×D (mm3)



483×147×754



483×147×804



483×147×928



Weight (kg)



<55



<60



<75



<80



Ambient Temperature (℃)



5~40



Ambient Humidity (%)



<70



Cooling Method



Water cooling



QBH Cooling Water Temperature (℃)



Room temperature (No condensation)



Cooling Water Temperature (℃)



25 (28 in summer)



Cooling Water Flow with load(L/min)



>10



>15



>20



>30












More Products





















Product Line








Our Company




Certification








Exhibition








Packaging&Shipping








FAQ


Q: I want to customize the Fiber diameter. Can you do it?


A: Yes, we can do 20/30um for FSL1000 and 30/50um for FSC1500 and FSC2000. You can text me if you have other special requirements.





Q: Can you do OEM Fiber Lasers?


A: Yes, if you meet the requirements, we can do some OEM for you.





Q: How can I clean when the laser tube lens polluted?


A: Blow the lens surface obliquely with balloon. If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate the lens. No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas inside escaping. The laser cannot be used till alcohol evaporating.





Q: How can I store the laser tubes when I do not use it?


A: The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%.
