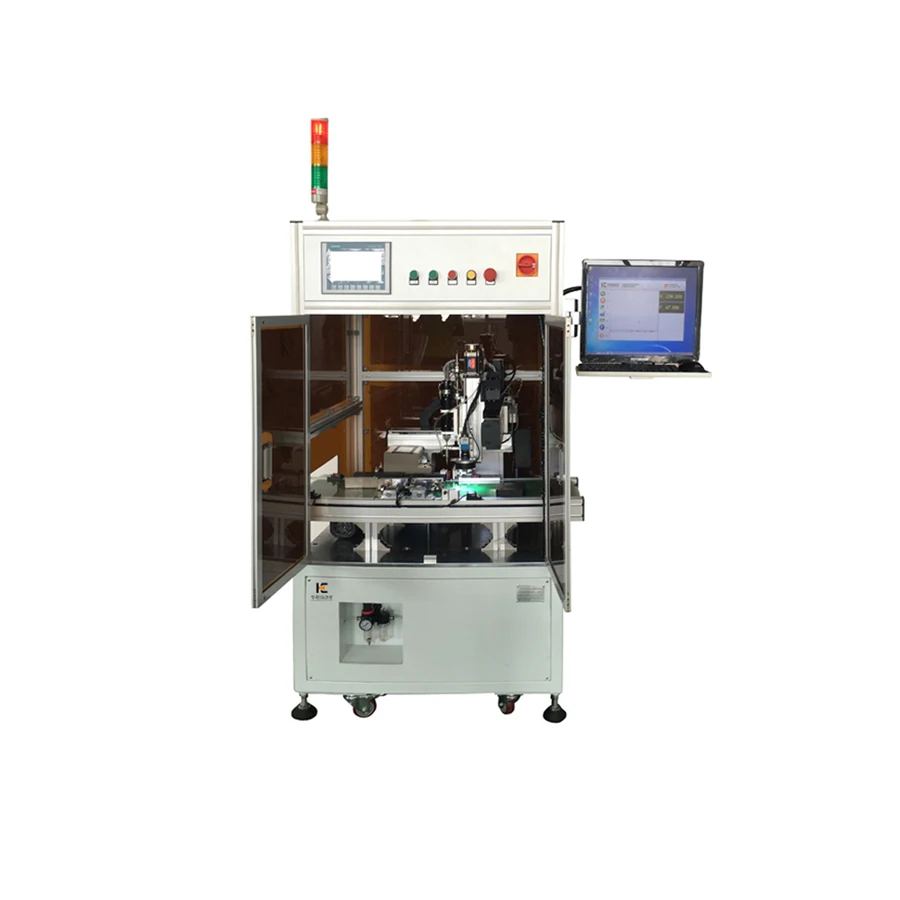

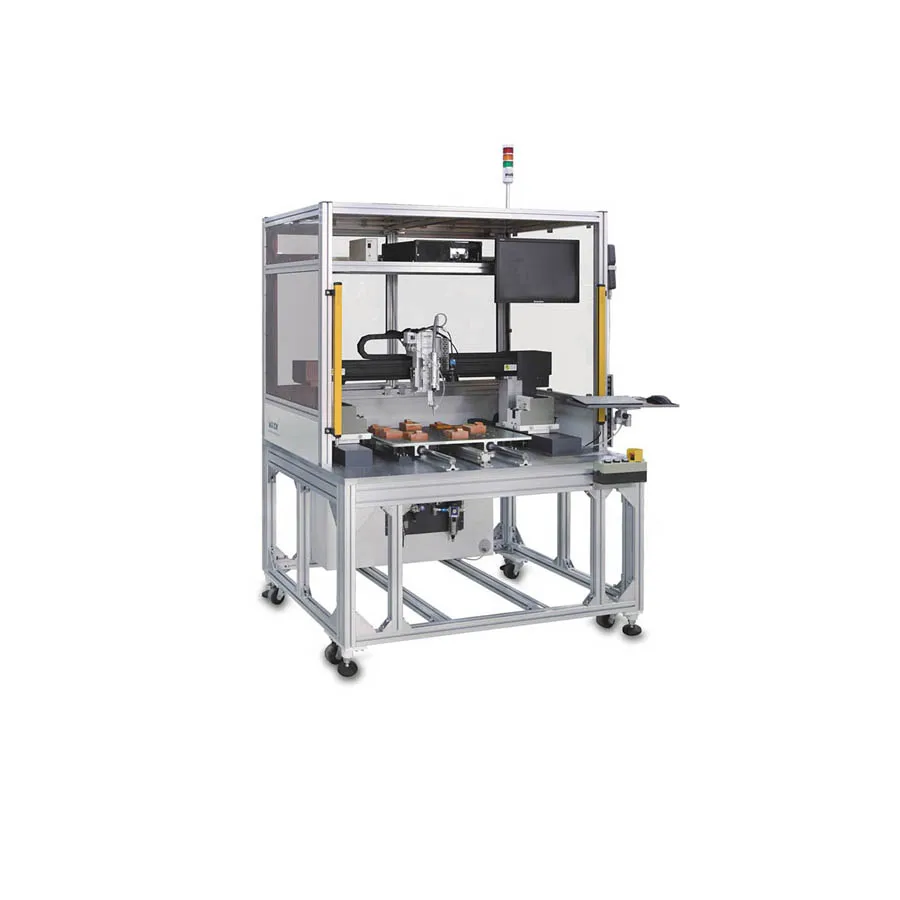

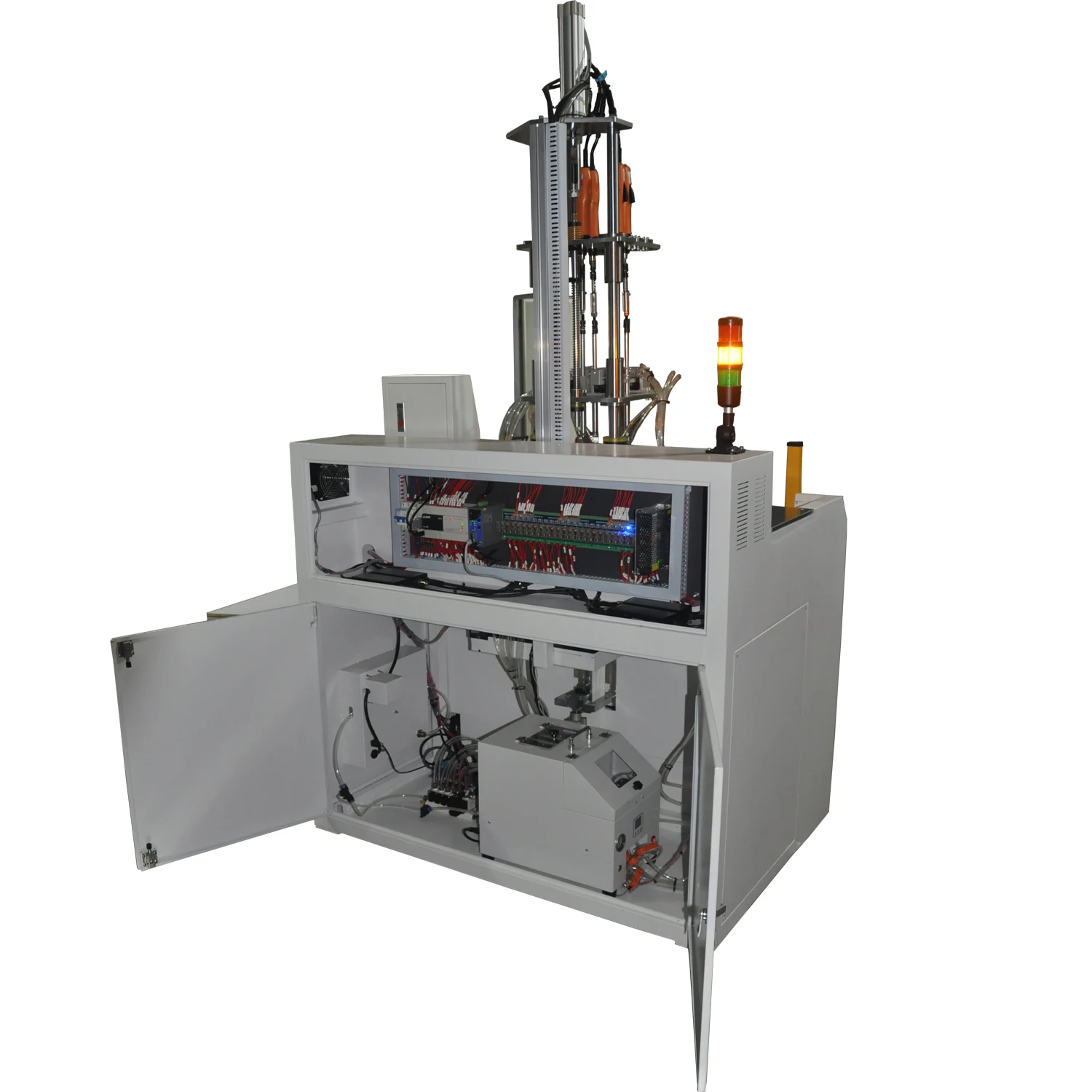

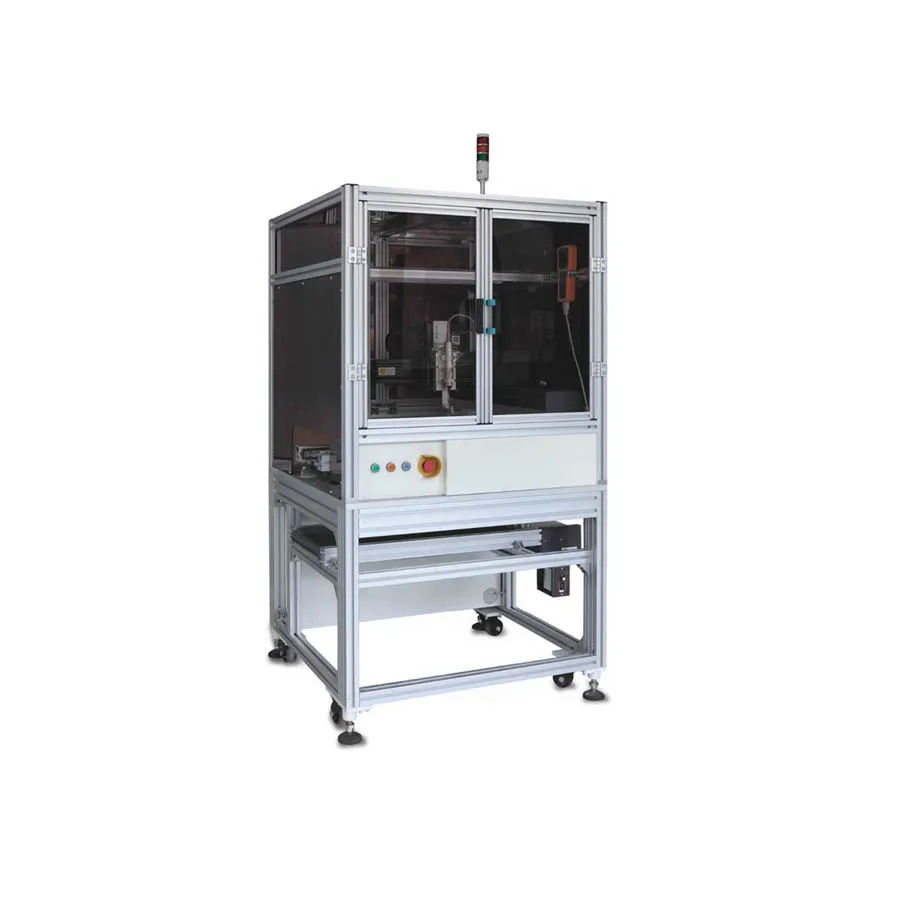

  • Customize automatic rotary table screw tightening machine with robot
Customize automatic rotary table screw tightening machine with robot
Customize automatic rotary table screw tightening machine with robot
Customize automatic rotary table screw tightening machine with robot
Customize automatic rotary table screw tightening machine with robot
Customize automatic rotary table screw tightening machine with robot
Customize automatic rotary table screw tightening machine with robot

Customize automatic rotary table screw tightening machine with robot

Share on (1600400620247):


Price:$4,200.00 - $6,000.00

Quantity:


Product Overview

Description



Product Overview


Factory custom auto feeding screwdriver for different application

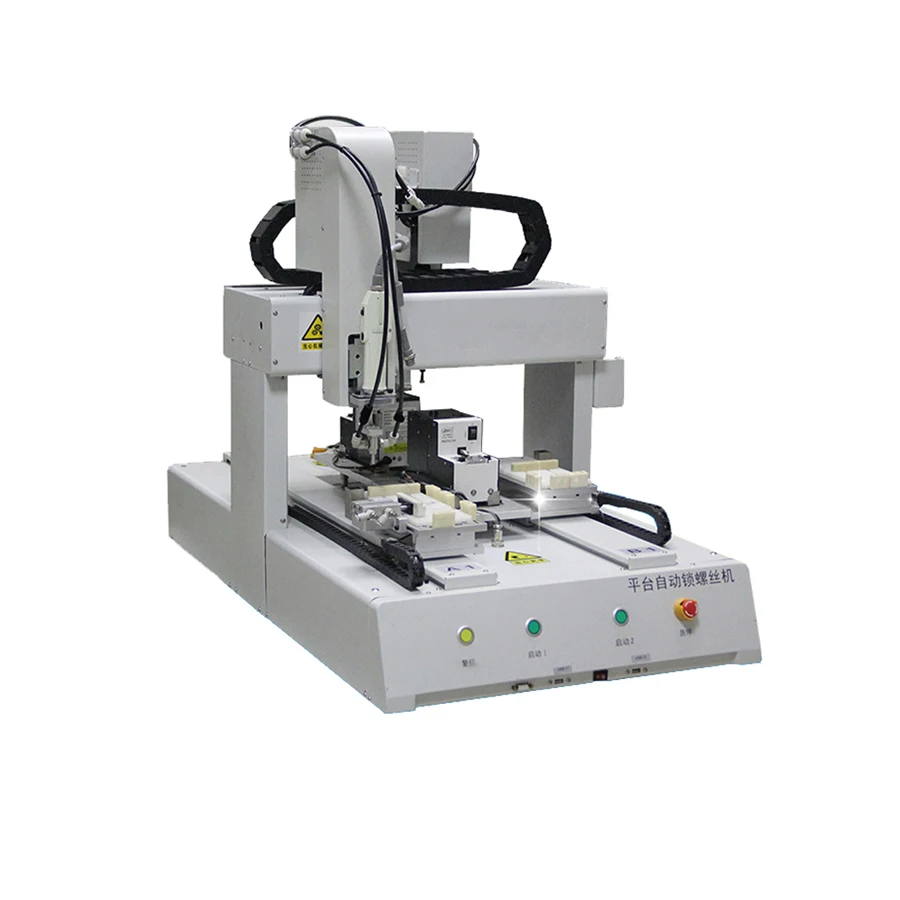

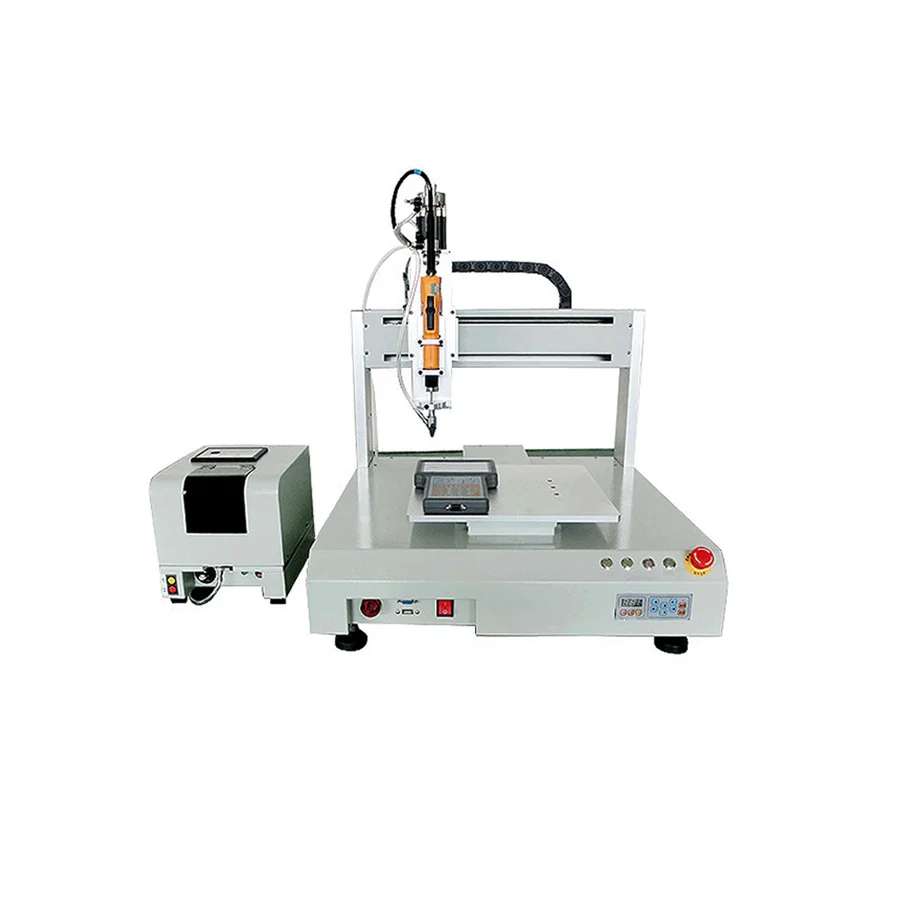

Table blow type automatic locking machine is designed to lock the screws automatically according to the preset coordinate. Extra fastening devices can be added to axis Z to lock several products at the same time. When changing to another work piece, only need to modify the fastening coordinates. Easy for operation and low cost needed.




FEATURES AT A GLANCE


1.It can fasten several screws per cycle and save more labors. Axises can be added.
2.Loading and unloading are performed manually. Screw fastening quality will be identified automatically.
3.Universal and small size, easy to change products and can work with flow lines together.
4.Reducing the operator s intensity saving time and energy.
5.Screw feeding detection function provided, to ensure the fastening quality.
6.Flexible and universal. Can change fastening kits to adapt to different screws.
7.Easy to operate. The operators can get the operation and commissioning skill quickly.
8.With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
9.Accurate torque and reliable fastening quality consistence.
10.High efficiency and more fastening devices can be added for locking several products at the same time.


PRODUCT SPECIFICATIONS





      Machine  construction
The gross weight
Data
About 100KG
1
Dimension
37.5KW
190*80*60cm
2
Voltage
2.8 M3
AC 100V 230V50~60HZ
3
Power
125Ton
300W
4
Frame
96kN
Steel plate, Aluminum frame
5
Ambient temperature
96kN
-20~40C


     Control instructions
Main Program
60kN
PLC
7
Machine start
6750ml
Manual & Auto optional
8
Interface
500N.m
Touch screen
The I/O signals
8 INPUT / 8 OUTPUTS
    Speed and accuracy
Positioning accuracy
X,Y:+/-0.08mm; Z: +/-0.01mm
Running speed
600mm/sec(X-Y)
   Screw feeding machine
Automatic feeder
Reliatronic feeder

     Range of application
X &Y Working Range
25 &40 mm adjustable
Z Working Range
15mm

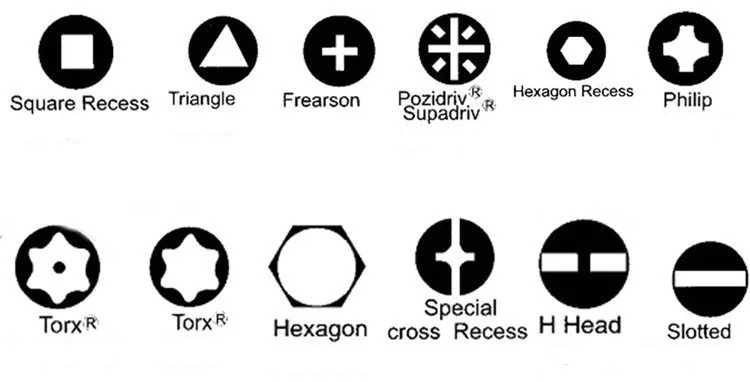

Screw model Application
