factory supplier reci fiber laser source 1000W 1500W 2000W 3000W laser parts equipment
- Category: >>>
- Supplier: Zhejiang Reci Laser Technology Co. Ltd.
Share on (1600401006602):
Product Overview
Description
Product Description
MODEL | FSC1000 | FSC1500 | FSC2000 | FSC3000 | |
Optical Specification
| Output Power(W) | ≥1000 | ≥1500 | ≥2000 | ≥3000 |
Operating Mode | CW/Modulate | ||||
Power Range (%) | 10~100 | ||||
Central Wavelength (nm) | 1080±3 | ||||
Max. Modulation Frequency (kHz) | 20 | ||||
Beam Delivery Optics | QBH | ||||
Output Fiber Diameter (μm) | 20 or 50 | 30 or 50 |
50 or 100 | ||
Beam Quality M2 | <4 | <9 | <13 | ||
Delivery Fiber Length (m) | 15 | 20 | 20 | ||
Operating Voltage (VAC) | AC 220V 50/60H | AC 380V 50/60Hz | |||
Control Mode | Ext. RS 232/Ext. AD/Hyper terminal | ||||
| Ambient Temperature (℃) | Dimensions W×H×D (mm3) | 483×147×754 | 483×147×804 | 483×147×928 | |
Weight (kg) | <55 | <60 | <75 | <80 | |
Ambient Temperature (℃) | 5~40 | ||||
Ambient Humidity(%) | <70 | ||||
Cooling Method | Water cooling | ||||
QBH Cooling Water Temperature (℃) | Room temperature (No condensation) | ||||
Cooling Water Temperature (℃) | 25 (28 in summer) | ||||
Cooling Water Flow with load(L/min) | >10 | >15 | >20 | >30 | |

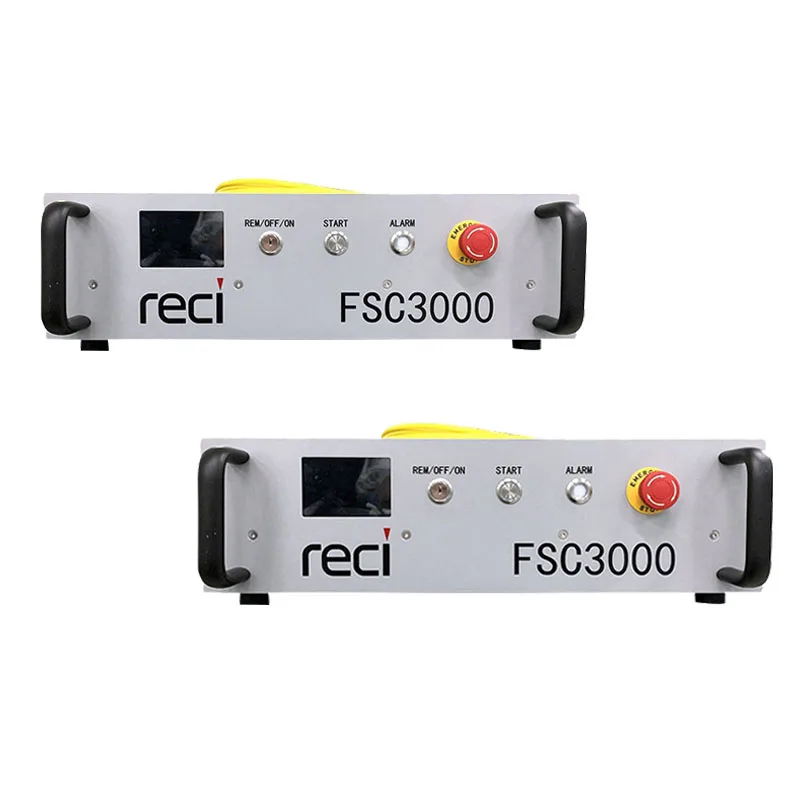

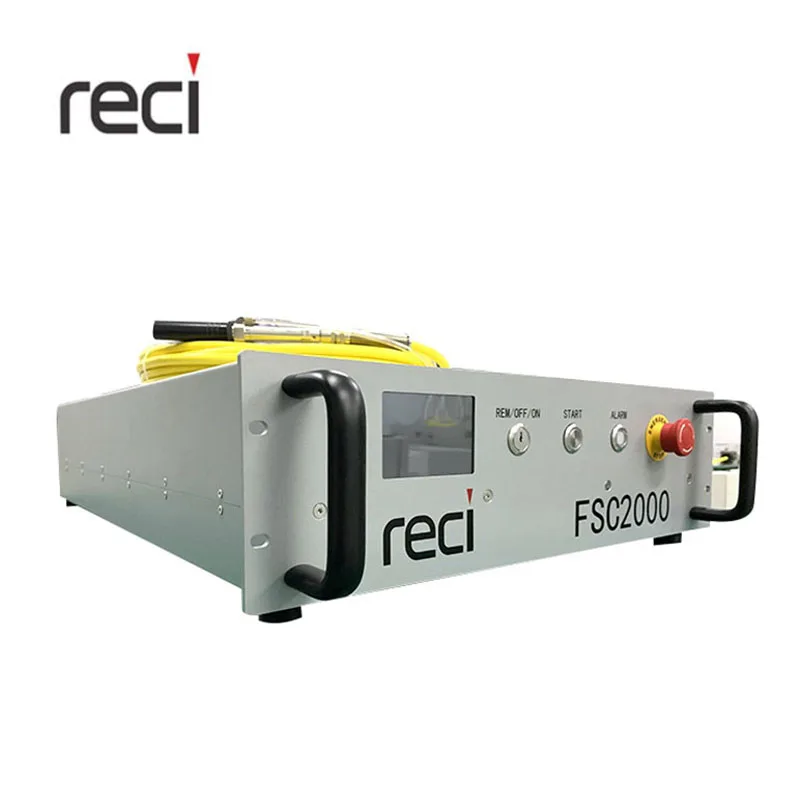

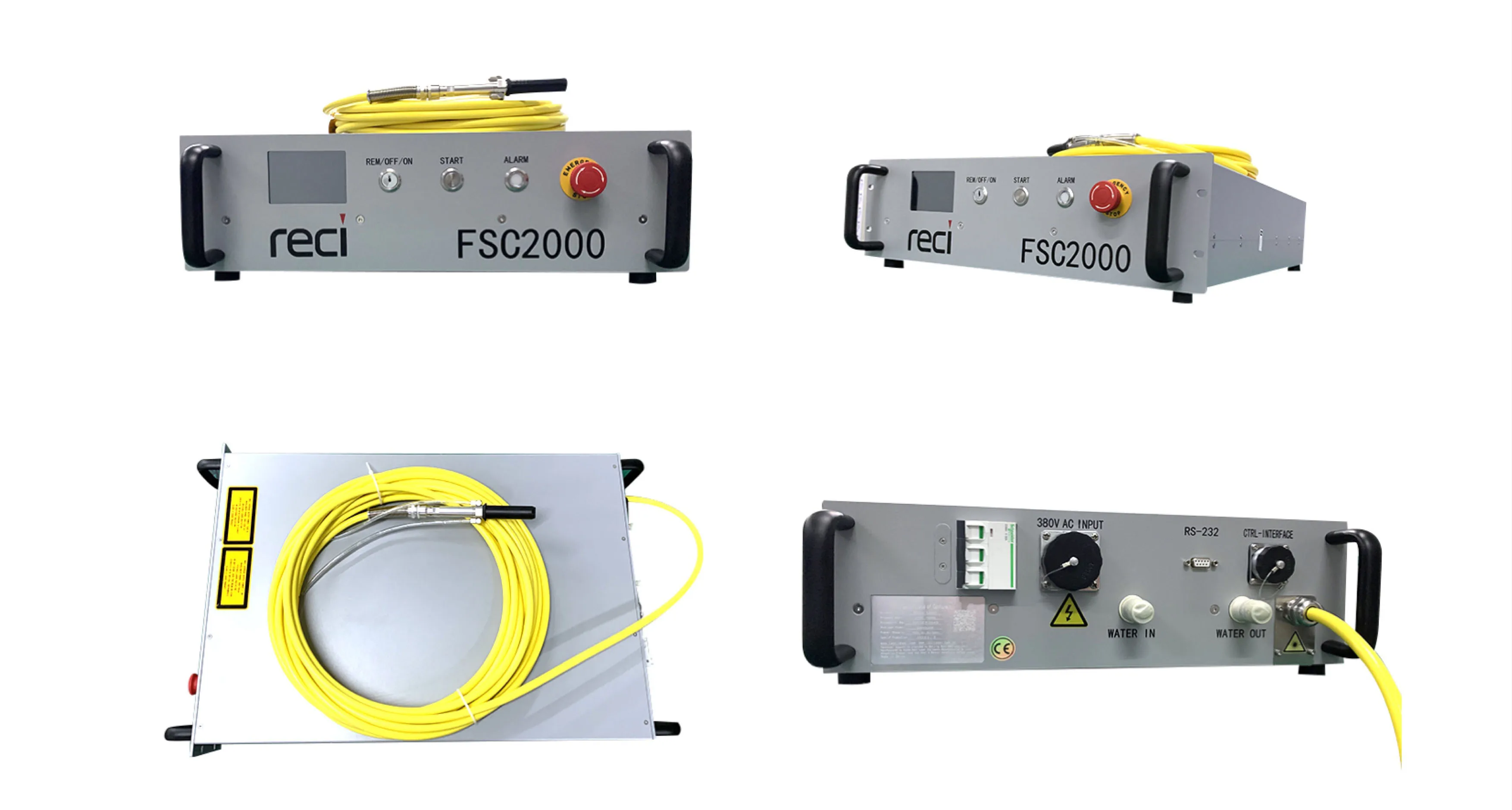

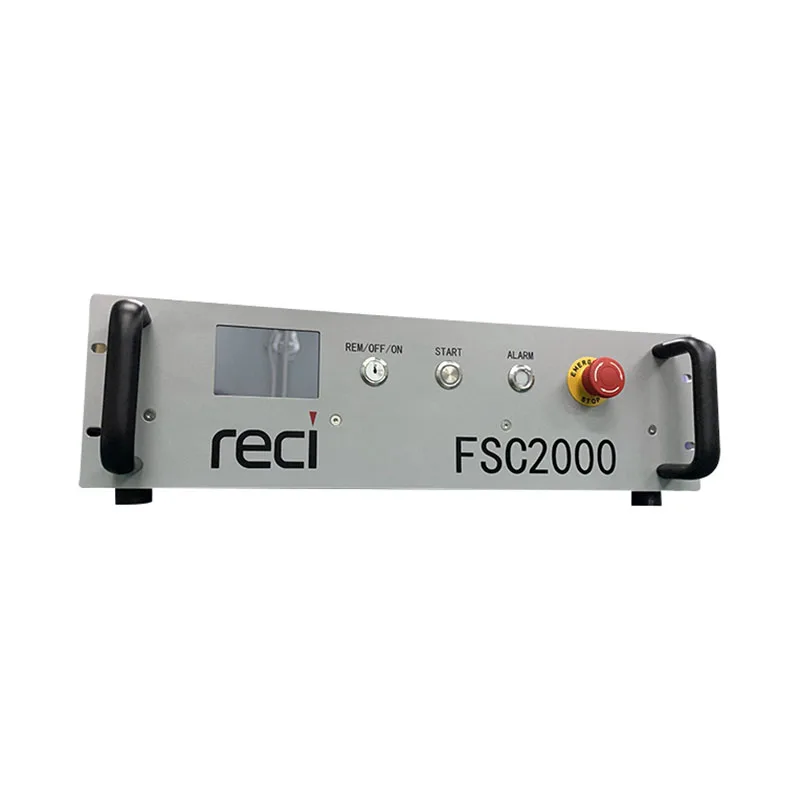

Fiber Laser Source
FSC series high-power single-mode continuous-wave fiber laser is developed and produced by Beijing Reci Laser Technology Co., Ltd. The average power exceeds 4000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.
More Products
Product Line
Our Company
Certification
Exhibition
Packaging&Shipping
FAQ
Q: Does it similarly as Rofin Rf Metal Laser?
A: Yes, We have the power from 100W to 700W.
Q: I want to customize the Fiber diameter. Can you do it?
A: Yes, we can do 20/30um for FSL1000 and 30/50um for FSC1500 and FSC2000. You can text me if you have other special requirements.
Q: Can you do OEM Fiber Lasers?
A: Yes, if you meet the requirements, we can do some OEM for you.
Q: How can I clean when the laser tube lens polluted?
A: Blow the lens surface obliquely with balloon. If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate the lens. No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas inside escaping. The laser cannot be used till alcohol evaporating.
Q: How can I store the laser tubes when I do not use it?
A: The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%.
