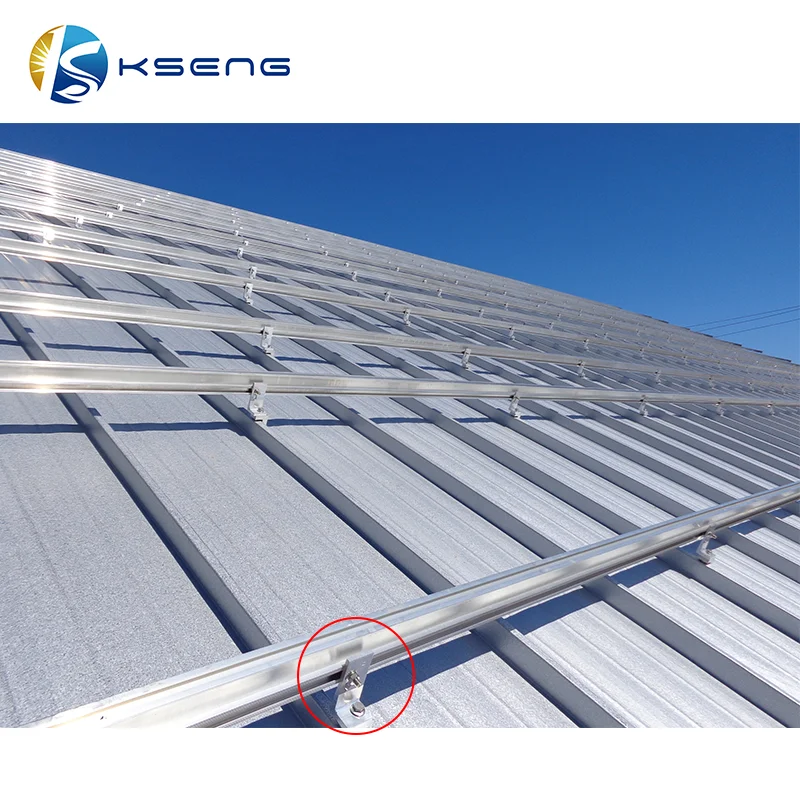

Aluminum Alloy Solar Tin Roof Mounting Structure Components L Foot Solar Pv Metal Roof Panel Mounting L Feet
- Category: Solar Related Products >>>
- Supplier: Xiamen,Kseng,Metal,Tech.,Co.,Ltd.
Share on:
Product Overview
Description
Aluminum Alloy Solar Tin Roof Mounting Structure Components L Foot Solar Pv Metal Roof Panel Mounting L Feet
Specification

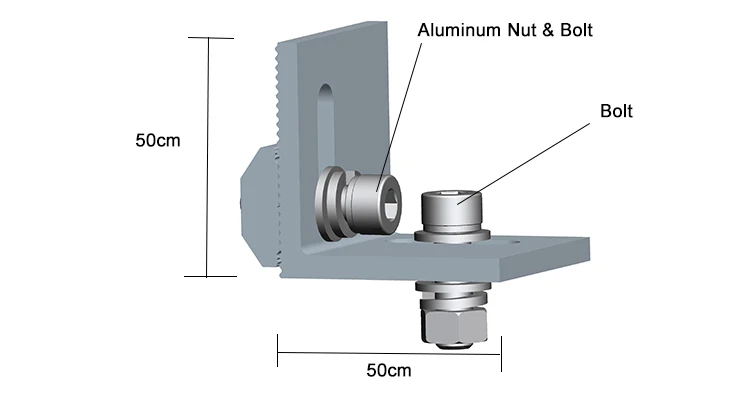

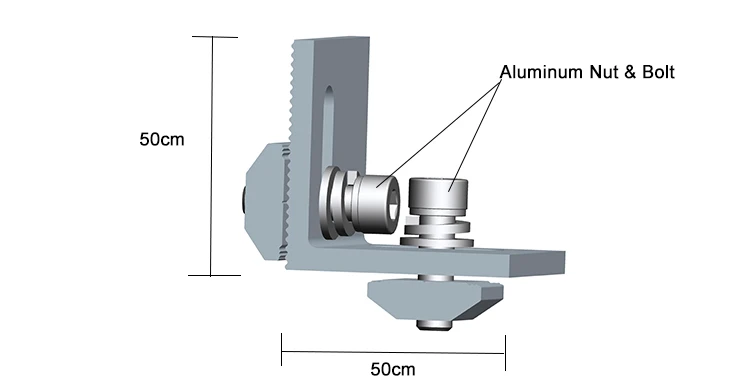

Product Name | L foot accessory |
Model Number | RL-0005/RL-0007/RL-0008/RL-0013 |
Material | Aluminum 6005-T5 & SUS 304 Stainless Steel |
Size | 50*80cm / 50*50cm/ Custom |
Max Wind Speed | Up to 60 m/s (214KM/H) |
Snow Load | Up to 1.4KN/M2 |
Application | Roof solar mounting |
Warranty | 10 Years |
Service Life | 25 Years |
Certification | ISO9001/ CE/ SGS etc. |
Standard | AS/NZS 1170 |
Installation Detail
Drill a hole in the right position as planned, install the EPDM rubber and L-bracket, then screw the bolt into the wooden beam below.
Section of L-bracket after installation. Please be careful during installation, not destroy the steel below.
Mount the clamp and L-shaped bracket to the roof rail. confirm and tighten the bolts. Both rails must be on the same level.
The module is secured to the roof rail by end clamps. As shown on the right. First, the panel is placed flat on the rail, then the rail clip is snapped into the rail slot and finally the end clamp kit is installed.
Portrait solar panel, Solar panel Length(should check the solar panel install instruction). Landscape solar panel, solar panel width.
Title goes here.
L-bracket horizontal spacing can be up to 2m. L- bracket upward spacing is about 1/2 or 3/4 the length of solar panel. Spacing between solar panel:18mm.

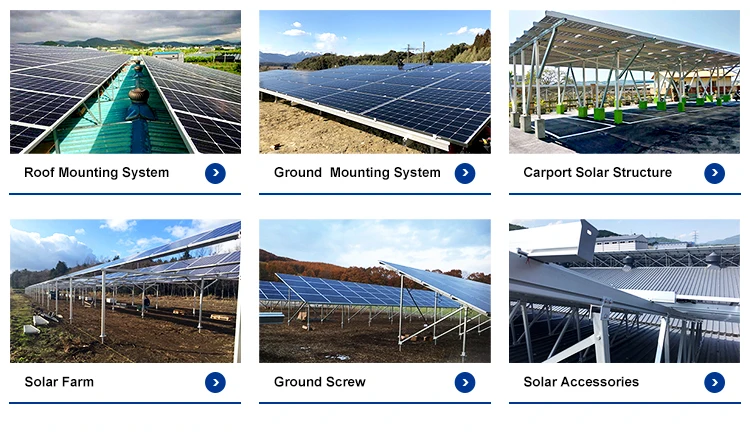

Project Case
Certifications
Production Process
Product Categories

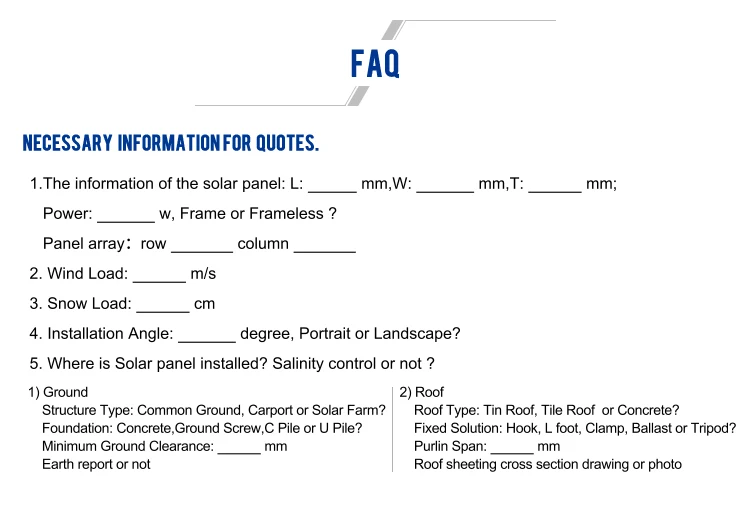

FAQ
